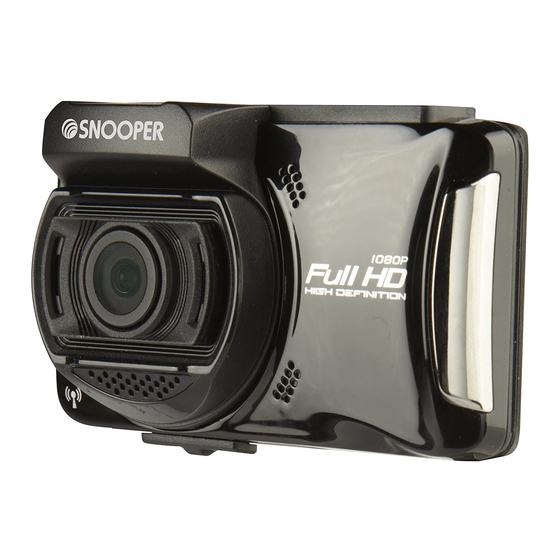

  • Page 1 DVR-4 HD Vehicle Drive Recorder with Speed Camera Detection User manual EN • 1...

  • Page 2: Table Of Contents

    Using the Menu Initial Settings Menu Items 2.6.1 Set Automatic Record Installing the Software 2.6.2 Set the Date / Time Snooper DVR Application Specifications 2.7.1 Application installation Updating speed trap data 2.7.2 Wi-Fi connecting Using the DVR-4HD Recording Videos EN • 2...

  • Page 3: About This Guide

    About this Guide The content in this document is for information purpose and is subject to change without prior notice. We made every effort to ensure that this User Guide is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred. The manufacturer reserves the right to change the technical specifications without prior notice.

  • Page 4: Battery Warning

    Set up time and date accurately before you use this device. Please use Snooper DVR software in condition that Google Map is function normally. The firmware function in the device is for reference only, please follow the actual road condition.
  • Page 5 Radio wave reception may be worsened in specific environments. Please be advised that if another device is also using the same 2.4GHz band as this product, the processing speed of both devices may slow down. This product gets warm when in use; this is normal. Improper use or operation of the product may result in damage of the product or its accessories and void the warranty.

  • Page 6: Introduction

    Introduction Thank you for purchasing this advanced DVR-4HD. This device is specifically designed for real time video and audio recording when driving. 1.1 Features Full HD recording videos (1920x1080@30fps or 1280x720@60fps) 2.7” LCD color touch screen Wide angle lens Multifunction traffic safety reminder Automatic Emergency recording for collision detection Support SDHC Level 6 and above.

  • Page 7: Product Overview

    1.3 Product Overview Front View Top and Bottom Views Side (Left and Right) Views Rear View Item Item Bracket Socket Wide Angle Lens Memory Card Slot Wi-Fi Transmission Power Switch Speaker LED Indicator Microphone USB / Power Connector LCD Touch Panel GPS Antenna EN •...

  • Page 8: Getting Started

    Getting Started 2.1 Inserting the Memory Card Insert memory card with the pins upward and the screen of the device facing upward too, as illustrated. Push the memory card in until a click sound is heard, indicating the card is in position. To remove the memory card Push to eject the memory card out of the slot.

  • Page 9: Adjust The Device Position

    With the suction-cup laying flat, position the suction-cup on the windshield. Hold the base firmly on the windshield and press down the clamp to mount the car holder to the windshield. Make sure the base is securely locked in place. 2.2.2 Adjust the device position Loose the knob to swivel the device vertically.

  • Page 10: Connecting To Power

    2.3 Connecting to Power Use only the attached power connector for activating the device and charging the built-in battery. Connect one end of power connector to USB/Power connector port on the device. Plug the other end of the car adapter to the cigarette lighter socket of your vehicle.

  • Page 11: Led Indicator

    2.4 LED Indicator Status Explanation LED Indicator Color Power off, battery charging Power off, battery full charged LED light off. Power on, battery charging Power on, battery full charged Green Standby / Standby and screen off Green Recording/ Recording and screen off Flash red 2.5 Powering the Device On / Off 2.5.1 Auto Power On/Off...

  • Page 12: Initial Settings

    2.6 Initial Settings Before using the device, we recommend you to enable the Automatic Record function and set up the correct Date and Time. 2.6.1 Set Automatic Record Default setting of Automatic Record is Enabled. The device will automatically start recording when powered on.

  • Page 13: Application

    Select to enter Date / Time menu. Touch to select value; touch to select previous or next field; confirm by touching to complete setting. Note: 1. If Time Sync. is on, device clock will be calibrated via satellite clock signal based on Set Timezone. Please refer to Time Sync.
  • Page 14 Touch to select for entering Wi-Fi function menu; wait for screen to display device ID and Wi-Fi password. Note: Wi-Fi function is dependent on the model purchased. Device Wi-Fi Password Using Wi-Fi function of a mobile device, search for device ID from the list and select and enter Wi-Fi Password.

  • Page 15: Using The Dvr-4Hd

    Using the DVR-4HD 3.1 Recording Videos 3.1.1 Record videos while driving When the vehicle engine starts up and the Automatic Record function is enabled, the device automatically turns on and starts recording. The touch panel function is not ready yet within 2 seconds upon the Auto Recording start.

  • Page 16: The Recording Screen

    3.1.3 The Recording Screen Icon Item Description Recording Icon Indicates the recording status. Date / Time Indicates the current recording date and time. Add speed point Touch to add a speed cam point. Menu Touch to enter the main menu. Taking Snapshot While recording, touch to take a photo.

  • Page 17: Add Speed Point

    3.1.4 Add speed point You may customize speed cam positions in this product. Press to add new speed cam position during recording. You can add new custom speed cam positions after GPS positioning. You can add up to 200 of them. This product features a capacity of 200 speed cam positions.

  • Page 18: Driving Safety

    When a speed trap is encountered the following screen will be displayed Note: For speed trap alert to be displayed the DVR4-HDmust have been downloaded with the AURA database, refer to section 8. The DVR 4 must also be in speed trap mode (as shown above) and speed camera alerts must be switched On refer to section 3.25 for menu settings.
  • Page 19 Touch to return to record screen. After enabling LDWS, the screen will display align icon , please adjust the camcorder so that the horizontal line and the eye level are overlapped and the slash lines are centered in the driving lane. Make sure that align icon will not be obscured (e.g.

  • Page 20: Fcws (Forward Collision Warning System)

    3.2.2 FCWS (Forward Collision Warning System) Once your car’s location is determined by GPS and the FCWS function is enabled, this product produces voice and screen message alerts when you drive at speeds over 60 km/h (37 mile/h) and are less than 20m away from the car in front of you.

  • Page 21: Front Vehicle Go

    Note: 1. FCWS is only applicable when satellite positioning is in ready state. Make sure satellite positioning of your device is ready if you want to activate this function. Satellite positioning function is dependent on the model purchased. 2. The Driving Safety functions such as LDWS, FCWS, Front Vehicle Go, Headlight warning, Speed Cam Alert, Speed Limit Alert, Driver Fatigue Alert and ACC/DEC Alert will be disabled, if the product doesn’t connect with the external power supply.

  • Page 22: Headlight Warning

    Once your car’s location is determined by GPS, this product starts to detect the motion of car in front of you after your car remains motionless for 20 seconds. It produces voice and screen message alerts when the movement of the car in front of you changes its images in the camera.

  • Page 23: Speed Cam Alert

    This product produces voice and screen message alerts when it detects poor lighting conditions through its recording displays. Note: The Driving Safety functions such as LDWS, FCWS, Front Vehicle Go,Headlight warning, Speed Cam Alert, Speed Limit Alert, Driver Fatigue Alert and ACC/DEC Alert will be disabled, if the product doesn’t connect with the external power supply.

  • Page 24: Speed Limit Alert

    Note: 1. Speed Cam Alert is only applicable when satellite positioning is in ready state. Make sure satellite positioning of your device is ready if you want to activate this function. Satellite positioning function is dependent on the model purchased. 2.

  • Page 25: Driver Fatigue Alert

    3.2.7 Driver Fatigue Alert If the Driver Fatigue Alert function is enabled, this product produces voice and screen message alerts one hour after it has begun recording and repeats the alerts every half an hour afterwards. To set the driver fatigue alert, do the following: Touch to enter main menu.

  • Page 26: Collision Detection

    Once the power connector is turned off, the message “Wait for 10 seconds to enter Motion Detection, or touch screen to power off.” will appear. The system will automatically enter motion detection mode in 10 seconds, which enables the auto recording function if any object moving in front of the cam is detected by this product.

  • Page 27: Acc/Dec Alert

    3.2.10 ACC/DEC Alert This product produces voice and screen message alerts if the ACC/DEC Alert function is enabled and the car accelerates 20 km/h (12.4 mile/h) in one second when driving at speeds over 80 km/h (50 mile/h) or decelerates 30 km/h (18.6 mile/h) in one second when driving at speeds under 50 km/h (31 mile/h) after position is determined by GPS.

  • Page 28: Playing Videos And Viewing Pictures

    3.3 Playing Videos and Viewing Pictures 3.3.1 Playing Videos and Emergency Recording Playback video record files as follows: Touch to enter main menu. Touch to switch over to File / Position menu. Touch to enter Video/ Emergency function menu. Touch to browse for required video file, touch selected preview of video to enter Playback Mode Touch...

  • Page 29: The Playback Screen

    3.3.3 The Playback Screen Video Playback Screen Picture Playback Screen Icon Item Description File Name Indicates name of current video or picture file. Current Duration / Indicates time code and duration of current video Video Duration file. Menu to enter File Deletion menu. Touch Touch when video or picture is not in playback...

  • Page 30: Deleting Files

    3.3.4 Deleting Files To delete file(s), do the following: Touch to enter Main Menu. to switch over to File / Position main menu. Touch Touch to enter Video/Picture/Emergency menu. Touch to browse for required video or picture file; touch selected preview image to enter Video/Picture Playback Mode.

  • Page 31: Adjusting The Settings

    Adjusting the Settings 4.1 Using the Menu You can customize the general settings via the on-screen display (OSD) menus. Touch in the record mode will stop the record and enter into Main Menu. Touch to switch over main menus. Touch to browse for function items in the respective main menu;...

  • Page 32: Menu Items

    4.2 Menu Items Refer to the below table for details of main menu and function list. Main Menu Function List Description Available Option Date / Time Set the date and time. UTC -12:00 ~ Set Time Set the time zone you are in. zone UTC +12:00 When enabled, device clock will be...
  • Page 33 Main Menu Function List Description Available Option Manually add speed points after satellite Add speed positioning, up to 200 user defined speed point points can be added. File / Delete Delete all the user defined speed points Position speed point from system.
  • Page 34 Main Menu Function List Description Available Option If Motion Detection is activated, the device will automatically trigger recording when the device detects any motion in Motion front. When the battery is fully charged On / Off Detection and is in good condition, Motion Detection can record continuously for about 30 minutes.

  • Page 35: Installing The Software

    Installing the Software Place the attached CD ROM into the CD player. If the CD does not execute automatically, please use Windows File Manager to execute the Install_CD.exe file in the CD. The following screen will be shown up. Press the [Menu] item to start the installation process according to the instructions on-screen. EN •...

  • Page 36: Snooper Dvr

    1. To display the route on Google Maps, please make sure the internet is connected before starting the video playback. 2. Video files (MOV / TS) and GPS/G-Sensor files (NMEA) must be stored in the same folder before starting the playback. 3. The Snooper DVR software is only applicable to a Windows operating system. EN • 36...

  • Page 37: Specifications

    Specifications Item Description Image sensor 1/2.7” CMOS sensor Effective pixels 1920 (H) x 1080 (V) Storage media Support Micro SDHC Class 6, max. up to 32GB LCD display 2.7” LCD color TFT touch screen Wide Angle Fixed Focus lens Lens F2.0, f=3.4mm Focus range 1.5m~Infinity...

  • Page 38: Updating Speed Trap Data

    Select the speed trap data you wish to download by clicking the link, when prompted save the file to your PC Remove MicroSD from the DVR-4HD and insert into your PC. Please unzip the firmware of “sp16gw_v3.00.25_r2722.rar” and put “SP16GW.BRN” into the MicroSD card.
