Snooper My-Speeed DVR User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the My-Speeed DVR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Snooper My-Speeed DVR

Summary of Contents for Snooper My-Speeed DVR

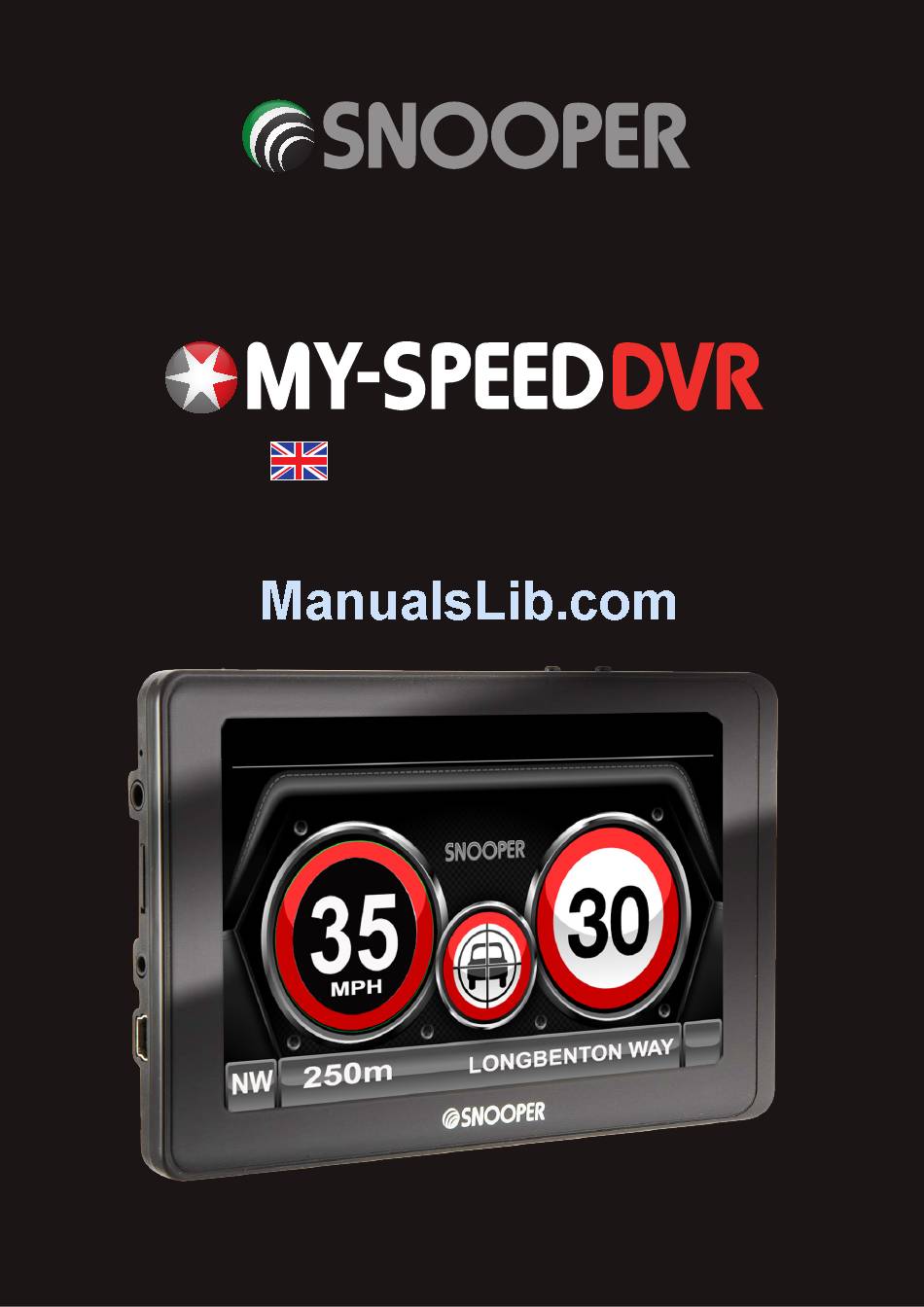

  • Page 1 User manual...

  • Page 2: Table Of Contents

    10 Downloading the AURA™ Camera Database 11 Installing Snooper 12 Power Connection & Charging 13 Charging the internal battery Powering Snooper using the built-in battery 14 My Speed My Speed XL 18 Version (Hardware & Software) 19 Digital Video Recorder...

  • Page 3: What's Included

    What’s included? 1 x Snooper satellite navigation system 1 x Micro-SD Card 1 x Windscreen Mounting Bracket 1 x In-car Charger with TMC module 1 x USB Cable 1 x CD ROM 1 x Mounting disc for dash mounting the bracket...

  • Page 4: Overview

    Overview Front View 1. Power Button 3 Touch screen LCD Press and hold to switch on or off. 4. Earphone jack (Earphones not included) 2. LED Power indicator 5. Micro-SD Card Slot Status LED 6. TMC/Video In socket ** TMC not used on MySpeed DVR On and Charging - Red LED 7.
  • Page 5 ** The 1st time the My Speed DVR is used the DVR SD card will require formatting. Refer to page 73 for instruction on how to format the card OR If a MicroSD card which was not supplied is going to be used it MUST be formatted using the Snooper player BEFORE being used.

  • Page 6: Registering

    Registering IMPORTANT! PLEASE READ BEFORE USING. To enable to locate Fixed Speed Cameras and Accident Black spots you will have to register and download the AURA™ Camera Database. Register Online Go to the official website www.snooperneo.co.uk and register your unit online. Your unit should normally be activated within 30 minutes of registration.

  • Page 7: Start Up

    To launch the CD manually: Click on ‘Start’ and then ‘Run’ . In the dialogue box that opens click on ‘Browse’ – another dialogue box will open. Locate your CD ROM or DVD drive (drive letter is normally D) using the ‘Look in’ option and select ‘Snooper’ from the lower portion of the dialogue box.

  • Page 8: Downloading The Aura™ Camera Database

    The Snooper will then save the data received. ● ● The software will indicate that the download is complete and will instruct you to disconnect the Snooper from your PC. Close the ● ● camera updater program by clicking the ‘x’ situated in the top right hand corner of the updater window.

  • Page 9: Installing Snooper

    Snooper and plug the larger plug into the cigarette lighter socket of your vehicle. Please Note: Only use the cigarette lighter power cable provided with Snooper. Snooper operates on 5V and using any other cigarette lighter power cable will damage your device and void the warranty.

  • Page 10: Power Connection & Charging

    Replacing the Fuse If Snooper stops operating, the fuse in the cigarette lighter plug may have blown . If it has blown, follow these steps and replace it with a 3 amp, 5mm x 20mm fast acting fuse.

  • Page 11: Charging The Internal Battery

    Powering Snooper using the built-in battery Once Snooper is fully charged, it is ready for use. Press and hold the power switch on the top of the unit for 2 seconds to switch on the device.

  • Page 12: My Speed

    Alerts and warnings 2 Current vehicle speed 4 Road speed limit * 1 Direction of travel 3 Road name or number 5 Outer ring will turn red when the vehicle speed limit exceeds the road speed limit 6 Distance to speed camera ** 7 Type of speed camera ** 8 Current time * If the road speed limit is unknown then the speed linit will be replaced with an exclamation mark.
  • Page 13 1.0 Main Menu 1.1 Brightness Control Snooper brightness can be adjusted using this function within the menu. To adjust the volume: Press the ‘Brightness Control’ icon. ● ● There are 3 settings: Auto, Day and Night. ● ● Auto brightness If ‘Auto’...
  • Page 14 Press ‘OK’ at the bottom of the screen to save your setting. ● Language Snooper comes with a choice of voice prompts and alerts in several languages. Changing the language also changes the language of the menu items as well on the unit. To use this facility: Press the centre of the screen to enter the menu.
  • Page 15 Use this to change the time format for the clock on the main screen - Select 12H or 24 H 1.5.2 MPH/KMH This option allows you to switch the information on Snooper between imperial and metric measurement. 1.5.3 Alert sound If set to Yes a sound will be emitted if the vehicle exceeds the over sped limit (set in section 1.4.1)

  • Page 16: Version (Hardware & Software)

    5.15 Version This option allows you to view the hardware and software version numbers of your unit. To view this information: Press the centre of the screen to enter the menu. ● Press the ‘Configure’ button. ● Press the arrow twice.

  • Page 17: Digital Video Recorder

    The built in GPS antenna will automatically record your journey and all video, audio and trip information can be reviewed later using the Snooper Player software included on the Micro-SD card. To enter the DVR menu: Press the centre of the screen to enter the ‘to’...
  • Page 18 The drive containing the Micro-SD card should be in this area. 3. Click on ‘Open folder to view files’ . 4. Double click on the ‘Snooper Player’ icon to launch the player. NOTE: this is NOT an installer and software will not be installed on to your PC .
  • Page 19 1. Click to take a snap shot from any section of video recorded. 2. Save route data. Select a folder to export it from the Snooper Player and save it to your PC. 3. Delete routes recorded and no longer required, from the Snooper Player.

  • Page 20: Bluetooth

    (refer to the mobile phone user guide for instructions) before starting the pairing process. Not all mobile devices are compatible with all of the features of the Snooper Press ‘Search’ : the following screen will be displayed. Press ‘Search’ to discover compatible BT devices.

  • Page 21: Phonebook

    After the pairing is successful the Snooper will revert back to the ‘Phone Menu’ screen but the icons are no longer ‘greyed out’ . Press (6) to return to the MySpeed menu. Phonebook (1) The contact list on the mobile phone (phonebook) can be synchronized with the Snooper.

  • Page 22: Tyre Pressure Monitoring System (Tpms)

    10. Tyre Pressure Monitoring System (TPMS) The Snooper Tyre Pilot application can monitor up to 22 tyres simultaneously, there are various kits and sensors available from your Snooper dealer or from www.snooper.co.uk. The basic starter kit you will need is either STP1800 or STP1600 (depending on the vehicle type), this kit includes a bluetooth interface which is necessary to connect the sensors to the 6 series.

  • Page 23: Selecting Vehicle Type

    10.2 Selecting vehicle type: Snooper Tyre Pilot has been designed to be used on a range of different vehicles, including cars, caravans, motorhomes, trucks, buses, coaches and trailers and it can also monitor your spare wheel. Tyre Pilot has been designed to monitor the following configurations: Single vehicle up to 4 wheels ●...

  • Page 24: Pairing The Sensors

    10.4 Pairing the sensors There are two options available for pairing sensors to the application : Input sensor ID or Radio Frequency (RF) 10.4.1 Pairing the sensors by Sensor ID This is the simplest method as the sensor can be paired before they are fitted to the vehicle Each sensor has a unique alpha numeric code embossed on to the sensors cover, this is this the sensor ID.

  • Page 25: Installing 116 Psi Sensors

    Once the sensors are fitted follow steps 1- 6 in section 10.4.1 then: 1. Press ‘Set using valve’ button 2. A pop up window will appear in the TPMS display and the button on the Bluetooth interface will flash red and the interface will ‘beep’ The interface will now search for a period of 90 seconds for a sensor which is transmitting a code.
  • Page 26 3. Remove the old battery. 4. Replace the old battery with a new CR1632 battery cell, ensuring the positive+ is facing upwards. CR1632 "-" " " CR1632 Lithium Battery CR1632 Lithium Battery 5. Check that the water-proof rubber seal is in the correct position. Screw the sensor cap back using the battery replacement tool to tighten.
  • Page 27 Installation without security housing Do not over tighten the sensor cap to prevent possible damage. Replacing the sensor battery 1. Use the wrench supplied to 2. Remove the anti-theft housing. remove the sensor. 3. Use the wrench to open the sensor and gain access to the battery. 4.

  • Page 28: Bluetooth Interface Installation

    The optional signal Repeater/Booster can be ordered separately and is available at www.snooper.co.uk The booster should be installed as low as possible on the rear of the towing vehicle or at the front of the trailed vehicle.

  • Page 29: Settings

    Selecting your high pressure and low pressure limits Follow these instructions to select at which high or low pressure limits you would like your Snooper Tyre Pilot to alert. 1. Next to each axle write down what your tyre pressure is by axle and calculate what your alarm setting will be.
  • Page 30 If TMPS is minimized and the sensors successfully are paired with the the 6 series, it will automatically send pressure and temperature readings to the monitor every 5 minutes. If the pressure data received by the monitor is over or under the pressure values selected, or if the tyre temperature exceeds the temperature value you have selected, the TMPS icon on the MySpeed screen will turn red and the 6 series will emit a warning beep.
  • Page 31 Alerts Truck, Trailer or Caravan High pressure: The ‘H’ denotes High pressure Over inflated Low pressure: The ‘L’ denotes low pressure Under inflated Fast puncture : The ‘F’ denotes Fast puncture High temperature: This shows that the temperature is too high. 10.8 Low battery If the battery of the TPMS sensors is becoming discharged, the low battery warning will be displayed on the TPMS menu.
  • Page 32 10.9 Combinations Car and spare tyre Car, trailer/caravan and spare tyre Truck, van or motorhome and spare tyre Truck, van, motorhome with trailer The tyre pressures and temperatures shown in this user manual are for illustration purposes ONLY, users should consult the vehicle or tyre manufacture for the recommended settings Return to contents 32 •...

  • Page 33: Troubleshooting Snooper Downloads

    Downloads SNOOPER If you are having any difficulty in performing a download onto the Snooper unit it is advisable to refer to the checklist in Section A first before contacting us. If you are still unable to perform a download after following all of this checklist then please send an email to Support@snooper.eu...
  • Page 34 Snooper update software. If you do have a Firewall on your computer Snooper Updater software may appear to stop and it is at this point that your Firewall software will inform you that Snooper Updater software is trying to access the internet. Please make sure that you grant/allow/permit access through the Firewall.
  • Page 35 4. Can’t hear anything from speaker or earphone Please check the volume level. Please check the Mute status. For earphone, please check if the jack is inserted properly. 5. Screen is dark. Adjust the LCD brightness from the Setting menu. 6.
  • Page 36 ●●● CHILDREN KEEP OUT OF CHILDRENS REACH. DO NOT ALLOW CHILDREN TO PLAY WITH SNOOPER OR ITS ACCESSORIES. THEY COULD HURT THEMSELVES OR OTHERS, OR COULD ACCIDENTALLY DAMAGE YOUR UNIT OR ACCESSORY. SNOOPER CONTAINS SMALL PARTS THAT COULD BE DETACHED AND CREATE A CHOKING HAZARD.
  • Page 37 Battery We recommend that you fully charge the battery before you use Snooper for the first time. A new battery or one that has not been used for a long time could have a reduced capacity the first few times it is used.

  • Page 38: Service Under Warranty

    Snooper. 3. Should you have any difficulties with the performance of this product during the warranty period, please call Snooper or visit our web site http:// www.snooperneo.co.uk. You may also contact Snooper Customer Services at the address listed below for any service help you may need with Snooper products.

  • Page 39: Accessories

    Snooper and/or its third-party providers. The Software and Content are provided under the following license and are subject to the following terms and conditions which are agreed to by End User (“you” or “your”), on the one hand, and Snooper and its licensors (including their licensors and suppliers) and affiliated companies on the other hand.
  • Page 40 Map Data, in which case you will need to either (a) select reduced Map Data coverage for your updates, or (b) purchase separately a microSD card or a SD card (if and as applicable to your Snooper product) and load all of the Map Data coverage for your updates to the card and insert the card into the microSD card or SD card slot contained in your Snooper product.
  • Page 41 This License shall continue for as long as you use the Product. However, this License will terminate automatically without notice from SNOOPER if you fail to comply with any of its terms or conditions. You must agree, upon termination, to destroy all copies of the Content in existence.
  • Page 42 Neither Snooper nor its Licensors, including HERE, condone speeding or any other failure to comply with your local traffic laws. It is your responsibility to drive with the posted speed limit at all times and to drive in a careful manner. Neither Snooper nor its Licensors, including HERE, accepts ANY liability whatsoever for you receiving any speeding fines or points on your license through using this device.
  • Page 43 @snooperventura Snooper UK Snooper Ventura www.snooper.co.uk Performance Products Ltd, Cleaver House, Sarus Court, Manor Park, Runcorn, Cheshire, WA7 1UL. Tel +44 (0)1928 579579 E: customerservices@snooper.eu. Return to contents 43 • EN...
