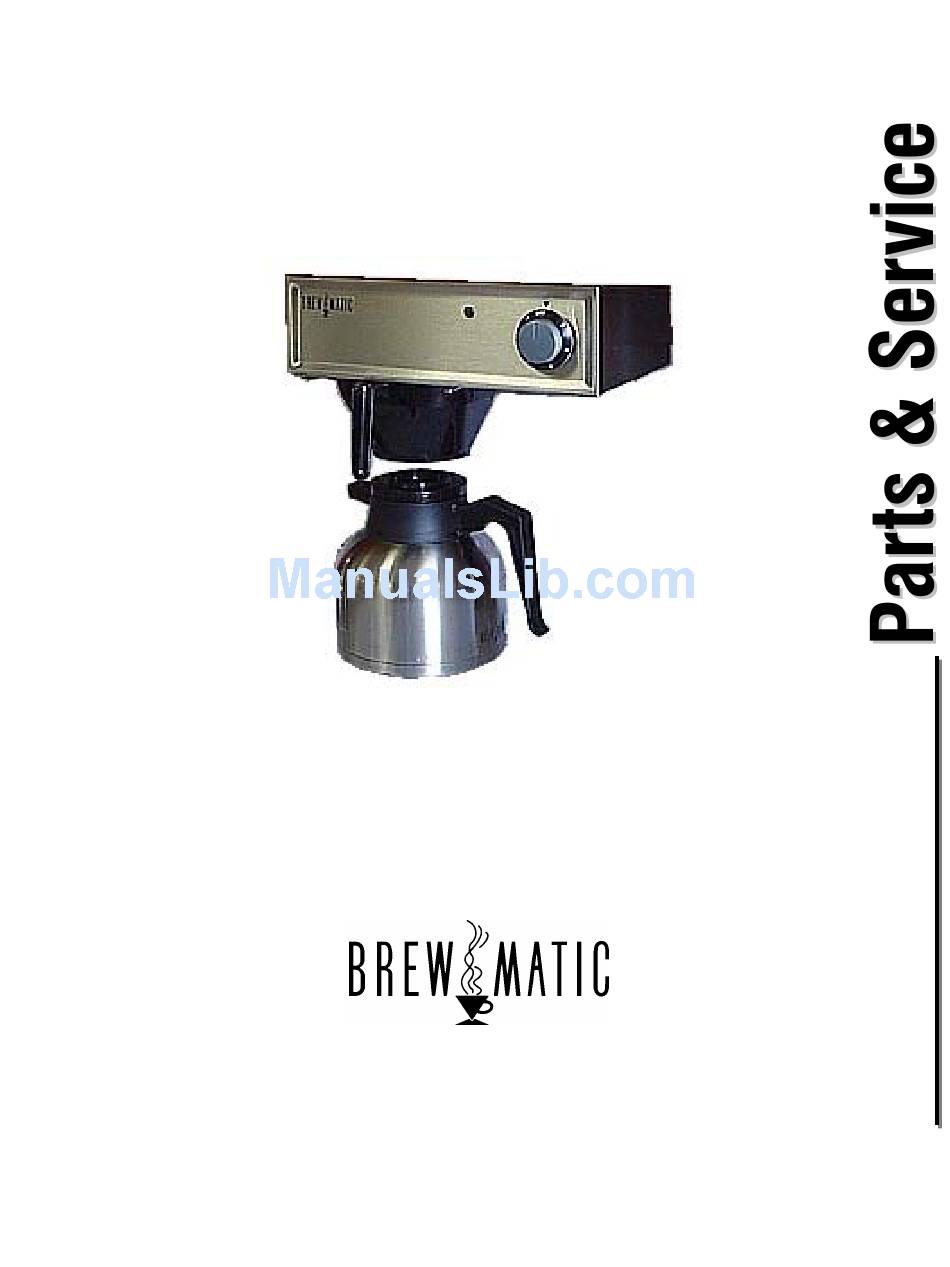

- Page 1 B.I.C.A Built-In Coffee Appliance Automatic Coffee Brewer Models: 1033510, 1033510S & 1033511 3828 S. Main St. Los Angeles, CA 90037-1491 800-421-6860 • 310-787-5444 • Fax 310-787-5412 e-mail: brew_equip@brewmaticusa.com FM CS104 Rev. A 12/10/2004 Instruction Number: 9600107...
-
Page 2: Limited Warranty
LIMITED WARRANTY Brewmatic warrants this product to be free of defects in material and workmanship for a period of one (1) year from the original date of purchase. Within this warranty period, Brewmatic will repair or replace, at its option, any part providing it's defective in material or workmanship. Labor is included within this warranty only during the first ninety (90) days of the warranty period. -
Page 3: Appliance Information
None, Outlet Box Supplied for direct wiring Plug: NEMA 5-15P. Furnished and Attached Listing: Listing: UL, NSF NOTE: Model 1033510 is no longer in production CONTROL LOCATIONS AND DESCRIPTIONS Back View Front View Brewing Light. Wing Nut-Mounting Bracket Indicates that the coffee brewer is in brewing cycle. -
Page 4: Wiring Diagram
WIRING DIAGRAM- Built-In Coffee Appliance WIRING DIAGRAM- 1800508 – Single Unit Warmer WIRING DIAGRAM- 1800510 – Built-In Warmer Page 4... -
Page 5: Troubleshooting
TROUBLESHOOTING SERVICE SHOULD BE PERFORMED BY QUALIFIED SERVICE PERSONNEL ONLY. WARNING: Turn off the "Power/Off/Fill" switch, unplug the power supply cord and allow the coffee brewer to cool before servicing unless electrical testing is required. WARNING: Make sure installation instructions have been followed before attempting to test this coffee brewer. This appliance is equipped with an automatic temperature limit control designed to turn the appliance off if it overheats. - Page 6 Symptom Remedies Inspect and clean the spray head, silicone tubing and fittings. 8. The beverage level is inconsistent. Test the timer. Replace it if necessary. Test the water-incoming water supply for inconsistent water pressure. If the water pressure is inconsistent, install a water pressure regulator and reduce the water pressure to minimize water pressure fluctuations.
- Page 7 Test the solenoid valve. Replace it if necessary. If the steps in this trouble shooting guide should fail to solve your problem, unplug the coffee brewer and contact your nearest Brewmatic Representative or you can contact Brewmatic Company direct at 800-421-6860.
-
Page 8: Maintenance And Cleaning
MAINTENANCE AND CLEANING CAUTION: Only those persons trained and qualified in equipment repair should attempt to open and clean the inside of this coffee brewer. CAUTION: Turn the Power/Off/Fill switch off, unplug the power supply cord and allow the coffee brewer to cool before cleaning. Note: Do not use abrasive or harsh cleaners as they may damage the finish of this coffee brewer. -
Page 9: Parts Diagram & Parts List
PARTS DIAGRAM & PARTS LIST- Final Assy., Built-In Coffee Appliance Item Part No. Description 1031339 Mounting Cover 9005130 Screw, #8x 5/8”, (For mounting the cover to a cabinet) 9001122 Screw, #8-32 x 3/8” 9303104 Washer, Lock #8 9201104 Nut, Hex #8-32 1031338 Top Cover 1030939... - Page 10 PARTS DIAGRAM & PARTS LIST- 1800508 Single Unit Warmer Item Part No. Description 1810055 Top, Porcelain Black 1810057 Reflector Plate Assy., With Element 1811045 Reflector Plate, Without Element 9905298 Element Rope, 120V 80W 9914355 Nut, Push-On 1040509 Bolt, W/Threaded Hole 9303103 Washer, Lock #6 9201112...
- Page 11 20333 S. Normandie Ave., Torrance, CA 90502 (310) 787-5444 • (800) 421-6860 • Fax (310) 787-5412 USA E-mail: brew@brewmaticusa..com Int’l E-mail: brew_equip@brewmaticusa.com Website: brewmatic.com...
