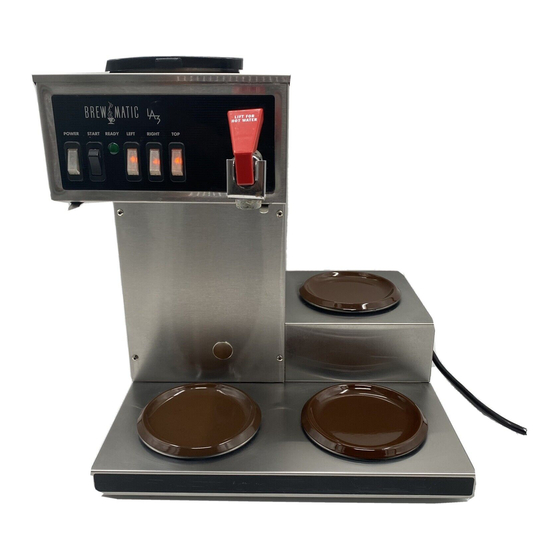

LA-3 SERIES
Automatic And Pour-Over Coffee Brewers
1034505, 1034521
Automatic Brewer, Left Hand
1034516
Pour-Over Brewer, Left Hand
20333 S. Normandie Ave., CA 90502
800-421-6860 • 310-787-5444 • Fax 310-787-5412
USA –E-mail: brew@brewmaticusa.com
INT'L E-mail: brew_equip@brewmaticusa.com
Website: brewmatic.com
1034506, 1034520
Automatic Brewer, Right Hand
1034517
Pour-Over Brewer, Right Hand

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LA-3 SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Brewmatic LA-3 SERIES

Summary of Contents for Brewmatic LA-3 SERIES

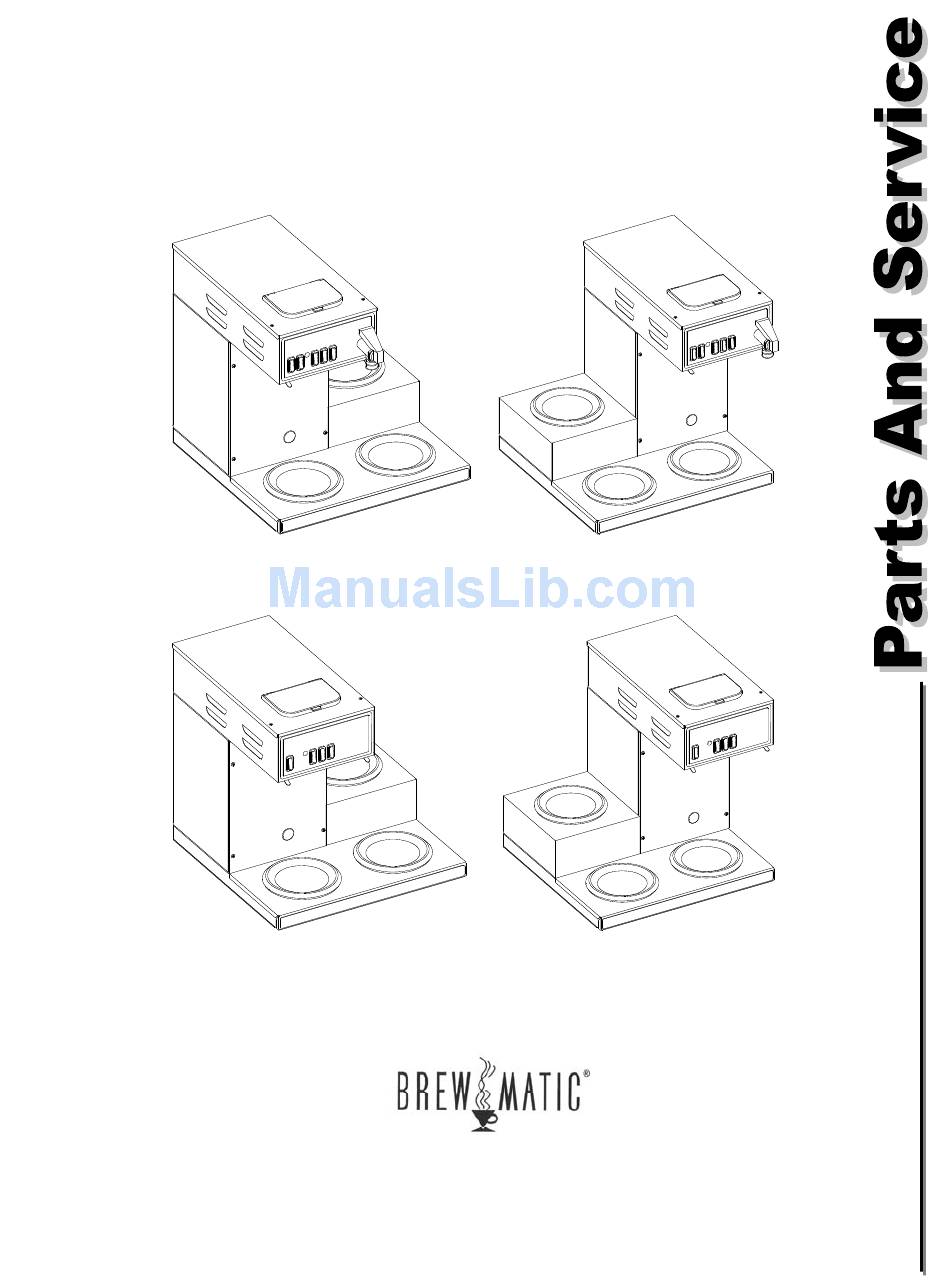

  • Page 1 LA-3 SERIES Automatic And Pour-Over Coffee Brewers 1034505, 1034521 1034506, 1034520 Automatic Brewer, Left Hand Automatic Brewer, Right Hand 1034516 1034517 Pour-Over Brewer, Left Hand Pour-Over Brewer, Right Hand 20333 S. Normandie Ave., CA 90502 800-421-6860 • 310-787-5444 • Fax 310-787-5412 USA –E-mail: brew@brewmaticusa.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Information Page 3 Appliance Information Page 4 Wiring Diagrams Page 5 1034505, 1034506, 1034521 & 1034521 – LA-3 Automatic Brewers Page 5 1034516 & 1034517 – LA-3 Pour-Over Brewers Page 6 Troubleshooting Guide Pages 7 - 13 Parts Diagrams And Parts Lists Pages 14 –...

  • Page 3: Important Information

    800-421-6860. Only Authorized Replacement Parts Should Be Used. Part substitutions could create a fire hazard and the risk of personal injury. The use of replacement parts or accessory attachments not recommended by Brewmatic may be hazardous. Do Not By-Pass Any Safety Mechanisms Or Operate This Appliance Without Covers In Place. Brewmatic requires that all safety devices and covers be in place and functioning at all times to guard against a fire hazard and the risk of personal injury.

  • Page 4: Appliance Information

    APPLIANCE INFORMATION Appliance Specifications: Model Number: 1034505 1034521 1034506 1034520 1034516 1034517 Description: LA-3 Automatic Brewer With LA-3 Automatic Brewer With LA-3 Automatic Brewer With LA-3 Automatic Brewer With LA-3 Pour-Over Brewer. Left LA-3 Pour-Over Brewer. Right Faucet. Left Hand. Faucet.

  • Page 5: Wiring Diagrams

    WIRING DIAGRAM 1034505, 1034506, 1034520, 1034521 – LA-3 Automatic Coffee Brewers 120V (Auto) 120/240V (Auto) Page 5...

  • Page 6: 1034516 & 1034517 - La-3 Pour-Over Brewers

    WIRING DIAGRAM 1034505, 1034506, 1034520, 1034521 – LA-3 Automatic Coffee Brewers 120V (PO) Page 6...

  • Page 7: Troubleshooting Guide Pages

    TROUBLESHOOTING Read and follow the cautions below before attempting to service this coffee brewer. CAUTION: Read and verify that the installation instructions have been followed before attempting to operate this appliance. Incorrect installation or operating procedures will void the warranty and may damage this appliance. Unplug the power cord before servicing, unless electrical testing is required.
  • Page 8 Symptoms Solutions The coffee brewer will not On automatic models, the start switch must be pressed to initiate a brew brew coffee. The lights and cycle. (Automatic models only.) warmers work, and the coffee On pour-over models, water must be poured in to initiate a brew cycle. brewer heats.
  • Page 9 Symptoms Solutions The hi-limit thermostat keeps Check to make sure the tank has been filled with water. See the installation activating. instructions for filling procedures. Test the hi-limit thermostat. Replace it if necessary. Make sure that the thermostat sensor is inserted all of the way into the well. (See Test the brewing temperature.
  • Page 10 Symptoms Solutions The brewing cycle is too slow. Inspect and clean the spray head, silicone tubing and siphon fittings. Do not over tighten the tank lid hold-down screw. (See #10.) The beverage level is Adjust the timer. To increase the beverage level turn the timer adjustment knob consistently high or clockwise.
  • Page 11 Symptoms Solutions The brewing cycle starts by Test the start switch. Replace it if necessary. itself or will not shut off. Water or condensation on the timer may cause it to malfunction. Dry the timer and (Automatic models only.) retest. Check the faucet coil fittings inside the tank for leaks.
  • Page 12 Symptoms Solutions The water from the hot water Make sure that the faucet is adjusted correctly. (See #15.) faucet is not hot enough. The coffee brewer must be on and heated before the faucet will deliver hot water. (Automatic models only.) The hot water faucet drips Check the faucet seat cup.
  • Page 13 There are several options available to help solve this problem: Extended brew spray heads, wide base brew cones or a paper filter designed for faster water flow. Call Brewmatic for complete details and options. Page 13...

  • Page 14: Parts Diagrams And Parts Lists Pages

    PARTS DIAGRAM & PARTS LIST 6003093 - Element Pan Assembly W/PTC Black Item # Part # Description 6001020 Element Pan Assembly, Black 6004021 Bracket, Element 9303115 Washer, Lock, With Internal Tooth, 5/16” 9010115 Screw, Machine, 5/16”-18 x 3/4” 9905329 Element, PTC 6000578 Spacer, Element 9905350...
  • Page 15 PARTS DIAGRAM - EXTERNAL VIEW 1034505 & 1034506 – LA-3 Automatic Coffee Brewers Page 15...
  • Page 16 PARTS LIST - EXTERNAL VIEW 1034505, 1034506,1034520, 1034521 – LA-3 Automatic Coffee Brewers Item # Part # Description 6003093 Element Pan Assembly, W/PTC, Black 1040683 Facia, Hood, Black 1034193 Panel, Front Access, (For 1034505, 1034521) 1034206 Panel, Front Access, (For 1034506, 1034520) 9919461 Switch, Single Rocker 9919463...
  • Page 17 PARTS DIAGRAM - INTERNAL VIEW 1034505, 1034506, 1034520, 1034521 – LA-3 Automatic Coffee Brewers Page 17...
  • Page 18 PARTS LIST - INTERNAL VIEW 1034505, 1034506, 1034520, 1034521 – LA-3 Automatic Coffee Brewers Item # Part # Description 1034203 Tank Assembly, 120V 1034210 Tank Assembly, 240V 1034197 Tube, Assembly, Faucet 1010198 Tube Assembly, Needle Valve To Tank 1010308 Tube Assembly, Solenoid Valve To Needle Valve 9920526 Thermostat, Electronic, 120v 9920470...

  • Page 19: Tank Assembly - La-3 Brewers Pages

    PARTS DIAGRAM - TANK VIEW LA-3 Automatic and Pour-Over Coffee Brewers Page 19...
  • Page 20 PARTS LIST - TANK VIEW LA-3 Automatic and Pour-Over Coffee Brewers Item # Part # Description 1034199 Weld Assembly, Tank 1034202 Weld Assembly, Lid, Tank 1034028 Tube Assembly, Spray Head 9905356 Element, Spiral, 120v 1300W 9905370 Element, Spiral, 220v 1600W 1034010 Coil Assembly, Tank, (Automatic models only.) 6000768...

  • Page 21: 1034516 & 1034517 - La-3 Pour-Over Brewers Pages

    PARTS DIAGRAM - EXTERNAL VIEW 1034516 & 1034517 – LA-3 Pour-Over Coffee Brewers Page 21...
  • Page 22 PARTS LIST - EXTERNAL VIEW 1034516 & 1034517 – LA-3 Pour-Over Coffee Brewers Item # Part # Description 6003093 Element Pan Assembly, W/PTC, Black 1040692 Facia, Hood, Black 1034193 Panel, Front Access, (For 1034516) 1034206 Panel, Front Access, (For 1034517) 9919486 Switch, Single Rocker 9916278...
  • Page 23 PARTS DIAGRAM - INTERNAL VIEW 1034516 & 1034517 – LA-3 Pour-Over Coffee Brewers Page 23...
  • Page 24 PARTS LIST - INTERNAL VIEW 1034516 & 1034517 – LA-3 Pour-Over Coffee Brewers Item # Part # Description 1034214 Tank Assembly, 120v 9920526 Thermostat, Electronic, 120v 9902383 Block, Terminal, 3 Pole 9001162 Screw, Machine, #10-32 x 3/8” 9201110 Nut, Hex, #10-32 9001229 Screw, Machine, #6-32 x 7/16”...

This manual is also suitable for:

103450510345211034506103452010345161034517
