- Page 1 SERVICE MANUAL Models: 9700000 & 9700014 Automatic And Semi-Automatic Espresso Machines Brewmatic Company 3828 S. Main St. Los Angeles, CA 90037 800-421-6860 • 310-787-5444 • Fax 310-787-5412 brewmatic.com Rev. 01/01...
- Page 2 Do Not By-Pass Any Safety Mechanisms Or Operate This Appliance Without Covers In Place. Brewmatic requires that all safety devices and covers be in plac e and functioning at all times to guard against a fire hazard and the risk of personal injury.
-
Page 3: Specifications

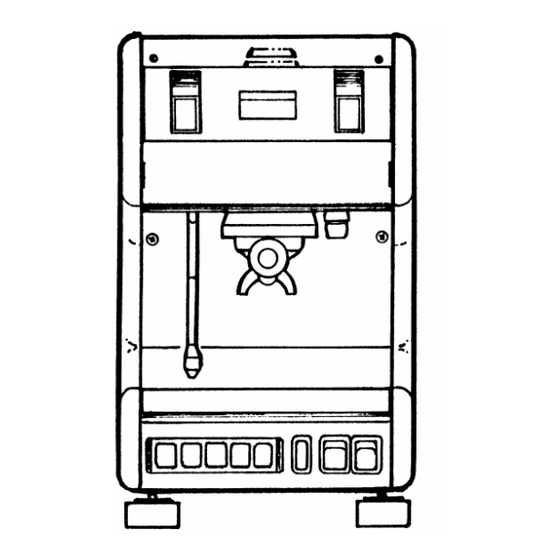

SPECIFICATIONS Model Number: 9700000 Description: Uno E, Automatic Espresso Machine Dimensions: 10-1/4”w x 16-3/ 4”h x 21-1/2”d Shipping Weight: 75 lbs. Boiler Capacity: 3.5 Liters Model Number: 9700014 Description: Uno P, Semi-Automatic Espresso Machine Dimensions: 10-1/4”w x 16-3/4”h x 21-1/2”d Shipping Weight: 75 lbs. -
Page 4: Parts Diagram
PARTS DIAGRAM Uno E And Uno P Page 4... -
Page 5: Parts List
PARTS LIST Uno E And Uno P Item Part No. Description 9700210 Pressostat 9700211 Panel, Front, Upper, S/S 9700212 Valve, Solenoid, 2-way, 120v 9700213 Valve, Solenoid, 3-Way, 120v 9700219 Flow Meter, (See page 10 for additional information.) 9700228 Switch, Rocker, Clear 9700240 Body, Inlet Valve, (See page 8 for additional information.) 9700241... - Page 6 PARTS LIST Group Item Part No. Description 9700519 Tube Assembly, Boiler Heat Exchange To Gigleur Fitting 9700387 Screen 9700454 Fitting, Giggler 9700301 Shim, Group Gasket, (Not used on new units. A replacement part only.) 9700215 Gasket, Group 9700218 O-Ring, Spray Head 9700525 Spray Head 9700253...
-
Page 7: Also Available
PARTS LIST Steam And Water Faucets Item Part No. Description 9700605 Nut, Hex 9700434 Fitting, Nipple 9700595 Washer 9700427 Spring 9700220 Stopper, Faucet 9700221 O-Ring 9700604 Stem, Faucet 9700433 Body, Water Faucet 9700432 Body, Steam Faucet 9700257 Anti-Vacuum Valve 9700310 Support, Faucet Handle 9700668 Nut, Hex... - Page 8 PARTS LIST Inlet Valve And Valve Body Item Part No. Description 9700548 Cap, 2-Way Valve, (Not required on all 2 way valves.) 9700212 Valve, 2-Way, 120v, (May require a 2-way cap.) 9700414 O-Ring, Valve, (2 required per valve.) 9700472 O-Ring 9700471 O-Ring 9700667...
-
Page 9: Filter Holder
PARTS LIST Filter Holder Item Part No. Description 9700298 Handle, Filter Holder 9700475 Body, Filter Holder 9700230 Filter, 7 Gram, (Standard) 9700231 Filter, 14 Gram, (Standard) 9700232 Spring 9700233 Outlet, 1-Way 9700307 Outlet, 1-Way, Lateral 9700386 Outlet, 2-Way 9700234 Outlet, 2-Way, With Shield 9700917 Outlet, 2-Way, With Shield Also Available... - Page 10 Page 10...
-
Page 11: Flow Meter
PARTS LIST Flow Meter Item Part No. Description 9700492 Electrical Connector, (Wiring not included.) 9700490 Head, Flow Meter (No longer available. Must order part # 9700219) 9700493 O-Ring 9700491 Turbine, Flow Meter 9700494 Fitting, Elbow 9700486 Fitting, Reduction Also Available 9700219 Flow Meter, Complete, (Does not include items 1, 5 and 6.) Page 11... - Page 12 PARTS LIST Steam And Water Tubes Item Part No. Description 9700427 Spring 9700440 O-Ring 9700425 Spacer 9700271 Seal 9700555 Nut, Swivel, S/S 9700417 Steam Tube Assy., S/S, (Standard length. With n/s nozzle.) 9700419 Nozzle, S/S, N/S 9700400 Steam Tube, Plated Brass, (Standard length. Without o/s nozzle.) 9700369 Steam Tube, Side Mount, (For Uno with steam faucet on left side.) 9700252...
- Page 13 PARTS LIST Boiler – Uno E Item Part No. Description 9700308 Liquid Level Probe 9700251 Anti-Vacuum Valve 9700304 Fitting, Connector 9700373 Gasket, Copper 9700214 Pressure Relief Valve, (Older version. Adjustable. See #5b & 6) 9700214 Pressure Relief Valve, (New version. Not Adjustable.) (If replacing 5a, see #6 connector fitting.) 9700497 Fitting, Connector, (Use with 5b only.)
-
Page 14: Miscellaneous Parts
Miscellaneous Parts 9700235 Diaphragm 9700245 Tamper 9700246 Spoon 9700384 Elbow, Drain Hose 9700362 Hose, Water Inlet 9700108 Brush, Group 9700389 Drain Hose, 39" 9906533 Fitting, Adaptor 9700121 Cleaning Tablets 9700209 Group Pressure Tester (9700388) SOFT BRISTLE BRUSH 9700116 Wrench, Spray Head 9700117 Wrench, Element 9700114... -
Page 15: Wiring Diagrams
WIRING DIAGRAMS Uno E – With Current Version Electronic Control Page 15... - Page 16 WIRING DIAGRAMS Uno E – With Previous Version Electronic Control Page 16...
- Page 17 WIRING DIAGRAMS Uno P – With RL30-1E/F Electronic Control Page 17...
-
Page 18: Wiring Schematic
WIRING SCHEMATIC PART # 9700899 Page 18... -
Page 19: Troubleshooting
Troubleshooting Page 19...
