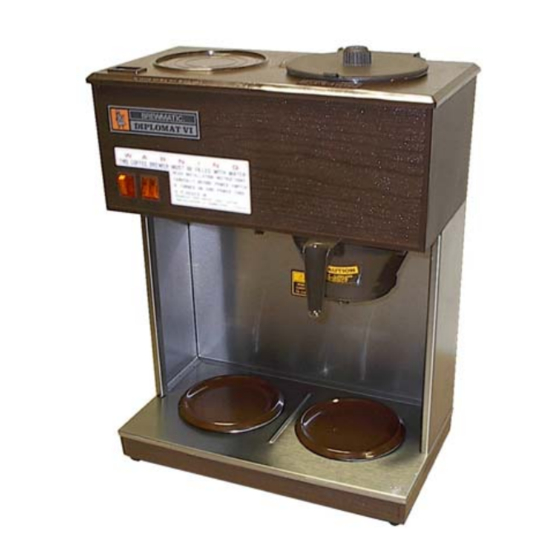

DIPLOMAT VI
POUR-OVER COFFEE BREWER
Models: 1033054, 1033058, 1033044
1033055, 1033059, 1033049
20333 S. Normandie Avenue, Torrance, California 90502 USA
(310) 787-5444 • (800) 421 -6860 • FAX (310) 787-5412
USA E-mail: brew@brewmaticusa.com
Int'l E-mail: brew_equip@brewamticusa.com
Website: brewmatic.com
FM CS114 C 4/26/05
Advertisement
Table of Contents
Related Manuals for Brewmatic 1033054
Summary of Contents for Brewmatic 1033054

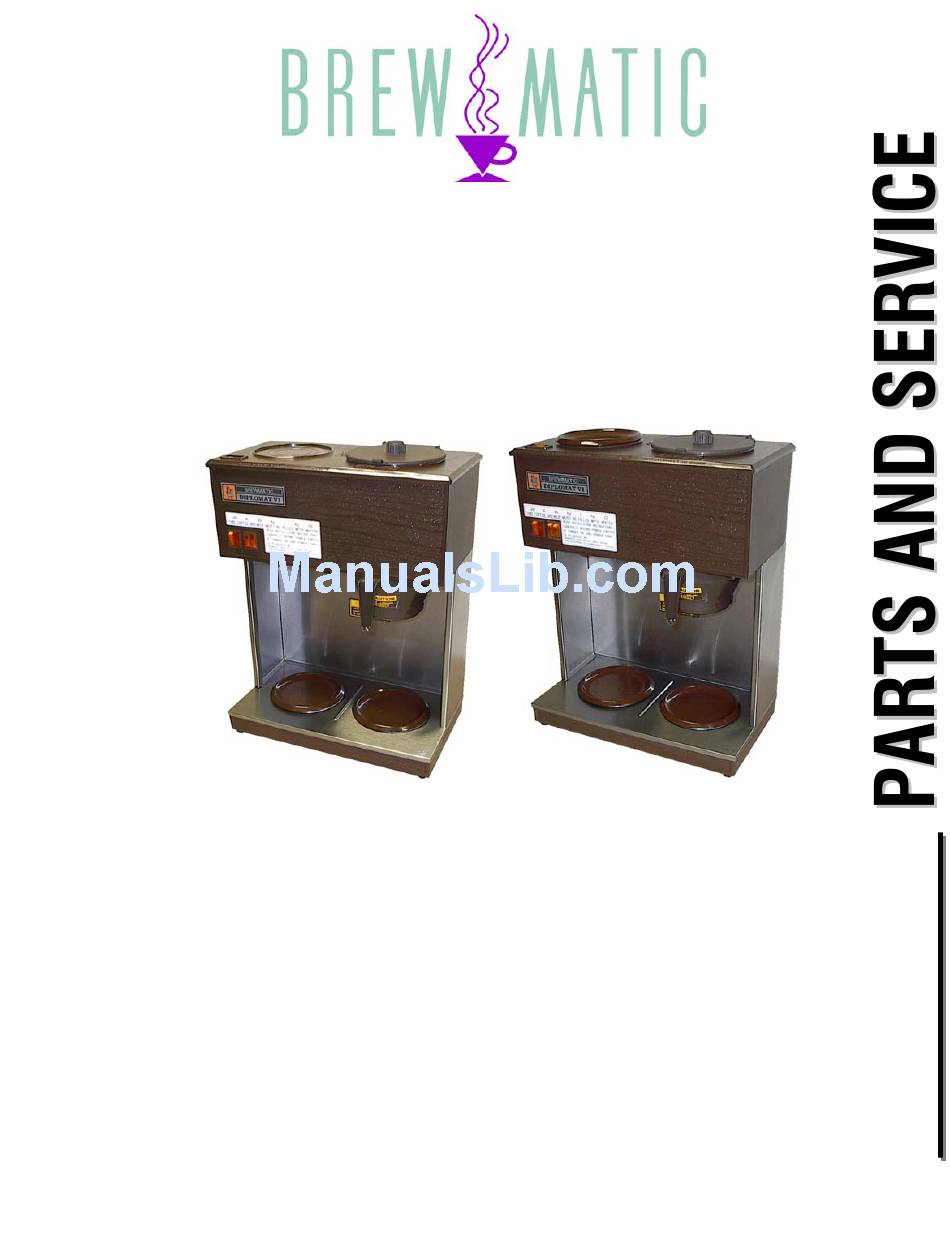

- Page 1 DIPLOMAT VI POUR-OVER COFFEE BREWER Models: 1033054, 1033058, 1033044 1033055, 1033059, 1033049 20333 S. Normandie Avenue, Torrance, California 90502 USA (310) 787-5444 • (800) 421 -6860 • FAX (310) 787-5412 USA E-mail: brew@brewmaticusa.com Int’l E-mail: brew_equip@brewamticusa.com Website: brewmatic.com FM CS114 C 4/26/05...
-
Page 2: Specifications
The proper performance of service is essential for the safe and effective operation of this appliance. Repairs should be performed by qualified service personnel only. If you are unable to, or need help servicing this appliance, contact the nearest Brewmatic Authorized Service Agent or you can contact Brewmatic at 800- 421-6860. -
Page 3: Wiring Diagram
WIRING DIAGRAM OLD WIRING DIAGRAM FOR REFERENCE ONLY Models With A Secondary Hi-Limit Thermostat Models Without A Secondary Hi-Limit Thermostat... -
Page 4: Troubleshooting Guide
TROUBLE SHOOTING GUIDE READ AND FOLLOW THE CAUTIONS BELOW BEFORE ATTEMPTING TO SERVICE THIS COFFEE BREWER. CAUTION: Read and verify that the installation instructions have been followed before attempting to operate this appliance. Incorrect installation or operating procedures will void the warranty and may damage this appliance. Unplug the power cord before servicing, unless electrical testing is required. - Page 5 Symptoms Solutions Test the hi-limit thermostat. Replace it if necessary. 7. The secondary hi-limit thermostat keeps activating. Inspect the hi-limit thermostat wiring for loose, damaged or overheating wires or terminals. Repair or replace wiring as necessary. Test the thermostat for proper temperature adjustment. The recommended temperature is between 188° and 192°F. Test below the brew cone with water only.
-
Page 6: Cleaning Instructions
THE BREWMATIC DIPLOMAT VI POUR OVER AND AUTOMATIC BREWER Brewmatic is proud to announce that nearly one million Diplomats have been manufactured since it’s introduction. A very high percentage of these units are still in service. To maintain this service, Brewmatic continues to recommend a good preventative maintenance program. The Diplomat model coffee brewer will last for many years with proper maintenance and care. - Page 7 This literature is provided for general service and cleaning only. For more detailed information on service please refer to the appropriate service manual. If you have any questions please feel free to contact the Brewmatic Customer Service Division at 800-421-6860.
- Page 8 Failure to follow these cleaning recommendations may damage the Diplomat coffee brewer. Brewmatic recommends that the thermostat, hi-limit thermostat and immersion element be removed from the coffee brewer before cleaning. Do not use any harsh abrasives as they may damage the finish of the Diplomat coffee brewer.
- Page 9 The following list of products have been tested and found to be harmful or “aggressive” to the Diplomat plastic parts, and should not be used. Acetone: Institutional Cleaner: Armour-All: Isopropanol: Basic H: (Shaklee) Jubilee: (Johnson's) Bio-90 Lime-A-Way: Carbon Tetrachloride: Lime Shine: (National Labs) Chromic Acid: Lime-Solv: Continental All Purpose Cleaner:...
-
Page 10: Parts Diagram & Parts List
PARTS DIAGRAM & PARTS LIST Final Assy., - Exterior View Diplomat VI Pour-Over Item Part No. Description 1039027 Cover, Kit. (Includes Cover & 2 Hinge Inserts) 1040062 Hinged Insert 9003131 Screw, #6-32 x 1-3/4” 6000282 Gasket, Top Cover 1030856 Top Cover Assy., 2 Station (Includes Cover &... - Page 11 PARTS DIAGRAM & PARTS LIST 3 Station Top Cover Assy. 1030801- (See instructions below) Item No. Part No. Description 1030993 Top Cover, 3 Station (Without Warmer element, with cover & 2 hinge inserts) 6000282 Gasket, Top Cover 1039027 Cover, Kit (Includes cover & 2 hinge inserts) 1040062 Hinge Insert 9003131...
- Page 12 PARTS DIAGRAM & PARTS LIST Housing Assy., Diplomat VI Pour-Over Item Part No. Description 1040591 Housing, Diplomat VI (Housing Only, no controls) 6000514 Mid-Hex Screw, #6-32 x 1/3” Hex 1040045 Reservoir 1039028 Siphon Tube Kit, Plastic (Includes items 5 & 6) 9915144 “O”-Ring 9202122...
- Page 13 THERMOSTAT BULB DIAGRAM Proper Positioning of The thermostat And Hi-Limit Thermostat Bulbs Top View Right Side View From Inside of Housing WARNING The thermostat and high limit thermostat bulbs must be correctly positioned in their clips and installed correctly on the element for proper operation and safety.
- Page 14 THERMOSTAT CHANGE FOR KIT #1039104 TO REPLACE 9920450 THERMOSTAT WITH 9920434 THERMOSTAT FOR ALL DIPLOMAT VI MODELS ONLY Instructions: NOTE: Refer to attached wiring diagram before proceeding with instructions Disconnect all wires from old thermostat #9920450. (Remove and discard old thermostat) Remove thermostat capillary tube from immersion element.
- Page 15 20333 S. Normandie Avenue, Torrance, California 90502 USA (310) 787-5444 • (800) 421 -6860 • FAX (310) 787-5412 USA E-mail: brew@brewmaticusa.com Int’l E-mail: brew_equip@brewamticusa.com Website: brewmatic.com...
