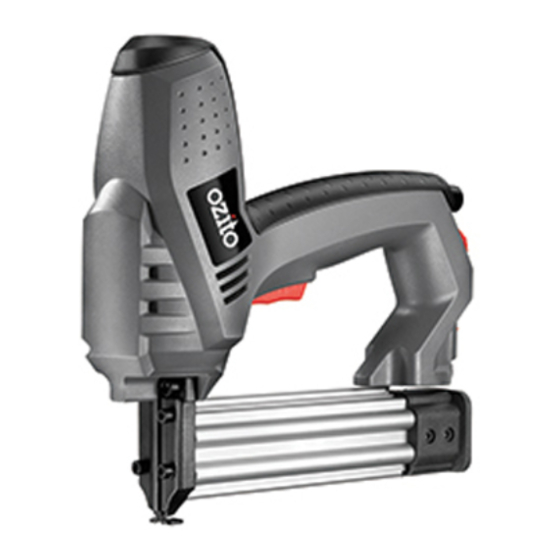

BRAD NAILER
& STAPLER
15-30MM
INSTRUCTION MANUAL
SPECIFICATIONS
Input:
230-240V ~ 50Hz
Rated Power:
50W
Impact Rate:
20 /min
Magazine Capacity:
50 Nails
Nail Type:
C1 Brad
Nail Length:
15-30mm
Staple Type:
Narrow Crown
Staple Length:
15-25mm
Weight:
1.6kg
ozito.com.au
WHAT'S IN THE BOX
Brad Nailer & Stapler
Nails x 500
Staples x 500
Hex Key
NSG-5000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ozito NSG-5000
Summary of Contents for Ozito NSG-5000
- Page 1 Nails x 500 SPECIFICATIONS Input: 230-240V ~ 50Hz Rated Power: Impact Rate: 20 /min Magazine Capacity: 50 Nails Staples x 500 Nail Type: C1 Brad Nail Length: 15-30mm Staple Type: Narrow Crown Staple Length: 15-25mm Weight: 1.6kg ozito.com.au Hex Key NSG-5000...
-
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION 2 IN 1 BRAD NAILER AND STAPLER 1. LOADING STAPLES 1 Safety Striker Pin 4 Magazine 2 On/off Trigger 5 Power Switch Ensure the tool is disconnected from the power supply before performing any of the following operations. 3 Handle 6 Variable Depth Adjustment Dial 1. -
Page 3: Operation
OPERATION 2. LOADING NAILS 3. CONTROLS The tool is recommended for use with a residual current device with a rated residual current of 30mA or less. 1. Squeeze the magazine latch and pull the magazine away from the tool. Power Switch 2. - Page 4 If you reassemble the nail gun without this piece, the safety striker pin will not depress and NOTE: The on/off trigger cannot be squeezed unless the safety the gun will not fire. striker pin is fully depressed. NSG-5000...
-
Page 5: Maintenance
Never let any liquid get inside the nail gun; never immerse Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. any part of the nail gun into a liquid. -
Page 6: Spare Parts
Tool: Brad Nailer & Stapler SPARE PARTS Model No. NSG-5000 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. 15-16 Safety Arm & Cap... -
Page 7: Nailer Safety Warnings
Do not use this nailer or stapler for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards. STAPLE/NAIL COMPATIBILITY The NSG-5000 accepts nails and staples with the below C1 BRAD NAILS measurements Available at... -
Page 8: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO 0813 Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
