Summary of Contents for Ozito OZSNG16A

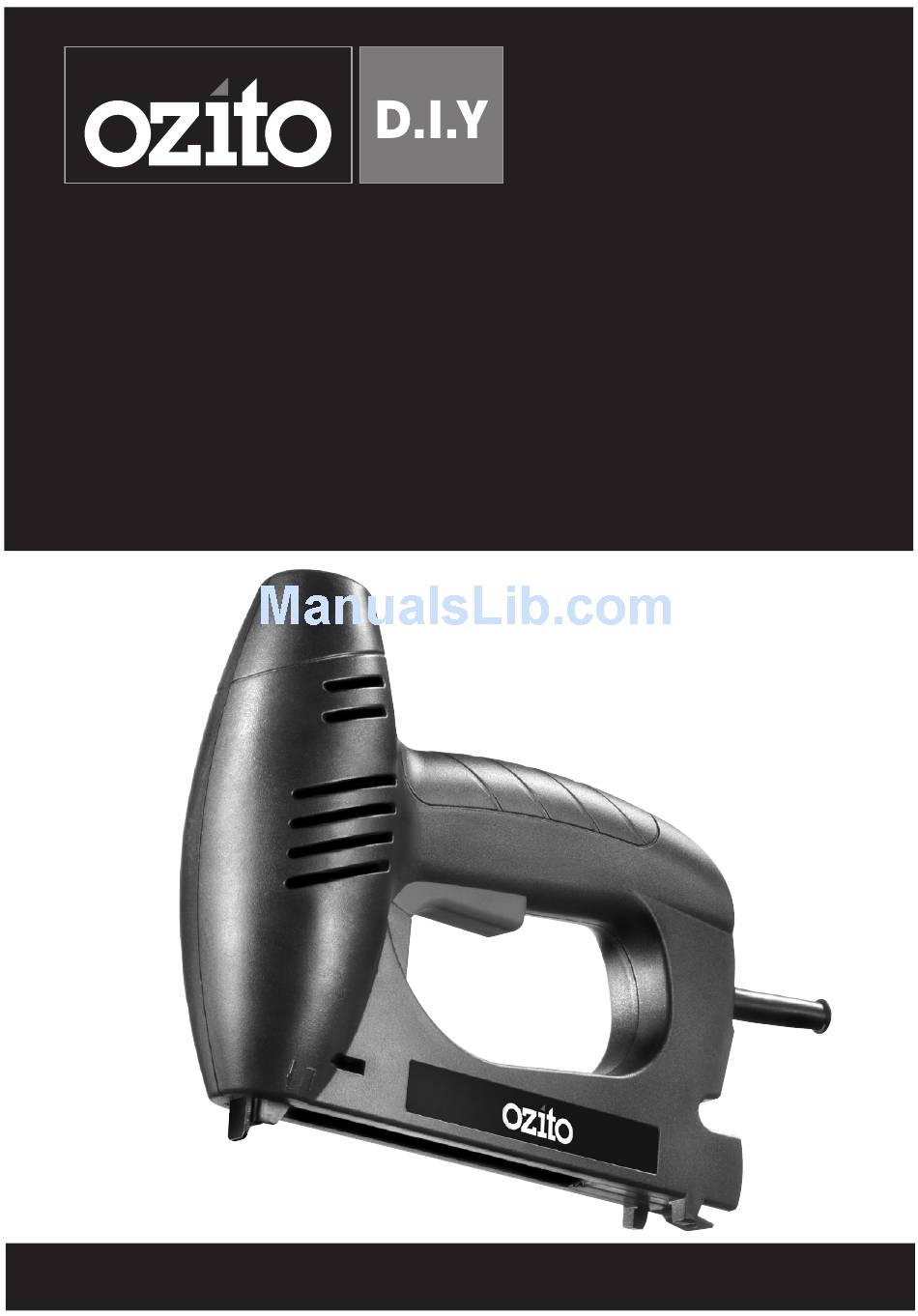

- Page 1 Staple/Nail Gun 8mm - 16mm Operation Manual 3 Year Replacement Warranty OZSNG16A 0409 www.ozito.com.au To view the full range visit:...
-
Page 2: Specifications
SPECIFICATIONS – MODEL NO. OZSNG16A Input: 230V ~ 50Hz Impact Rate of Staples/Nails: 20/min Staple Length: 8 - 16mm Nail Length: 14 - 16mm Nail Size: 18 Gauge T-Brad Weight: 0.95kg Features: Ergonomically designed Light Weight Safety striker pin Easy to Use 1. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 TABLE OF CONTENTS………………………………….. Page 3 INTRODUCTION………………………………………... Page 4 SAFETY INSTRUCTIONS……………………………….. Page 4 OPERATION …………………………………………….. Page 7 MAINTENANCE …………….………………………….. Page 8 CONTENTS ……………………………………………... Page 9 WARRANTY……………………………………………… Page 10... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. - Page 5 GENERAL SAFETY INSTRUCTIONS Warning! Read all instructions, Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS 1) WORK AREA a) Keep work area clean and well lit.
- Page 6 GENERAL SAFETY INSTRUCTIONS (CONT.) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 7: Operation
TOOL OPERATION Loading the Magazine with staples Prior to loading the magazine, ensure the tool has been disconnected from the power supply. 1. Hold the tool upright as in Fig.1. 2. Release the latch (4) and pull the magazine slide Fig. -
Page 8: Maintenance
Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the staple/nail gun by an unauthorised person or by mishandling of the tool. -
Page 9: Contents
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Staple/Nail Gun OZSNG16A 100 x 15mm x 18 gauge T-nails 480 x 10mm Staples 1 x Instruction Manual... -
Page 10: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
