- Page 1 ABPM 6100 Hardware Manual Regulatory Affairs Welch Allyn, Inc. Representative 4341 State Street Road Welch Allyn Limited Skaneateles Falls, NY Navan Business Park 13153 USA Dublin Road www.welchallyn.com Navan, County Meath, Republic of Ireland 0297 DIR 80012720 Ver. F...
- Page 2 ABPM 6100 Hardware Manual Copyright © Copyright 2014, Welch Allyn. All rights are reserved. To support the intended use of the product described in this publication, the purchaser of the product is permitted to copy this publication, for internal distribution only, from the media provided by Welch Allyn. Welch...
-
Page 3: Assistance And Parts
(+31) 202-061-360 Sweden (+46) 85-853-65-51 Before contacting Welch Allyn it is helpful to attempt to duplicate the problem and to check all accessories to ensure that they are not the cause of the problem. When calling, please be prepared to provide: ... - Page 4 If a Product or accessory covered by this warranty is determined to be defective because of defective materials, components, or workmanship, and the warranty claim is made within the warranty period described above, Welch Allyn will, at its discretion, repair or replace the defective Product or accessory free of charge.
-
Page 5: Table Of Contents
ABPM 6100 Hardware Manual Table of contents OVERVIEW ..........................6 ABPM 6100 MONITOR ......................10 Introduction ........................10 Operation ........................... 11 INTERFACE ..........................13 Preliminary Directive......................14 Prior to Hook-up ........................ 14 Sizing ..........................14 Traditional Cuff Placement ....................15 Sleeve Cuff Placement ...................... -
Page 6: Overview
2. The reliability of all the monitors and the software depend upon conformance with the operation and maintenance instructions in this manual. 3. The ABPM 6100 monitors are designed for use with patients with normal sinus rhythms. 4. Measurement accuracy for the ABPM 6100 monitors may be affected by position of the subject, physical conditions, movement, and use outside of the operating instructions contained in this manual. - Page 7 ABPM 6100 Hardware Manual EMC Framework of Australia Recycle DIR 80012720 Ver. F 7 / 28...
- Page 8 ABPM 6100 monitor. IMPORTANT WARNINGS The following warnings apply to the ABPM 6100 Ambulatory Blood Pressure Monitors: Patient Injury risk. Do not place the cuff on any area where circulation is compromised. Instruct the patient to remove the cuff...
- Page 9 ABPM 6100 Hardware Manual The ABPM 6100 is intended to be used as an ambulatory blood Caution pressure recorder that is sent home with the patient to record their blood pressure over a 24 hour period. It is used to gather trending information in non-critical settings.
-

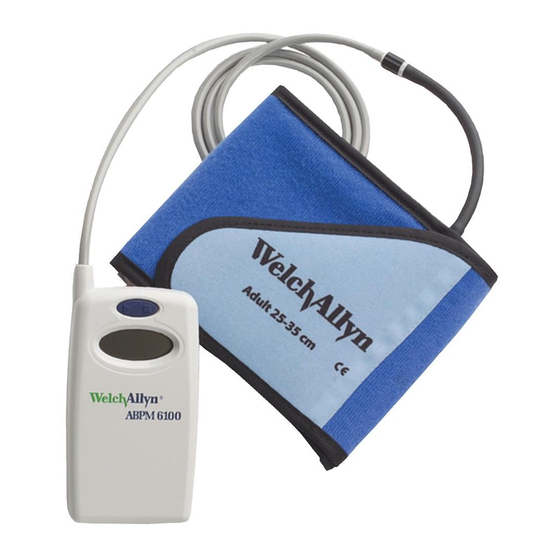

Page 10: Abpm 6100 Monitor
2. ABPM 6100 Monitor Introduction The ABPM 6100 Unit is worn by the patient in a belt or shoulder strap and is connected to a cuff, which is wrapped around the non-dominant arm. ABPM 6100 inflates the cuff at pre-... -
Page 11: Operation
Abort a reading and deflate the cuff if pressed when the unit is taking a reading. On the back of the ABPM 6100 monitor, a label lists the model and serial number of the unit. The first four digits of the serial number correspond to the year that the unit was manufactured. - Page 12 ABPM 6100 Hardware Manual At this point the unit will be ready to upload a BP Study. When the unit is turned on subsequently, the unit will display the following: Three quick audible beeps. The number of BP readings (if any) in memory along with a flashing printer symbol for 3 seconds.
-
Page 13: Interface
ABPM 6100 Hardware Manual 3. Interface This section describes how to connect the ABPM 6100 monitor to your PC and how to set up patients for monitoring sessions. To set up the ABPM 6100 for communication to your PC for the first time:... -
Page 14: Preliminary Directive
Avoid operating heavy equipment or power tools, as vibrations may functionally disrupt the monitor. Prior to Hook-up Before hooking the ABPM 6100 unit up to the patient, make sure you have performed the following tasks: Be sure the patient name and ID are on the diary and logged separately to avoid confusion with other patient data. -
Page 15: Traditional Cuff Placement
The monitor should be in sleep mode. 3. Attach the tubing from the ABPM 6100 monitor to the cuff tubing and insert the ABPM 6100 monitor into the monitor pouch. Attach the pouch to the shoulder strap or the belt, depending upon which is more comfortable to the patient. -
Page 16: Sleeve Cuff Placement
Step 2: Applying the Cuff 1. To apply the Welch Allyn ABPM 6100 cuff, simply slide the sleeve up the patient’s arm, ensuring the color size indicator is at the top of the cuff. The cuff should be midway between the elbow and shoulder. -
Page 17: Office Readings
The ABPM 6100 monitor will not begin regular runs until at least one manually initiated reading has been taken. Follow these instructions to perform an Office Reading: 1. -
Page 18: Data
PC). Reading Data from the Unit Whenever data is contained in the unit, it can be read from the unit into the ABPM 6100 software. The CardioPerfect Workstation software will then allow you to view the data and configure reports. -
Page 19: Maintenance And Cleaning
Do not remove any covers or break the warranty seal while inspecting the unit. If any signs of damage are detected, do not use the ABPM 6100 monitor. It should be sent to an authorized Welch Allyn service center. See the Service and Warranty section of this manual for a list of authorized Welch Allyn service centers. -
Page 20: Calibration Check
Welch Allyn recommends that the calibration of the ABPM 6100 monitor be verified annually by the user using the following procedure: 1. With the ABPM 6100 unit already powered up, remove one of the AA batteries from the battery compartment. Then immediately replace the battery back in its proper orientation, which will result in the unit to start the power up cycle. -
Page 21: Specifications
ABPM 6100 Hardware Manual 6. Specifications This section provides the unit specifications for the ABPM 6100 ambulatory blood pressure monitor. Power Requirements: Two “AA” alkaline batteries or high capacity rechargeable batteries (NimH). Dimensions: 124 x 70 x 33 mm (approximate). -
Page 22: Classification
• International users, contact your local authorities concerning recycling. • Discard the ABPM 6100 and accessories according to local laws. Do not dispose of this product as unsorted municipal waste. Prepare this product for reuse or separate collection as specified by Directive... -
Page 23: Troubleshooting And Error Codes
Error codes will display on the unit’s LCD. Error codes that apply to a specific reading will also display in the CardioPerfect Workstation Software when the data is read from the unit. The following table explains error codes generated by the ABPM 6100 monitor along with possible solutions for each error code. -
Page 24: Troubleshooting
ABPM 6100 Hardware Manual * Always return ABPM 6100 monitor to an authorized service center for repairs. Unauthorized service will void all warranties. Troubleshooting The following table contains a list of troublesome scenarios accompanied by suggestions for problem solving. Trouble... -
Page 25: Guidance And Manufacturer's Declarations
ABPM 6100 Hardware Manual 10. Guidance and Manufacturer’s Declarations CAUTION The ABPM6100 needs special precautions regarding EMC and needs to be installed and put into service according to the following EMC information provided. Portable and mobile RF communications equipment can affect the ABPM6100. - Page 26 ABPM 6100 Hardware Manual Electromagnetic Immunity The ABPM6100 is intended for use in the electromagnetic environment specified below. The customer or the user of the ABPM6100 should assure that it is used in such an environment. Immunity test IEC 60601...
- Page 27 ABPM 6100 Hardware Manual Electromagnetic Immunity The ABPM6100 is intended for use in the electromagnetic environment specified below. The customer or the user of the ABPM6100 should assure that it is used in such an environment. – Immunity test IEC 60601...
- Page 28 ABPM 6100 Hardware Manual Recommended separation distances between portable and mobile RF communications equipment and the ABPM6100 The ABPM6100 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the ABPM6100 can help prevent electromagnetic interference by...
