Summary of Contents for DigiTech Obscura

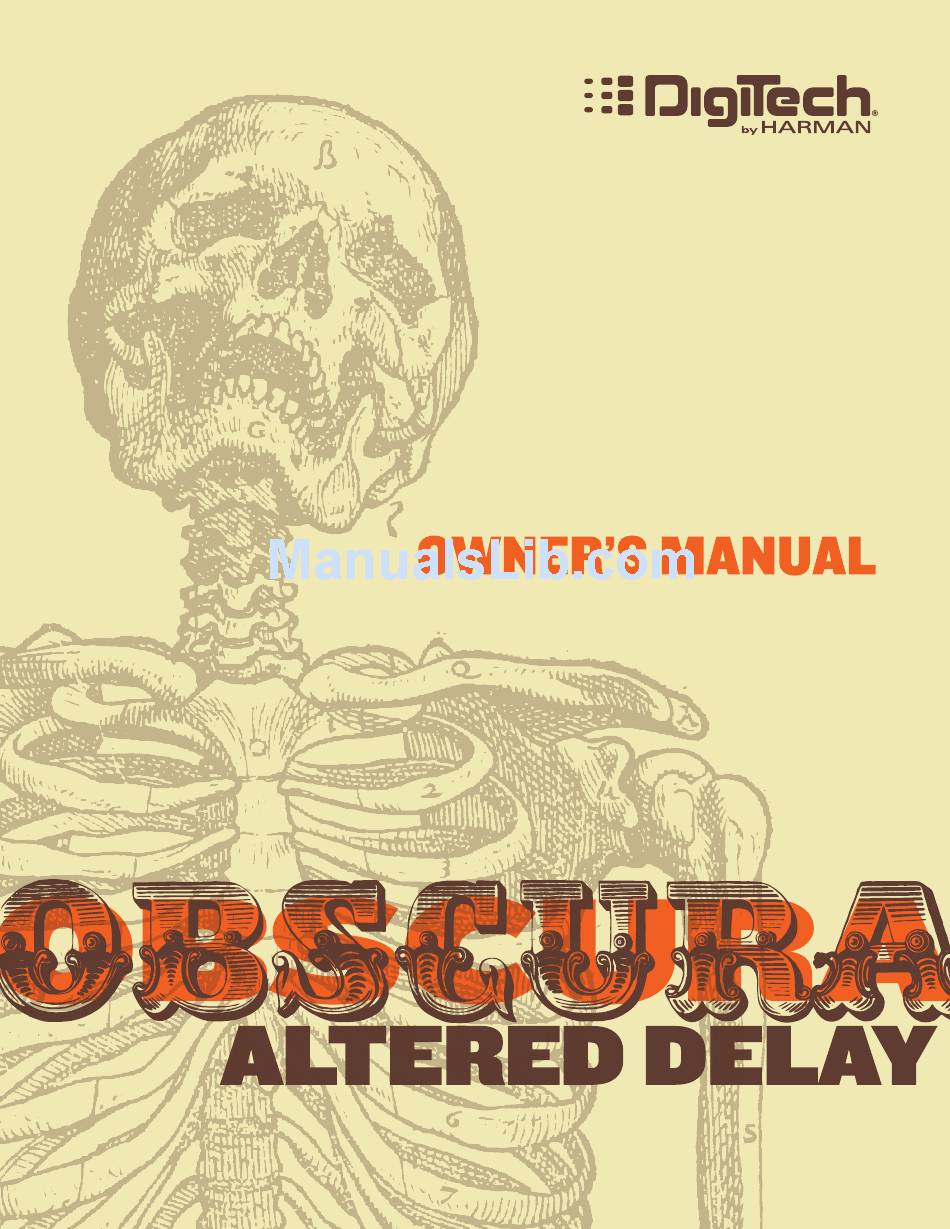

  • Page 1 OWNER’S MANUAL...

  • Page 2: Warranty

    The foregoing is in lieu of all other warranties, expressed or implied, and DigiTech neither assumes nor authorizes any person to assume any obligation or liability in connection with the sale of this product. In no event shall DigiTech or its dealers be liable for special or consequential damages or from any delay in the performance of this warranty due to causes beyond their control.
  • Page 3 The Obscura is more than just a digital delay pedal. Using the Repeat Hold feature, it can be used for creating interesting real-time effects that will repeat as long as you like, even when the effect is...

  • Page 4: User Interface

    When set to the OFF position, delay decays will end abruptly when the effect is switched to bypass. When the Tails Switch is set to ON, the Obscura does not utilize true hardwire bypass. If you always want to use true hardwire bypass, set the Tails Switch to the OFF position.

  • Page 5: Indicator Led

    5. Degrade Knob This knob controls the amount of degradation and its effect on the sound varies depending on which delay type is selected. Here’s a description of the DEGRADE control for each delay type: • ANALOG - Increases aliasing and grit. •...

  • Page 6: Making Connections/Applying Power

    To connect the Obscura pedal to your rig: 1. Turn down the amplifier’s master volume control. 2. Make all audio connections to the Obscura as shown in ‘Tap Tempo’ on page 8. 3. Connect the appropriate Harman power supply (not included) to the POWER input connector and connect the other end to an available AC outlet.

  • Page 7: Connection Diagrams

    CONNECTION DIAGRAMS Mono/Stereo Amplifier Setup Amp 1 Harman Power Supply IN 1 (MONO) OUT 1 (MONO) OUT 2 IN 2 Amp 2 Other Effects Use only unbalanced TS instrument cables for audio connections. Optional Amplifier Effects Loop Setup Harman FX SND FX RTN Power Supply OUT 1 (MONO)

  • Page 8: Example Settings

    EXAMPLE SETTINGS Try these settings to get started. Get Out Of My Way Dark Wobbly Lead Dirty Pulse Backwards Saturated Tape...
  • Page 9 Tick Tock Runaway Clock (Oscillating) Motion Of The Ocean (Oscillating) Play Part Then Play Part Then Play Part Then Engage Engage Engage Repeat Repeat Repeat Hold Hold Hold Dark Stalker (Oscillating) Tar Pit (Oscillating) Play Part Then Play Part Then Engage Engage Repeat...
