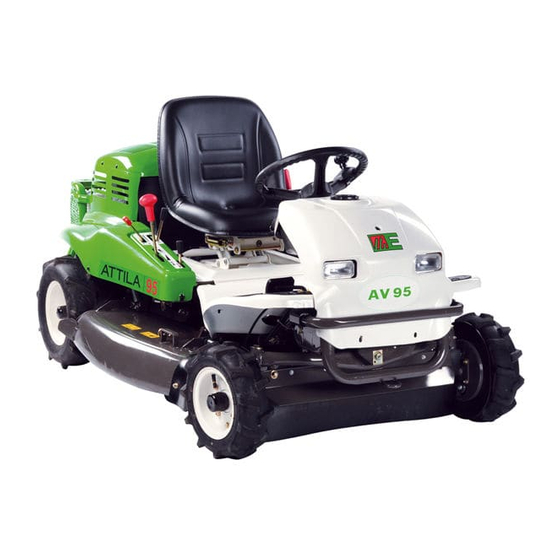

Etesia AV95 User Manual

Hide thumbs

Advertisement

Table of Contents

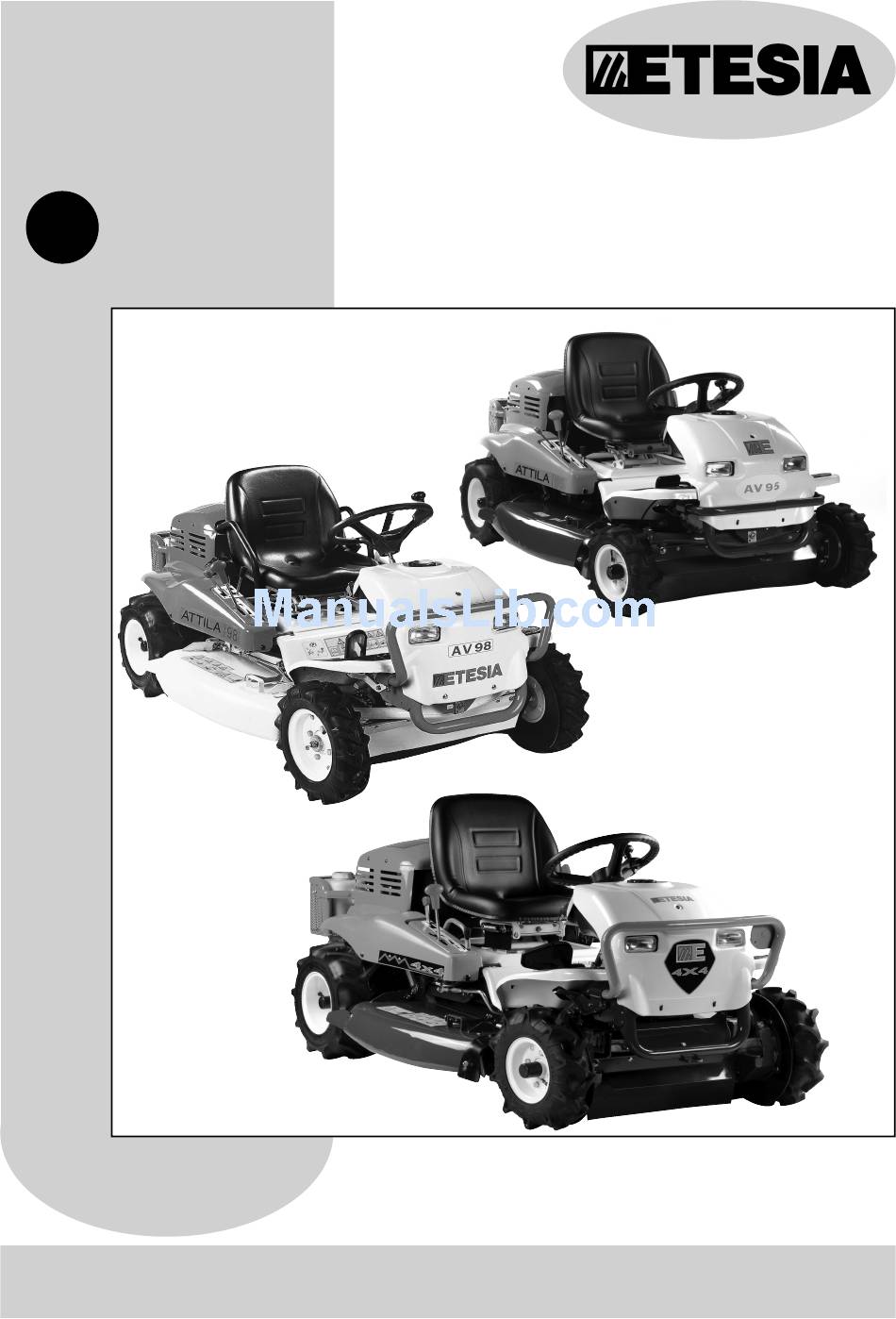

User Manual
GB
Please read carefully before using your machine
(Translation of the originals
instructions manual)
AV95-AV98-AV98X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV95 and is the answer not in the manual?

Questions and answers

Gerald Dickinson
July 16, 2025

how do you bleed the air out of the hydrostatic pump

0

Subscribe to Our Youtube Channel

Related Manuals for Etesia AV95

Summary of Contents for Etesia AV95

  • Page 1 User Manual Please read carefully before using your machine (Translation of the originals instructions manual) AV95-AV98-AV98X...

  • Page 2: Table Of Contents

    CONTENTS Your safety and that of others ............................... 3 Key to diagrams .................................... 5 Description ....................................9 Pictures ....................................... 10 Technical specifications ................................13 HST oil replacement AV98X ..............................14 Operating instructions ................................. 16 Maintenance ....................................18 Cleaning ...................................... 21 Machine lubrication points .................................

  • Page 3: Your Safety And That Of Others

    • Up-to-date technical information can be obtained from your dealer. • He will be happy to resolve any queries you may have. You are now the proud owner of an Etesia ride-on brush-cutter. This MOWER IDENTIFICATION extremely reliable and tough machine has been specially designed to •...
  • Page 4 1• YOUR SAFETY AND THAT OF OTHERS Never remove the fuel cap whilst the engine is running or hot. • Do not run the engine without a silencer. - If fuel is spilt, do not start the engine: remove the mower from •...

  • Page 5: Key To Diagrams

    2• KEY TO DIAGRAMS - SAFETY • LABELS DIAGRAMS RECTANGLE C • a = Risk of cuts to feet and hands. • Various labels have been affixed to your ride-on brush-cutter. • Check that they are all present (see list below and pictures). •...
  • Page 6 2• KEY TO DIAGRAMS - SAFETY Rectangle D Rectangle B Rectangle A RectangleC...
  • Page 7 2• KEY TO DIAGRAMS - SAFETY Rectangle A Rectangle B Rectangle C Marking of accumulators...
  • Page 8 R : Max. reverse speed 0 : engine off, power switched off 1 : power switched on Starting the engine : engine started AV95 / AV98 AV98X The arrow indicates handle movement to engage differential lock Differential lock Low speed...

  • Page 9: Description

    3• DESCRIPTION • 1. Seat • 12. Choke • 2. Speed selector (AV95 - AV98) • 13. Cutting height lever • 3. Differentiel lock lever • 14. Fuel tank cap • 4. Drive level • 15. Blade clutch lever • 5. Defl ector •...

  • Page 10: Pictures

    4• PICTURES...
  • Page 11 4• PICTURES Exchange! 1 27169 Nut M14 1 27169 Nut M14 2 27170 Washer 2 27170 Was 3 27266 Spacer 3 27266 Spacer 4 34190 Blade body 4 34190 Blade body 5 27166 Screw 5 27166 Screw Blade Blade 7 MC85 Blade + Bolting 7 MC85 Blade + Bolting 8 27543 Fixing Kit MC85 8 27543 Fixing Kit MC85...
  • Page 12 4• PICTURES...

  • Page 13: Technical Specifications

    Front : 1000 mm - Rear : 960 mm Distance between wheels 1320 mm 1260 mm 1260 mm Ray of not mowed surface 0.8 mm 0.95 mm 1.05 mm Blade ETESIA reference MC 85 Sound pressure at driver’s seat 88,3 dB(A) 85,9 dB(A) 88,4 dB(A)

  • Page 14: Hst Oil Replacement Av98X

    6• HST OIL REPLACEMENT AV98X 1) REMOVAL OF THE SUBFRAME Remove the bolts and pins (see points A, B, C, D, E of the picture) and remove the subframe. 2) HST OIL DRAIN Remove the drain bolt that is located under the HST unit with the 3/8 inches Allen wrench (see point F of the picture) .
  • Page 15 6• HST OIL REPLACEMENT AV98X 7) PUT THE CIRCUIT IN SERVICE (REFILL OIL BETWEEN THE FRONT AND REAR UNITS) 1ST STAGE Jack up the machine to get the 4 wheels of the ground. If this is not possible for you, take seat on the seat. Start the engine and leave the engine at idle.

  • Page 16: Operating Instructions

    7•4•1 DRIVE CONTROL LEVER • Allow the engine to run for a few minutes before switching on the • Drive is controlled by a lever (AV95), by the lever or by the pedal cutter. (AV98, AV98X) situated on the right side of the seat (pos. 6 page 9).
  • Page 17 - An incorrect high and a bad load repartition. 7•8 DRIVING THE RIDE-ON BRUSH CUTTER • Select a speed with the speed selector (turtle or rabbit) (AV95 and ≤17° AV98). • Release the parking brake.

  • Page 18: Maintenance

    • After the initial servicing at 15 hours, to be performed by your - Check the spark gap (b) using a feeler gauge. The gap should ETESIA dealer, the engine oil must be changed at the fi rst of the measure between 0.7 and 0.8 mm. Adjust the gap if necessary following occasions: every 50 hours or once each year.
  • Page 19 (ref. : 29592 - 2 liters). We recommend to use gloves…). an ETESIA fi lter unit fi tted with a 25 µm fi lter (ref. : 29977). • Connect the battery to the charger. - Charge voltage : 12 V...
  • Page 20 • Exchange brake shoe immediately in case of brake wire nut fi xing nature. Our dealer network has been informed about its obligation to point at the lowest. take back, free of charge, all used pneumatics from ETESIA ride on 8•6•5 BLADE REPLACEMENT mowers.

  • Page 21: Cleaning

    9• CLEANING • It is not recommended to use a high pressure cleaner. However, if • Cleaning cutting unit housing after dismantling. you do so, make sure that water is not projected towards parts of • Dismantle cutting system (see § 8•6•2). motor such as: carburettor, air fi...

  • Page 22: Maintenance Schedule

    Change the oil ref. 29592 Check the rods condition. If Braking Check correct operation necessary adjust the brakes (AV95) Check tightness of steering Steering knuckles. Grease stub axle (3 grease points) Check the Check correct operation of Electrical circuit harness...

  • Page 23: Prolonged Storage - Winter Storage

    • By placing the secondary speed selector (see picture 19 page 12) - Loosen 4 fi xing screws (see a picture 21 page 12 - for rear (AV95 and AV98) on the neutral [N] position and by releasing the wheels).

  • Page 24: Warranty

    • Should ETESIA discover that the machine is not used in the use fuel, seat, bonnets, grassbox, material grassbox frame, mudguards, initially declared, ETESIA allows itself to cancel the warranty.

  • Page 26: Ec Declaration Of Conformity

    13, Rue de l’Industrie, 67165 WISSEMBOURG CEDEX declare under our responsibility, that the ride-on lawnmowers, type ATTILA, reference AV95, AV98, AV98X to which this declaration refers, fulfi l all the relevant terms of directive 2006/42/EC applicable to them as well as to the provisions of all other directives European applicable to...
  • Page 27 Stamp here please ETESIA SERVICE GARANTIE 13 rue de l'Industrie 67165 WISSEMBOURG CEDEX France...
  • Page 28 This card has to be returned completed to ETESIA upon the first setting up. MODELL: SERIAL NUMBER: WARRANTY CERTIFICATE USER NAME ___________________________ Forename _________________________ Street ___________________________ Zip code __________________________ Town ____________________________ Country___________________________ Tel ______________________________ Date of purchas _____ _____ 20 ___...
