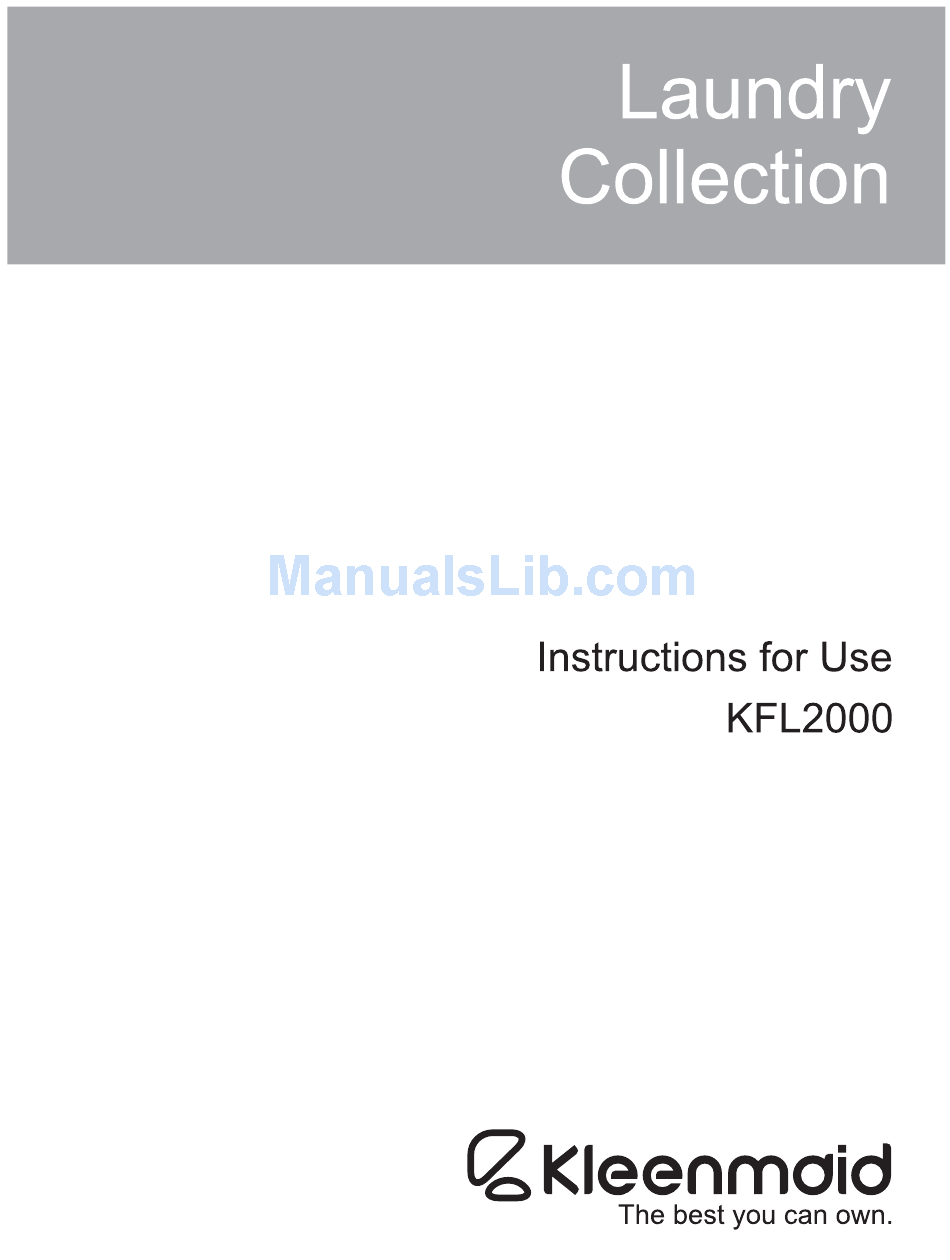

Kleenmaid KFL2000 Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Kleenmaid Manuals
  4. Washer
  5. KFL2000
  6. Instructions for use manual
Kleenmaid KFL2000 Instructions For Use Manual

Kleenmaid KFL2000 Instructions For Use Manual

Hide thumbs Also See for KFL2000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Repair Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KFL2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kleenmaid KFL2000

Summary of Contents for Kleenmaid KFL2000

  • Page 3: Table Of Contents

    Table of Contents Your Kleenmaid washing machine ............

  • Page 4: Your Kleenmaid Washing Machine

    Your Kleenmaid General safety Information washing instructions concerning machine waste disposal Your washing machine is intended for use in the household only, The new washing machine which you Disposal of packaging have just purchased is a modern, high washing machine washable Your new appliance was delivered to quality domestic appliance.

  • Page 5: Installation Instructions

    Installation Instructions Introduction Protection of the Standard accessories environment / Observe and follow the warnings Several accessories are enclosed with Hints and tips and instructions below: your washing machine. Check that all These installation instructions are the accessories for your model are Your washing machine uses water, intended for qualified fitters.

  • Page 6: Dimensions

    Useful tools Checklist for Page The following tools are helpful: Installation 1. Flat head screwdriver. completely remove 4 shipping bolts 2. Socket wrench (1/2" / 13mm). and move the washer into place 3. Closed wrench (1/2" / 13 mm). connect the water supply line and 4.

  • Page 7: Remove The Transportation Safety Devices

    Installation in a recess Release all screws and using the If the bushings do not come out If the washing machine is to be when removing the bolts, place SW 13 wrench until they can be installed in a recess, observe the the bolts back into the bushings removed freely.

  • Page 8: Hose And Cable Lengths

    Hose and cable lengths Connection on left side Connection on right side a = 140 cm (approx.) e = 175 cm (approx.) Other hoses b = 130 cm (approx.) 88 cm (approx.) Available from specialist dealers: c = 85 cm (approx.) g = 140 cm (approx.) Extended supply hose (approx.

  • Page 9: Connecting The Power

    Connecting the power 1. Place the hose clamp over the Drainage into a siphon: end of the drain hose before Attention attaching the drain hose to the appliance. Connect the washing machine only to an alternating current via a correctly installed earthed socket.

  • Page 10: Aligning The Washing Machine

    Aligning the washing It may be necessary to hold machine the washer foot with a pair of pliers to keep it from turning Leveling Procedure while tightening the lock nut. It the foot does turn, it will 1. The appliance should now be in change the height of the its final position, ready for leveling corner.

  • Page 11: Operating Manual

    Operating manual Your new washing machine Pour in detergent and/or cleaning product. Open the door (red mark) ..close the washing machine door.

  • Page 12: Control Panel

    Control panel Display Buttons for additional options Indicates the settings which have been selected or (in addition to the programme if required) which are to be changed (e.g. spin speed, end time, Prewash P: Prewash can be switched on in intensity, signal, childproof lock, time) as well as the addition to a selected programme.

  • Page 13: Before Using Your Washing Machine For The First Time

    First wash cycle (without laundry) Before using First wash cycle Your appliance was tested before your washing leaving the factory. To remove any water left over from testing machine for the Selecting the language procedures, the first washing cycle should be carried out without laundry first time The programme selector must in the machine.

  • Page 14: Preparing The Washing

    Preparing the washing Sorting the washing very soiled Visible soiling and/or stains. According to colour and degree Kitchen towels used for up to of dirt one week. Fabric serviettes. Baby bibs. Children's outer clothing or football jerseys and shorts soiled with grass and/or earth. Working clothes such as overalls Empty pockets of laundry items.

  • Page 15: Loading The Laundry

    Loading the laundry Sorting washing according to the instructions on the care labels Laundry Detergents and Additives . Risk of poisoning! Only wash laundry items which bear the following care labels. Keep detergents and cleaning Open the door. products out of the reach of children.

  • Page 16: Pour In Detergent And/Or Cleaning Product

    Pour in detergent Easy-Care A 60 °C For easy care, normally soiled, and/or cleaning product Programmes colourfast textiles, e.g. made of cotton, linen, synthetic fibres or and functions blended fabrics. These types of washing require a special programme sequence and reduced spin speeds in The programme duration is order to reduce crease formation.

  • Page 17: Display

    Display Additional options Spin B Spin cycle for spinning hand washed Prewash P The running programme and items. programme status are displayed Washing water or rinsing water is on the left side of the first line. drained before the spin cycle. The current time is displayed on the Rinse/Freshen Up K right side when Ready"...

  • Page 18: Indicator Light In The Start/Pause M Button

    Indicator light in the Unbalanced load detection system The automatic unbalanced load Start/Pause M button detection system spins the laundry The indicator light conveys the several times to ensure even following information: distribution. The Start/Pause M indicator light If the washing is very unevenly flashes (red): Programme can be distributed, it is not spun for reasons started.

  • Page 19: Washing With Standard Settings

    Washing with standard settings The specified standard settings are optimally adjusted to the selected programme. If you do not want to change these standard settings: Press the Start/Pause M button. Load the laundry and close the The indicator light is on (red). loading door.

  • Page 20: Washing With Individual Settings

    Washing with individual settings You can adjust the settings to your First find a quick overview of the The steps for changing the settings requirements. adjustable settings. are described in detail overleaf. Programme Overview Select programme with programme selector. Load the laundry and close the loading door Press the Menu button.

  • Page 21: Spin Speed

    Spin speed The speeds can be changed. The maximum displayed spin speed depends on the selected programme. See also information on Page 17. Turn the programme selector to the desired programme. Press the Start/Pause M button. Press the Select button until the Load the laundry and close The programme starts.

  • Page 22: Wash

    Wash Example: If Mode: Intensive Wash" or Mode: Quick Wash" was You can select among several wash options: selected, symbol  " or  " is permanently displayed when These are: the menu is left. Mode: Normal Wash" Other settings can be selected by Usual wash duration.

  • Page 23: Childproof Lock

    When the menu is left, the  " Remove washing at the end symbol is permanently displayed. of the programme with Child lock: on" When a programme has started, you can activate/deactivate the Press and hold down the Start/ childproof lock in pause mode Pause M button (5 seconds).

  • Page 24: Set Clock

    Set clock During washing You can set the current time. The settings are retained even if your washing machine is not used for up Select a programme to 6 weeks. again Turn the programme selector to the desired programme. If the childproof lock is active, Press the Menu button until the deactivate temporarily.

  • Page 25: After Washing

    Cancelling active Press the Start/Pause M button. Programme continues. programme After washing The indicator light is on (red). If you would like to terminate If the Start/Pause M indicator a programme and remove the The Start/Pause M indicator light light is on (red), the programme washing: goes out.

  • Page 26: Maintenance And Care Information

    Cleaning the detergent When the additional programme has ended, open the door. dispenser Maintenance Turn the programme selector to If there are detergent or cleaning Off. and care infor product residues in the detergent drawer: Child lock: on" preselected mation The Start/Pause M indicator light comes on (red).

  • Page 27: Cleaning The Drain Pump

    Cleaning the drain pump This is necessary if the washing solution has not been completely drained. The pump is blocked by either loose debris or fluff which accumulates if fluff giving fabrics are washed. Carefully remove the sealing cap Insert the drain hose into the Drain the water and allow the water to flow into holder.

  • Page 28: Descaling The Washing Machine

    Descaling the washing Cleaning the strainer(s) at the water tap machine Provided that you use the correct amount of detergent, it is not necessary to descale the washing machine. Rust spots caused by metal parts left on the inside of the drum can be removed by using descaler.

  • Page 29: Troubleshooting Minor Faults

    Troubleshooting Minor Faults If repairs are needed, and assuming Turn the programme selector Turn off the tap. that you cannot eliminate the fault to Off. Call customer service yourself with the aid the following Disconnect the washing machine table. from the power supply. Fault Possible cause Remedial action...
  • Page 30 Fault Possible cause Remedial action Programme does not End time selected and activated. None. Appliance starts automatically. start. Time delay" is indicated in the display field. Time cannot be set. Programme has already started; when the programme Wait until programme ends. has started, the time cannot be set.

  • Page 31: Fault Displays

    Fault Possible cause Remedial action This is not a fault. Dispensing the correct amount of detergent Programme duration The foam detection feature has activated an additional extended. rinsing cycle to reduce the amount of foam. This is not a fault. Always load large and small items together into the Unbalanced load detection system is attempting to drum.

  • Page 32: Consumption Values

    Consumption values Additional option Load up to Consumption values** Cancelling the programme Power Water Duration Cottons y 30 ºC Intensive Wash" 10.0 kg 0.7 kWh 95 l 1:45 h Cottons y 40 ºC Intensive Wash" 10.0 kg 1.2 kWh 95 l 2:15 h Cottons y 60 ºC Intensive Wash"...

  • Page 33: Installing, Connecting And Transporting The Appliance

    Installing, connecting and transporting the appliance Safety instructions Transport, e.g. when Preparing and inserting the transport bolts moving d Risk of injury! The washing machine is very heavy. Before transporting the washing Lift with caution. machine Warning Turn off the tap. Frozen hoses may tear/burst.

  • Page 34: Quick Reference Instructions

    Quick reference instructions Before use d Warning ... and start Before using your washing machine, Open read the installation and operating instructions and act accordingly. Select and start Select the display language. Set the time. a programme Preparing the washing After washing Select required settings...
