IR 401 Remote Control Instruction Guide, continued
Display Power — After the System 5cr Plus switcher is programmed (set up) with learned or downloaded
commands, press this button to toggle the projector's power on or off. The switcher's
Display Power LED blinks fast during projector power up and slowly during projector power down.
Display Mute — After setup, this button functions as the display's mute on/off switch.
Display Mode — After the switcher is set up, this button changes the mode of the display/projector
between computer video, S-video, and composite video. It takes the place of the single-button (step)
mode function found on some projectors' remote controls.
Each of the following buttons can have one "learned"/downloaded IR command associated with it:
Room — This toggles the switcher's relay contacts to control items such as lights
and display screens. Refer to the System 5cr Plus User's Manual for details.
PC 1 & PC 2 — Press these buttons to select input 1 (PC 1 on the switcher's
front panel) or input 2 (PC 2 on the switcher's rear panel), respectively. Both
inputs accept only RGB computer video and audio.
Input 3 — This corresponds to the System 5cr Plus's Input 3, which can be con-
figured to accept audio and RGB, or S-video, or composite video. It also
corresponds to the System 5cr 's PC 3, which accepts computer video and audio.
VID 1 & VID 2 – Press these to select input 4 (Vid 1) or input 5 (Vid 2). Both can
be configured for audio and either S-video or composite video.
+ and - — Press these buttons to adjust the audio output volume.
Mute — Press this button to toggle audio output on and off.
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street, Anaheim, CA 92805 Beeldschermweg 6C, 3821 AH Amersfoort
+31.33.453.4040 FAX +31.33.453.4050
800.633.9876 714.491.1500 FAX 714.491.1517
USA The Netherlands
IR 401 Remote Control Instruction Guide, continued
Display Power — After the System 5cr Plus switcher is programmed (set up) with learned or downloaded
commands, press this button to toggle the projector's power on or off. The switcher's
Display Power LED blinks fast during projector power up and slowly during projector power down.
Display Mute — After setup, this button functions as the display's mute on/off switch.
Display Mode — After the switcher is set up, this button changes the mode of the display/projector
between computer video, S-video, and composite video. It takes the place of the single-button (step)
mode function found on some projectors' remote controls.
Each of the following buttons can have one "learned"/downloaded IR command associated with it:
Room — This toggles the switcher's relay contacts to control items such as lights
and display screens. Refer to the System 5cr Plus User's Manual for details.
PC 1 & PC 2 — Press these buttons to select input 1 (PC 1 on the switcher's
front panel) or input 2 (PC 2 on the switcher's rear panel), respectively. Both
inputs accept only RGB computer video and audio.
Input 3 — This corresponds to the System 5cr Plus's Input 3, which can be con-
figured to accept audio and RGB, or S-video, or composite video. It also
corresponds to the System 5cr 's PC 3, which accepts computer video and audio.
VID 1 & VID 2 – Press these to select input 4 (Vid 1) or input 5 (Vid 2). Both can
be configured for audio and either S-video or composite video.
+ and - — Press these buttons to adjust the audio output volume.
Mute — Press this button to toggle audio output on and off.
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street, Anaheim, CA 92805 Beeldschermweg 6C, 3821 AH Amersfoort
800.633.9876 714.491.1500 FAX 714.491.1517 +31.33.453.4040 FAX +31.33.453.4050
USA The Netherlands

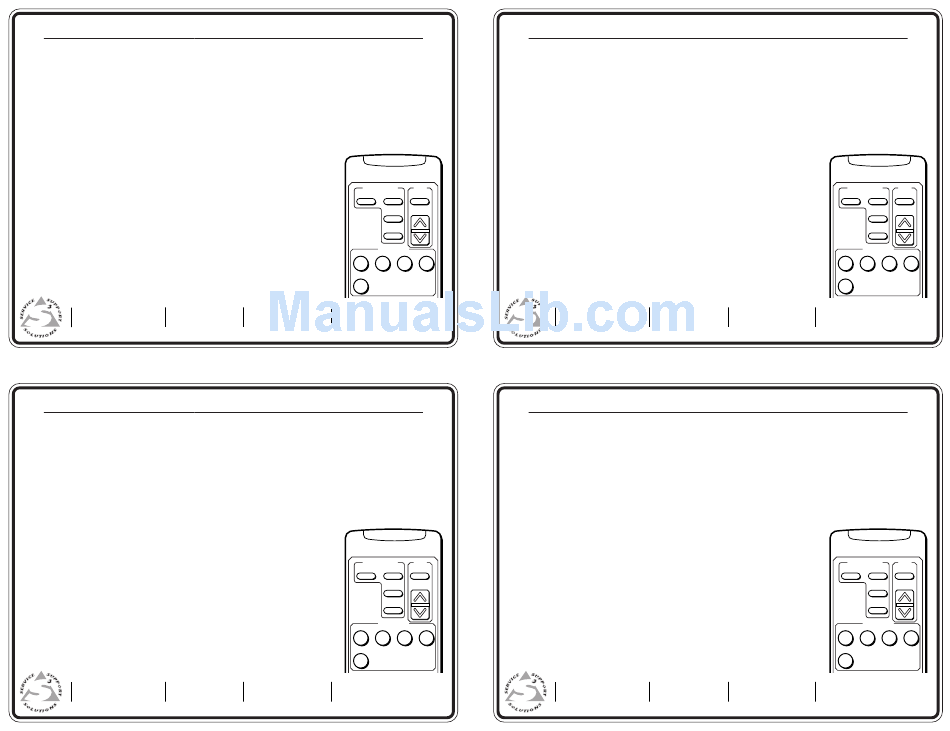

Control Functions Audio
Display Display
Mute
Power Mute
Volume
Mode
Room
Input Selection
1 2 3 4
5
Extron Electronics, Asia Extron Electronics Information
135 Joo Seng Rd. #04-01, PM Industrial Bldg. ExtronWEB ™ : www.extron.com
68-517-01
+65.383.4400 FAX +65.383.4664 ExtronFAX ™ : 714.491.0192
Rev. B, 05 01
Singapore 368363 24-hour access—worldwide!
Control Functions Audio
Display Display
Mute
Power Mute
Mode Volume
Room
Input Selection
1 2 3 4
5
Extron Electronics, Asia Extron Electronics Information
135 Joo Seng Rd. #04-01, PM Industrial Bldg. ExtronWEB ™ : www.extron.com
68-517-01
+65.383.4400 FAX +65.383.4664 ExtronFAX ™ : 714.491.0192
Singapore 368363 24-hour access—worldwide! Rev. B, 05 01
IR 401 Remote Control Instruction Guide, continued
Display Power — After the System 5cr Plus switcher is programmed (set up) with learned or downloaded
commands, press this button to toggle the projector's power on or off. The switcher's
Display Power LED blinks fast during projector power up and slowly during projector power down.
Display Mute — After setup, this button functions as the display's mute on/off switch.
Display Mode — After the switcher is set up, this button changes the mode of the display/projector
between computer video, S-video, and composite video. It takes the place of the single-button (step)
mode function found on some projectors' remote controls.
Each of the following buttons can have one "learned"/downloaded IR command associated with it:
Room — This toggles the switcher's relay contacts to control items such as lights
and display screens. Refer to the System 5cr Plus User's Manual for details.
PC 1 & PC 2 — Press these buttons to select input 1 (PC 1 on the switcher's
front panel) or input 2 (PC 2 on the switcher's rear panel), respectively. Both
inputs accept only RGB computer video and audio.
Input 3 — This corresponds to the System 5cr Plus's Input 3, which can be con-
figured to accept audio and RGB, or S-video, or composite video. It also
corresponds to the System 5cr 's PC 3, which accepts computer video and audio.
VID 1 & VID 2 – Press these to select input 4 (Vid 1) or input 5 (Vid 2). Both can
be configured for audio and either S-video or composite video.
+ and - — Press these buttons to adjust the audio output volume.
Mute — Press this button to toggle audio output on and off.
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street, Anaheim, CA 92805 Beeldschermweg 6C, 3821 AH Amersfoort
+31.33.453.4040 FAX +31.33.453.4050
800.633.9876 714.491.1500 FAX 714.491.1517
USA The Netherlands
IR 401 Remote Control Instruction Guide, continued
Display Power — After the System 5cr Plus switcher is programmed (set up) with learned or downloaded
commands, press this button to toggle the projector's power on or off. The switcher's
Display Power LED blinks fast during projector power up and slowly during projector power down.
Display Mute — After setup, this button functions as the display's mute on/off switch.
Display Mode — After the switcher is set up, this button changes the mode of the display/projector
between computer video, S-video, and composite video. It takes the place of the single-button (step)
mode function found on some projectors' remote controls.
Each of the following buttons can have one "learned"/downloaded IR command associated with it:
Room — This toggles the switcher's relay contacts to control items such as lights
and display screens. Refer to the System 5cr Plus User's Manual for details.
PC 1 & PC 2 — Press these buttons to select input 1 (PC 1 on the switcher's
front panel) or input 2 (PC 2 on the switcher's rear panel), respectively. Both
inputs accept only RGB computer video and audio.
Input 3 — This corresponds to the System 5cr Plus's Input 3, which can be con-
figured to accept audio and RGB, or S-video, or composite video. It also
corresponds to the System 5cr 's PC 3, which accepts computer video and audio.
VID 1 & VID 2 – Press these to select input 4 (Vid 1) or input 5 (Vid 2). Both can
be configured for audio and either S-video or composite video.
+ and - — Press these buttons to adjust the audio output volume.
Mute — Press this button to toggle audio output on and off.
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street, Anaheim, CA 92805 Beeldschermweg 6C, 3821 AH Amersfoort
800.633.9876 714.491.1500 FAX 714.491.1517 +31.33.453.4040 FAX +31.33.453.4050
USA The Netherlands
Control Functions Audio
Display Display
Mute
Power Mute
Volume
Mode
Room
Input Selection
1 2 3 4
5
Extron Electronics, Asia Extron Electronics Information
135 Joo Seng Rd. #04-01, PM Industrial Bldg. ExtronWEB ™ : www.extron.com
68-517-01
+65.383.4400 FAX +65.383.4664 ExtronFAX ™ : 714.491.0192
Rev. B, 05 01
Singapore 368363 24-hour access—worldwide!
Control Functions Audio
Display Display
Mute
Power Mute
Mode Volume
Room
Input Selection
1 2 3 4
5
Extron Electronics, Asia Extron Electronics Information
135 Joo Seng Rd. #04-01, PM Industrial Bldg. ExtronWEB ™ : www.extron.com
68-517-01
+65.383.4400 FAX +65.383.4664 ExtronFAX ™ : 714.491.0192
Singapore 368363 24-hour access—worldwide! Rev. B, 05 01
