HyperGravity Compressor
English manual 2015-09-28
Power / Switching the
effect on and off
Power input
To power up your pedal, connect a power supply
to its power input socket.
The power input socket of your TC Electronic
effect pedal is a standard 5.5 / 2.1 mm DC plug
(centre = negative).
Your TC Electronic effect pedal requires a 9 V
power supply providing 100 mA or more (not
supplied). TC Electronic recommends using the
PowerPlug 9.
To minimize hum, use a power supply with iso-
lated outputs.
If no power supply is available, you can run this
product using a battery. For more information on
changing batteries, see "Changing the battery".

Footswitch

► To turn the effect on, tap the footswitch.
►
To turn the effect off, tap the footswitch again.

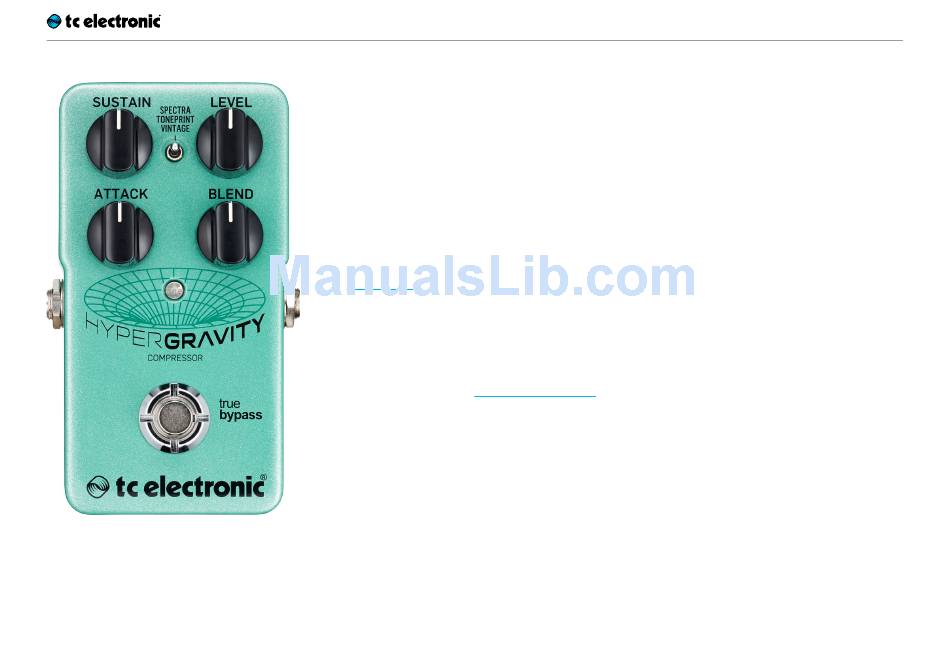

Inputs, outputs and controls

Audio in and out

Audio input (mono)
The audio input on the right side of this pedal is
a standard ¼" jack (mono/TS).
►
Connect your guitar to the audio input on the
right side of your pedal using a regular ¼"
mono cable.
Audio output (mono)
The audio output on the left side of this pedal is
a standard ¼" jack (mono/TS).
►
Connect the audio output of your pedal to the
next device in the signal chain using a regular
¼" mono cable.
14
