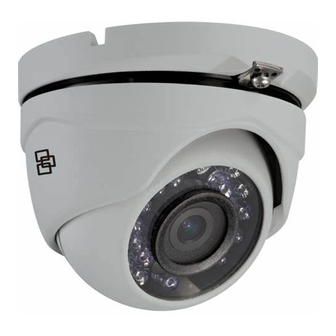

- Page 1 TruVision IR Turret Camera TVT-2201/4201 Installation Guide P/N 1072922A • REV A • ISS 10FEB15...
-
Page 3: Table Of Contents
Contents Package contents 2 Camera description 4 Installation 4 Specifications 8 Regulatory information 9 Installation Guide... -
Page 4: Package Contents
Package contents This is the TruVision IR Turret Camera Installation Guide for models TVT-2201/4201. This guide describes a standard installation. The camera consists of the following: Camera with power 3 M4 screws (3 x and video output 25 mm) and 3 cables drywall anchor (Ø7.5 x 24.5 mm) -
Page 5: Installation Guide
Hex wrench Installation Guide Installation Guide... -
Page 6: Camera Description
Camera description Enclosure Mounting base Camera Fixed ring Video cable Lock screw Power cable Installation To install the camera: Using the template, place it level against the mounting surface and mark the position of the mounting holes. Installation Guide... - Page 7 Following all local codes, drill and prepare the mounting holes. Loosen the lock screw on the mounting base to release the turret camera. Securely fasten the mounting base to the mounting surface with the screws. Installation Guide...
- Page 8 Connect a 75-ohm coaxial video cable to the video cable, and connect a 12 VDC power supply to the power cable. Secure the camera to the mounting base by tightening the lock screw. Installation Guide...
- Page 9 Loosen the locked screw to adjust the surveillance angle according to the figure below, then tighten the locked screw. 0° ~ 360° 0° ~ 75° 0° ~ 360° Installation Guide...
-
Page 10: Specifications
Specifications Power supply 12 VDC Current Max. 330 mA Power Max. 1.8 W (Max. 4 W with IR consumption cut filter on) Weight 0.88 lb. (400 g) Dimensions 2.76 x 5.89 in. (Ø × L) (89.6 x 59.1 mm) Installation Guide... -
Page 11: Regulatory Information
Regulatory information Copyright: © 2015 United Technologies Corporation. Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved. Trademarks and patents: Trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. - Page 12 For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. Contact information: For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu. Installation Guide...
