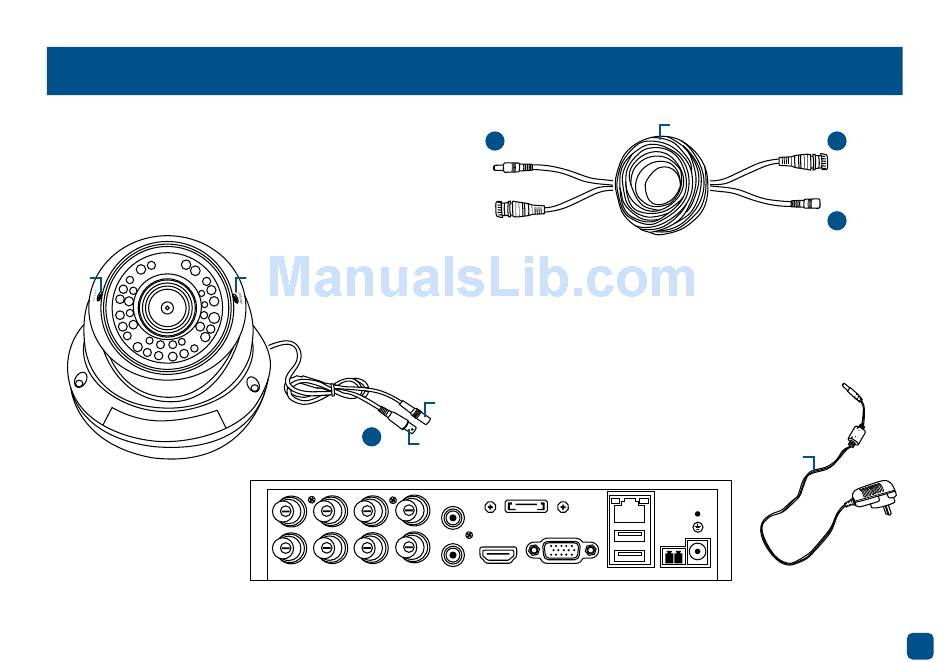

Connecting your Camera

1.
Connect the video output and power
input connection on the camera to the
corresponding connections on the video
& power cable.
Focus
4.
Use the zoom
function to adjust the
viewing angle and
the focus function to
sharpen the image.
2.
Connect the video connection
Zoom
on the other end of the video &
power cable to one of the video
inputs on the DVR.
1
Video Output
1
7 5 3
6 4 2
8
VIDEO IN
1
Power Input
AUDIO IN
eSATA
AUDIO OUT HDMI VGA
Video & Power Cable
3.
Connect the power adapter
to the power input on the video
& power cable then connect
the power connection to a
spare wall socket.
Power Adapter
PTZ
DC 12V
LAN & USB B A
IN
2
3
3
