Page 1: Quick Guide
ZTE MF65M Quick Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057... -
Page 2: Legal Information
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, elec- tronic or mechanical, including photocopying and micro- film, without the prior written permission of ZTE Corpora- tion. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. -
Page 3: Getting To Know Your Device

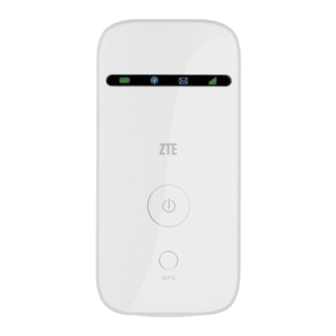

Getting to Know Your Device Appearance The following figure is only for your reference. The actual product may be different. 1. LED Indicators 2. Power Button 3. WPS Button 4. Micro USB Port 5. (U)SIM Card Slot 6. microSDHC Card Slot NOTE: 1. - Page 4 Indicators Indicator Status Description Error status. Not registered to the mobile network, no Red solid (U)SIM card inserted or no Network network service available. Registered to the mobile Green solid network. Connected to the mobile Green network and data is being blinking transferred.
-
Page 5: Connection Scenario
Red solid/ The battery is low. Please blinking charge the battery. Green The battery is being charged. blinking Battery The battery level is middle or Green solid high. Your device is in standby mode and not being LED light off charged, or the battery is not inserted. - Page 6 • 3G Mode: Use your (U)SIM card to access the Inter- net. • Internet Wi-Fi Mode: You can connect to other WiFi networks from you device such as your (Public hot- spot , home or business wireless router, etc.) via Wi- Fi to access the Internet.
-
Page 7: Installing Your Device
Installing Your Device 1. Slide the back cover and remove it 2. Insert the (U)SIM card. IMPORTANT: Your device does not support Micro/Nano or any other nonstandard SIM cards. To avoid device damage, please do not use them. - Page 8 3. Insert the microSDHC card if necessary. 4. Insert the battery.
-
Page 9: Connecting To Your Device
5. Close the back cover. Connecting to Your Device Via Wi-Fi 1. Power on your device directly. It will take 1~2 minutes to initialize. 2. Use your normal Wi-Fi application on the client to search for the available wireless networks. - Page 10 NOTE: Please set the client to obtain an IP address automatically referring to the chapter “Configuring your PC”, and then the client will get an IP address like “192.168.3.101”. 3. Select the SSID of your device, and then click Con- nect.
- Page 11 4. Input the password, and then click Connect. NOTE: You may need to input the password for Wi-Fi connection. Please check the label underneath the back cover of your device to get the default password. 5. Wait a moment, and then the client will connect to your device successfully.
-
Page 12: Accessing The Internet
Via USB Cable 1. Connect the device to your PC or Mac with a USB cable. 2. Power on your device. 3. Your computer detects and recognizes new hardware and finishes the installation automatically. NOTE: If the system does not launch installation automatically, you can run the installation program in path of My Computer >... - Page 13 3G Mode After the client connected to your device successfully, you can access the Internet in the Automatic or Manual mode. The default mode is Automatic. Mode Operations Your device will connect to the Internet au- Automatic tomatically, and your clients can surf on the Internet directly.
- Page 14 Internet Wi-Fi Mode 1. Log in the O2 Mobile Broadband Manager go to the settings page. 2. Select Settings > Internet Wi-Fi. 3. Choose enable next to Internet Wi-Fi Switch and select Wi-Fi as your Preferred Network, and then click Apply. NOTE: You need to enable Internet Wi-Fi switch and select pre- ferred network Wi-Fi.
-
Page 15: Configuring Your Pc
5. After the client connected to the Wi-Fi device suc- cessfully, you can access the Internet. Configuring Your PC Follow the following steps and figures for Windows XP to configure the Internet Protocol for your Wi-Fi connection. - Page 16 1. Right-click My Network Places, and then select Properties. 2. Right-click Wireless Network Connection, and then select Properties.
- Page 17 3. Select Internet Protocol(TCP/IP), and then click Properties.
- Page 18 4. Select Obtain an IP address automatically and Ob- tain DNS server address automatically, and then click OK to finish the configuration.
-
Page 19: Warning And Notice
Warning and Notice To the Owner • Some electronic devices are susceptible to electro- magnetic interference sent by your device if inad- equately shielded, such as the electronic system of vehicles. Please consult the manufacturer of your device before using if necessary. •... -
Page 20: Using Your Device
• Do not touch the inner antenna area if not necessary. Otherwise it will affect your device’s performance. • Store your device out of the reach of little children. Your device may cause injury if used as a toy. • Do not touch the metallic parts of your device so as to avoid a burn, when your device is working. - Page 21 • Handle your device carefully. Do not drop, bend or strike it. Otherwise your device will be damaged. • No dismantling by non-professionals and only quali- fied technicians can undertake repair work. • Operating temperature range of 0°C ~ +35°C and hu- midity range of 5% ~ 95% are recommended.
-
Page 22: Limited Warranty
End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage, ser- vicing or operation of the Product. iv. Modifications or repairs not made by ZTE or a ZTE-certified individual. Power failures, surges, fire, flood, accidents, ac- tions of third parties or other events outside ZTE’... -
Page 23: Limitation Of Liability
Limitation of Liability ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using of this... - Page 24 Specific Absorption Rate (SAR) Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.
-
Page 25: Troubleshooting
Troubleshooting Problem Suggested Solution • You need to install the software. Run the installation program in path Can not estab- of My Computer > O2PocketHot- lish the USB spot. connection • If the driver of your device is abnor- between your mal, please reinstall the software. - Page 26 Problem Suggested Solution • Make sure your (U)SIM card is available. The client con- • Change the location to find a place nected to the with good signal. device can not • Check WAN Connection mode set- access the In- ting.
- Page 27 • If you changed the password and have forgotten it, you will need to restore the device to the factory default settings. For more assistance, please: • Send E-mail to mobile@zte.com.cn • Visit http://www.zte.com.cn • Call Service Hotline: +86–755–26779999...
- Page 28 ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057...
