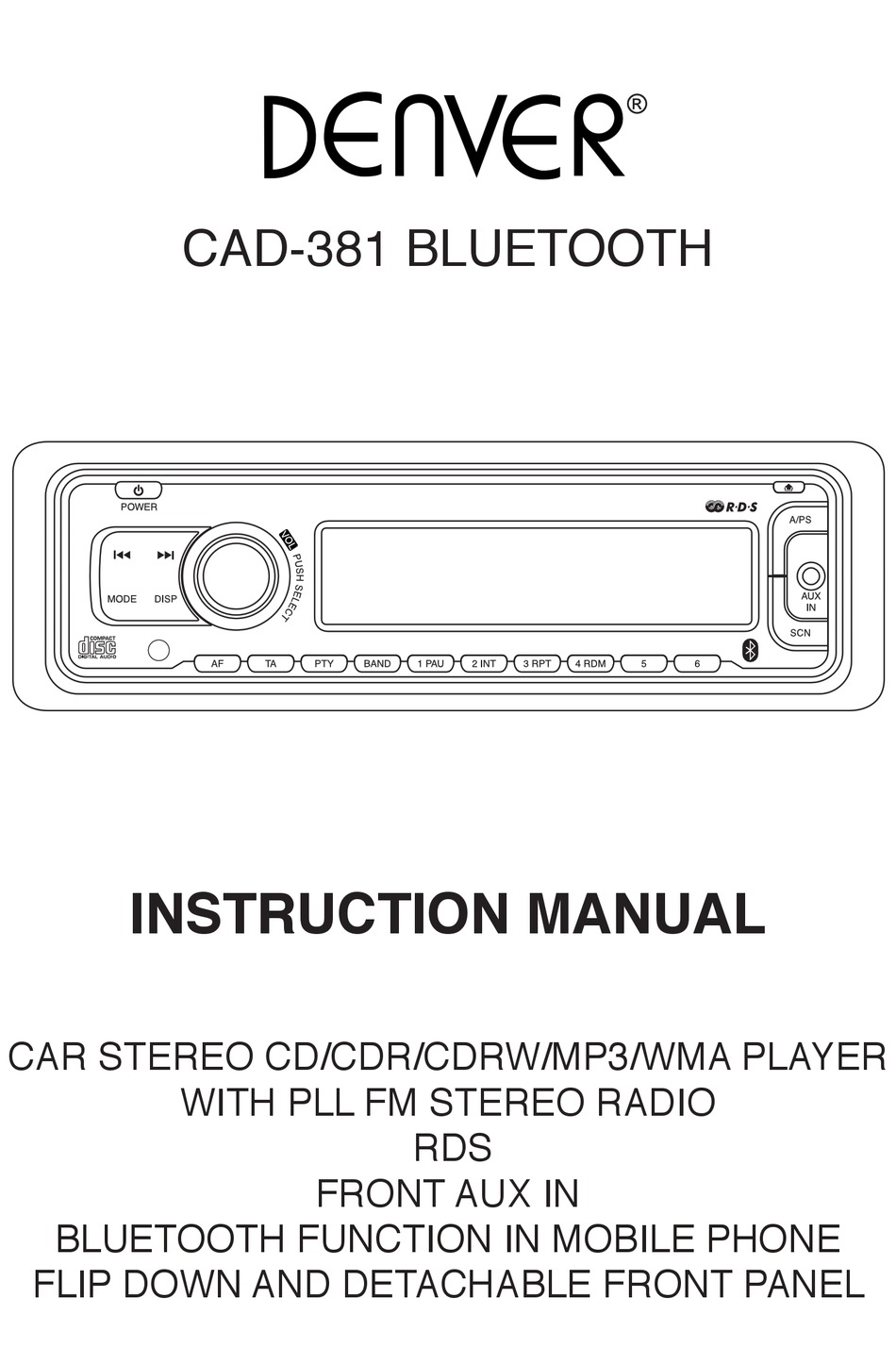

Page 1: Instruction Manual
CAD-381 BLUETOOTH INSTRUCTION MANUAL CAR STEREO CD/CDR/CDRW/MP3/WMA PLAYER WITH PLL FM STEREO RADIO FRONT AUX IN (1-6) BLUETOOTH FUNCTION IN MOBILE PHONE FLIP DOWN AND DETACHABLE FRONT PANEL... -
Page 2: Location Of Parts And Controls
LOCATION OF PARTS AND CONTROLS (1-6) 1. POWER ON/OFF ( 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER/TA SEEK/ MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/BEEP/SEEK/STEREO/ LOCAL/VOL LAST 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER/TA SEEK/ MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/BEEP/SEEK/STEREO/ LOCAL/VOL LAST 4. PRESET STATIONS (1,2,3,4,5,6) (1-6) 5. ‘AF’ function (ALTERNATIVE FREQUENCIES) 6. -
Page 3: Iso Connector
ISO CONNECTOR RCA Jack Line Out (Grey): Red (right) White (left) RCA Jack Line In (Black): Red (right) White (left) External Microphone: (Black) CONNECTOR A 4. MEMORY +12V 5. AUTO ANTENNA OUTPUT 7. +12V (TO IGNITION KEY) 8. GROUND Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period. -
Page 4: To Support The Unit
TO SUPPORT THE UNIT 1. UNIT 2. RELEASE CASE 3. DASH BOARD 4. HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. -
Page 5: Power On/Off
1. POWER ON/OFF ( By pressing this key, the unit is on or off. This unit is turned on by pressing any key. 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/RETUNE/ AUDIO DSP/LOUDNESS/ESP/BEEP/SEEK/STEREO/LOCAL/VOL LAST When pressed short, it is activated as selecting mode of electric volume. VOL ---- BASS ---- TREB ---- BAL ---- FADER ---- VOL TA SEEK/TA ALARM When press the SEL button for more than 2 seconds, it is activated as selecting mode of these... -
Page 6: Beep Mode
POP M --- ROCK M --- CLASS M --- FLAT M --- DSP OFF TA SEEK MASK DPI RETUNE RETUNE L / RETUNE S 2 sec. 2 sec. TA SEEK MASK DPI MASK DPI / MASK ALL TA SEEK MASK DPI RETUNE LOUD 2 sec. -
Page 7: Using The Rds Function
MUSIC SPEECH 1. POP M, ROCK M 1. NEWS, AFFAIRS, INFO 2. EASY M, LIGHT M 2. SPORT, EDUCATE, DRAMA 3. CLASSICS, OTHER M 3. CULTURE, SCIENCE, VARIED 4. JAZZ, COUNTRY 4. WEATHER, FINANCE, CHILDREN 5. MATION M, OLDIES 5. SOCIAL, RELIGION, PHONEIN 6. -
Page 8: Lcd Display
By pressing longer than 1 sec, and then 6 strongest stations are preset to the corresponding preset number. When AS operation is finished, the radio executes the preset scan. 13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCN) This key is operated as RADIO SCAN The operation is similar as normal search but different thing is holding 5 seconds on every station detected in RADIO SCAN mode. - Page 9 C. Searching Character: • Press “A/PS” 3 times, then character search mode is activated. • Press “VOL” knob, then “A” character is displayed. • With “ ” knob, you can select the letter you want. • Press “VOL” knob longer than 2 sec. •...
-
Page 10: Technical Specifications
The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re- utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...
