1. Manuals
  2. Brands
  3. Denver Manuals
  4. Car Stereo System
  5. CAD-510
  6. Instruction manual

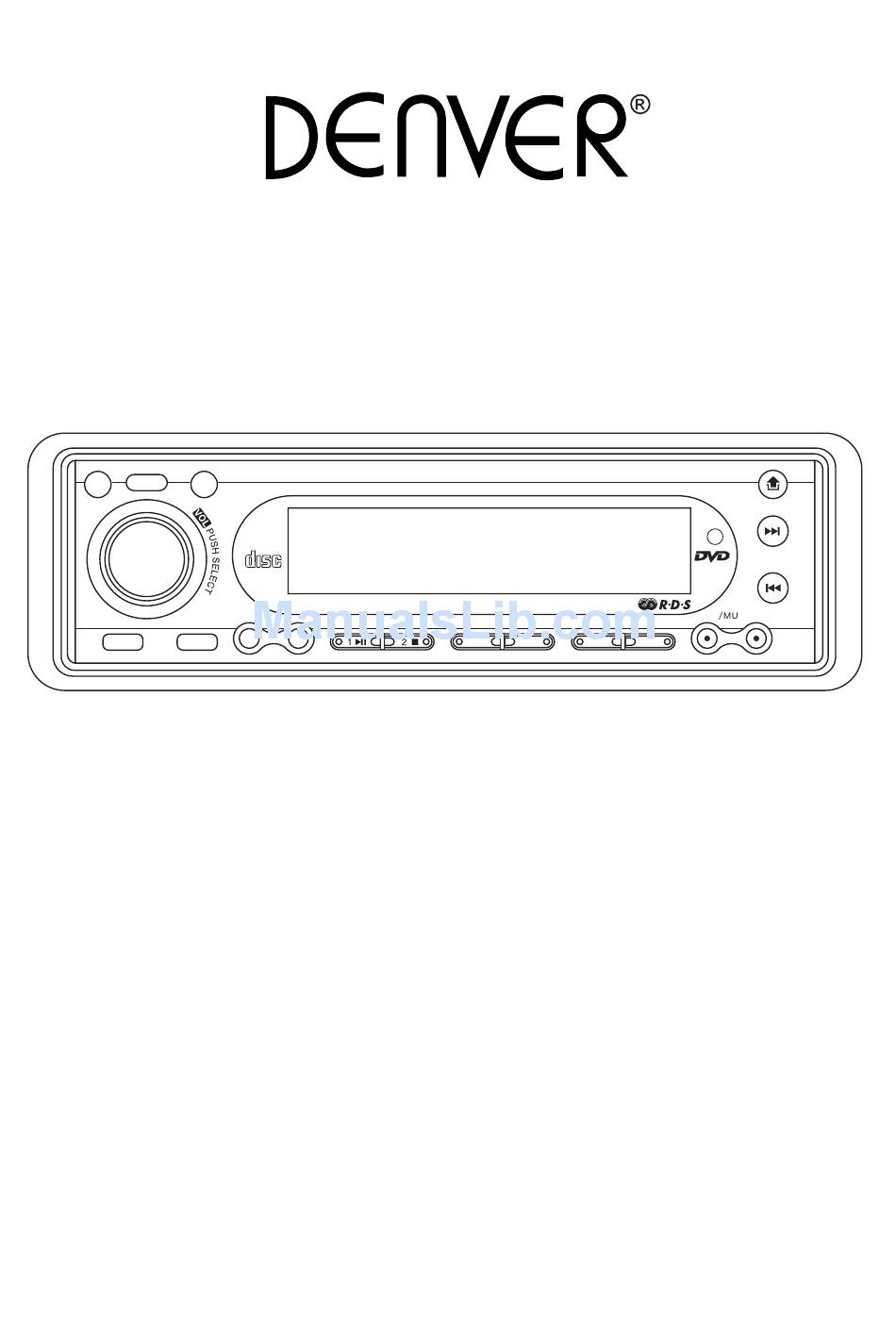

Denver CAD-510 Instruction Manual

Car stereo dvd/svcd/vcd/cd/mp3/mp4 player with pll fm stereo radio rds flip down/detachable front panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LOUD
BAND
PWR
MD
DIGITAL AUDIO
TA
DISP
PTY
1
10
9
2
INSTRUCTION MANUAL
LOUD
BAND
PWR
MD
DIGITAL AUDIO
TA
DISP
PTY
DVD/SVCD/VCD/CD/MP3/MP4 PLAYER
8
7
6
WITH PLL FM STEREO RADIO
FLIP DOWN/DETACHABLE FRONT PANEL
CAD-510
COMPACT
AF
3
15
COMPACT
AF
CAR STEREO
5
18
19
RDS
3 RPT
4 RDM
5
3 RPT
4 RDM
5
20
21
22
4
(1-6)
REL
TUNE/
TRACK
SCN
A/PS
6
11
14
REL
TUNE/
TRACK
SCN
A/PS
6
23
13
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAD-510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denver CAD-510

Summary of Contents for Denver CAD-510

  • Page 1 CAD-510 LOUD BAND TUNE/ COMPACT TRACK DIGITAL AUDIO A/PS DISP 3 RPT 4 RDM INSTRUCTION MANUAL LOUD BAND TUNE/ COMPACT TRACK DIGITAL AUDIO A/PS DISP 3 RPT 4 RDM CAR STEREO DVD/SVCD/VCD/CD/MP3/MP4 PLAYER WITH PLL FM STEREO RADIO (1-6) RDS FLIP DOWN/DETACHABLE FRONT PANEL...

  • Page 2: Before You Begin

    BEFORE YOU BEGIN PRECAUTIONS: CAUTION: USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. • Keep this manual handy as a reference for operating procedures and precautions. • Always keep the volume low enough so you can hear sounds outside of the car. • Protect this product from moisture.

  • Page 3: Installation

    INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. • Use only the supplied mounting hardware for a safe and secure installation. • Be sure to remove the front panel before installing the unit. NOTE : Inclination angle for car radio installation must not exceed 30˚ otherwise the front panel will not open. Release screw and bracket 8mm 5mm Bend these claws, if necessay NOTE: Keep the release key in the safe place as you may need it in future to remove the unit from the car. Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL Before detaching the front panel, be sure to press the PWR button (1) OFF first.

  • Page 4: To Support The Unit

    TO SUPPORT THE UNIT . UNIT . RELEASE CASE . DASH BOARD 4. HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 0. M5 X 5 HEX BOLT ISO Connector VIDEO OUTPUT (GREEN): YELLOW (PLUG) AUDIO LINE OUT (GREY): RED (R) WHITE (L) AUDIO LINE IN (BLACK): RED (R) WHITE (L) CONNECTOR A 4. MEMORY +V 5. AUTO ANTENNA OUTPUT 7. +V (TO IGNITION KEY) 8. GROUND NOTE: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period. CONNECTOR B . REAR RIGHT SPEAKER (+) . REAR RIGHT SPEAKER (-) . FRONT RIGHT SPEAKER (+) 4. FRONT RIGHT SPEAKER (-) 5. FRONT LEFT SPEAKER (+)
  • Page 5 A/PS DISP 3 RPT 4 RDM Locations of Parts (Main unit) LOUD BAND COMPACT DIGITAL AUDIO LOUD BAND DISP 3 RPT 4 RDM TUNE/ COMPACT TRACK DIGITAL AUDIO A/PS DISP 3 RPT 4 RDM LOUD BAND COMPACT (1-6) DIGITAL AUDIO 1. POWER ON/OFF (PWR) DISP 3 RPT...

  • Page 6: Power On/Off

    Locations of Parts (Remote Control) 1. POWER ON/OFF 2. MODE 3. PLAY/PAUSE 4. STOP/RETURN MODE 5. SELECT 6. SEEK+/SEEK- Title Sub-T 7. VOL +/VOL- 8. KEYPAD Setup ENTER 9. GOTO 10. AUDIO Angle Slow 11. ENTER VOL+/- 12. NAVIGATION VOL+ ZOOM 13. AUTO SEARCH / REPEAT PROG 14. RANDOM SEEK– SEEK+ 15. BAND/SYSTEM 16. STEREO/MONO / PROGRAM...

  • Page 7: General Operations

    GENERAL OPERATIONS Turning the unit ON/OFF (PWR) • Head Unit: Press PWR to turn on the unit. To turn off, press and hold this button again. • Remote Control: Press button to turn on the unit. To turn off, press this button again. Setting Time 1 Press DISP button repeatedly until time shows. 2. Press and hold DISP button. Hour digit starts blinking. 3. Rotate Volume knob to adjust hour. Press DISP 4. Rotate Volume knob to adjust minute. 5. Press SEL to save and exit. Selecting a source (MD) • Head Unit: Press MD repeatedly to switch between TUNER, AUX and CD/DVD mode. • Remote Control: Press MODE repeatedly. Loading a Disc 1 Press REL to open the front panel 2 Insert a disc into the disc loading slot 3 Close the front panel Ejecting a Disc 1 Press REL to open the front panel 2 Press the EJECT button to eject disc...

  • Page 8: Listening To Radio

    Reset • Reset button is placed on the housing. • The reset button is to be activated for the following reason: - Initial installation of the unit when all wiring is completed. - All the function button does not operate. - Error symbol on the display. LISTENING TO RADIO Band button (BAND) Each band is toggled cyclically by pressing this key FM1---FM2---FM3. Automatic or Manual tuning (FREQ UP OR FREQ DOWN When pressed short, these keys are operated as SEEK tuning mode. When pressed longer than 1 sec., they are operated as MANUAL tuning mode. Note: The unit automatically switches back to SEEK tuning mode after 5 sec. if no input was detected during MANUAL tuning mode.
  • Page 9 ‘PTY’ function (Program type) 1. Press and hold the PTY button to turn ON/OFF Program type feature. 2. Rotate Volume knob left/right to choose between different Program Types. 3. Press PTY button again to begin PTY search PROGRAM TYPE as below. NEWS--AFFAIRS--INFO--SPORT--EDUCATE--DRAMA--CULTURE--SCIENCE--VARIED--POP M--ROCK M--EASY M--LIGHT M--CLASSIC--OTHER M--WEATHER--FINANCE--CHILDREN-- SOCIAL--RELIGION--PHONE IN--TRAVEL--LEISURE--JAZZ--COUNTRY--NATION. M--OLDIES- -FOLK M--DOCUMENT--TEST--ALARM. LISTENING TO CD/MP3 Basic operation of CD/MP3 1. To perform fast forward or reverse, press and hold . To resume normal playback at a desired point, press 2. To skip back or forward to another chapter, press . Pressing skips to the start of the next chapter. Pressing skips to the previous chapter. 3. To pause playback, press . Press it again to resume. 4. To stop playback, press Note: •...

  • Page 10: Playing Dvd Video

    PLAYING DVD VIDEO Basic operation of DVD Video 1. Insert a DVD disc. Unit automatically loads the disc. When the DVD offers a menu, the menu is displayed. 2. Using the remote control navigation buttons to choose desired features displayed on the menu. Press ENTER to select. 3. To perform fast forward or reverse, press and hold . To resume normal playback at a desired point, press 4. To skip back or forward to another chapter, press . Pressing skips to the start of the next chapter. Pressing skips to the previous chapter. 5. To pause playback, press . Press it again to resume. 6. To stop playback, press . When you stop DVD playback, that location on the disc is memorized enabling playback from that point when you play the disc again. To resume playback, press . Specifying Title/Chapter Press NUMBER corresponding to a desired title/chapter number during playback. The number is displayed and playback starts from the selected title.

  • Page 11: Displaying Information

    Searching from a desired scene, starting playback from a specific time You can use the GOTO function to search for a desired scene by specifying a title and chapter, or the time search function to specify the time on a disc at which play starts. 1. Press GOTO on the remote control. Time and Title/Chapter search appears. 2. Enter the hour, minutes and seconds if you want to search by time. Press Enter. 3. Enter Title/Chapter number if you want to search by Title/chapters. Press Enter. Selecting repeat range You can choose between repeat playback of a title or chapter. 1. Press RPT on the head unit or remote control during playback. 2. Every time you press this button, the unit switches to the following settings: • Repeat Title – Repeat the current playback title. • Repeat Chapter – Repeat the current playback chapter. • Off – Turn repeat off. Zooming in during playback You can zoom in into the picture during playback.
  • Page 12 Specifying Track Press NUMBER corresponding to a desired track number during playback. The number is displayed and playback starts from the selected track. 1. Make sure to turn off PBC feature first. 2. Using the number pad on the remote control, enter the desired track number. Note: • To select 3, press 3. • To select 13, press 10+, 3. • To select 23, press 10+, 10+, 3 in order. Changing audio language during playback VCDs can provide audio playback with different languages. It is usually separated into 2 channels (left and right). With VCDs featuring multi-audio recordings, you can switch between languages/audio systems during playback. 1. To choose different audio, simply press Audio repeatedly during playback or press A/PS button on the head unit. Slow motion playback This feature lets you slow down playback.

  • Page 13: Setting Up The Dvd Player

    Program Playback You can set which tracks to play according to your desired sequence using the PROG function. 1. Make sure the unit is in STOP mode. If the unit is playing, stop the playback first. 2. Press PROG button on the remote control. 3. Enter the track number besides the memory location. Up to 12 tracks can be stored. 4. When all tracks have been programmed, select PLAY PROGRAM and press ENTER. Program playback will start. SETTING UP THE DVD PLAYER Important 1 Load any disc into the unit before you can access the settings. 2 Make sure the unit is in STOP mode. Press SETUP on the remote control. Settings Category Options Video TV Shape Pan Scan, Letter Box, 16:9 TV System NTSC, PAL, Auto Language OSD Menu English...

  • Page 14: Technical Specifications

    The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...

Table of Contents
