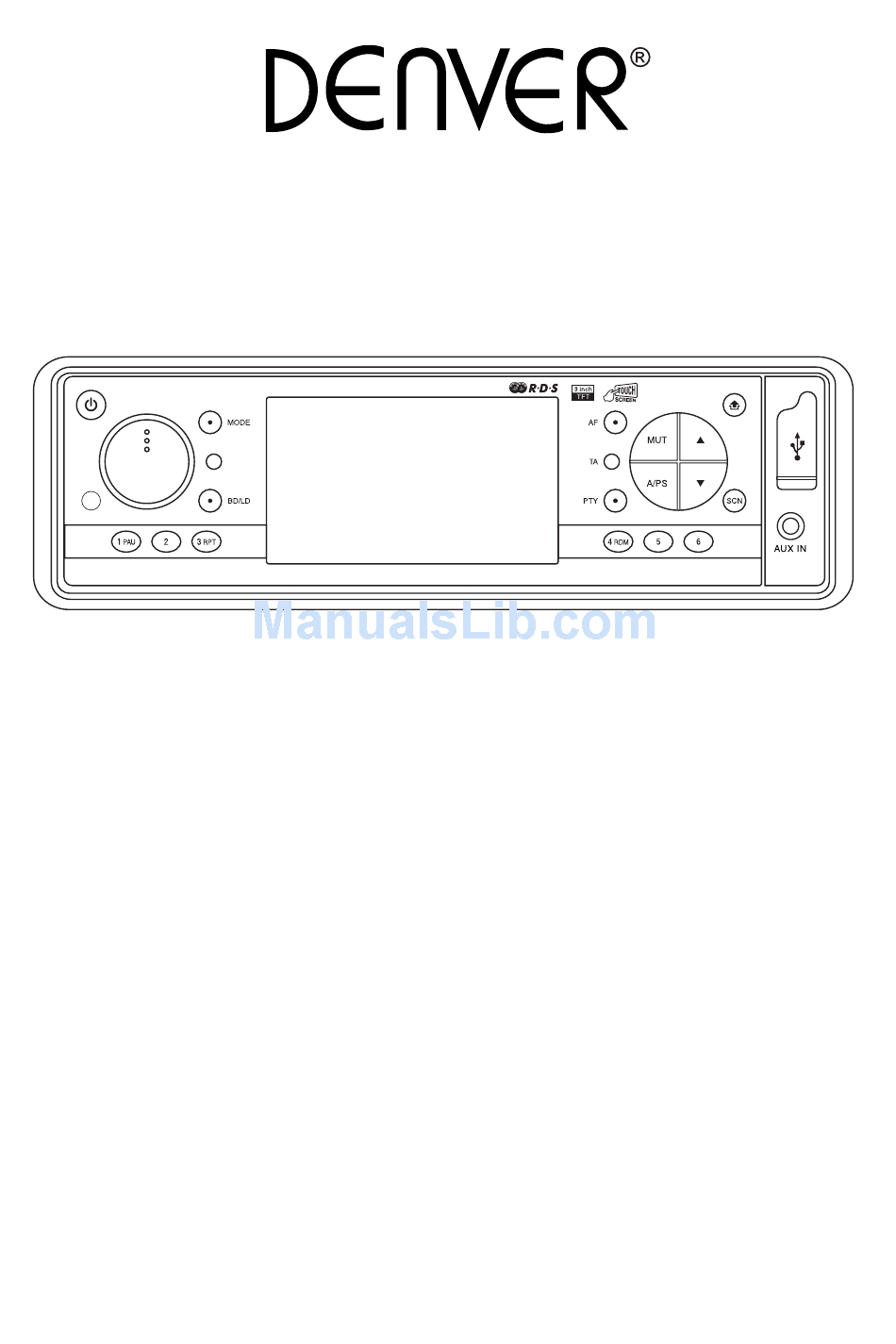

CUT-301 10 11 INSTRUCTION MANUAL Car Stereo MP3/WMA/MPEG4 Player with PLL FM Stereo Radio Radio Data System 3 Inch TFT-LCD Display (1-3) (4-6) USB / SD/MMC Card Input Front AUX IN Touch Screen Control Flip Down/Detachable Front Panel RESET AUX IN... -
Page 2: Installation
INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: To Support The Unit
TO SUPPORT THE UNIT 1. UNIT . RELEASE CASE 3. DASH BOARD Dashboard 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT WIRE CONNECTION IN / OUT CONNECTOR 2 Video Outputs: Yellow Connect to external A/V system to display... -
Page 4: Maintenance
DRIVING WITH VIDEO DISPLAY By following the installation below, video will always be shown on LCD screen no matter the car is in motion or not. Steps: Connect the GRAY wire to the WHITE wire. INSTALLING REAR CAMERA FOR PARKING/REVERSE MOTION You can install an separate camera at the car rear end so when doing parking or reverse motion, the unit will automatically switch the video to the rear camera to guide the driver. - Page 5 LOCATIONS OF PARTS (MAIN UNIT) 10 11 (1-3) (4-6) 10 11 1. POWER ON/OFF ( . SELECT FUNCTION BUTTON 3. PRESET STATIONS (1,,3,4,5,6) (1-3) 4. ‘AF’ FUNCTION BUTTON (ALTERNATIVE FREQUENCIES) 5. ‘TA’ FUNCTION BUTTON (TRAFFIC ANNOUNCEMENT) 6. ‘PTY’ FUNCTION (PROGRAM TYPE) RESET AUX IN 7.
- Page 6 LOCATIONS OF PARTS (REMOTE CONTROL) 1. POWER ON/OFF . MODE 3. PLAY/PAUSE 4. TITLE 5. SELECT 6. SEEK+/SEEK- / TRACK/SEARCH Mode 7. VOL +/VOL- 8. GOTO GOTO Dual STEP Title 9. AUDIO 10. ENTER Sub-T Setup Menu 11. NAVIGATION 1. AUTO SEEK / PRESET SCAN / REPEAT Enter 13.
-
Page 7: Listening To Radio
OPERATIONS Turning the unit ON/OFF ( Press “ ” button to turn on unit. To turn off, press the button again. MAIN MENU This is the root of the screen hierarchy and you can simply access all features by tapping on the touch screen buttons. Start Radio USB port SD/MMC mode... -
Page 8: Using The Rds Function
Storing and Recalling Frequencies Currently Tuned Station If you press any of the NUMBER (1-6) you can easily store up to six broadcast frequencies for later recall with the touch of a button. 1. Choose a desired BAND. 2. When you find a frequency that you want to store in memory, press a NUMBER(1-6) and hold until the preset number shows and lit in the display. -
Page 9: Listening To Mp3/Wma
3. Let the movie play on until you have reached the end of the section you wish to watch on continuous loop. Once you have reached this point, press and hold A-B button again. “�e���A�B” will appear on your screen. Playback will now start from Point A –B. -
Page 10: Customizing Audio / Video Settings
Slow motion playback This feature lets you slow down playback. 1. Press Slow on the remote control during playback. . Pressing it repeatedly will switch you to the following steps: 1/ - 1/ 3 - 1/4 - 1/5 - 1/6 - 1/7. N�te: •... - Page 11 SETTING THE MPEG4 PLAYER You can flexibly customize the unit to suit your preference. You can set the language and other video and audio settings so when playback starts it will always use your preferred settings. Important: 1. Play any video file before you can access the setup. .
-
Page 12: Technical Specifications
The material� are re�y�lable a� menti�ned in thi� mar��ing. By re�y�ling, material re�y�ling �r �ther f�rm� �f re�utilizati�n �f �ld a����lian�e�, y�u are ma��ing an im���rtant ��ntributi�n t� ��r�te�t �ur envir�nment. �lea�e inquire at the ��mmunity admini�trati�n f�r the auth�rized di�����al l��ati�n. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com EN-1...
