Page 1: Instruction Manual

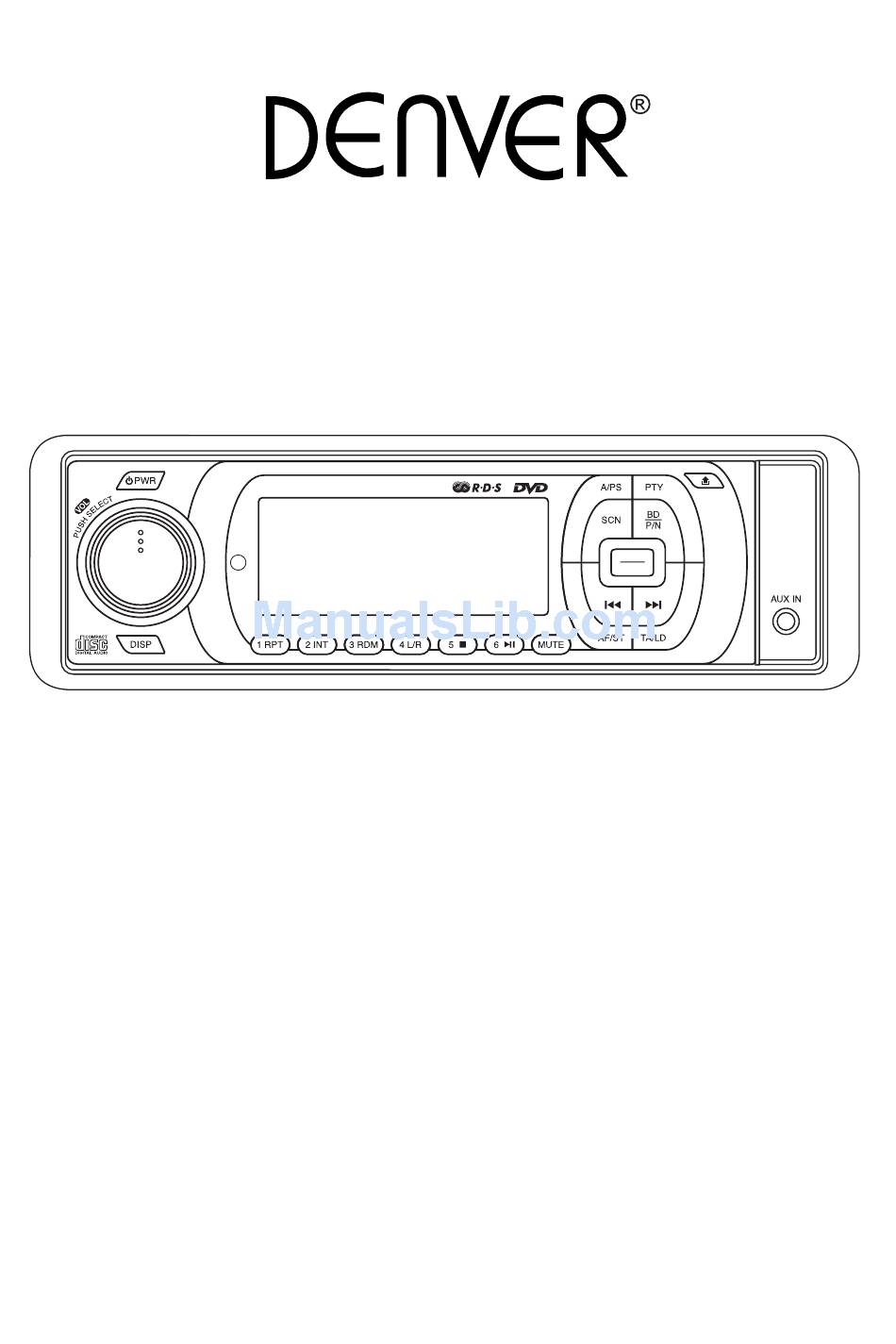

CAT-710 SINGLE CAT-720 TWIN DUAL 5 0 INSTRUCTION MANUAL DUAL CAR STEREO DVD/SVCD/VCD/CD/MP3/WMA/MP4 PLAYER WITH PLL FM STEREO RADIO (-6) AUDIO-VIDEO WIRELESS TRANSMISSION FRONT AUX IN DETACHABLE FRONT PANEL RESET... -
Page 2: Before You Begin
BEFORE YOU BEGIN PRECAUTIONS: CAUTION: USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. • Keep this manual handy as a reference for operating procedures and precautions. •... -
Page 3: Installation
INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. • Use only the supplied mounting hardware for a safe and secure installation. • Be sure to remove the front panel before installing the unit. NOTE : Inclination angle for car radio installation must not exceed 30˚ otherwise the front panel will not open. Release screw and bracket 8mm 5mm Bend these claws, if necessay NOTE: Keep the release key in the safe place as you may need it in future to remove the unit from the car. Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL Before detaching the front panel, be sure to press the button (1) OFF first. -
Page 4: To Support The Unit
TO SUPPORT THE UNIT . UNIT . RELEASE CASE . DASH BOARD 4. HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 0. M5 X 5 HEX BOLT ISO Connector VIDEO OUTPUT (YELLOW): YELLOW (PLUG) AUDIO LINE OUT (GREY): RED (R) WHITE (L) AUDIO LINE IN (BLACK): RED (R) WHITE (L) CONNECTOR A 4. MEMORY +V 5. AUTO ANTENNA OUTPUT 7. +V (TO IGNITION KEY) 8. GROUND NOTE: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period. CONNECTOR B . REAR RIGHT SPEAKER (+) . REAR RIGHT SPEAKER (-) . FRONT RIGHT SPEAKER (+) 4. FRONT RIGHT SPEAKER (-) 5. FRONT LEFT SPEAKER (+) - Page 5 Locations of Parts (Main unit) 5 0 DUAL (-6) 1. POWER ON/OFF ( ) DUAL 2,3.SELECT BUTTON: VOL/TA VOL/BASS/TREBLE/BALANCE/FADER 4. PRESET STATIONS (1,2,3,4,5,6) (-6) 5. ‘AF’ FUNCTION (ALTERNATIVE FREQUENCIES) / STEREO/MONO SELECTOR (AF/ST) 6. ‘TA’ FUNCTION (TRAFFIC ANNOUNCEMENT) / LOUDNESS (TA/LD) RESET 7.
- Page 6 Locations of Parts (Remote Control) 1. POWER ON/OFF 2. MODE/DUAL PLAYING 3. PLAY/PAUSE ( 4. STOP/RETURN ( DUAL 5. SELECT 6. SEEK+/SEEK- Title Sub-T 7. VOL +/VOL- 8. KEYPAD Setup ENTER 9. GOTO 10. AUDIO Angle Slow 11. ENTER VOL+/- 12.
-
Page 7: General Operations
GENERAL OPERATIONS Turning the unit ON/OFF (PWR) • Head Unit: Press PWR to turn on the unit. To turn off, press this button again. • Remote Control: Press button to turn on the unit. To turn off, press this button again. Setting Time 1 Press DISP button repeatedly until time shows. -
Page 8: Storing And Recalling Broadcast Frequencies
Auto seek/Preset scan (A/PS) Preset Scan (PS) - By pressing shortly, the radio plays each preset station for 5 seconds. Auto Seek (AS) - By pressing longer than 1 sec, auto seek is activated. The 6 strongest stations are preset and stored in the corresponding preset number. -
Page 9: Listening To Cd/Mp3/Wma
TA SEEK PI SOUND RETUNE RETUNE L / RETUNE S 2 sec. TA SEEK PI SOUND MASK DPI RETUNE MASK DPI: masked only the AF which has different PI. MASK ALL: masked the AF which has different PI and NO RDS signal with field strength. MASK DPI / MASK ALL BEEP MODE (2) When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function. -
Page 10: Playing Dvd Video
Repeat tracks You can choose between repeat playback of a single track or all tracks. 1. Press RPT on the head unit or remote control during playback. 2. Every time you press this button, the unit switches to the following settings: •... - Page 11 Slow motion playback This feature lets you slow down playback. 1. Press Slow on the remote control during playback. 2. Pressing it repeatedly will switch you to the following steps: 1/2 – 1/3 – 1/4 – 1/5 – 1/6 – 1/7. Note: •...
- Page 12 1. Make sure to turn off PBC feature first. 2. Using the number pad on the remote control, enter the desired track number. Note: • To select 3, press 3. • To select 13, press 10+, 3. • To select 23, press 10+, 10+, 3 in order. Changing audio language during playback VCDs can provide audio playback with different languages.
-
Page 13: Setting Up The Dvd Player
SETTING UP THE DVD PLAYER Important 1. Load any disc into the unit before you can access the settings. 2. Press SETUP on the remote control. 3. Use the navigation key and press ENTER to setup the DVD player. Note: Depending on the type of disc inserted, some features may not be available. SETUP CATEGORY OPTIONS... -
Page 14: Technical Specifications
The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S 10R-021124 www.denver-electronics.com...
