Summary of Contents for Doro HandlePlus 326i gsm

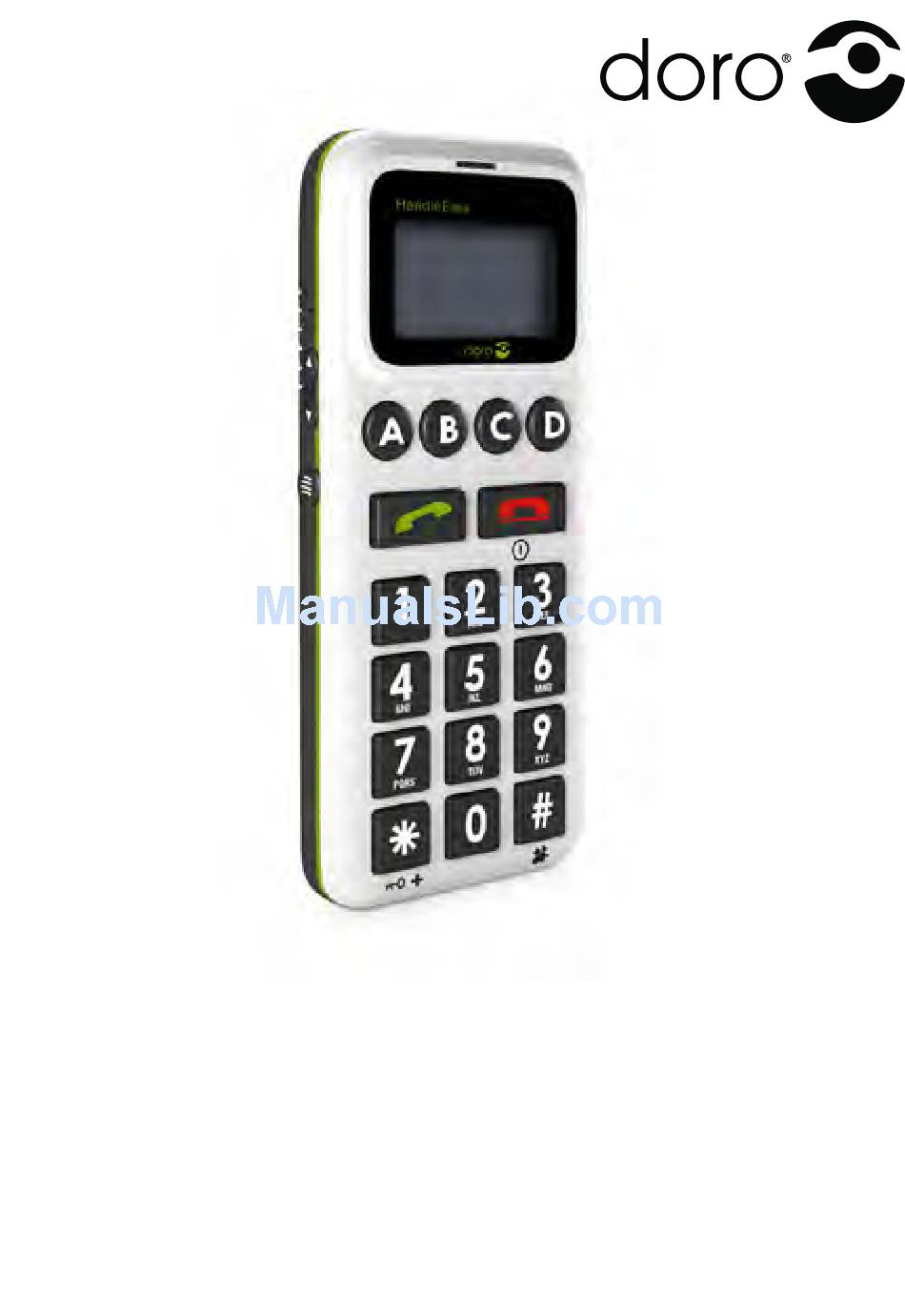

- Page 1 English Svenska Norsk Dansk Suomi Français Deutsch Español Italiano čeština Nederlands ελληνικά HandlePlus 326i gsm...
- Page 2 PQRS...
- Page 3 English 1 UP volume/ and ring setup/ navigation vibrator 2 DOWN volume/ 7 Disconnect navigation (ON/OFF) 3 Menu/OK 8 One-touch keys 4 Call/answer 9 Charging/headset socket and Keylock Svenska 1 UPP volym/navigering och ringsignal/ 2 NED volym/navigering vibrator 3 Menyknapp/OK 7 Nedkoppling (AV/PÅ) 4 Uppringning/svara 8 Direktvalsknappar och knapplås 9 Laddnings/ headset-uttag Norsk 1 OPP volum/navigering...
-
Page 4: Installation
English Installation Note! Always turn off the telephone before removing the battery cover. Battery cover To remove the battery cover, press carefully on the cover and slide it downwards. To replace the battery cover, slide it from below and up along the telephone. Installation/removal of SIM card The SIM card holder is located behind the battery. Make sure that the SIM card’s contacts are facing inwards and that the cut-off corner is pointing upwards. Take care not to scratch or bend the contacts on the SIM card. If the SIM card is missing or incorrectly inserted, is shown in the display. If the SIM card is damaged, is shown in the display. - Page 5 English Installation/removal of battery Place the top of the battery in the battery slot with the battery contacts facing the contacts in the slot, then press carefully on the bottom of the battery until it locks in place. To remove the battery, carefully press and lift the bottom of the battery in the “finger-shaped” groove. Charging Connect the mains adapter to the wall socket and to the socket on the telephone. Charge the telephone for 24 hours the first time. After that, it takes approximately 5 hours to fully charge the battery. AC 110/240 V...
- Page 6 English Battery Full battery capacity will not be reached until the batteries have been charged 4–5 times. Batteries degrade over time, which means that call time and standby time will normally decrease with regular use. The automatic charging mechanism prevents the batteries from being overcharged or damaged due to prolonged charging. When the battery is running low, is displayed and a warning signal is heard. Warning! Only use batteries, charger and accessories that have been approved for use with this particular model. Connecting other accessories may be dangerous and may invalidate the telephone’s type approval and guarantee.
-
Page 7: Display Symbols
English Display symbols Searching for networks No SIM card SIM card error General error indication Charger connected Charging completed Signal strength Line 1 (some operators have 2 lines) Battery indicator Keylock active Roaming (connected to other network) Headset connected Ring only Vibrator only Vibrator + Ring Missed call Incoming call Outgoing call... -
Page 8: Operation
English Operation Activating the telephone / 1 4–5 seconds until the Press and hold ON signal is heard and the display lights up. If the SIM card is locked with a PIN code (Personal Identification Number), enter your PIN code now and confirm with w . The SIM card will only accept a certain number of incorrect PIN code attempts. The display shows how many attempts you have left with ”Remain: #”, where # is the number of attempts left. When no attempts remain, you need the PUK code (Personal Unblocking Key) supplied with your SIM card to unlock the card and supply a new PIN code. Enter the PUK code, confirm with w , then enter a new PIN code and confirm it. If PIN and PUK codes were not supplied with the SIM card, contact your network operator. -
Page 9: Making A Call
English / 1 until the To turn off the telephone, press OFF signal is heard. Making a call 1. Enter the desired number with the keypad. Skip backwards with 2. Press to dial. A signal will be heard as the number is dialled. 3. Press to end the call. Note! When making international calls, press twice for the international prefix "+". Dialling with the one-touch keys 1. Press one of the one-touch keys A–D followed by . A signal will be heard as the number is dialled. Alternatively, press and hold the one-touch key until the signal is heard. 2. Press to end the call. -
Page 10: Dialling With The Phonebook
English Dialling with the phonebook 1. Press w , then scroll the list of entries with or press a keypad key to jump to the entries beginning with that character. 2. Press to view details for the selected entry. Press briefly to go back to the then w to delete list, or press and hold the entry. 3. Press to dial the number shown on the display. A signal will be heard as the number is dialled. 4. Press to end the call. Receiving a call 1. Press to answer, or to reject the call without answering. 2. Press to end the call. Caller ID The telephone number of an incoming call is shown on the display. If no information is available, ????? is displayed. -
Page 11: Call Memory
English Call memory The 15 most recent calls are saved in the call memory. If multiple calls are related to the same number only the most recent of these calls will be saved. Retrieving and dialling 1. Press 2. Scroll through the call list with { / } . = Incoming call = Outgoing call = Missed call 3. Press to view details for the selected call. 4. Press to dial the number, or press briefly to go back to the call list. To delete the call, press and hold then acknowledge with w . 5. Press to end the call. -
Page 12: Missed Calls
English Missed calls When an incoming call is unanswered, is shown on the display. The most recent missed call(s) can then be retrieved by immediately pressing w . 1. Press w . 2. Scroll through the missed calls list with { / } . 3. Press to view details for the selected call. 4. Press to dial the number, or press briefly to go back to the call list. To delete the call, press and hold then acknowledge with w . 5. Press to end the call. Note! This only works immediately after the call has been received. -
Page 13: Speakerphone Function
English Speakerphone function The speakerphone function allows the telephone to be used without holding it, e.g. placed on a table in front of you. 1. Place a call in the usual way. When the call is connected, press again. 2. Speak into the microphone on the lower front edge of the telephone (max 1 metre away). 3. The volume can be adjusted during a call with 4. To change between speakerphone and normal function, press 5. Press to end the call. Note! The speakerphone function allows only one person at a time to talk. Switching between talk/listen is automatic and triggered by the sound of the person talking. -
Page 14: Volume Control
English Volume control The volume can be adjusted during a call with on the side of the telephone. Redial Press and scroll between the 15 most recently dialled/incoming numbers with Press to review details, then press to dial the number or to end. then w to delete the entry. Press and hold Emergency calls When the telephone is switched on, it is possible to place an emergency call by entering 112 followed by Most mobile networks accept emergency calls even when the SIM card is not in the telephone. - Page 15 English Keylock / L for 2 seconds to lock/ Press and hold unlock the keypad. is shown in the display when keylock is active. Headset When a headset is connected, the internal microphone in the telephone is disconnected automatically. When receiving a call, the answer key on the headset cable can be used instead of Warning! Using a headset on high volume can damage your hearing. Adjust the sound volume carefully when using a headset.
-
Page 16: Phone Book Numbers
English Settings Saving telephone numbers One-touch numbers Four numbers can be stored under the one- touch keys A–D. 1. Enter the number, including the area code. Skip backwards with 2. Press and hold one of the one-touch button A–D until the text cursor appears. 3. Enter a name or description for the number using the keypad (see page 16). 4. Press w twice to save or to end. Phone book numbers 20 numbers can be stored in the phone book. 1. Enter the number, including the area code. Skip backwards with 2. Press w . 3. Enter a name or description for the number using the keypad (see page 16). 4. Press w twice to save or to end. - Page 17 English Sending additional numbers Additional numbers can be saved with an entry and sent after the call is connected. 1. Enter the telephone number. 2. Press 4 times until w is shown. 3. Enter the additional number. 4. Save the entry (see page 13). After dialling, wait until the call is connected then press w to send the additional number. Inserting a pause in a number A short pause (3 seconds) can be inserted anywhere in the saved number. 1. Enter the first part of the telephone number (before the pause). 2. Press 3 times until p is shown. 3. Enter the last part of the number. 4. Save the entry (see page 13).
-
Page 18: International Numbers
English International numbers To save an international number, press twice for the international prefix (+), then enter the country code, area code (possibly leaving out the first digit) and telephone number. Deleting phonebook entries 1. Press w and scroll through the list to select the phonebook entry to be deleted. 2. Press to show details for the selected entry. until w is shown on the 3. Press and hold display. 4. Press w to delete the entry or to cancel. -
Page 19: Keypad Characters
English Keypad characters 1 Γ Δ Θ Λ Ξ Π A B C 2 a b c Å å Ä ä Æ æ Ą ą Ç ç Ć ć D E F 3 d e f Ę ę G H I 4 g h i J K L 5 j k l Ł ł M N O 6 m n o Ñ ñ Ń ń Ö ö Ø ø Ó ó Ô ô P Q R S 7 p q r s Ś ś T U V 8 t u v Ü ü Ű ű W X Y Z 9 w x y z Ź ź Ż ż * | / µ space 0 # Σ Φ Ψ Ω... -
Page 20: Adjusting Ring Volume
English Ring setup Selecting ring signal 1. Press w . The phone book numbers will be displayed. 2. Press w . The ring signals will be displayed. 3. Scroll between ring signals with 4. Press w to select a signal. 5. Press to end. Adjusting ring volume 1. In standby mode, press and hold for 2 seconds. 2. Press to adjust the ring volume. Vibrator Press and hold for 2 seconds to change the signalling mode: Ring only Vibrator only Ring and vibrator... -
Page 21: Setting The Time And Date
English Time/date Setting the time and date 1. Press w , the phone book numbers will be displayed. 2. Press w , the ring signals will be displayed. 3. Press and hold w for approx. 2 seconds. 4. Press w to enter time (HH:MM). 5. Press w to save. 6. Scroll to date with 7. Press w and enter date (YYYY.MM.DD). 8. Press w to save. 9. Press to end. -
Page 22: Care And Maintenance
English Care and Maintenance Your unit is a technically advanced product and should be treated with the greatest care. By following the advice below, you can ensure that the guarantee will cover any damage. • Protect the unit from moisture. Rain/snowfall, moisture and all types of liquid can contain substances that corrode the electronic circuits. If the unit gets wet, you should remove the battery and allow the unit to dry completely before you replace it. • Do not use or keep the unit in dusty, dirty environments. The unit’s moving parts and electronic components can be damaged. • Do not keep the unit in warm places. High temperatures can reduce the lifespan for electronic equipment, damage batteries and distort or melt certain plastics. • Do not keep the unit in cold places. When the unit warms up to normal temperature, condensation can form on the inside which can damage the electronic circuits. • Do not try to open the unit in any other way than that which is indicated here. • Do not drop the unit. Do not knock or shake it either. If it is treated roughly the circuits and precision mechanics can be broken. • Do not use strong chemicals to clean the unit. • Use the charger indoors. The advice above applies to the unit, battery, charger or other accessories. If the telephone is not working as it should, please contact the place of purchase for service. Don’t forget the receipt or a copy of the invoice. -
Page 23: Further Safety Information
English Further safety information The unit and the accessories can contain small parts. Keep them out of the reach of small children. Operating environment Remember to follow any particular rules that may apply wherever you happen to be, and always turn off the unit whenever its use is forbidden, or it can cause interference or danger. Only use the unit in its normal user position. This unit complies with guidelines for radiation when it is used either in a normal position against your ear, or when it is at least 2.2 cm (7/8 inch) from your body. If the unit is carried close to your body in a case, belt holder or other holder these should not contain any metal, and the product should be placed at the distance from your body specified above. Make sure that the distance instructions above are followed until the transfer is complete. Parts of the unit are magnetic. The unit can attract metal objects. Do not keep credit cards or other magnetic media near the unit, as information stored on them can be erased. Medical units The use of equipment that transmits radio signals, e.g. mobile phones, can interfere with insufficiently protected medical apparatus. Consult a doctor or the manufacturer of the apparatus to determine if it has adequate protection against external radio signals, or if you have any questions. If notices have been put up at health care facilities instructing you to turn off the unit while you are there, you should comply. Hospitals and other health care facilities sometimes use equipment that can be sensitive to external radio signals. -
Page 24: Hearing Aids
English Pacemaker Pacemaker manufacturers recommend a distance of at least 15 cm (6 inches) between a mobile phone and a pacemaker to avoid the risk of interference with the pacemaker. These recommendations are in accordance with independent research and recommendations from Wireless Technology Research. People with pacemakers should: • always keep the unit at a distance of at least 15 cm from the pacemaker • not carry the unit in a breast pocket • hold the unit against the ear on the opposite side from the pacemaker to reduce the risk of interference. If you suspect that there is a risk of interference, turn off the unit and move it further away. Hearing aids Some digital wireless units can cause interference to some hearing aids. Using the Doro HearPlus eh346m EarHook can eliminate this for hearing aids with a ‘T’ position. If any other interference occurs, please contact your operator. -
Page 25: Areas With Explosion Risk
English Vehicles Radio signals can affect electronic systems in motor vehicles (e.g. electronic fuel injection, ABS brakes, automatic cruise control, air bag systems) that have been incorrectly installed or are inadequately protected. Contact the manufacturer or its representative for more information about your vehicle or any additional equipment. Do not keep or transport flammable liquids, gases or explosives together with the unit or its accessories. For vehicles equipped with air bags: Remember that air bags fill with air with considerable force. Do not place objects, including fixed or portable radio equipment in the area above the airbag or the area where it might expand. Serious injuries may be caused if the mobile phone equipment is incorrectly installed and the airbag fills with air. It is forbidden to use the unit whilst flying. Turn off the unit before you board a plane. Using wireless telecom units inside a plane can involve risks for air safety and interfere with telecommunications. It can also be illegal. Areas with explosion risk Always turn off the unit when you are in an area where there is a risk of explosion and follow all signs and instructions. An explosion risk exists in places that include areas where you are normally requested to turn off your car engine. Within such an area, sparks can cause explosion or fire which can lead to personal injuries, even death. Turn off the unit at filling stations i.e. near petrol pumps and garages. Follow the restrictions that are in force on the use of radio equipment near places where fuel is stored and sold, chemical factories and places where blasting is in progress. Areas with risk for explosion are often – but not always – clearly marked. This also applies to below decks on ships; the transport or storage of chemicals; vehicles that use liquid fuel (such as propane or butane); areas where the air contains chemicals or particles, such as grain, dust or metal powder. -
Page 26: Specific Absorption Rate (Sar)
English Emergency calls Important! Mobile phones such as this unit use radio signals, the mobile phone network, the terrestrial network and user-programmed functions. This means that connection in all circumstances cannot be guaranteed. Therefore you should never rely solely on a mobile phone for very important calls such as medical emergencies. Specific Absorption Rate (SAR) This device meets applicable international safety requirements for exposure to radio waves. This telephone measures 0.3 W/kg (GSM 0.3 W/kg (GSM 900MHz), 0.2 W/kg (DCS 1800MHz) (measured over 10g tissue). The (measured over 10g tissue). The max. limit according to WHO is 2W/kg (measured over 10g tissue). Declaration of conformity Doro hereby declares that the Doro HandlePlus 326i gsm conforms to the essential requirements and other relevant regulations contained in the Directives 1999/5/EC (R&TTE) and 2002/95/EC (RoHS). A copy of the Declaration of Conformity is available at www.doro.com/dofc Specifications Network: GSM 900/DCS1800/PCS1900 Triple Band Size: 135mm x 58.5mm x 16mm Weight: 111g (incl. battery) Battery 700 mAh Li-ion battery... - Page 27 English Guarantee This product is guaranteed for a period of 24 months from the date of purchase. In the unlikely event of a fault occurring during this period, please contact the place of purchase. Proof of purchase is required for any service or support needed during the guarantee period. This guarantee will not apply to a fault caused by an accident or a similar incident or damage, liquid ingress, negligence, abnormal usage, non- maintenance or any other circumstances on the user’s part. Furthermore, this guarantee will not apply to any fault caused by a thunderstorm or any other voltage fluctuations. As a matter of precaution, we recommend disconnecting the device during a thunderstorm. Batteries are consumables and are not included in any guarantee. This guarantee does not apply if batteries other than DORO original batteries have been used. NOTE! This guarantee does not affect your legal (statutory) rights under your applicable national laws relating to the sale of consumer products.
- Page 28 English Swedish Norwegian Danish Finnish French German Spanish Italian Czech Dutch Greek Version 1.0...
