Related Manuals for Doro HearPlus 317c
Summary of Contents for Doro HearPlus 317c

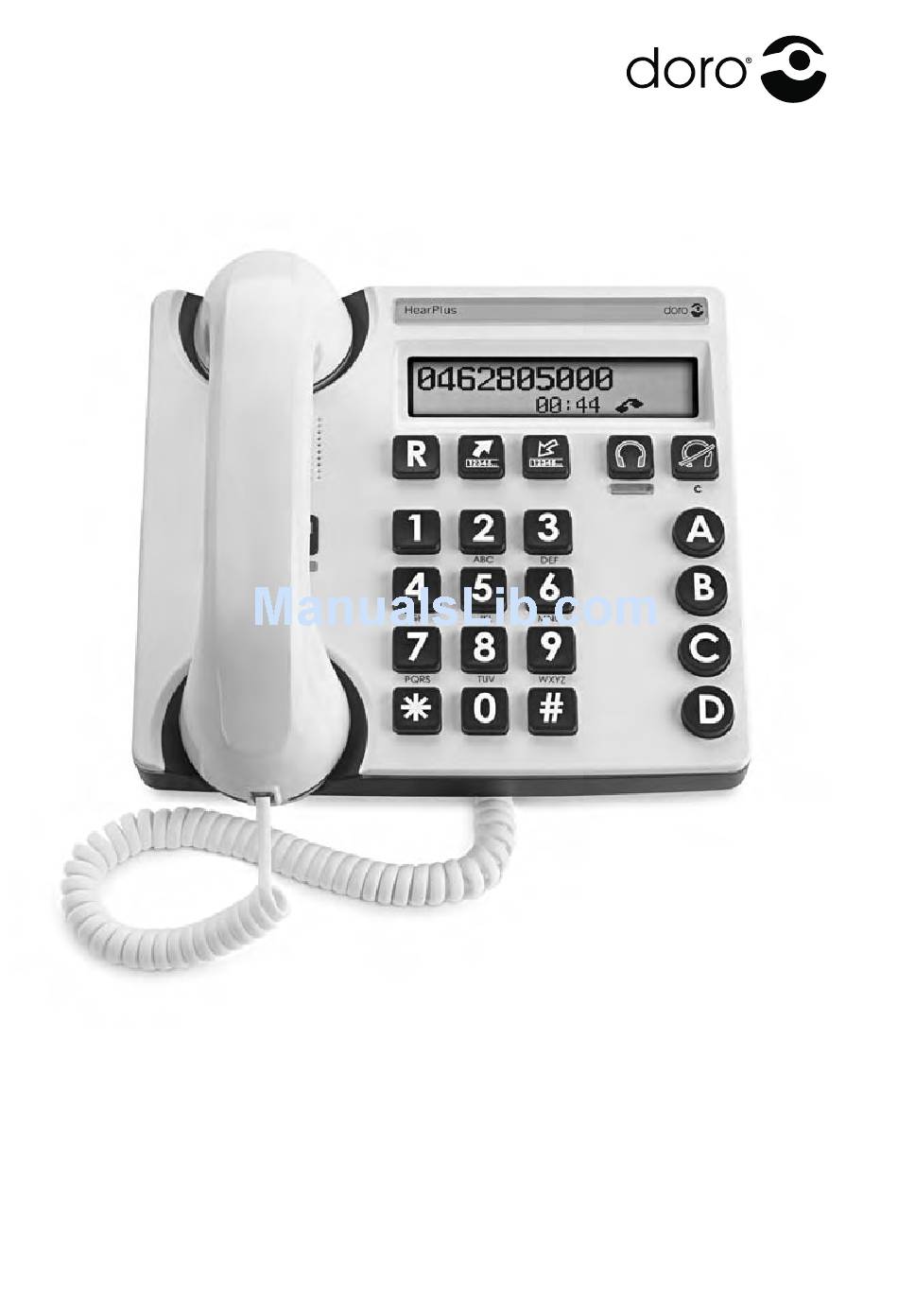

- Page 1 HearPlus 317c...
-
Page 2: Operation
English Operation Making a call Regular dialling Pick up the handset. Enter the desired number. Dialling using correction function If necessary, the telephone number entered can be altered before it is connected. Enter the required number. You can delete with Pick up the handset, the number is dialled. To make a call using the headset, see separate description. Redial function Press one or more times to scroll between the 5 most recently dialled numbers, which will be shown on the LCD display. Pick up the handset to dial or press to cancel. Memory This telephone has 4 speed dial memories. Once a number has been saved in a memory location, you only need to press one button to make the call. Speed dial numbers are marked , and Dialling/control using Speed Dial Select required speed dial ( ) by pressing on the appropriate button. The saved number is shown in the display. -
Page 3: Volume Control
English Volume control This product can adjust the sound in a number of ways: Normal volume control for the handset. Press the button to activate powerful amplification. The amplification is normally deactivated at the end of each call to avoid harming people with normal hearing. This safety function is adjustable, see Technical Information Change frequency range/tone level and quality (on the left side). PLEASE NOTE! Only works when the powerful amplification is active. Headset volume control. Warning! The handset volume can be turned up very loud. The powerful amplification should only be used by people with impaired hearing ability. Caller ID Caller ID allows you to see who is calling before you answer a call or to see who has called in your absence. If the number has been saved in the memory, the name is... - Page 4 English Retrieving and dialling incoming numbers Press to scroll between the numbers of calls that have been received. Pick up the handset to dial or press to cancel. Messages Apart from phone numbers, the display can show: No information received, e.g. an international call. !!!!! The call comes from a withheld number or a PBX. ????? Number not previously seen. Message indication (sent from your network operator)*. *Message indication can be deleted manually by pressing down for a few seconds in standby mode. Deleting telephone numbers Scroll to the required entry with Press down until the number disappears.
-
Page 5: Connecting A Headset
A neck loop/extra handset can be connected to this socket instead of a headset. DORO original headsets are tested and adapted for this model. Other types and makes of headsets may be used, though the function and sound quality cannot be guaranteed. - Page 6 English Settings Connection Connect the telephone cord to a network wall socket and to the socket on the back of the telephone. Connect the mains adapter to the mains power socket and to the socket on the back of the telephone. Connect the curly cord to the handset and to the socket on the base of the telephone. (You will hear a click when the modular plug is correctly in place). Set the correct time to 100 ( Flash see technical information on page Lift the handset and listen for the dial tone. Date/Time Press down until is shown. Enter date (DD/MM). Enter time of day (HH:MM). Press to cancel and return to standby mode. Batteries Four 1.5V type AAA batteries are needed so that caller ID, memory etc will continue to function in the event of a power cut. When the batteries have almost expired the symbol will light up. Only use high quality batteries.
-
Page 7: Ring Signal
English Ring signal Ring volume, melody and tone can be adjusted to ensure you can hear the ring clearly. These are found underneath the telephone: Ring volume Ring melody Ring tone LCD Display On the base of the telephone there is a switch to change the style of the LCD display. Choose the style you are able to see more clearly. Memory Saving Speed Dial Numbers Press down until is shown. 123... Enter the telephone number, including the area code. Press down until is shown. ABC... Press equivalent numerical digit key one or more times for desired name (the characters are printed below the numerical keys). Space= Press down until is shown. Select speed dial ( ) by pressing on the appropriate button. º is shown. The number is now saved. If a pause is required in the telephone number, press The display shows P. -
Page 8: Technical Information
English Socket for additional alert equipment Extra equipment e.g. a vibrator for the ring signal can be connected to the socket on the back of the telephone. ((o)) Technical Information Behind the battery cover on the underside of the telephone you will find several switches. These switches set technical parameters as detailed below. Remove the small cover on the base of the telephone. Key beep ( The sound that is heard when the buttons are pressed can be switched off/on. Microphone adaptation ( ) The microphone level may need to be adjusted for certain people. is the standard setting for most countries. gives a somewhat higher sound and gives a somewhat lower sound. Flash button time (100/300) 100 is the standard setting for most countries. 300 for France/Portugal. 600 for New Zealand. Tone(♫) / Pulse(...) Select dialling method. The dial mode setting for UK must be Tone (Europe only). Locking the powerful amplification ( The powerful amplification is set to switch off after every call, this can be changed so the very high amplification stays permanent switched on using the setting. This setting should only be activated if all users have impaired hearing and require powerful amplification. The standard... -
Page 9: Troubleshooting
English Troubleshooting Check that the telephone cord is undamaged and properly plugged in. Disconnect any additional equipment, extension cords and other phones. If the problem is resolved, the fault is with some other equipment. Test the equipment on a known working line (e.g. at a neighbour’s house). If the equipment works there the fault is probably with your telephone line. Please inform your network operator. If you are still experiencing difficulties, contact the place of purchase. Declaration of conformity Doro hereby declares that the product Doro HearPlus 317c conforms to the essential requirements and other relevant regulations contained in the Directive 1999/5/EC (R&TTE), 2002/95/EC (ROHS). A copy of the manufacturer’s declaration is available at www.doro.com/dofc... - Page 10 English Guarantee This product is guaranteed for a period of 12 months from the date of purchase. Proof of purchase is required for any service or support required during the guarantee period. This guarantee shall not apply to a fault caused by an accident or a similar incident or damage, liquid ingress, negligence, abnormal usage, not reasonably maintained or any other circumstances on the purchaser’s part. Furthermore, this guarantee shall not apply to a fault caused by a thunderstorm or any other voltage fluctuations. This guarantee does not in any way affect your statutory rights. (As a matter of precaution, we recommend disconnecting the telephone during a thunderstorm.) If you cannot resolve the fault using the faultfinder section, technical support is available by email on tech@doro- uk.com -premium rate telephone number: 0905 895 0854, calls cost 50 pence per minute (prices correct at the time of publication). You can also contact us in writing (regarding any Spares or Technical query): Customer Services Doro UK Ltd 1 High Street Chalfont St Peter Buckinghamshire SL9 9QE. Further contact details are available on our website: www.doro-uk.com.
- Page 11 Swedish Norwegian Danish Finnish English Deutch Dutch Spanish Italian French Version 1.0...
