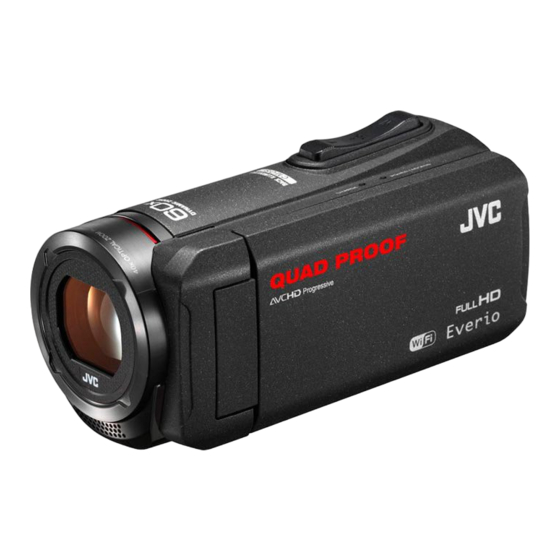

CAMCORDER
Detailed User Guide
GZ-RX515
GZ-RX510
C5B7_RX515_EU_EN

Advertisement

Table of Contents

Troubleshooting

loading

Related Manuals for JVC GZ-RX515

Summary of Contents for JVC GZ-RX515

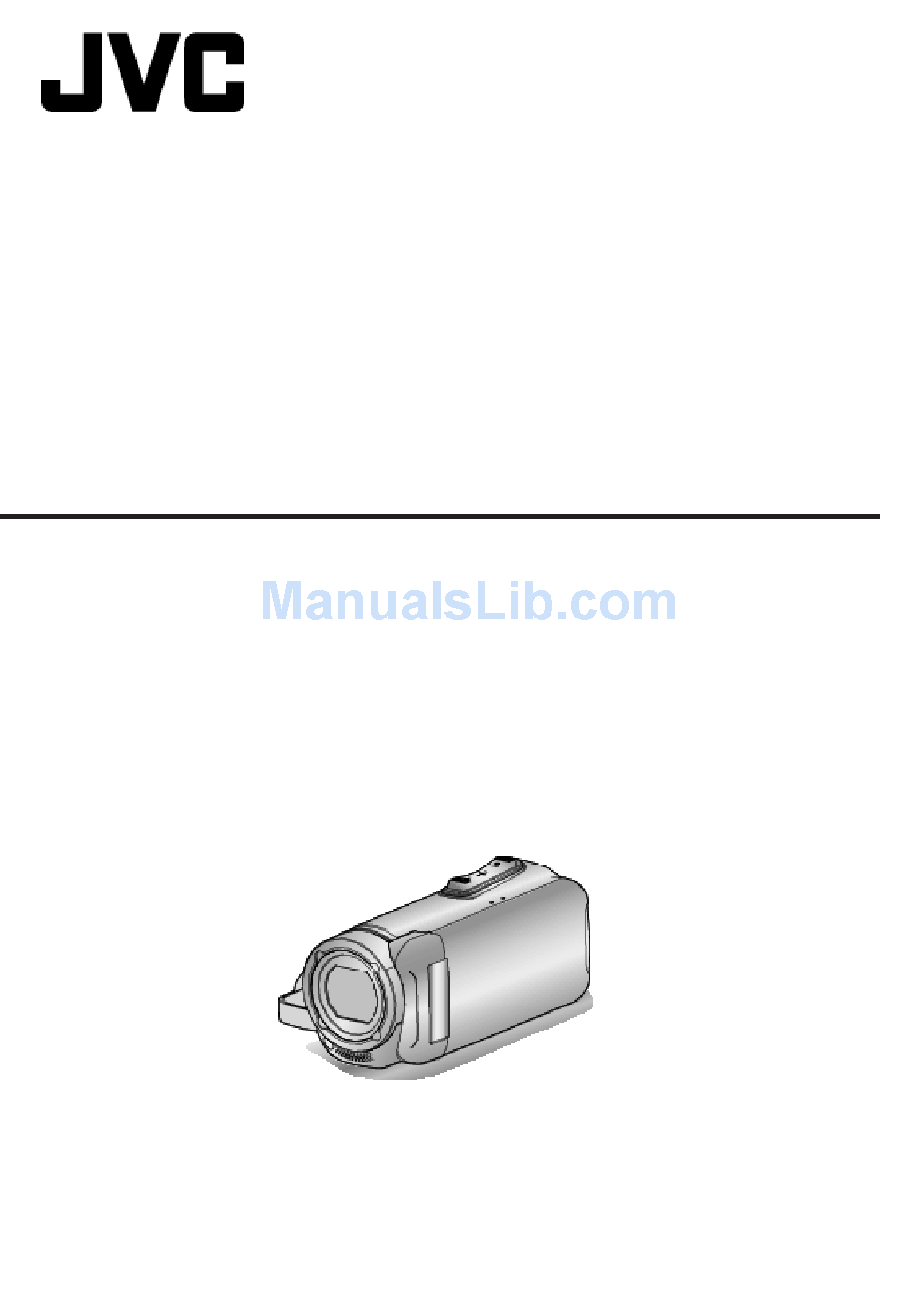

  • Page 1 CAMCORDER Detailed User Guide GZ-RX515 GZ-RX510 C5B7_RX515_EU_EN...

  • Page 2: Table Of Contents

    Table of Contents Editing Deleting Unwanted Files ............66 Deleting the Currently Displayed File ......... 66 Getting Started Deleting Selected Files ............66 Verifying the Accessories ............4 Protecting Files ..............67 Turning on this Unit ..............5 Protecting/Releasing Protection of the Currently Displayed Opening the Terminal Cover (SD Card Cover) ......
  • Page 3 Names of Parts ............147 Indications on the LCD monitor ....... 150 Troubleshooting ............153 When the unit is not working properly ........153 Charging ................153 Power supply ............... 154 Recording ................154 SD Card ................155 Playback ................155 Editing/Copying ..............

  • Page 4: Getting Started

    Getting Started Verifying the Accessories If any of the items are missing or defective, consult your JVC dealer or the nearest JVC service center. Illustration Description AC Adapter AC-V10E Charges this unit. Attach the charging adapter cable to the tip of the cord.

  • Page 5: Turning On This Unit

    Stop using the unit underwater if there are damages to the cover, etc. and consult your JVC dealer or the nearest JVC service center. Do not apply excessive force when opening/closing the terminal cover.

  • Page 6: Charging

    (when the provided AC adapter is used) When the recording time becomes extremely short even when the battery is fully charged, the battery needs to be replaced. For details on replacing the built-in battery (subject to a fee), consult the nearest JVC service center.

  • Page 7: Quad Proof

    Stop using the unit underwater if there are damages to the cover, etc. STD-810F Method; Note: Temperatures and consult your JVC dealer or the nearest service center. 516.5 between −10°C and Use within a water depth of 5 m and a duration of 30 minutes.

  • Page 8: Maintenance After Use

    Getting Started Maintenance after Use Other Precautions After using underwater or in dusty places, rinse the camera with water Do not leave the camera under low temperature in cold climates or under immediately and dry it completely. high temperature above 40 °C (such as under direct sunlight, inside a vehicle in the hot sun, or near a heater).

  • Page 9: Grip Adjustment

    Getting Started Grip Adjustment Attaching the Core Filter Attaching core filter to the cable of the AC adapter and the AV cable (on the end connected to this unit) can reduce the interference generated when this unit is connected to an external device. Use the small core filter with the power cable, and the large core filter with the AV cable.

  • Page 10: Inserting An Sd Card

    Getting Started Inserting an SD Card Removing the Card Push the SD card inward once, then pull it out straight. When a commercially available SD card is inserted, recordings can still be made to the card without stopping when the remaining recording time on the built-in memory runs out.
  • Page 11 Getting Started Memo : When your computer cannot recognize the SDXC card Using SD cards (including SDHC/SDXC cards) other than those specified Confirm and update the OS of your computer. above may result in recording failure or data loss. This unit is not guaranteed to operate with all SD cards. Some SD cards Windows Make sure that the operating system version is SP1 or may not work due to specification changes, etc.

  • Page 12: Using The Touch Screen

    Getting Started Using the Touch Screen Locking the Screen (when Shooting Underwater) Lock the screen before using this unit underwater to prevent operation errors The LCD monitor of this unit is a touch panel which enables operations by on the touch screen. touching the screen.

  • Page 13: Adjusting The Touch Panel

    Getting Started Adjusting the Touch Panel Tap “OK”. Adjusts the response position of the buttons on the touch screen. Tap “MENU”. Setting ends and returns to the menu screen. Caution : Do not tap areas other than the “+” mark during touch screen adjustment Tap “SETUP”.

  • Page 14: Names Of Buttons And Functions On The Lcd Monitor

    Getting Started Names of Buttons and Functions on the LCD Monitor Playback Screen (Video) The following screens are displayed during the A video and B still image modes, and operate as touch screens. Recording Screen (Video/Still Image) When this unit is not operated, the operation buttons on the LCD monitor disappear automatically.
  • Page 15 Getting Started Playback Screen (Still Image) Index Screen (Thumbnail Display) Display When this unit is not operated, the operation buttons on the LCD monitor A/B (Video/Still Image) Mode Button disappear automatically. Tap on the screen to display the operation Switches between A video and B still image modes. buttons again.
  • Page 16 Getting Started Menu screen (recording mode) Menu screen (playback mode) SILENT Button SILENT Button “Using the Silent Mode” (A p. 24) “Using the Silent Mode” (A p. 24) INFO. Button INFO. Button (Displayed only after playback) “Checking the Remaining Recording Time” (A p. 49) “Checking the Recording Date and Other Information”...

  • Page 17: Clock Setting

    Getting Started Clock Setting Resetting the Clock Set the clock with “DATE & TIME” from the menu. The “SET DATE/TIME!” screen appears when you turn on this unit for the Tap “MENU”. first time after purchase, when it has not been used for a long time, or when the clock is not set yet.

  • Page 18: Changing The Display Language

    Getting Started Changing the Display Language Select the region where you live and tap “SAVE”. The language on the display can be changed. Tap “MENU”. Time difference between the selected city and the GMT (Greenwich Mean Time) is displayed. Tap 0 or 1 to select the city name. Tap “SETUP”.

  • Page 19: Holding This Unit

    Getting Started Holding this Unit Tripod Mounting When holding this unit, keep your elbows close to your sides to prevent This unit can be mounted on a tripod (or monopod). This is useful for camera shake. preventing camera shake and recording from the fixed position. To prevent this unit from falling off, check the tripod mounting screw holes and positioning holes on the unit carefully before mounting, and turn the screws until they are fastened firmly.

  • Page 20: Using This Unit Overseas

    Getting Started Using this Unit Overseas Setting the Clock to Local Time when Traveling Change the date and time display to the local time by selecting your travel The shape of the power outlet varies according to countries and regions. destination in “AREA SETTING”...

  • Page 21: Setting Daylight Saving Time

    Getting Started Setting Daylight Saving Time Optional Accessories When “ON” is selected in “DST SETTING” of “DATE & TIME”, the time is set 1 hour ahead. Product Name Description Tap “MENU”. HDMI Mini Cable Allows viewing in high picture quality when VX-HD310 connected to a TV.

  • Page 22: Recording

    Recording Taking Videos in Auto Mode Indications for Video Recording You can record without worrying about the setting details by using the P Intelligent Auto mode. Settings such as exposure and focus will be adjusted automatically to suit the shooting conditions. In case of specific shooting scenes such as person etc., its icon is displayed on the screen.
  • Page 23 Recording Scenes of Intelligent Auto Operation Buttons for Video Recording Display Icon Description Captures one’s skin beautifully. Allows people to be captured naturally. Record a group of people with the most suitable settings. Records while focusing on a near object. Focuses at a far distance and captures a sharp image with vivid colors.

  • Page 24: Operating Procedure

    - Once deleted, recorded contents (data), including data loss due to malfunctions in this unit, cannot be restored. Please be forewarned. - JVC will not be responsible for any lost data. - In order for quality improvement, defective recording medium is subject...

  • Page 25: Capturing Still Images During Video Recording

    Recording Memo : Capturing Still Images During Video Recording Check the remaining recording time in the media before you start shooting. Still images can be captured by tapping the A button while in the video mode If there is not enough space, move (copy) the data to a computer or disc. (standby or recording).

  • Page 26: Taking Still Images In Auto Mode

    Recording Taking Still Images in Auto Mode Indications During Still Image Recording You can record without worrying about the setting details by using the P Intelligent Auto mode. Open the LCD monitor. Some displays disappear after approximately 3 seconds. Use the n button to change the displays. Display Icon Description A Image Size...
  • Page 27 Recording Scenes of Intelligent Auto Operation Buttons for Still Image Recording Display Icon Description Captures one’s skin beautifully. Allows people to be captured naturally. Record a group of people with the most suitable settings. Records while focusing on a near object. Focuses at a far distance and captures a sharp image with vivid colors.

  • Page 28: Zooming

    Recording Using the Silent Mode Zooming When the Silent mode is used, the LCD monitor darkens and operation The angle of view can be adjusted using zoom. sounds will not be output. Use this mode to record quietly in dark places such as during a performance.

  • Page 29: Manual Recording

    Recording Manual Recording Tap “RECORD SETTING”. You can adjust settings, such as brightness, by using the manual mode. Manual recording can be set for both video and still image modes. Open the LCD monitor. Tap the item to set manually. Set the recording mode to either A video or B still image.

  • Page 30: Adjusting Focus Manually (Focus)

    Recording Adjusting Focus Manually (FOCUS) Tap “MANUAL”. Set this when the focus is not clear in Intelligent Auto or when manual focusing is desired. Select the Manual recording mode. Adjust the focus. If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen.

  • Page 31: Adjusting Brightness

    Recording Adjusting Brightness Tap “MANUAL”. You can adjust the brightness to your preferred level. Select the Manual recording mode. Adjust the brightness value. If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

  • Page 32: Setting Backlight Compensation

    Recording Setting Backlight Compensation Tap “ON” or “ADVANCE”. You can correct the image when the subject appears too dark due to backlight. Select the Manual recording mode. “ADVANCE” is designed to perform more effective backlight compensation. Choose this when the backlight compensation is not adjusted appropriately by “ON”.

  • Page 33: Setting White Balance

    Recording Setting White Balance Select the white balance setting. You can set the color tone to suit the light source. Select the Manual recording mode. You can either tap the icon, or select the item using the “0” “1” button and tap “SET”.

  • Page 34: Taking Close-Up Shots (Tele Macro)

    Recording Taking Close-up Shots (TELE MACRO) Tap 1. You can take close-up shots of an object using the tele macro function. *The image is only an impression. Tap “TELE MACRO”. Select the Manual recording mode. If the icon is not displayed on the screen, tap 1 to scroll the screen. If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen.

  • Page 35: Shooting Under Water

    Recording Shooting under Water Tap q or r. Perform the following settings to shoot underwater. Setting the White Balance to Underwater Mode Corrects the color when shooting underwater to record more natural images. Select from the following two settings depending on the color of the water at the shooting location.

  • Page 36: Recording With Effects

    Recording Recording with Effects Tap “SCREEN LOCK”. The L button appears. You can add and record various effects to videos or still images. Once setting is done, you can easily record images that are suitable for each image. Type of Effect Description of Effect GRAINY Captures film-like monochrome images by...

  • Page 37: Recording Images Like An Old Black And White Photo (Grainy Monochrome)

    Recording Recording Images Like an Old Black and White Photo Tap “GRAINY MONOCHROME”. (GRAINY MONOCHROME) Captures film-like monochrome images by increasing the contrast of mid- level brightness and emphasizing the rough grainy feel on the image. Open the LCD monitor. Tap L to exit the menu.

  • Page 38: Recording Food Images (Food)

    Recording Recording Food Images (FOOD) Tap “FOOD”. Captures food images such that the food looks appetizing even under fluorescent lighting in homes by changing the colors to warm-colors and deepening the colors. Open the LCD monitor. Tap L to exit the menu. Tap J to return to the previous screen.

  • Page 39: Recording Images Of A Baby (Baby)

    Recording Recording Images of a Baby (BABY) Tap “BABY”. Captures a soft and gentle image by lightening the skin tone while retaining the reddish hue, enhancing the skin beautifying effect as well as smoothing the appearance of the skin. Open the LCD monitor. Tap L to exit the menu.

  • Page 40: Recording With Animation Effects (Animation Effect)

    Recording Recording with Animation Effects Select a desired effect and tap “SET”. (ANIMATION EFFECT) You can add animation effects to video recordings. The animation effects appear when smiles are detected or when the screen is touched. Open the LCD monitor. Tap 0 or 1 to change the effect.
  • Page 41 Recording During Setting After Setting Note Animation (effect) appears when smiles are detected. Animation (effect) appears when smiles are detected. Animation (effect) appears when smiles are detected. Animation (effect) appears when the screen is touched.

  • Page 42: Capturing Subjects Clearly (Touch Priority Ae/Af)

    Recording Capturing Subjects Clearly (TOUCH PRIORITY Tap the desired setting. AE/AF) “TOUCH PRIORITY AE/AF” is a function that adjusts focus and brightness based on a tapped position. By registering the face of a person beforehand, you can enable tracking of the person even without specific selection during recording.

  • Page 43: Reducing Camera Shake

    Recording Memo : Reducing Camera Shake When “TOUCH PRIORITY AE/AF” is set, “FOCUS” will be set to “AUTO” automatically. When the image stabilizer is set, camera shake during video recording can Tap the selected position (face/color/area) again to cancel the setting. be effectively reduced.

  • Page 44: Recording At Intervals (Time-Lapse Recording)

    Recording Recording at Intervals (TIME-LAPSE Setting Details RECORDING) Deactivates image stabilizer. b OFF This function enables the changes of a scene that occur slowly over a long Reduces camera shake under normal a ON period to be shown within a short time by taking frames of it at a certain shooting conditions.
  • Page 45 Recording Time-Lapse Setting Tap to select a recording interval (1 to 80 seconds). The greater the number of seconds, the longer the recording interval. Setting Details Deactivates the function. 1SEC INTERVAL Takes a frame at 1-second intervals. Recorded videos will be played back at 30 times speed.

  • Page 46: Recording With A Part Of The Screen Enlarged In Sub Screen (Close-Up Sub-Window)

    Recording Recording with a Part of the Screen Enlarged Select and tap on the position to be displayed in the sub screen. in Sub Screen (CLOSE-UP SUB-WINDOW) Record with a portion of the screen enlarged and displayed in a sub screen. This allows you to record the surrounding and the expression of the subject at the same time.

  • Page 47: Taking Group Shots (Self-Timer)

    Recording Taking Group Shots (Self-timer) Tap “SELF-TIMER”. The 10-second self-timer is a convenient function for taking group photos. The 2-second self-timer is useful for preventing camera shake caused by pressing the shutter button. Memo : This function is available in still image recording mode. When shooting a photo using the self-timer function, use of a tripod is recommended.

  • Page 48: Recording Videos With Date And Time

    Recording Recording Videos with Date and Time Select the type of clock with 0 or 1, and tap “SET”. You can record videos together with the date and time. Set this when you want to save the file with date and time display. (The date and time cannot be deleted after recording.) Open the LCD monitor.

  • Page 49: Checking The Remaining Recording Time

    Recording Checking the Remaining Recording Time Display the remaining battery power and the remaining recording time. Memo : The remaining battery power and the remaining recording time are estimates. The remaining recording time is displayed only during video mode. The remaining recording time is displayed for the recording media that is currently selected.
  • Page 50 Recording time may differ depending on the shooting environment and usage. When the recording time becomes extremely short even when the battery is fully charged, the battery needs to be replaced. For details on replacing the built-in battery (subject to a fee), consult the nearest JVC service center.

  • Page 51: Playback

    Please be forewarned. Start playback from “PLAYBACK OTHER FILE” in the - JVC will not be responsible for any lost data. “PLAYBACK SETTING” menu. - In order for quality improvement, defective recording medium is subject to be analyzed.

  • Page 52: Normal Playback

    Playback Normal Playback Caution : While this unit may be used with the LCD monitor reversed and closed, Plays back the recorded videos. the temperature rises more easily. Do not use this unit with the LCD Open the LCD monitor. monitor reversed and closed for long periods of time, or in places exposed to direct sunlight or high temperatures.
  • Page 53 Playback During Video Playback Display Description J Display Button Switches the display between full (m) and simple (n) with every tap of the button. Simple display: Some displays disappear automatically when the screen is not operated. Full display: Displays everything. The display button changes from n to m.

  • Page 54: Checking The Recording Date And Other Information

    Playback Checking the Recording Date and Other Information Tap C. You can see the recording information of the recorded videos. Open the LCD monitor. Tap L to exit the menu. You can display the recording date and duration of the selected file. Tap A or B to select the video or still image mode.

  • Page 55: Marking Playback

    Playback MARKING PLAYBACK Select the recording date of the video that you want to playback. You can use the smartphone application to search the marked scenes and the goal scenes in Game Score. You can also extract and play back only the marked scenes and the goal scenes.
  • Page 56 Playback Indications during the Marking Playback GAME PLAYBACK Game playback is a function to playback the goal scenes and/or marked During the Normal Marking Playback scene that is recorded by the smartphone application Everio sync. 2. To start, tap J on the playback screen. For details on game score recording, refer to “Using Smartphone Applications”...
  • Page 57 Playback Indications during the Game Playback Tap the recorded game. During the Normal Game Playback Tap the list of the game to playback all the scenes of the game. Display Description Tap DIGEST to extract the score and marked scenes from the game, and to start a DIGEST playback.
  • Page 58 Playback Adjusting the Marked Playback Position Select the items for setting. Specify the length of time before and after the marked position for playing back the marked video. The maximum length of playback time per mark is 20 seconds. Open the LCD monitor. Proceed to Step 6 if “P/B TIME PER SCENE”...

  • Page 59: Digest Playback

    Playback DIGEST PLAYBACK Tap to select a date for Digest Playback. You can play back a digest of recorded videos (Digest Playback). This is useful for checking the content of videos quickly. Open the LCD monitor. After selecting a date, tap “NEXT”. When “ALL”...

  • Page 60: Playback Other File

    Playback PLAYBACK OTHER FILE Tap on the file to start playback. The management information of a video may be damaged if recording is not performed correctly, such as turning off the power in the middle of recording. You can perform the following operations to play back the videos with defective management information.

  • Page 61: Playing Back Still Images

    Playback Playing Back Still Images Operation Buttons for Still Image Playback You can select and play back the recorded still images from an index screen During Index Screen Display (thumbnail display). Open the LCD monitor. Still images that are recorded continuously in high-speed or medium- speed will be grouped together.

  • Page 62: Slideshow Playback

    Playback During Still Image Playback Slideshow Playback Still images can be played back in a slideshow. Tap I during still image playback to start the slideshow. When this unit is not operated, the operation buttons on the touch screen disappear automatically. Tap on the screen to display the operation “Operation Buttons for Still Image Playback”...

  • Page 63: Connecting To And Viewing On Tv

    Playback Connecting to and Viewing on TV Connecting via the HDMI Mini Connector If you are using an HDTV, you can play back in HD quality by connecting to You can connect this unit to a TV for playback. The image quality on TV the HDMI mini connector.

  • Page 64: Operation Method

    Playback Memo : Operating in Conjunction with TV via HDMI Change the settings in “HDMI OUTPUT” according to the connection. Connecting this unit to an HDMI-CEC enabled TV using the HDMI mini cable “ HDMI OUTPUT ” (A p. 145) allows linked operations with the TV to be performed.

  • Page 65: Connecting Via The Av Connector

    Wiring specifications (for video/audio) of the 4-pole mini plug are described in the following. Connect to a TV. To purchase, consult your nearest JVC dealer or JVC service center. http://www3.jvckenwood.com/support/hrepair.html Connect the adapter cable and AC adapter to this unit.

  • Page 66: Editing

    Editing Deleting Unwanted Files Deleting Selected Files Deletes the selected files. Delete unwanted videos and still images when the space in the recording Caution : media is running out. Deleted files cannot be restored. Doing so frees up more space in the recording media. “Deleting the Currently Displayed File”...

  • Page 67: Protecting Files

    Editing Protecting Files Tap “SET”. Prevent important videos/still images from being deleted accidently by protecting them. “Protecting/Releasing Protection of the Currently Displayed File” (A p. 67) “Protecting/Releasing Protection of Selected Files” (A p. 68) Caution : When the recording media is formatted, even the protected files will be deleted.

  • Page 68: Protecting/Releasing Protection Of Selected Files

    Editing Protecting/Releasing Protection of Selected Files Tap on the files to protect or release protection of. Protects or releases protection of the selected files. Open the LCD monitor. P appears on the selected files. To remove P from a file, tap on the file again. I and P are displayed on the files that are already protected.

  • Page 69: Capturing A Still Image In The Video During Playback

    Editing Capturing a Still Image in the Video During Tap the A button. Playback You can capture still images of the scenes you like in the recorded videos. Open the LCD monitor. Memo : Still images are captured with a size of 1920×1080. Captured still images are stored in the media where the video is being played back from.

  • Page 70: Combining Videos Recorded By Seamless Recording

    Editing Combining Videos Recorded by Seamless Tap “COMBINE SCENES”. Recording Videos that are recorded on two separate media and with “SEAMLESS RECORDING” in the video recording menu enabled can be combined into a single video. “ SEAMLESS RECORDING ” (A p. 133) Open the LCD monitor.

  • Page 71: Capturing A Required Part In The Video (Trimming)

    Editing Capturing a Required Part in the Video Tap the video to edit. (TRIMMING) Select the required part of a video and save it as a new video file. The original video remains in its existing location. Open the LCD monitor. Tap e to pause playback at the desired start point, then tap “A”.

  • Page 72: Copying

    Copying Dubbing Files to a Disc by Connecting to a Tap the desired media. Blu-ray Recorder You can dub videos in the high definition quality by connecting an AVCHD- compliant Blu-ray recorder to this unit via a USB cable. For details on creating the disc, refer to the instruction manual of your Blu-ray recorder.

  • Page 73: Copying Files To An Sd Card

    Copying Copying Files to an SD Card Tap “COPY”. You can copy videos and still images from the built-in memory to SD card. Copying still images to cards makes it convenient to bring them to the shop for printing (developing). This operation cannot be completed if the remaining battery power is not enough.

  • Page 74: Copying To Windows Pc

    To create DVD-Video discs using the provided software, it is necessary to install the additional software (software for creating DVD-Video). For details, refer to the Pixela homepage. http://www.pixela.co.jp/oem/jvc/mediabrowser/e/ Backing up of files using other softwares is not supported. Trouble with Using the Provided Software Everio MediaBrowser 4 Consult the customer service center below.
  • Page 75 Copying Click “Properties” on the bottom bar to display. If a “Computer” icon is shown on desktop, right-click the icon and select “Properties” in the menu to display your computer information. Windows Vista/Windows 7 Click the start button. Right-click Computer. Click “Properties”.
  • Page 76 Copying Check the items with the table below. Windows 8/Windows 8.1 Windows Vista/Windows 7 Windows 8 64-bit Windows Vista 32/64-bit Windows 8 or Windows 8 Pro Home Basic or Home Premium (Pre-installed versions, desktop mode only) (Pre-installed versions only) Service Pack 2 Windows8.1 64-bit Windows 7 32/64-bit Windows8.1 or Windows8.1 Pro...

  • Page 77: Installing The Provided Software (Built-In)

    Copying Installing the Provided Software (Built-in) Perform the following operations on your computer. You can display the recorded images in calendar format and perform editing A Display “Apps”. using the provided software. (For Windows 8) Click the “Search” charm. (For Windows 8.1) Click F. This operation cannot be completed if the remaining battery power is not enough.
  • Page 78 Copying Tap “PLAYBACK ON PC”. Click “Finish”. “Everio Software Setup” appears on the computer. Operations are to be performed on the computer after the screen Click “Quit”. switches. Perform the following operations on your computer. A Click “Open folder to view files” on the auto play dialog box, and then double-click “install.exe”.

  • Page 79: Backing Up All Files

    Other Countries in Europe (English):+44-1489-564-764 Asia (Philippines) (English): +63-2-438-0090 Homepage http://www.pixela.co.jp/oem/jvc/mediabrowser/e/ Delete unwanted videos before making backup. It takes time to back up many videos. “Deleting Unwanted Files” (A p. 66) Disconnect the USB cable to return to the recording or playback screen.

  • Page 80: Organizing Files

    Copying Disconnecting this Unit from Computer Organizing Files After backing up your files, organize them by adding labels such as “Family Trip” or “Athletic Meet”. This is useful not only for creating discs, but for viewing the files too. Double-click on the Everio MediaBrowser 4 icon. The provided software starts up.

  • Page 81: Recording Videos To Discs

    Select the files to copy to disc in order. (English):+44-1489-564-764 Asia (Philippines) (English): +63-2-438-0090 Homepage http://www.pixela.co.jp/oem/jvc/mediabrowser/e/ Click “Settings” to select the disc type. Click “Select all” to select all the displayed files. After selecting, click “Next”. Set the title of the top menu of the disc.
  • Page 82 * To create DVD-Video discs using the provided software, it is necessary to install the additional software (software for creating DVD-Video). For details, refer to the Pixela homepage. http://www.pixela.co.jp/oem/jvc/mediabrowser/e/ Use commercially-available software to create a Blu-ray disc. Use Everio MediaBrowser 4 Player to play back an AVCHD disc. Refer to the help file of the provided Everio MediaBrowser 4 software to operate.

  • Page 83: Backing Up Files Without Using Provided Software

    Copying Backing Up Files Without Using Provided Software (Windows 8) Right-click “Computer” in the “Windows System Tool” menu to select Copy the files to a computer using the following method. the checkbox, and then click the “JVCCAM_MEM” or “JVCCAM_SD” This operation cannot be completed if the remaining battery power is not icon.

  • Page 84: List Of Files And Folders

    Copying List of Files and Folders Folders and files are created in the built-in memory and SD card as shown below. They are created only when necessary. Caution : When the camera and PC are connected by an USB cable, recorded media are read-only.

  • Page 85: Copying To Mac Computer

    Copying Copying to Mac Computer Load image file to iPhoto. iPhoto launches automatically and videos recorded in the camera are Copy the files to a Mac computer using the following method. displayed. Load the necessary images. Caution : Images on the built-in memory and SD card are displayed separately. Switch between JVCCAM_MEM (built-in memory) and JVCCAM-SD This operation cannot be completed if the remaining battery power is not (SD card) displayed under “Devices”...

  • Page 86: Using Wi-Fi

    Using Wi-Fi Wi-Fi Capabilities This unit is equipped with Wi-Fi function. You can do the following using a smartphone via wireless connection. Name of Function Capability DIRECT MONITORING You can check the image captured on the camera via direct 1-to-1 connection (Wi-Fi Direct) with a (DIRECT CONNECTION) smartphone, without the need for an access point (wireless LAN router).

  • Page 87: Operating Environment

    For more details on wireless LAN and network security, please consult the manufacturer of your wireless LAN device. JVC shall not be liable for any security issues, troubles, damages or losses arising from the use of this feature. Wi-Fi function is not available underwater.

  • Page 88: Image Monitoring Via Direct Connection (Direct Monitoring)

    Using Wi-Fi Radio Waves Used by this Product Image Monitoring via Direct Connection This product makes use of radio waves in the ISM band (2.4 GHz). (DIRECT MONITORING) Although a radio station license is not required for using this product, please take note of the following.
  • Page 89 Using Wi-Fi Connecting Smartphone Directly to Camera (Wi-Fi Direct) Select the SSID in step 4 from the Wi-Fi network selection screen of your smartphone, and enter the PASS on the password screen. Connect the smartphone directly (Wi-Fi Direct) to the camera by either of the (Operation on the smartphone) following methods.
  • Page 90 Using Wi-Fi Monitoring Images from Smartphone Smartphone (Android / iPhone) Memo : Prior to use this function, a smartphone application needs to be installed on the smartphone. “Installing Smartphone Applications” (A p. 102) Start “Everio sync. 2” on the smartphone after setting DIRECT CONNECTION.

  • Page 91: Image Monitoring Via An Access Point At Home (Indoor Monitoring)

    Using Wi-Fi Image Monitoring via an Access Point at The recording screen is displayed. Home (INDOOR MONITORING) Connect the camera and smartphone wirelessly via access point (wireless LAN router) that has been set up at home. You can monitor the images captured on the camera from the smartphone connected.
  • Page 92 Using Wi-Fi Operation Method Tap “ADD”. (Operation on this camera) Connect the camera to the access point (wireless LAN router) Connect the camera to the access point by either of the following methods. Wi-Fi Protected Setup (WPS) Registration Follow the operations below if the access point (wireless LAN router) in use Tap “EZ REGISTRATION WPS”.
  • Page 93 Using Wi-Fi Connecting Smartphone to Access Point (Wireless LAN The following is displayed when the camera is connected to the access Router) point. Connect the smartphone to the access point (wireless LAN router) at home. For details on how to connect, refer to the instruction manual of the device in use or the access point (wireless LAN router).

  • Page 94: Recording The Location Information

    Using Wi-Fi Recording the Location Information Log in with your username and password. (if authentication cannot be achieved) You can record the location information of the venue where recording is taking place via direct connection (Wi-Fi Direct) with a smartphone. Memo : To obtain the location information, it is necessary to connect the smartphone to the camera and start the smartphone application.
  • Page 95 Using Wi-Fi Connection by Wi-Fi Protected Setup (WPS) Tap the “DIRECT CONNECTION” (N) icon in the “Wi-Fi” menu. (Operation on this camera) Tap “MENU”. (Operation on this camera) Set the camera to the recording mode. When “50p” is selected for “SYSTEM SELECT”, the following display appears and recording mode is switched to the 50i mode.
  • Page 96 Using Wi-Fi Activate WPS on the smartphone within 2 minutes. Tap “DIRECT MONITORING”. (Operation on the smartphone) To activate WPS, refer to the instruction manual of the device in use. A connection is established and Q appears on the camera’s screen. Monitor screen is displayed.
  • Page 97 Using Wi-Fi Start recording. (Operation on this camera) Press the “START/STOP” button to start a normal recording. Memo : Manual recording cannot be performed. It is not possible to switch to the playback mode.

  • Page 98: Changing The Settings

    Using Wi-Fi Changing the Settings To use the Wi-Fi function, it may be necessary to perform some settings on the camera and smartphone. Menu Settings Setting Details Wi-Fi SETTING Configures various settings related to the network. SET FROM QR CODE Perform the Wi-Fi setting after the camera reads the QR code generated by following the instruction in Detailed User Guide.

  • Page 99: Registering Access Point Using Wi-Fi Protected Setup (Wps)

    Using Wi-Fi Registering Access Point Using Wi-Fi Protected Setup (WPS) Tap “EZ REGISTRATION WPS”. (Operation on this camera) Follow the operations below if the access point (wireless LAN router) in use supports WPS. Tap “MENU”. (Operation on this camera) Activate WPS of the access point (wireless LAN router) within 2 minutes. To activate WPS, refer to the instruction manual of the device in use.

  • Page 100: Registering Access Point Using Wps Pin

    Using Wi-Fi Registering Access Point Using WPS PIN Tap “WPS PIN”. (Operation on this camera) Tap “MENU”. (Operation on this camera) The PIN code appears. Enter the PIN code displayed on the camera to the access point The top menu appears. (wireless LAN router).

  • Page 101: Checking The Mac Address Of This Camera

    Using Wi-Fi Checking the MAC Address of this Camera Initializing the Wi-Fi Settings Displays the MAC address of the camera. Returns the Wi-Fi settings to their default values. Tap “MENU”. Tap “MENU”. (Operation on this camera) (Operation on this camera) The top menu appears.

  • Page 102: Using Smartphone Applications

    Using Wi-Fi Using Smartphone Applications Operating the Smartphone Applications Indications on the screen By installing the “Everio sync. 2” smartphone software, images on the “Indications on the screen” (A p. 102) camera can be checked from a distance, and recording videos/still images Transferring videos and zooming operation can be performed.

  • Page 103: Using The Markings

    Using Wi-Fi Index Screen (AVCHD Video/Still image) Using the Markings Enter the mark to make it easy to find the scene later. Common for Android and iOS Tap “Marking” while recording the video. Transfer Screen Tap the mark icon (D) at the scene you want to mark. Game Score Screen Once a scene is marked, the next mark won’t be made within 5 seconds.

  • Page 104: Using The Game Score

    Using Wi-Fi Using the Game Score Tap “TEAM SELECTION”. The scores of various sport games can be recorded with video images. Also, the recorded position can be marked to make it easy to find the scenes you want to view later. Common for Android and iOS Tap “Game Score”.
  • Page 105 Using Wi-Fi Tap c to start recording the video. Tap the number when the score is added. Tap the number button of the scored team. When the game is started, tap “Game Start”. To modify the score, tap the scorecard. Tap the “Undo”...

  • Page 106: Transferring Videos (Avchd Format)

    Using Wi-Fi Transferring Videos (AVCHD format) When the game is ended, tap “Game End”. Transfer videos recorded in AVCHD format to the smartphone. Caution : The video to be forwarded is converted to the following format. Item Details System Video Codec H.
  • Page 107 Using Wi-Fi Tap “Index”. Files are displayed as a split files by certain lengths of time. Enter the check mark (A) to the files to transfer, and tap the transfer mark icon (B) on the lower right. Number of the selected image files is indicated next to the check mark in lower left.
  • Page 108 Using Wi-Fi Transferring manually “TRANSFER” starts. You can set the length of transferred video. A Tap “MANUAL” in step 5. B At the start point, enter the starting time of the video. Specify the lengths of the video by using the slider bar. (10 to 300 sec) C After confirming the setting, tap “TRANSFER”, and then tap “TRANSFER”...

  • Page 109: Transferring Still Images

    Using Wi-Fi Transferring Still Images Tap “Index”. You can transfer recorded still images to your smartphone. If the aspect ratio of the original still image is 4:3, the image is reduced by 1600X1200 when transferred. If the aspect ratio of the original still image is 16:9, the image is reduced by 1920X1080 when transferred.
  • Page 110 Using Wi-Fi Enter the check in the checkbox (A) to the still images to transfer, and “TRANSFER” starts. tap the transfer mark icon (B) on the lower right. Tap “Monitor” to return to the monitor screen. Tap Q to move to the setting screen. Tap “CANCEL”...

  • Page 111: Smartphone Application Settings

    Using Wi-Fi Smartphone Application Settings Item Details You can change the settings of the smartphone applications. MONITORING Turns on/off the monitoring function of the Common for Android and iOS screen. (Enter a check mark to set to “ON”) Tap Q. PAN OPERATION Not usable on this unit.
  • Page 112 Using Wi-Fi Game Score Settings Tap the desired setting. Enter the recording methods of the game score, as well as the team information. Common for Android and iOS Tap Q. Item Details TEAM LIST Set the team name and the color. To display “HOME”...

  • Page 113: Troubleshooting

    Using Wi-Fi Troubleshooting Direct Monitoring Trouble Action Unable to connect to camera. Check whether the Wi-Fi connection is established successfully. (URL required) Check whether Wi-Fi is connected to “DIRECT-**EVERIO”. Check whether the smartphone is connected to the camera. Try again after powering off and on the camera and the terminal (smartphone). If the smartphone supports Wi-Fi Direct, try generating the QR code and set “ENFORCED GROUP OWNER”...
  • Page 114 Using Wi-Fi INDOOR MONITORING (connection at home) Trouble Action Unable to connect to camera. Check whether the Wi-Fi connection is established successfully. Check to ensure that the camera and the terminal (smartphone) are connected to the same access point. Try again after powering off and on the camera and the terminal (smartphone). Video or audio is interrupted or delayed If the network speed is slow, videos and audio sound may be interrupted, or delay may become significant.
  • Page 115 3. Set the username and password for the dynamic DNS (DDNS) obtained on the camera. * Only the JVC dynamic DNS (DDNS) service can be set on this camera. The URL (WAN) will not appear if dynamic DNS (DDNS) is not set on the camera.
  • Page 116 Using Wi-Fi Vide/Still Image Transmission Trouble Action Unable to transfer videos and still images to Check the amount of remaining free space in the destination medium (smartphone). smartphone.

  • Page 117: Wi-Fi Specifications

    Using Wi-Fi Wi-Fi Specifications Wi-Fi Specifications Item Details Wireless LAN Standard IEEE802.11b/g/n (2.4GHz band) Wi-Fi security Encryption: WEP, WPA, WPA2 *WPA and WPA2 are supported only by the personal mode (PSK). DIRECT MONITORING / INDOOR MONITORING / OUTDOOR MONITORING When Using Everio sync. 2 Item Details Supported Terminals...
  • Page 118 Using Wi-Fi by Creating a QR Code Handling information ： The information you have entered is used to generate the QR code. The information is erased after the QR code is generated, and will not be retained on the web server. The QR code generated includes your information so please handle with care.

  • Page 119: Using Wi-Fi By Creating A Qr Code

    Using Wi-Fi by Creating a QR Code DIRECT MONITORING Tap “EXECUTE”. Setting (Once setting is done, start from the “Regular Operation” below) Creating a QR Code Enter values in the required items for direct monitoring. Password: set a password to connect this camera to the device by direct monitoring.
  • Page 120 Using Wi-Fi by Creating a QR Code Regular Operation Select the SSID in step 4 from the Wi-Fi network selection screen of your smartphone, and enter the PASS on the password screen. Connecting the Smartphone to the Camera Wirelessly (Operation on the smartphone) Connection by entering the Wi-Fi password Tap “MENU”.
  • Page 121 Using Wi-Fi by Creating a QR Code Tap “DIRECT MONITORING”. Tap “WPS”. (Operation on this camera) Activate WPS on the smartphone within 2 minutes. (Operation on the smartphone) The recording screen is displayed. To activate WPS, refer to the instruction manual of the device in use. A connection is established and Q appears on the camera’s screen.

  • Page 122: Indoor Monitoring

    Using Wi-Fi by Creating a QR Code INDOOR MONITORING Tap “SET FROM QR CODE”. Setting (Once setting is done, start from the “Regular Operation” below) Creating a QR Code Enter values in the required items for indoor monitoring. For indoor monitoring, it is not necessary to perform settings other than the password and HTTP port.
  • Page 123 Using Wi-Fi by Creating a QR Code Registering the access points (wireless LAN router) to this Tap “EZ REGISTRATION WPS”. unit (Operation on this camera) Wi-Fi Protected Setup (WPS) Registration Tap “MENU”. (Operation on this camera) Activate WPS of the access point (wireless LAN router) within 2 minutes. To activate WPS, refer to the instruction manual of the device in use.
  • Page 124 Using Wi-Fi by Creating a QR Code Connecting Smartphone to Access Point (Wireless LAN The following is displayed when the camera is connected to the access Router) point. Connect the smartphone to the access point (wireless LAN router) at home. This setting is not required if the smartphone has already been connected to the access point (wireless LAN router) at home.

  • Page 125: Outdoor Monitoring

    IP address changes when making an access to this unit via internet. Only the JVC dynamic DNS service can be set on this camera. To obtain (register) an account, perform the following steps. Access the following URL from a browser and register for an account.
  • Page 126 Using Wi-Fi by Creating a QR Code Display the screen for reading the QR code. Read a QR code. Tap “MENU”. Read a QR code. (Operation on this camera) (Operation on this camera) The top menu appears. Tap “YES”. Tap the “Wi-Fi” (Q) icon. (Operation on this camera) Tap “OK”.
  • Page 127 Using Wi-Fi by Creating a QR Code Regular Operation Tap “Wi-Fi SETTING”. (Operation on this camera) Connecting the Camera to the Smartphone Tap “MENU”. (Operation on this camera) Tap “ACCESS POINTS”. (Operation on this camera) The top menu appears. Tap the “Wi-Fi” (Q) icon. (Operation on this camera) Tap “ADD”.
  • Page 128 Using Wi-Fi by Creating a QR Code Operation on the smartphone Memo : Prior to use this function, a smartphone application needs to be installed on the smartphone. “Installing Smartphone Applications” (A p. 102) Start “Everio sync. 2” on the smartphone after setting OUTDOOR MONITORING.

  • Page 129: Registering Access Point Manually

    Using Wi-Fi by Creating a QR Code Registering Access Point Manually Tap “SET FROM QR CODE”. Creating a QR Code Enter the items required for registering the access point All items will be overwritten and set. Enter all the required items. SSID: Set the identification name (SSID) of the access point.

  • Page 130: Settings Menu

    Settings Menu Operating the Menu Operating the Top Menu You can configure various settings using the menu. The following menu is available on this unit. Tap “MENU”. TOP MENU: Menu that contains all the items specific to the video recording, still image recording, video playback, and still image playback modes respectively.

  • Page 131: Record Setting Menu (Video)

    *Displayed only in the manual recording mode. TOUCH PRIORITY AE/AF Automatically adjusts focus and brightness based on the subjects’ faces or selected area. “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 42) LIGHT (GZ-RX515) Turns on/off the light. Setting Details Does not light up.
  • Page 132 Settings Menu GAIN UP Makes the subject appear bright automatically when recording in dark places. Setting Details Deactivates the function. Electrically brightens the scene when it is dark. AUTO SLOW-SHUTTER Slows down the shutter speed to brighten the scene when it is dark. Memo : Although “AUTO SLOW-SHUTTER”...
  • Page 133 Settings Menu DATE/TIME RECORDING You can record videos together with the date and time. Set this when you want to save the file with date and time display. (The date and time cannot be deleted after recording.) “Recording Videos with Date and Time” (A p. 48) SHUTTER MODE Continuous shooting settings can be adjusted.
  • Page 134 Enables recording with 1 - 40x optical zoom and 41 - 80x digital zoom. (GZ-RX510) 120x DIGITAL (GZ-RX515) Enables recording with 1 - 40x optical zoom and 41 - 120x digital zoom. (GZ-RX515) 100x DIGITAL (GZ-RX510) Enables recording with 1 - 40x optical zoom and 41 - 100x digital zoom. (GZ-RX510) 200x DIGITAL (GZ-RX515) Enables recording with 1 - 40x optical zoom and 41 - 200x digital zoom.
  • Page 135 Settings Menu MIC LEVEL SETTING Sets the microphone level. Make the adjustments such that “MIC LEVEL” does not turn red. Setting Details Increases the microphone input level. The microphone input level is not changed. Decreases the microphone input level. K2 TECHNOLOGY Reduces the degradation of sound quality caused by digital signal processing, and records a sound quality close to the original.

  • Page 136: Record Setting Menu (Still Image)

    *Displayed only in the manual recording mode. TOUCH PRIORITY AE/AF Automatically adjusts focus and brightness based on the subjects’ faces or selected area. “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 42) LIGHT (GZ-RX515) Turns on/off the light. Setting Details Does not light up.
  • Page 137 Settings Menu GAIN UP Makes the subject appear bright automatically when recording in dark places. Setting Details Deactivates the function. Electrically brightens the scene when it is dark. Memo : Setting can be adjusted separately for videos. “GAIN UP (Video)” (A p. 132) RECORDING EFFECT You can add and record various effects to the images.

  • Page 138: Playback Setting Menu (Video)

    Settings Menu PLAYBACK SETTING Menu (video) DISPLAY DATE/TIME Sets whether to display the recording date and time during video playback. Setting Details Does not display the date and time during playback. Displays the date and time during playback. DIGEST PLAYBACK Plays back a digest of the recorded videos.

  • Page 139: Edit Menu (Video)

    Settings Menu EDIT Menu (video) PROTECT/CANCEL Protects files from being deleted accidently. “Protecting/Releasing Protection of the Currently Displayed File” (A p. 67) “Protecting/Releasing Protection of Selected Files” (A p. 68) COPY Copies files from the built-in memory to the SD card. “Copying Files to an SD Card”...

  • Page 140: Playback Setting Menu (Still Image)

    Settings Menu PLAYBACK SETTING Menu (still image) SLIDE SHOW EFFECTS Sets the transition effects in slideshow playback. Setting Details SLIDE Switches the screen by sliding in from right to left. BLINDS Switches the screen by dividing into vertical strips. CHECKERBOARD Switches the screen by changing through a checkered pattern.

  • Page 141: Edit Menu (Still Image)

    Settings Menu EDIT Menu (still image) PROTECT/CANCEL Protects files from being deleted accidently. “Protecting/Releasing Protection of the Currently Displayed File” (A p. 67) “Protecting/Releasing Protection of Selected Files” (A p. 68) COPY Copies files from the built-in memory to the SD card. “Copying Files to an SD Card”...

  • Page 142: Setup (Video/Still Image)

    Settings Menu SETUP (video/still image) Mobile User Guide Displays the QR code to access the Mobile User Guide. The portal site appears when the QR code has been read correctly. Select the model name of your camera to display its Mobile User Guide. Memo : To read the QR code, a relevant application is required.
  • Page 143 Settings Menu OPERATION SOUND Turns on or off the operation sound. Setting Details Turns off the operation sound. Turns on the operation sound. AUTO POWER OFF When no operation is made for 5 minutes, this function turns off this unit or sets this unit to standby mode when using the AC adapter in case you forgot to turn off the power.
  • Page 144 Returns all the settings to their default values. FIRMWARE UPDATE Updates the functions of this unit to the latest version. For details, refer to the JVC homepage. (When no program to update the software of this unit is available, nothing will be provided on the homepage.) http://www3.jvckenwood.com/english/support/index.html OPEN SOURCE LICENSES (recording only) Displays the open source software licenses that are used in this unit.

  • Page 145: Connection Settings (Video/Still Image)

    Settings Menu CONNECTION SETTINGS (video/still image) DISPLAY ON TV Displays icons and date/time on a TV screen. Setting Details Does not display icons and date/time on TV. Displays icons and date/time on TV. VIDEO OUTPUT Sets the aspect ratio (16:9 or 4:3) according to the connecting TV. Setting Details Select this when connecting to a conventional TV (4:3).

  • Page 146: Usb Connection Menu

    Settings Menu USB CONNECTION MENU This menu appears when this unit is connected to a computer using an USB cable. PLAYBACK ON PC Displays videos recorded by this unit by using the Everio MediaBrowser 4. “Installing the Provided Software (Built-in)” (A p. 77) Saves videos recorded by this unit on your computer without using the provided software.

  • Page 147: Names Of Parts

    Names of Parts Right Side Bottom Side A Speaker A Cover Lock B Grip Belt B Tripod Mounting Hole Pass your hand through the grip belt to hold this unit firmly. “Tripod Mounting” (A p. 19) “Grip Adjustment” (A p. 9)
  • Page 148 Do not cover the front of the lens with your fingers during recording. Connects to the AV connector of a TV, etc. B Light (GZ-RX515) E USB Connector (Micro USB AB type) Turn on the light when shooting in dark places.

  • Page 149: Lcd Monitor

    Names of Parts LCD Monitor A LCD Monitor Turns the power on/off by opening and closing. Enables self-portraits to be taken by rotating the monitor. “Using the Touch Screen” (A p. 12) “Names of Buttons and Functions on the LCD Monitor” (A p. 14) Caution : Do not press against the surface with force or subject it to strong impact.

  • Page 150: Indications On The Lcd Monitor

    Indications on the LCD monitor Common Recording Indications Video Recording A Video Mode A TOUCH PRIORITY AE/AF Switches between video and still image modes. “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 42) B Video Quality B Backlight Compensation “ SYSTEM SELECT ” (A p. 133) “Setting Backlight Compensation”...

  • Page 151: Still Image Recording

    Indications on the LCD monitor Still Image Recording Video Playback A Video Mode Switches between video and still image modes. A Still Image Mode B Video Quality Switches between video and still image modes. “ VIDEO QUALITY ” (A p. 134) B Image Size C Operation Indicator “...

  • Page 152: Still Image Playback

    Indications on the LCD monitor Still Image Playback A Still Image Mode Switches between video and still image modes. B Folder Number C File Number D Date/Time Displays the recording date and time. E Recording media “ REC MEDIA FOR IMAGE ” (A p. 144) F Battery Indicator “Checking the Remaining Recording Time”...

  • Page 153: Troubleshooting

    -10°C to 0°C, this will cause the remaining recording time to shorten. When the recording time becomes extremely short even when the battery is fully charged, the battery needs to be replaced. For details on replacing the built-in battery (subject to a fee), consult the nearest JVC service center.

  • Page 154: Power Supply

    Troubleshooting Power supply Recording Unable to turn on the power. Recording cannot be performed. The camera does not turn on if the remaining battery power is low. Check the A / B button. In this case, charge the battery for more than 40 minutes before turning on “Top/Left/Rear Side”...

  • Page 155: Sd Card

    Troubleshooting SD Card Playback Cannot insert the SD card. Sound or video is interrupted. Make sure not to insert the SD card in the wrong direction. Sometimes playback is interrupted at the connecting section between two “Inserting an SD Card” (A p. 10) scenes.

  • Page 156: Editing/Copying

    Troubleshooting Editing/Copying Computer Unable to delete file. Unable to copy files to the computer’s HDD. Files (videos/still images) that are protected cannot be deleted. Release If the provided software Everio MediaBrowser 4 is not installed, some protection before deleting the file. functions may not work properly.

  • Page 157: Screen/Image

    Troubleshooting Screen/Image Other Problems The LCD monitor is difficult to see. The buttons on the touch screen do not work. The LCD monitor may be difficult to see if used in bright areas such as under Tap the buttons on the touch screen with your fingers. direct sunlight.

  • Page 158: Error Message

    Reset button to reset this unit. “Resetting this Unit” (A p. 153) “Resetting this Unit” (A p. 6) If these operations won’t solve the problem, contact your JVC dealer or the FORMAT ERROR! JVC service center. Check the operating procedure, and perform once again.
  • Page 159 Troubleshooting THIS FILE IS PROTECTED NO FILES Switch off the “PROTECT/CANCEL” function in the “EDIT” menu. Change the setting of “REC MEDIA FOR IMAGE” or “REC MEDIA FOR “Protecting Files” (A p. 67) VIDEO” in the “SETUP” menu, and check that files are not recorded to the other media.

  • Page 160: Maintenance

    Maintenance Perform regular maintenance of this unit to enable it to be used for a long time. Caution : Be sure to detach the AC adapter and power plug before performing any maintenance. Camcorder Wipe this unit with a dry, soft cloth to remove any dirt. When it is extremely dirty, soak the cloth in a solution of neutral detergent, wipe the body with it, and then use a clean cloth to remove the detergent.

  • Page 161: Specifications

    Using AC adapter: DC 5.2 V HDMI output HDMI mini connector connector Power consumption 2.3 W (50i mode, “LIGHT”: “OFF” (GZ-RX515), MONITOR BRIGHTNESS: 3 (standard)) AV output Video output: 1.0 V (p-p), 75 Ω 2.5 W (50i mode, “LIGHT”: “OFF” (GZ-RX515), connector Audio output: 300 mV (rms), 1 KΩ...

  • Page 162: Still Image

    Specifications Still Image AC Adapter (AC-V10E) Item Details Item Details Recording format JPEG standard Power supply AC 110 V to 240 V, 50 Hz/60 Hz Extension .JPG Output DC 5.2 V, 1 A Image Size (16:9 aspect ratio) Allowable operating 0°C to 40°C (Recording pixel 1920 pixels x 1080 pixels (2M)

  • Page 163: Trademarks

    Trademarks Trademarks AVCHD Progressive and AVCHD Progressive logo are trademarks of Panasonic Corporation and Sony Corporation. HDMI (High-Definition Multimedia Interface) and HDMI logo are either registered trademarks or trademarks of HDMI Licensing, LLC in the United States and/or other countries. Manufactured under license from Dolby Laboratories.

This manual is also suitable for:

Gz-rx510

Table of Contents
