Quick Start Guide

]
S I L V E R S T O R M ™ 9 1 2 0 I N S T A L L A T I O N
z

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SILVERSTORM 9120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Qlogic SILVERSTORM 9120

Summary of Contents for Qlogic SILVERSTORM 9120

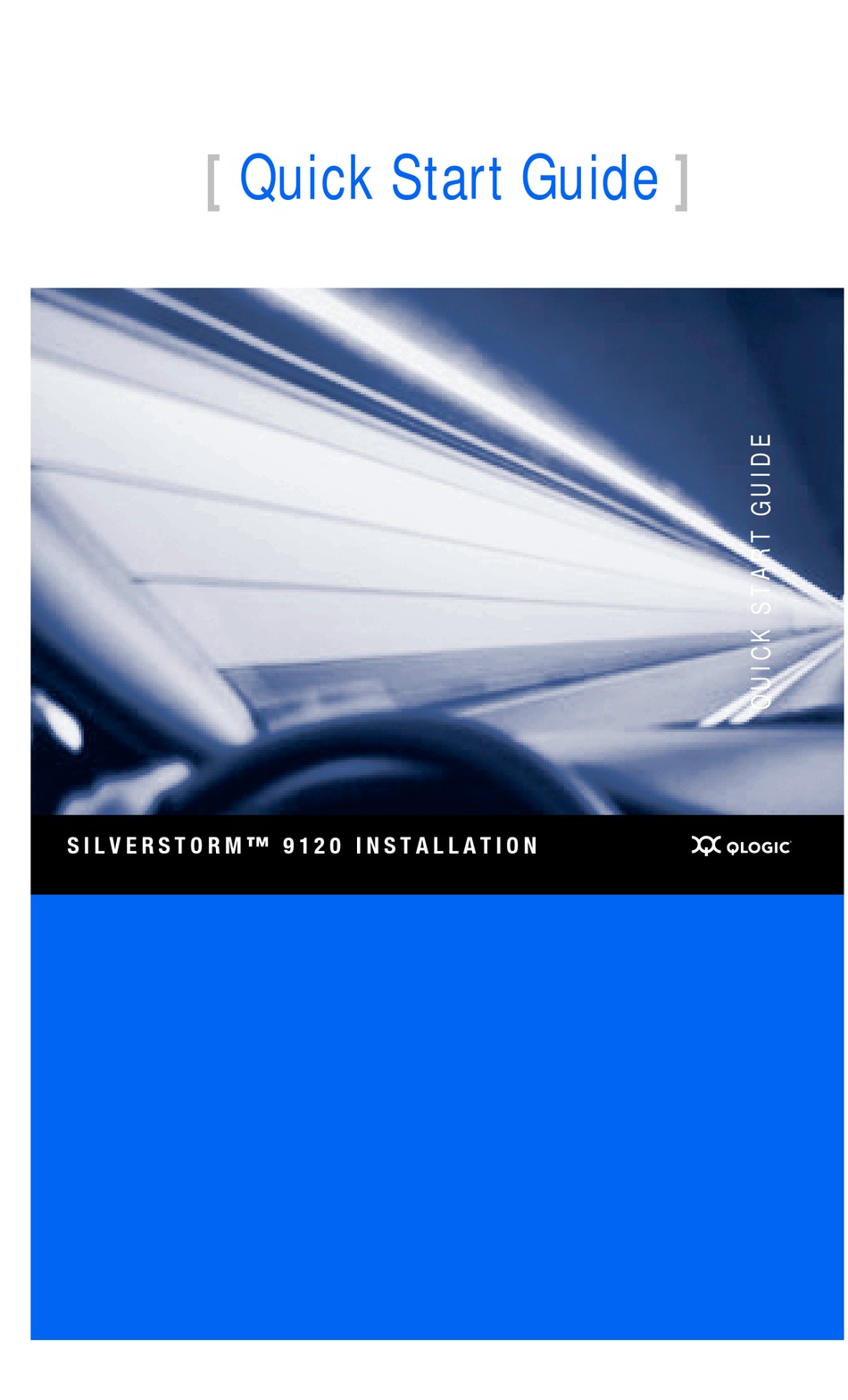

  • Page 1: Quick Start Guide

    Quick Start Guide S I L V E R S T O R M ™ 9 1 2 0 I N S T A L L A T I O N...
  • Page 2 Purchasers of OEM products should consult with the OEM for support. Support Headquarters QLogic Corporation 4601 Dean Lakes Blvd Shakopee, MN 55379 QLogic Web Site www.qlogic.com Technical Support Web Site support.qlogic.com Technical Support Email support@qlogic.com Technical Training Email tech.training@qlogic.com North American Region Email support@qlogic.com...

  • Page 3: Pre-Installation Checklist

    ❑ One (1) Category RJ-11 Serial cable ❑ Power cords (up to 2 total) NOTE: Be certain that the power cords are firmly seated into the SilverStorm 9120 power supplies AC power inlets. ❑ A CD ROM containing: ❑ Technical Documentation ❑...

  • Page 4: Tools And Equipment Required

    ❑ Release Notes. Step 2. Unpack the equipment. Step 3. Inspect the equipment for any shipping damage. NOTE: Any shipping damage should be reported to the shipping company. Step 4. Verify that the equipment shipped matches the packing list. Tools and Equipment Required ❑...

  • Page 5: Installation Tasks

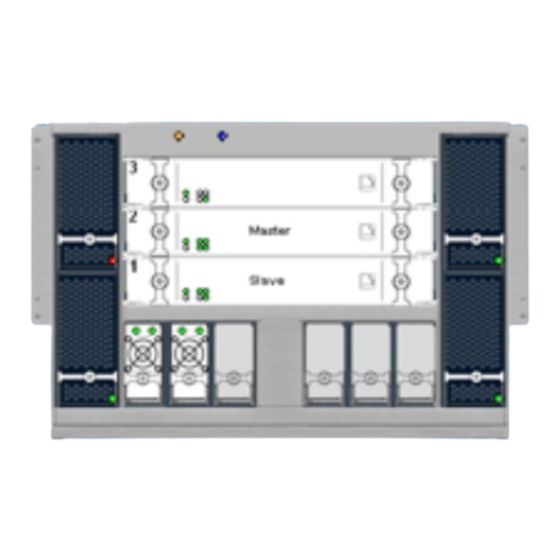

    (and the corresponding spine RJ-45 ports). It is also important to understand the slot numbering for the fans and power supplies (and the corresponding AC power inlets for the power supplies). Figure 1. SilverStorm 9120 Chassis Front View Spine 3 (Unmanaged)
  • Page 6 Step 4. Physically install the switch in the rack. Step 5. Install InfiniBand (IB) or IB/Fiber Optic cables between the SilverStorm 9120 and network devices. Step 6. Install intra-cabinet power and grounding cables for the switch. Step 7. Power up the switch.

  • Page 7: Step 2. Power Up The Switch

    Step 5. The system prompts for a password. At the prompt enter: adminpass The system responds with: Welcome to the SilverStorm 9120 CLI. Type 'list' for the list of commands. Step 6. To change the switch default IP address enter:...

  • Page 8: The Switch

    where -h ipaddress is the new IP address in dotted decimal (i.e., xxx.xxx.xxx.xxx) format, and -m netMask is the new subnet mask in dotted decimal (i.e., xxx.xxx.xxx.xxx) format. Step 7. To change the switch default gateway IP address enter: setDefaultRoute -h ipaddress where -h ipaddress is the new default gateway IP address in dotted decimal (i.e., xxx.xxx.xxx.xxx) format.
  • Page 9 Step 5. Type in the new switch IP address. Step 6. Type in the new net mask. Step 7. Click Apply. Step 8. To change the switch default gateway, from the main menu select OOB LAN IP then Set Default Gateway IP. The following screen is displayed: Figure 4.
  • Page 10 If the user has purchased the InfiniBand Fabric Suite 2008 package, in order to activate the subnet manager the user must acquire a subnet manager (SM) license key from QLogic Technical Support. In order to do this, the user must first find the globally unique identifier (GUID) for the managed spine module to be used as the master SM.
  • Page 11 Software Retrieval: Chassis Viewer Lookup To retrieve the FRU GUID using the Chassis Viewer, do the following: Step 1. Open a web browser and enter the IP address of the switch. If user authentication is enabled, enter the user name admin and the password adminpass.
  • Page 12 Step 4. Record the FRU GUID. Acquiring the Subnet Manager License Key Step 1. Go to the QLogic support web site at support.qlogic.com. Step 2. From the left-hand menu, select Feature Activation/License Key. Step 3. Under the Software column, select Subnet Manager Activation Center.
  • Page 13 Step 2. Check that the CD has been mounted. Type ls /mnt/cdrom. The system returns a list of files on the CD. Step 3. Create a subdirectory on the drive where the documentation will reside. Step 4. Type cp /mnt/cdrom/<SUBDIRECTORY NAME> /<SUBDIRECTORY NAME>...

  • Page 14: Declaration Of Conformity

    QLogic Corporation. 26650 Aliso Viejo Parkway Aliso Viejo, CA 92656 Phone: 949.389.6000 www.qlogic.com QLogic Corporation declares the following product is in compliance with the following standards. Product identification: Name: 144 Port InfiniBand Switch Model/Type: SilverStorm 9120 Standards applied: FCC Part 15, Subpart B, Class A; ICES-003; EMC; EN55022, Class A, EN61000-3-2 and EN61000-3-3; VCCI, Class...
  • Page 15 QLogic Corporation. All other brands and product names are trademarks or registered trademarks of their respective owners. Information supplied by QLogic is believed to be accurate and reliable. QLogic Corporation assumes no responsibility for any errors in this brochure. QLogic Corporation reserves the right, without...
  • Page 16 QLogic Corporation 26650 Aliso Viejo Parkway Aliso Viejo, CA 92656 949.389.6000 www.qlogic.com D000010-012...
