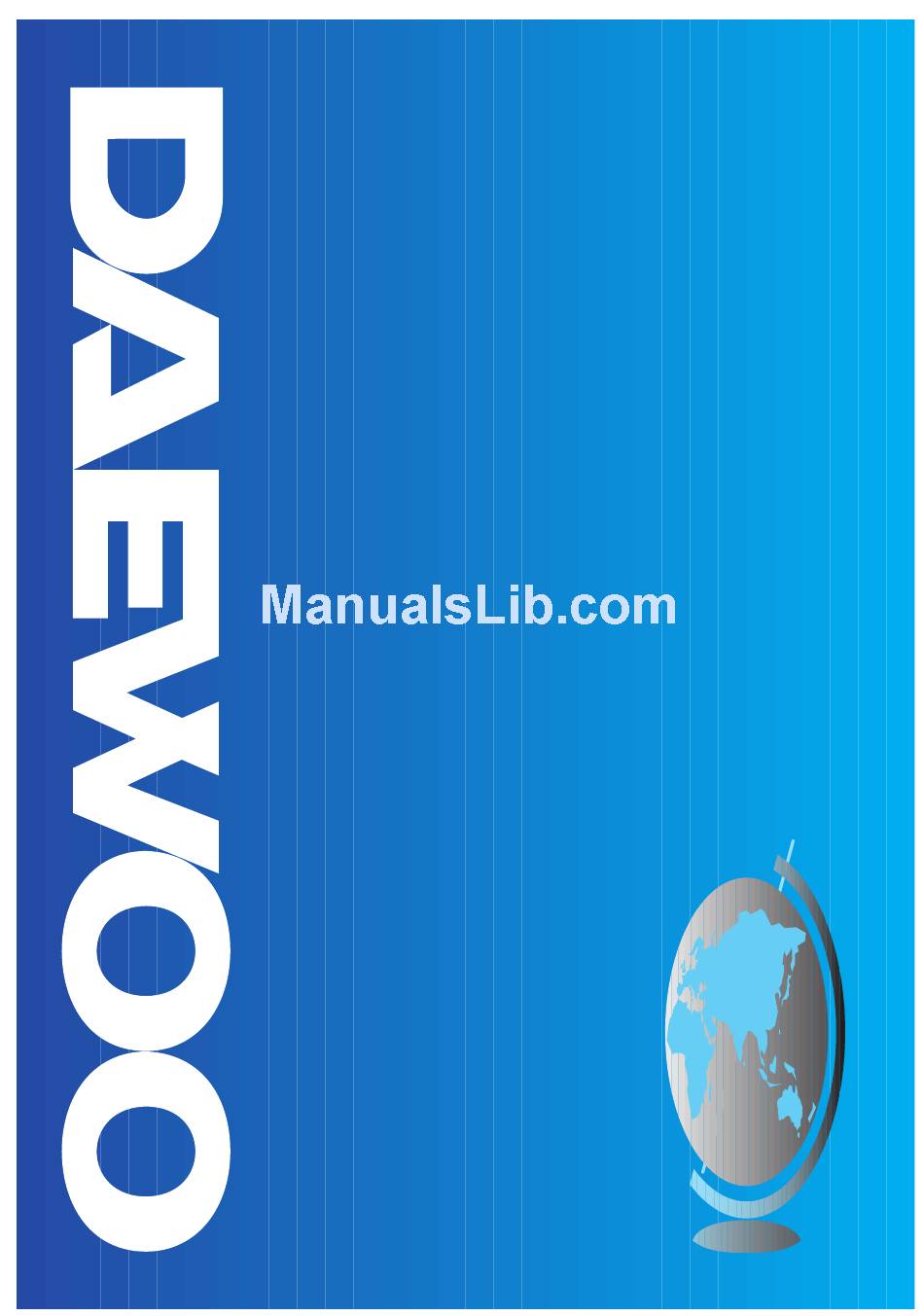

- Page 1 S/M No. : FR27000010 Service Manual Refrigerator Model: FR-270 DAEWOO ELECTRONICS CO., LTD.
-
Page 2: Table Of Contents
CONTENTS 1. Specification -----------------------------------------------------------------------------------------------1 2. External view ---------------------------------------------------------------------------------------------2 3. Wire diagram ---------------------------------------------------------------------------------------------3 4. Name of parts---------------------------------------------------------------------------------------------4 5. Air flow diagram-----------------------------------------------------------------------------------------5 6. Refrigerant cycle diagram ----------------------------------------------------------------------------6 7. Machine room view and part list-------------------------------------------------------------------7 8. Main components ---------------------------------------------------------------------------------------8 9. Door color specification -------------------------------------------------------------------------------11 10. -
Page 3: Specification
1. SPECIFICATION MODEL NAME FR-270 110g Refirgerant R134a 100g Cooling System Fan Cooling Convection Type Refrigeration System Air Forced Convection Defrost System Forced Fin-enaporator Type Defrost Operation Automatic Start & Stop Cold Control Adjustable Dial Freezer Refrigerator Capacity Total Height... -
Page 4: External View
2. EXTERNAL VIEW... -
Page 5: Wire Diagram
3. WIRE DIAGRAM L/BL : GREEN : BROWN : WHITE : PINK COMPRESSOR : BLACK TEMP : YELLOW FUSE : BLUE : GRAY WH/BL : WHITE WITH DEFROST BLUE STRIPE L/BL : LIGITH-BLUE BI-METAL LAMP GN/YW P-RELAY POWER CORD WH/BL MOTOR FREEZER GRAY... -
Page 6: Name Of Parts
4. NAME OF PARTS 1 Case Icing 2 Freezer Temperature Controller 3 Case Ice 4 Case Child 5 Refrigerator Shelf 6 Glass Shelf 7 Vegetable Case 8 Front Grille 9 Freezer Pocket (SM) 10 Freezer Pocket (SG) 11 Egg Pocket (Bar Pocket Type) 12 Magic Pocket 13 Bottle Pocket... -
Page 7: Air Flow Diagram
5. AIR FLOW DIAGRAM Freezer door pocket Do not put ice cream or frozen Freezer room food in freezer door pocket to Do not put in any bottle such as store for a long term. Opening beer or beverage because it can and shutting the door can rise up -16~-18 -16~-18... -
Page 8: Refrigerant Cycle Diagram
6. REFRIGERANT CYCLE DIAGRAM ACCUM ACCUM... -
Page 9: Machine Room View And Part List
7. MACHINE ROOM VIEW AND PART LIST PART NAME PART NAME PART NAME BASE COMP POWER BOX AS ENTRANCE OF AUX-CON PIPE FIXTURE BOLT COMP SWITCH P-RELAY AS ENTRANCE OF SIDE PLATE PIPE WASHER POWER CORD ENTRANCE OF HOT PIPE DRYER CABINET URT AS EXIT OF AUX-CON PIPE... -
Page 10: Main Components
8. MAIN COMPONENTS 1. COMPRESSOR Refrigerant Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz Comp. model FL19J EL19J-3 EL19J-1 FL19J-2 SL19J-5 PL19J-4 SL19J-5 Part code 3951119300 3953119330 3953119310 3951119320 3954119380 3956119340 3954119380 Strating type RSIR RSCR RSCR RSIR RSIR RSCR RSIR... - Page 11 5. DEFROST HEATER Refrigerant R12, R134a Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz Spec. 127V/110W 220V/110W Part code 401KG73730 3012803000 6. LAMP ASSEMBLY Refrigerant R12, R134a Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz Spec. 120V/10W 240V/13W Part code...
- Page 12 POWER CORD SPECIFICATION SHAPE OF POWER CODE PART CODE DESCRIPTION REMARK 3011315000 CP-2PIN FOR EUROPEAN COUNTRY 401RA17200 CP-2PIN FOR OTHER COUNTRY 4006D17101 KP-30 FOR AMERICA 401PD17101 KP-211 FOR JAPAN & TAIWAN 3011300801 BP-3PIN 3011303010 #267 FOR CHILE 3011315310 FOR ISRAEL FOR U.K, MIDDLE ASIA 3011303050 BS-1363A...
-
Page 13: Door Color Specification
9. DOOR COLOR SPECIFICATION 1. ASSEMBLY URETHAN FREEZER DOOR 1) Key type Refrigerant R134a Dull lamina High glossy High glossy Dull lamina High glossy High glossy Color type Normal PCM Normal PCM sheet lamina sheet bright PCM sheet lamina sheet bright PCM Part code PFDT1UE130... - Page 14 COLOR TABLE 1. PCM type COLOR CHIP COLOR NAME P/WITH (WH069) '94 L/GRAY (GY158) '95 L/GRAY (GY259) '94 M/GRAY (GY331) '95 M/GRAY (GY335) '97 M/GRAY (GY267) M. D/GRAY (GY750) N/BLUE (BL718) MINT GREEN (GN206) '97 BEIGE (BE215)
- Page 15 2. Lamina sheet type COLOR CHIP COLOR NAME P/WITH (WH069) '94 L/GRAY (GY158) '95 L/GRAY (GY259) '94 M/GRAY (GY331) '95 M/GRAY (GY335) '97 M/GRAY (GY267) M. D/GRAY (GY750) N/BLUE (BL718) MINT GREEN (GN206) S/GOLD G/GREEN...
-
Page 16: Exploded View And Parts List
10. EXPLODED VIEW AND PARTS LIST 1. Exploded view... - Page 17 2. Parts list PART CODE PART NAME DESCRIPTION QUANTITY REMARK ASSY URT CAB 4018G57110 GUIDE DRN *O HEATER D AS REFER TO # 9 4019H73570 COVER DEFR HTR *T 4019H73580 COVER DEFR HIR *U 4019H03105 EVAPORATOR AS 3018100620 SWITCH BIMTL AS 4019H23013 FUSE TEMP AS 4017Z90590...
- Page 18 PART CODE PART NAME DESCRIPTION QUANTITY REMARK 3012302580 GASKET R DR AS ROUND DOOR 3017405900 LINER R DR ABS 1.4 X 570 X 1055 3019004850 POCKET EGG PVC-H 3012900611 HINGE *M AS 3016000240 SPECIAL SCREW M6 X16 SWCH22A ASSY URT *T DOOR REFER TO # 11 3017405800 LINER F DR...
