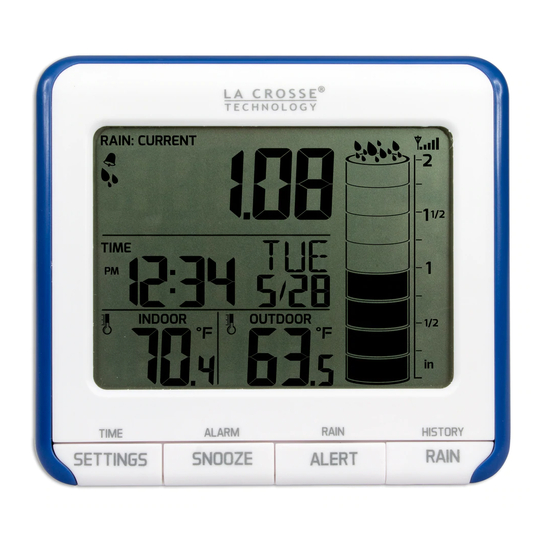

FRONT VIEW
Rainfall:
Current, 1 hour,
24 hour, 7 days,
Monthly + Total
Time, Date, +
Days Ago
Rainfall History
Indoor/Outdoor
Temperature
BACK VIEW
Compartment
2-AA Batteries
Model: 724-1710
WIRELESS RAIN STATION
BUTTONS FRONT
Battery
www.lacrossetechnology.com/support
Model: 724-1710
Quick Setup Guide
DC: 112214
Rain Sensor
Reception Icon
Rain Graph
BUTTONS BACK
TX17T Temperature
Sensor
Battery
Compartment
2-AA Batteries
1
Advertisement
Table of Contents
Related Manuals for La Crosse 724-1710
Summary of Contents for La Crosse 724-1710
-
Page 1: Quick Setup Guide
Model: 724-1710 Quick Setup Guide DC: 112214 WIRELESS RAIN STATION FRONT VIEW Rain Sensor Rainfall: Reception Icon Current, 1 hour, 24 hour, 7 days, Monthly + Total Time, Date, + Rain Graph Days Ago Rainfall History Indoor/Outdoor Temperature BUTTONS BACK... -
Page 2: Get Started
Step 3: Insert 2 “AA” LR6 batteries (not included) into the 724-1710 rain station, according to polarity. Restart: If dashes are displayed for outdoor temperature or rain after 3 minutes, remove the batteries from both sensors and the rain station, then press any button 20 times. -
Page 3: Time Alarm
While in alarm mode, hold the SNOOZE button until rain station beeps, to enter alarm set mode. Press the ▲/CLEAR and ▼ buttons to adjust a value. Setting order: 1. Hour 2. Minute Model: 724-1710 www.lacrossetechnology.com/support... -
Page 4: Deactivate Time Alarm
2 minutes, then shut off completely. Rain Readings and Cylinder Graph This detailed station offers rain readings with a corresponding cylinder graph. Press and release the RAIN button to view different rain readings in the Rain Window: Model: 724-1710 www.lacrossetechnology.com/support... - Page 5 1. Press the ▲/CLEAR button to view the rain history when DAYS AGO heading and the date appear. 2. Press ▲/CLEAR button repeatedly, to scroll back one day at a time to view the rainfall daily record (365 days of record history maximum) Model: 724-1710 www.lacrossetechnology.com/support...
- Page 6 Year, Month and Date to view the rainfall. 4. Press SETTINGS button to confirm each setting. Settings order: 1. Year 2. Month 3. Date If no buttons are pressed for 20 seconds, the rain station will default to normal mode. Model: 724-1710 www.lacrossetechnology.com/support...
-
Page 7: Rainfall Alert (24 Hour)
The alert bell icon will show when active. When the alert value is reached, the alarm will beep for 5 seconds, then once each minute. Press any button to stop the alert from sounding. Model: 724-1710 www.lacrossetechnology.com/support... -
Page 8: Low Battery Icon
Insert two mounting screws (not included) through the holes in the base of the rain sensor. Ideally, the Rain sensor should be mounted at least 6 ft in the air and have a direct line of sight to the display. Model: 724-1710 www.lacrossetechnology.com/support... -
Page 9: Weather Station Care & Maintenance
It is intended for home use only. The specs of this product may change without prior notice. Improper use or unauthorized opening of housing voids warranty. If the product is not working properly, change the batteries. Model: 724-1710 www.lacrossetechnology.com/support... -
Page 10: Battery Life
4.27”L x 1.48”W x 3.88”H Rain Station: (108 x 38 x 99 mm) 1.57"L x 0.79"W x 5.12"H TX17T Outdoor Sensor: (40 x 20 x 130mm) 6.00”L x 5.10”W x 4.21”H TX17R Rain Sensor: (152 x 130 x 107mm) Model: 724-1710 www.lacrossetechnology.com/support... - Page 11 Warranty and Support Information La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. Before returning a product, please contact our friendly customer support with questions or visit our online...
- Page 12 This booklet may contain errors or misprints. The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized. Model: 724-1710 www.lacrossetechnology.com/support...
