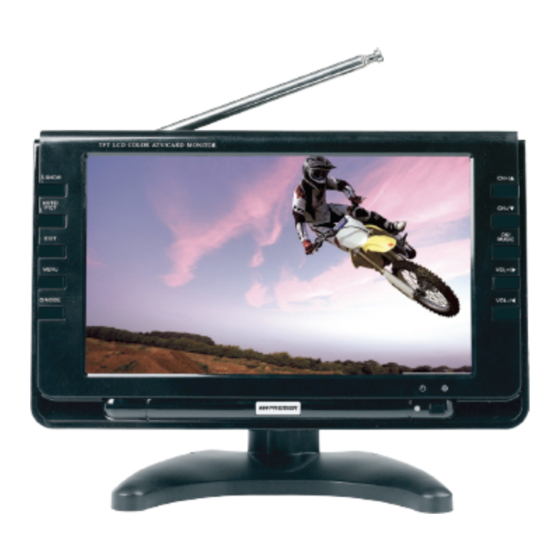

Portable lcd tv (9")
Hide thumbs
Table of Contents

Advertisement

Quick Links

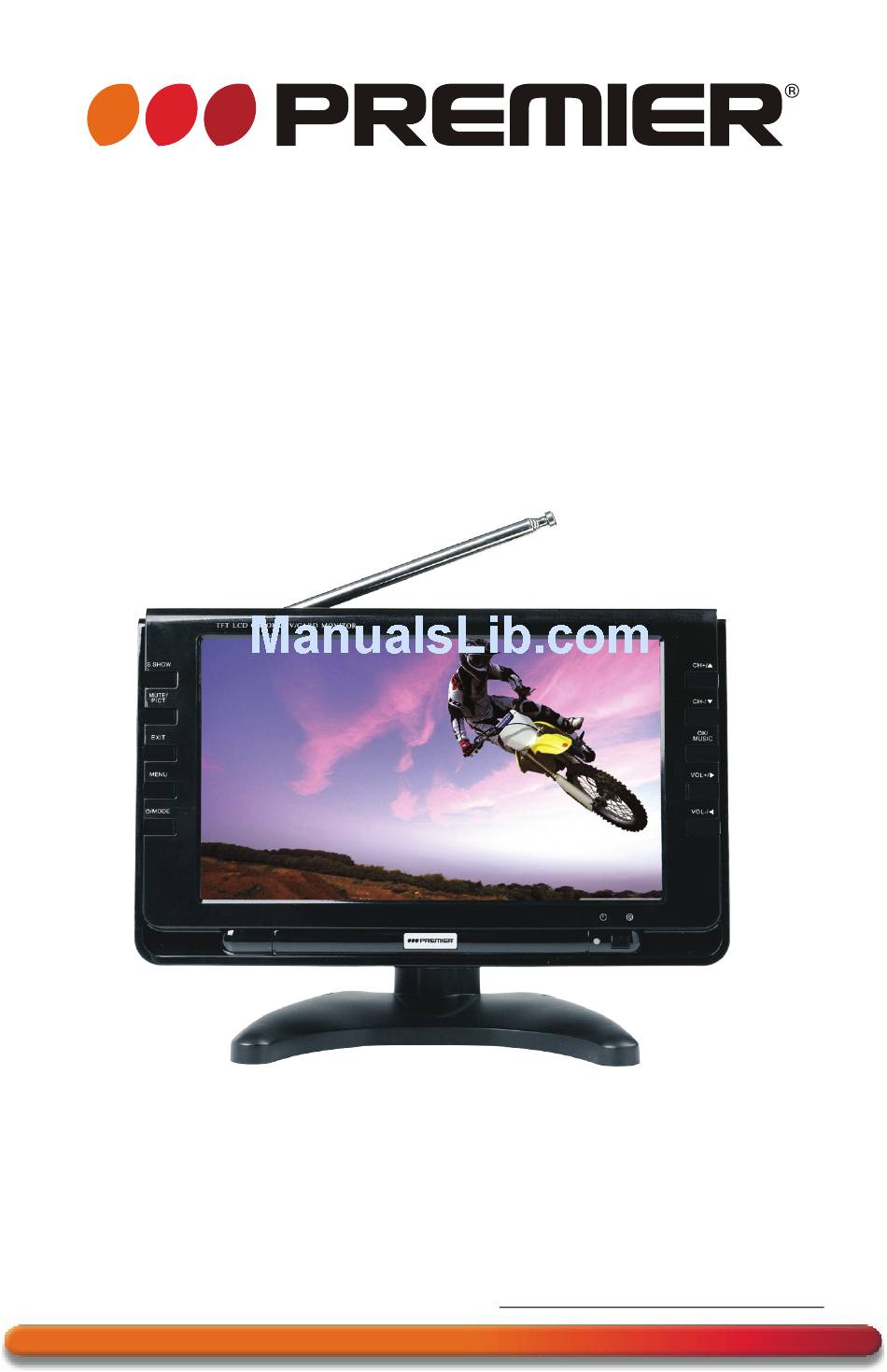

INSTRUCTION MANUAL

PORTABLE LCD TV (9")
TV-3060TFT
DEAR CUSTOMER
In order to achieve the best performance of your product, please read this
instruction manual carefully before using, and keep it for future reference.
If you need extra support, please write to
info@premiermundo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TV-3060TFT and is the answer not in the manual?

Questions and answers

Related Manuals for Premier TV-3060TFT

Summary of Contents for Premier TV-3060TFT

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL PORTABLE LCD TV (9") TV-3060TFT DEAR CUSTOMER In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference. If you need extra support, please write to...

  • Page 3: Table Of Contents

    Table of Contents 1. Precautions 2. Accessories 3. Appearance 4. Description of Panel Buttons 5. Description of Buttons on Remote Control 6. Basic Operation Methods 7. Menu Operation 7.1. PICTURE 7.2. OPTION 7.3. CLOCK 7.4. SYSTEM 7.5. PRESET 8. In order to receive clearer picture 9.

  • Page 4: Precautions

    1. Precautions Storage 1. Keep this product away from extremely hot or cold places. The storage temperature ranges from -20 to 60 and the working temperature from -5 to 40 . 2. Do not use this product at damp environment like bathtubs, wash basins, kitchens, washtubs, as well as basements, swimming pools or similar places.

  • Page 6: Appearance

    3. Appearance 1. Telescopic antenna 2. S.SHOW: Scan button 3. MUTE/PICT: Mute button/ picture mode shift button 4. EXIT: Return button 5. MENU: Menu button /MODE: Standby/ Operation mode shift button 7. TFT-LCD screen 8. CH+/ : Channel Select/ Upward button 9.

  • Page 7: Description Of Panel Buttons

    4. Description of Panel Buttons 1. S. SHOW: Under CARD mode, when reading Picture or slide show, press to change next mode. (only available under CARD mode) 2. MUTE/PICT: Under TV/CARD/AV mode, short press to switch between MUTE and normal sound, keep perssing for 3 seconds to Picture mode switch.

  • Page 8: Description Of Buttons On Remote Control

    Description of Buttons on Remote Control : the number of TV channel increases. : the number of TV channel decreases : To select program and adjust for selected program. OK/MUSIC: Under CARD mode, press to confirm, when playing slide show, press as ON/OFF for the background music. PICT: Picture mode shift.

  • Page 9: Basic Operation Methods

    6. Basic Operation Methods Basic interface connection 6.1 Connection of Power Supply: Align the power supply plug on AC adapter with the jack on the machine rear cover marked with DC. 6.2 Connection of Antenna Cable: 75ohm antenna conversion line Align one end of the attached antenna cable plug in the antenna jack on TV set and the other end...

  • Page 10: Menu Operation

    7. Menu Operation Press MENU to display options as follows: PICTURE OPTION CLOCK SYSTEM PRESET 7.1. PICTURE CONTRAST, BRIGHT, COLOR, SHARP and TINT displays on the screen as below description: Press to select the item Press to adjust Notice Only when displaying the picture of NTSC system, it will show the character of TINT in the Picture menu.

  • Page 11: Clock

    7.3. CLOCK TIME, ON-TIME, OFF-TIME, ATTENTION, BESPOKE TIME and POSITION will display on the screen as below description: Press to select item, Press to setup. Notice If you wish to setup other item, TIME must be setup. All items is 24 hours the most.

  • Page 12: Preset

    7.5. PRESET POSITION, REMEMBER, ANTENNA and AUTO-SEARCH will display on the screen as below description: 7.5.1.Press to select REMEMBER, and press to select ON, this channel will be displayed when selected. When REMEMBER is OFF, this channel will not be displayed. 7.5.2.Press to select "ANTENNA"...

  • Page 13: In Order To Receive Clearer Picture

    8. In order to receive clearer picture 1. Set the desired OSD language by pressing LANG. 2. Ensure the COLOR-SYS is correct by checking from SYSTEM menu. 3. Select AUTO-SEARCH in PRESET menu, and start auto search TV signal. 4. Adjust the length, angle and direction of the telescopic antenna to obtain optimum image.

  • Page 14: Card Mode Operation

    9. CARD mode operation 1. The right usage memory facility (USB&CARD) The device supports almost all types of USB, Multi Media Card (MMC), SD, Merory Stick (MS) in the market. 1. The memory of different USB & CARD are require within 2G. 2.
  • Page 15 2.1.2 Reading Picture Use direction key to select 'PHOTO', press 'OK' to open file from the memory source; press right direction key to read 12 picture menu. Press direction key to select picture, press 'OK' to read. 2.1.3 Multimedia file list fast switch Use direction key to select 'PHOTO', press 'OK' to open file from the memory source;...
  • Page 16 2.3 Play movie Press direction key to select 'VIDEO', press 'OK' to open file from the memory source, press direction key to select file, press 'OK' to play. Then press 'MENU' for function menu, use direction key to selection functions, then press 'OK' to confirm. Function menu : Play/pause : Stop...
  • Page 17 2.5 Setting Use direction key to select 'SETUP', use select up/down, use select left/right, then press 'OK' to confirm. 2.5.1 Effect: enter to select the mode of display picture or play slide show. 2.5.2 Frequency: time setting for change picture display. 2.5.3 TV system: the TV system of external monitor must be the same to this device, setting can be made under this section.

  • Page 18: Before You Request For Repair

    10. Before you request for repair Phenomena below does not necessarily mean failure with TV set. Please check following before you request for repair. Phenomena Possible Causes Improper connection with AC adapter or No picture, no sound Care adapter. Use of unauthorized power supply.

  • Page 19: Technical Parameters

    11. Technical Parameters Product Name: LCD Color TV Receiver Display Device: Color TFT-LCD TV Sys: PAL M, PAL N, NTSC Receiving frequency range: 48.25MHz~863.25MHz Screen Size: 9 inches Resolution: 640 H 234 V Audio Output: 0.5W Max Loudspeaker: two 4.0cm round loudspeaker. Connecting Terminal: External antenna input jack, earphone jack, Audio / Video (AV) input/output jack, External power supply jack.
  • Page 20 W a rn in g This operation instruction is only intended for reference. No further notice is available to any modification of all information contained therein. Due to continuing improvements, the features and design are subject to change without notice. W a rn in g No repairable components exist in the machine.
