19"22"24"
DEAR CUSTOMER
In order to achieve the best performance of your product, please read this
instruction manual carefully
If you need extra support, please write to info@premiermundo.com
INSTRUCTION MANUAL

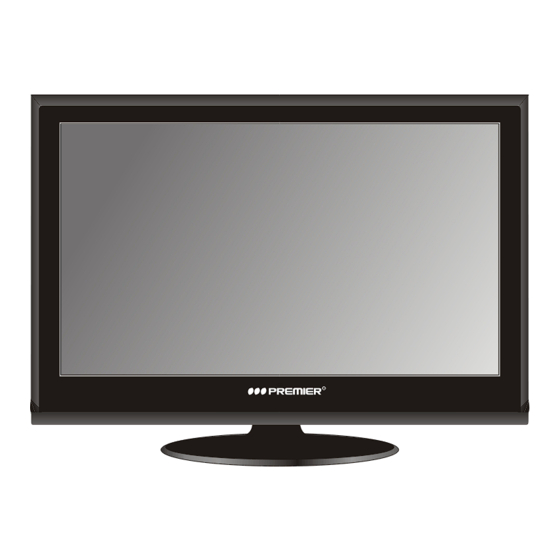

LCD TELEVISION
TV-3800TFT
TV-3801TFT
TV-3802TFT
before using, and keep it for future reference.
Advertisement
Table of Contents
Related Manuals for Premier TV-3800TFT
Summary of Contents for Premier TV-3800TFT
-
Page 1: Instruction Manual
INSTRUCTION MANUAL 19"22"24" LCD TELEVISION TV-3800TFT TV-3801TFT TV-3802TFT DEAR CUSTOMER In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference. If you need extra support, please write to info@premiermundo.com... - Page 2 This sign means that there are important instructions of operation and handling in the manual that comes with this device. PREMIER CUSTOMER SERVICE Venezuela: 0800 – ELECTRIC (353-2874) Panama:...
- Page 3 WWW PREMIERMUNDO COM PRECAUTION 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. This apparatus with CLASS 1 construction shall be connected to a MAINS socket outlet with a protective earthing connection. 6.
- Page 4 WWW PREMIERMUNDO COM CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Used batteries should not be thrown into the garbage can, please leave them at an appropriate depot.
- Page 5 WWW PREMIERMUNDO COM IMPORTANT INFORMATION If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: ● Using cabinets or stands recommended by the manufacturer of the television.
-
Page 6: Table Of Contents
WWW PREMIERMUNDO COM CONTENTS 1. Connection and Preparation of TV..........6 1.1 Accessories ................. 6 1.2 Installation of Stand............. 6 1.3 Installation of Wall Mount Kit (Optional)....... 6 1.4 Keys and Interfaces............. 7 1.5 Remote Control..............8 1.6 Installation of Batteries ............. 10 2. -
Page 7: Connection And Preparation Of Tv
WWW PREMIERMUNDO COM 1. Connection and Preparation of TV 1.1 Accessories User Manual x 1 Remote Control x 1 Battery (UM-4/R03P/AAA) x 2 Stand x 1 (Pre-assembled)(Optional) Wall Mount Kit x 1 (Pre-assembled)(Optional) 1.2 Installation of Stand 1. -
Page 8: Keys And Interfaces
WWW PREMIERMUNDO COM 1.4 Keys and Interfaces The design and specification takes actual products as the standard 1. Remote sensor window 2. Power indicator 3. Speaker 4. Power switch 5. Menu key 6. Program “ ” key 7. Program “ ”... -
Page 9: Remote Control
WWW PREMIERMUNDO COM 1.5 Remote Control For TV-3800TFT STANDBY SOURCE 1. STANDBY(POWER): Standby turn on and turn off. 2. SOURCE: Select the signal source. 3. 0~9: Continue to press the keys to select a channel, eg: press 1 to select the 1st... - Page 10 WWW PREMIERMUNDO COM For TV-3801TFT / TV-3802TFT STANDBY SOURCE 1. STANDBY(POWER): Standby turn on and turn off. 2. SOURCE: Select the signal source. 3. 0~9: Continue to press the keys to select a channel, eg: press 1 to select the 1st channel, press 2 and 5 to select the 25th channel, press 1, 3, 8 to select the 138th channel.
-
Page 11: Installation Of Batteries
WWW PREMIERMUNDO COM 1.6 Installation of Batteries 1. Open the back lid of the remote control. 2. Install two 7#(AAA)1.5V batteries. Ensure the correct polarity of the batteries. 3. Cover the back lid. Please take out of the batteries from the remote control for long time of no use. -
Page 12: Menu Option Adjustment
WWW PREMIERMUNDO COM YPBPR HDMI When selecting the signal source, the screen will display the information. TV mode AUTO When there is no signal from the selected source, the warning message will be displayed as per illustration. Either change the channel in TV mode or press Source button to change source. -
Page 13: Menu Functions
WWW PREMIERMUNDO COM 2.5 Menu Functions 2.5.1 PICTURE Function Adjustment of the PICTURE. ※ 1 Press the Menu button, and then press button until the “PICTURE” menu appears. 2 Press button to highlight the “PICTURE MODE”,“CONTRAST”, “BRIGHTNESS”,“HUE”,“SATURATION”, “SHARPNESS”,“COLOR TEMPUTER”, “PICTURE SIZE” item. 3 Press button to adjust. -
Page 14: Advanced Function
WWW PREMIERMUNDO COM Note: While starting to search program, the scan menu will disappear if there is interference to the picture or the picture is instable, so the scanning can’t be operated. Then please turn to program channel or non-program channel (blue screen), and then begin to operate the scan menu again. - Page 15 WWW PREMIERMUNDO COM • To view text, highlight “TEXT1”, “TEXT2”, “TEXT3”, “TEXT4”. Note: If text is not available in your area, a black Hello world !! rectangle may appear onscreen. If this happens,turn off the Closed Caption feature. This is text mode Note: A closed caption signal may not display in the following situations, when a videotape has been dubbed.
- Page 16 WWW PREMIERMUNDO COM 5 Press button to highlight the “V-CHIP”,“MOVIE-RATING”, “ENGLISH-RATING”, CHANGE PASSWORD V-CHIP “FRANCH-RATING” item. TV-RATING Press button to select . MOVIE-RATING ENGLISH-RATING Press the Menu button to return or exit. FRENCH-RATING 13 ANS + • Using the “Change Password” item 1 When enter the “V-CHIP”...
- Page 17 WWW PREMIERMUNDO COM The aged-based TV Guideline and content themes you can lock are listed as follows, Item Description and Content Themes TV-Y All children (This program is designed to be appropriate for all children.) TV-Y7 Directed to older children (This program is designed for children aged 7 and above.) Note: Programs in which fantasy violence may be more intense or more combative than other programs in...
-
Page 18: Tv Function
WWW PREMIERMUNDO COM The movie rating you can select are described as follows: Item Description and Content Themes General audience (Appropriate for all ages) Parental Guidance Suggested (Some material may not be suitable for children.) PG-13 Parents strongly cautioned (This material may be inappropriate for children under 13.) Restricted (Under 17 requires accompanying parent or adult guardian.) -
Page 19: Technical Specification
WWW PREMIERMUNDO COM 3. Technical Specification Product Model TV-3800TFT TV-3801TFT TV-3802TFT Screen Size 19” diagonal 22” diagonal 24 diagonal Aspect Ratio 16:9 Power Supply AC 100-240V~ , 50/60 Hz Power Consumption TV System PAL M/N, NTSC M Audio Output Power... -
Page 20: Supported Signal Modes
WWW PREMIERMUNDO COM 4. Supported Signal Modes VGA(PC) Mode Horizontal Vertical Resolution Frequency Frequency (KHz) (Hz) 640 x 480 31.50 60.00 800 x 600 37.90 60.00 1024 x 768 48.40 60.00 Note: You’re suggested to use the VGA connecting cord of not more than 5 meters to ensure the appropriate picture quality. -
Page 21: Simple Troubleshooting
WWW PREMIERMUNDO COM 5. Simple Troubleshooting If the display fails or the performance changes dramatically, check the Display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure. Symptom Solution Power cannot be turned -Check that both ends of the power cable are on.(Power indicator plugged into the socket appropriately and the wall...
