Summary of Contents for Premier TV-4689TFT
-

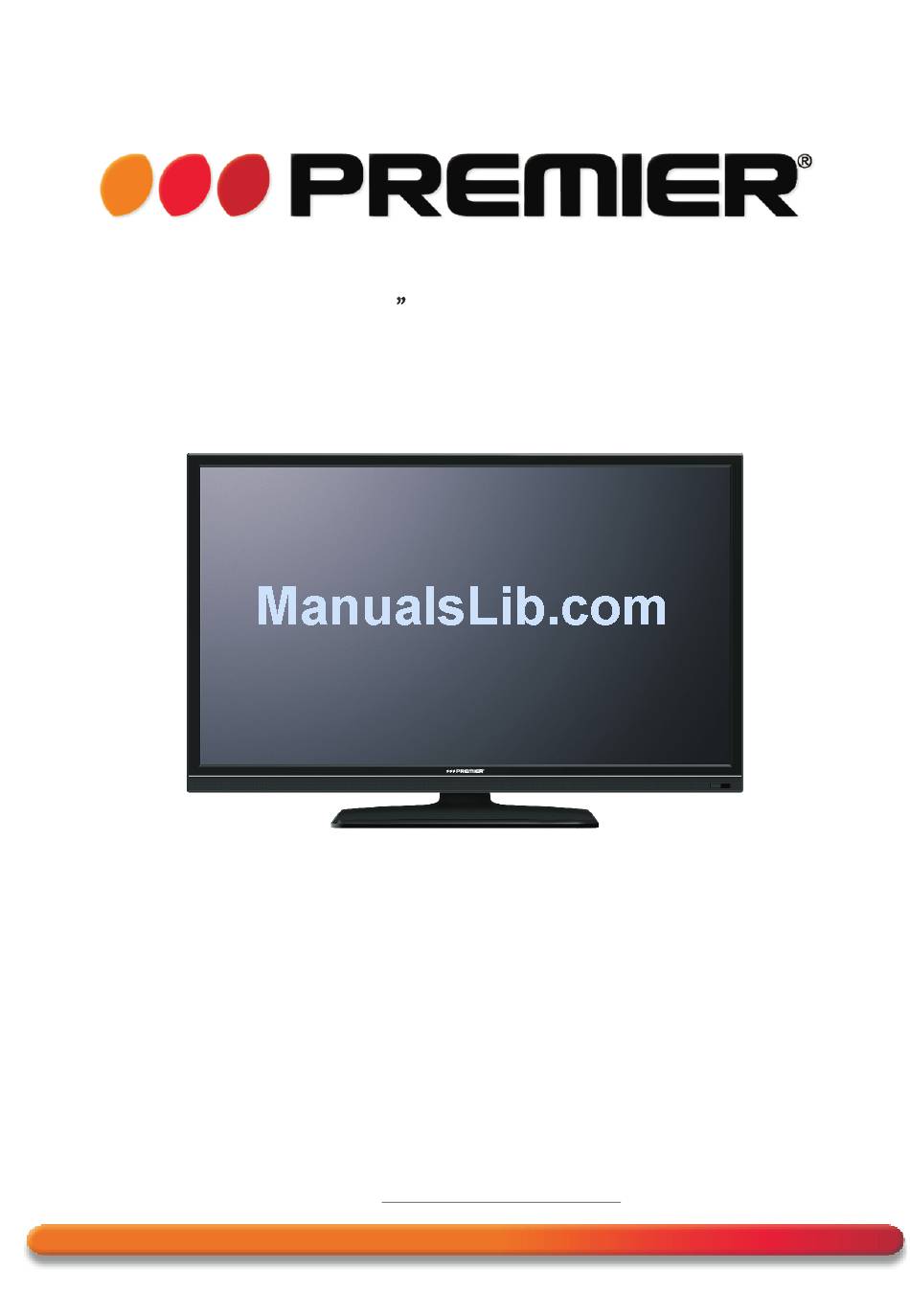

Page 1: Instruction Manual

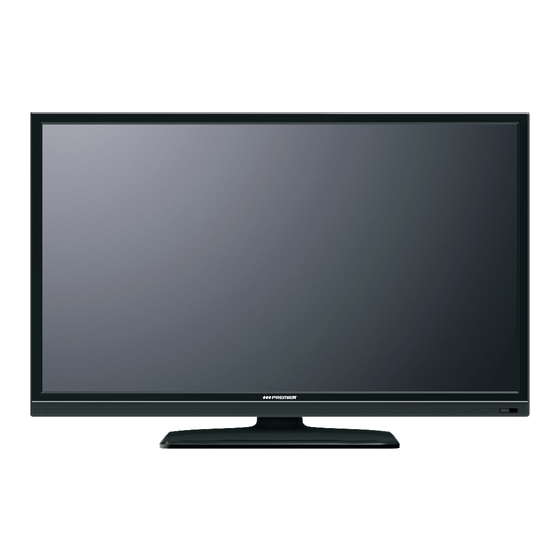

INSTRUCTION MANUAL LCD TV TV-4689TFT DEAR CUSTOMER In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference. If you need extra support, please write to info@premiermundo.com... - Page 2 PREMIER CUSTOMER SERVICE 0800-ELECTRIC (353-2874) Venezuela: Panama: 300-5185 Www.premiermundo.com Website Servicioalcliente@premiermundo.com E-mail: NOTE This unit may be submitted to changes in specifications, characteristics and/or operation without prior notice to the user, in order to continue improving and developing its technology.
-
Page 3: Table Of Contents
Chapter 1: Introduction Precautions ............................Product ............................. Power and Plug ..........................Power Cord and Signal Cable ......................Use Environment ..........................Cleaning ............................Hanging the TV Set on the Wall ....................... Buttons on the TV ..........................Sockets ..............................Remote Control Functions ......................... Chapter 2: General Operation Switching on ............................ -
Page 4: Precautions
Precautions Use Environment Read all of the instructions before operating the set. Keep these instructions well for future use. Do not place the set on an unstable cart, stand, or table. Product Place the set on a place that allows good ventilation. Do not block or cover the ventilation openings on the Do not use the set near damp, and cold areas. -
Page 5: Buttons On The Tv
Buttons on the TV Take a certain model for an example: 1. POWER button Turns the TV on or standby. (Note: for some models, the POWER button turns the TV on or off.) 2. SOURCE button Press to select signal source. . - Page 6 HDMI socket (input) The HDMI (High-Definition Multimedia Interface) socket can be used to connect a HDMI PC with a compatible video card installed, certain DVD players or a high-definition compatible digital satellite decoder. This socket p rovides an uncompressed digital connection that carries both video and audio data by way of an integrated mini-plug cable.
-
Page 7: Remote Control Functions
Remote Control Functions Most of your television's functions are available via the menus that appear on the screen. The remote control supplied with your set can be used to navigate through the menus and to configure all the general settings. (MUTE) Reduces the TV's volume to its minimum level. -
Page 8: Switching On
Switching on Follow the instructions on this page on how to switch on your TV set and the remote control before going on to following pages describing how to use the channel set-up procedure. 1. Insert two AAA batteries in the remote control. Precautions on using batteries: - Only use the battery types specified. -
Page 9: Automatic Channel Set-Up
Automatic Channel Set-up Skipping a Channel If a channel was stored twice or its reception is poor, you Channel set-up involves selecting all the settings required can simply skip it. The skipped channels can not be to be able to search for and store all the channels you can receive. -
Page 10: Adjusting The Picture
Adjusting the Picture The menus for adjusting the picture are used to obtain the Tint adjusts the balance between the red and green best picture setting according to your preference, the type levels. of programme you are watching and the ambient lighting. Note: Tint is available to be adjusted only when the system of the video signal is NTSC. -
Page 11: Function Settings
Function Settings Display the menu by pressing the Menu button. Press the CC On: Captioning information always appears, when left or right direction button to select the Setting icon available. and press the up or down direction or OK button to display CC ON MUTE: Displays captioning information, the Setting menu. - Page 12 Block TV Rating Watch Time Limit: Press the right or OK button to enter, then use the number buttons to input the password (The TV-Y: Designed for a very young audience, including default is 0000). Then press the left or right direction children ages 2-6 button to select the limit time.
-
Page 13: Selecting A Signal Source
Turnon Time: press the left, right, up, down direction button to set the turnon time. Note: You can press the Source button on the remote control to switch the source. But if activating the Smart Wake Source: press the left or right direction Switch function, pressing the Source button only can button to select the wake up signal source. - Page 14 In USB state, if no USB device connected, the USB Playing Music: interface will be displayed, and the Zoom button is not available. 1. select Music Show item, then press the right or OK button to enter the USB device. Multimedia 2.
-
Page 15: Special Functions
Special Functions For the Natural Light function, you can also press the 2. Hot plug: Do not disconnection when the system is F3 button to turn on or off ,and press the F4 button to reading or transmitting data, avoid damaging the system demonstrate: or the device. -
Page 16: Troubleshooting
Troubleshooting Most problems you encounter with your TV can be 1. Adjust the position and orientation of the indoor/outdoor corrected by consulting the following troubleshooting list. antenna. 2. Check the connection of antenna. No picture, no sound 3. Fine tune the channel. 4. -
Page 17: Specifications
SPECIFICATIONS Panel Type LCD Backlight Display Resolution(panel) 1366*768 TV Receiving System PAL M/N NTSC-M AV System PAL,NTSC Channel Language of OSD English,Spanish,Portuguese Audio Output Power 5W + 5W Power Consumption Working Voltage 110-240V~,50/60Hz With Base Stand (mm) 683.6X473X189 Without Base Stand(mm) 683.6X430X93.4 Net Weight 5.6KG...
