Page 1: Instruction Manual

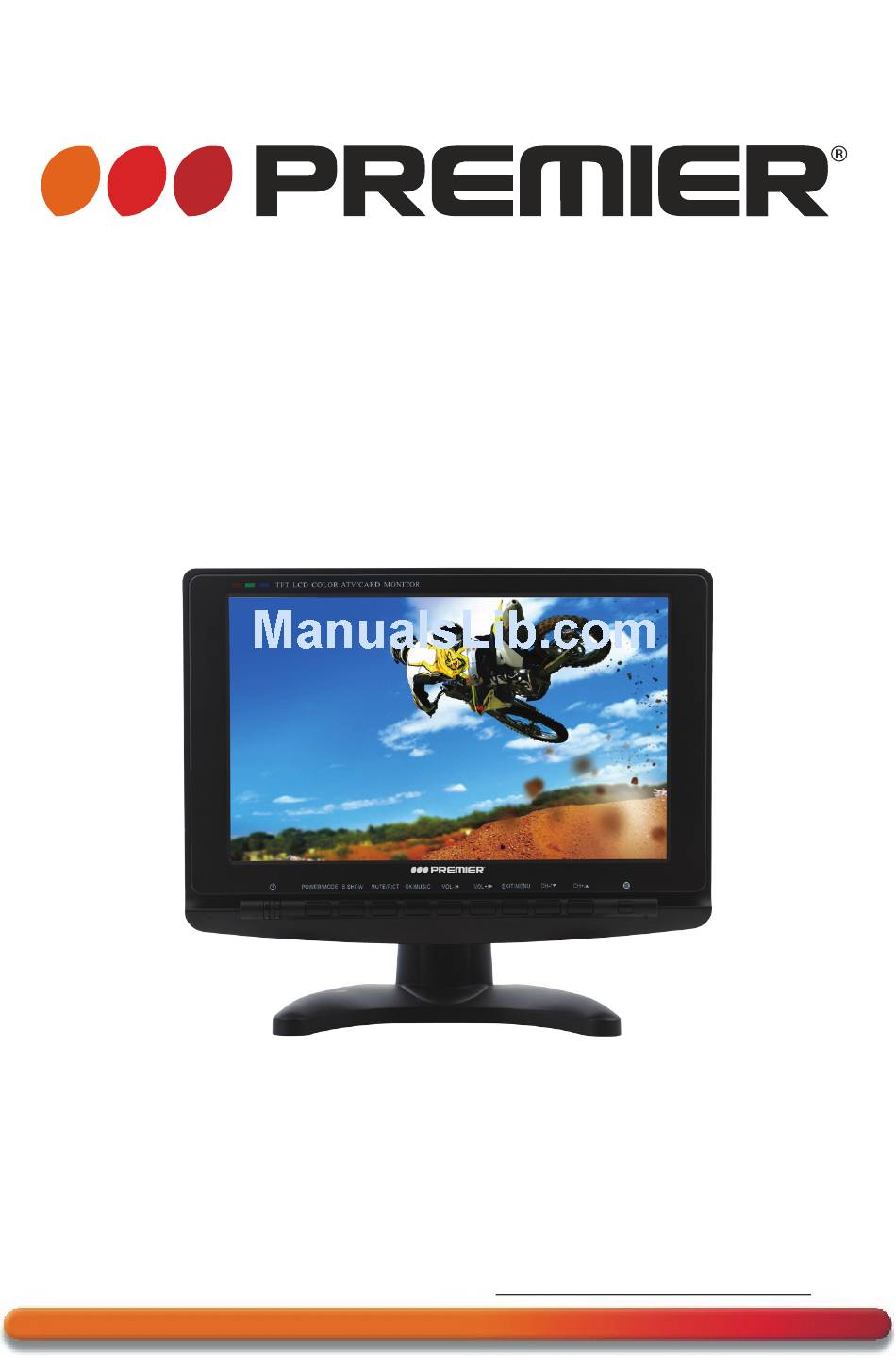

INSTRUCTION MANUAL Portable LCD TV (10.2") TV-2757TFT DEAR CUSTOMER In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference. If you need extra support, please write to... - Page 2 This sign means that there are important instructions of operation and handling in the manual that comes with this device. PREMIER CUSTOMER SERVICE Venezuela: 0800 - ELECTRIC (353-2874) Panama:...
-
Page 3: Table Of Contents
Table of Contents 1. Precautions 2. Accessories 3. Appearance 4. Description of Panel Buttons 5. Description of Buttons on Remote Control 6. Basic Operation Methods 7. Menu Operation 7.1. PICTURE 7.2. OPTION 7.3. CLOCK 7.4. SYSTEM 7.5. PRESET 8. In order to receive clearer picture 9. -
Page 4: Precautions
1. Precautions Storage 1. Keep this product away from extremely hot or cold places. The storage temperature ranges from -20 to 60 and the working temperature from 0 to 40 . 2. Do not use this product at damp environment like bathtubs, wash basins, kitchens, washtubs, as well as basements, swimming pools or similar places. -
Page 5: Accessories
2. Accessories 1. Car adapter 2. AC adapter 3. 75 ohm antenna conversion cable 4. Remote control 5. AV conversion cable Telescopic antenna 7. Base support 8. Operation Instructions * Open the package and make sure all the items are included. -
Page 6: Appearance
3. Appearance 1. Telescopic antenna 2. TFT -LCD screen . Power indicator Red: Standby Green: Power-on POWER/MODE: Standby/ Operation mode shift button 5. S.SHOW: Scan button MUTE/PICT : Mute button/ picture mode shift button 7. OK/MUSIC: Confirm button/ Background Music ON/OFF button 8. -
Page 7: Description Of Panel Buttons
4. Description of Panel Buttons 1. POWER/MODE: Under standby mode, press to turn ON. When the device is ON, press to switch between TV/CARD/AV mode. Keep pressing 3 seconds for standby. 2. S. SHOW : Under Card mode, when reading Picture or slide show , press to change next mode. -
Page 8: Description Of Buttons On Remote Control
Description of Buttons on Remote Control : the number of TV channel increases. : the number of TV channel decreases : To select program and adjust for selected program. OK/MUSIC: Under CARD mode, press to confirm, when playing slide show, press as ON/ OFF for the background music. -
Page 9: Basic Operation Methods
6. Basic Operation Methods 6.1 Connection of Power Supply: Align the power supply plug on AC adapter with the jack on the machine rear cover marked with DC. 6.2 Connection of Antenna Cable: 75ohm antenna conversion line Align one end of the attached antenna cable plug in the antenna jack on TV set and the other end plug in the external antenna jack. -
Page 10: Menu Operation
7. Menu Operation Press MENU to display options as follows: PICTURE OPTION CLOCK SYSTEM PRESET 7.1. PICTURE CONTRAST, BRIGHT, COLOR, SHARP and TINT displays on the screen as below description: Press to select the item Press to adjust Notice Only when displaying the picture of NTSC system, it will show the character of TINT in the Picture menu. -
Page 11: Preset
7.4.2.Press to select the item SOUND-SYS: Then press , the SOUND-SYS displays in the order of BG5.5M, I6.0M, DK6.5M and L6.5M. Notes 1. Please set the SOUND-SYS at local one. 2. In case with picture while without sound or with noise, please check the SOUND-SYS for correct setup first. - Page 12 7.5.4.Press to select SWAP, then press to select the channel No. Press MENU to confirm SWAP. 7.5.5.Press to select FINE. Then press to adjust ¡ ø ¡ø channel frenquency by little. ¡ ø ¡ø 7.5.6.Press to select SEARCH. Then press to start searching forthward or backward.TV searching indicater bar will turn to green from red after search TV signal.
- Page 13 8. In order to watch TV properly 1 .Set the desired OSD language by pressing LANG. 2. Ensure the COLOR-SYS, SOUND-SYS is correct by checking from SYSTEM menu. 3. Select AUTO-SEARCH in PRESET menu, and start auto search TV signal. 4.
-
Page 14: Card Mode Operation
9. CARD mode operation 1.Usage of memory facility (USB&CARD) This product supports almost all types of USB, Multi Media Card (MMC), SD, Memory Stick (MS) in the market. 1)This product supports various USB & CARD within 4G (beyond the capacity, some abnormal phenomenon may occur. ) 2)This product supports JPEG, MP3, WMA, VCD, AVI ect. - Page 15 2.2 Play music Press direction key to select 'MUSIC' item, press 'OK' to open file from storage; press direction key to select the file, and then press 'OK' to play music. 2.3 Play movie Press direction key to select 'VIDEO' item, press 'OK' to open the file from storage, press direction key to select file, then press 'OK' to play movie.
- Page 16 Home Page: return functions setting page 2.6.2 Video Setting Page TV systems: when connecting video output, the output system of the product and the system of TV should corresponding match, otherwise no color shows. Abnormal, "NTSC" and "PAL" are available to choose; the default value is "NTSC". Home Page: return functions setting page -13-...
-
Page 17: Before You Request For Repair
10. Before you request for repair Phenomena below does not necessarily mean failure with TV set. Please check following before you request for repair. Phenomena Possible Causes Improper connection with AC adapter or No picture, no sound Care adapter. Use of unauthorized power supply. -
Page 18: Technical Parameters
11. Technical Parameters Product Name: Portable LCD TV(10.2 ) Display Device: Color TFT-LCD Receiving frequency range: Full frequency search: 48.25MHz-863.25MHz Fixed channel search: AIR: 55.25MHz-801.25MHz CATV: 55.25MHz-799.25MHz Screen Size: 10.2 inches Resolution: 800 H 480 V Audio Output: 0.5W 2 Loudspeaker: two 4.0cm round loudspeaker. - Page 19 W a rn in g 1.This operation instruction is only intended for reference. No further notice is available to any modification of all information contained therein. Due to continuing improvements, the features and design are subject to change without notice. 2.No repairable components exist in the machine.
