Aiphone IS-SS-RA-R Instructions For Installation And Use

The IS-SS-RA-R is a stainless steel flush mount door station with an emergency call button. The
unit is equipped with ADA compliant lettering and Braille signage for the emergency button. A call
status indicator is included to meet ADA rescue assistance requirements. The IS-SS-RA-R must be
programmed as an audio door station and can connect to any control unit in the IS system (IS-CCU,
IS-SCU, or IS-RCU).
IS-SS-RA-R
6

PACKAGE CONTENTS:

STEADY GREEN INDICATES CALL ANSWERED
EMERGENCY
IS-SS-RA-R
Vandal-resistant Door Station
Blank name
placard
IS-SS-RA-R
Stainless Steel Flush Mount Door Station
with an Emergency Call Button
-INSTRUCTIONS-
1
2
3
4
5
Security Driver
2-pin connector
for external reset
Semi-flush backbox &
tamper-resistant screws

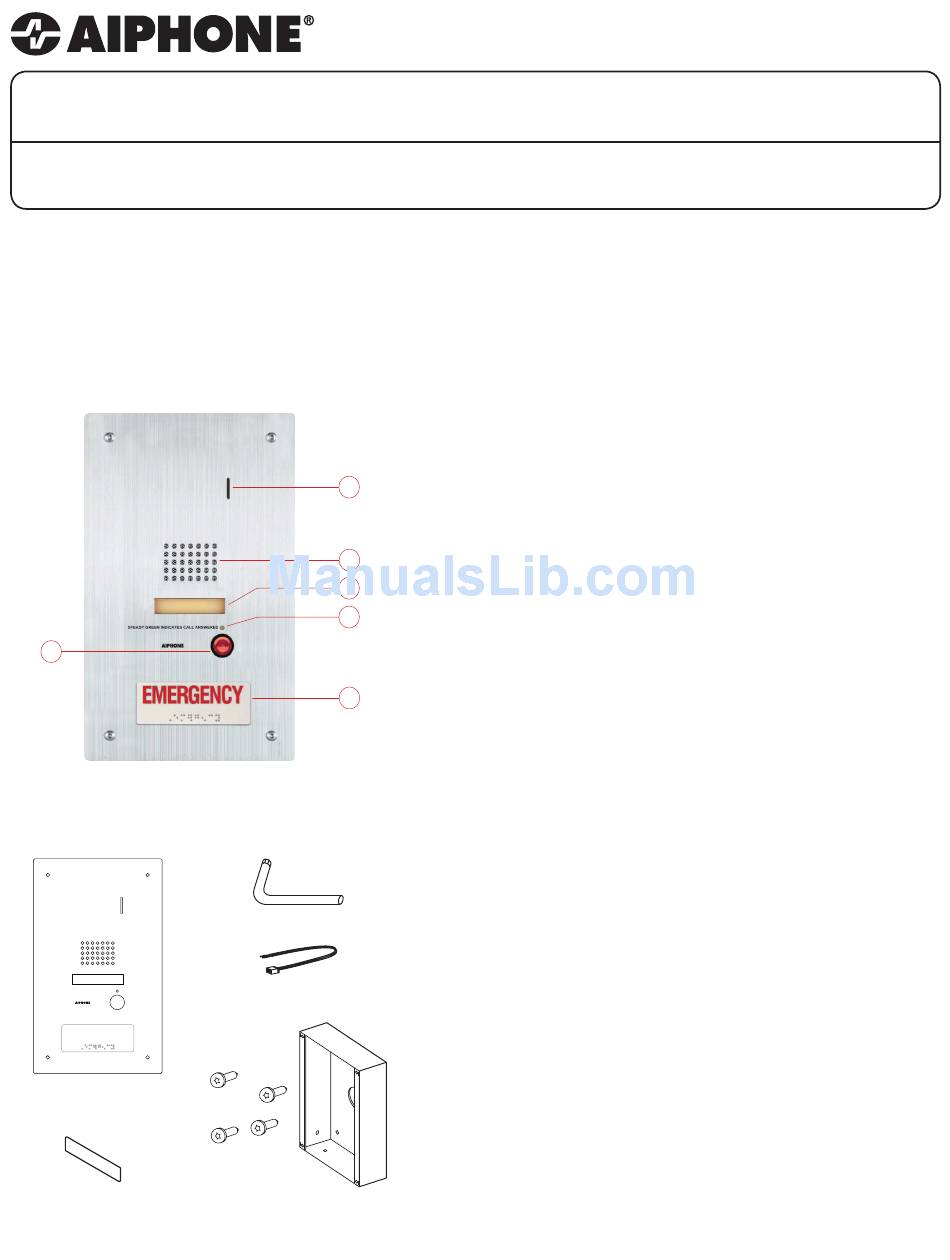

NAMES & FUNCTIONS:
1. Microphone
2. Speaker
3. Name Placard

FEATURES:

• Audio communication with calling area
• Emergency call button
• ADA compliant lettering and Braille signage
• LED call status indicator
• Two programmable relay outputs for
activation of external systems/devices
• Name placard
• Stainless steel faceplate with tamper
resistant screws

INSTALLATION:

• For flush mounting, cut a hole in the wall and
use supplied back box.
Box dimensions are:
11-1/16" H x 5-7/8" W x 1-3/4" D
• For surface mounting, use the SBX-ISDVFRA
surface mount box. This box can mount to a
standard 1-gang box or to any flat surface.
4. Call status indicator
5. Signage with Braille
6. Emergency button
