The IS-SS-HID-I is an IS-series door station and an HID iCLASS® Card Reader, built onto the same
stainless steel faceplate. The card reader provides electronic access to a building through a separate
Access Control System, which is not supplied by Aiphone.
The IS-SS-HID-I can connect to the IS-CCU, IS-SCU, or IS-RCU control units.
IS-SS-HID-I

PACKAGE CONTENTS:

IS-SS-HID-I
Vandal-resistant Door Station
Flush backbox &
tamper-resistant screws
IS-SS-HID-I
Vandal Resistant Door Station with Built in
HID iCLASS® Smart Card Reader
-INSTRUCTIONS-
1
2
3
4
Security Driver

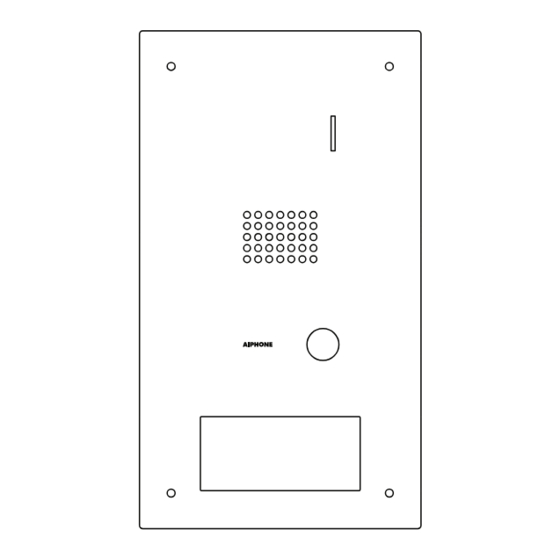

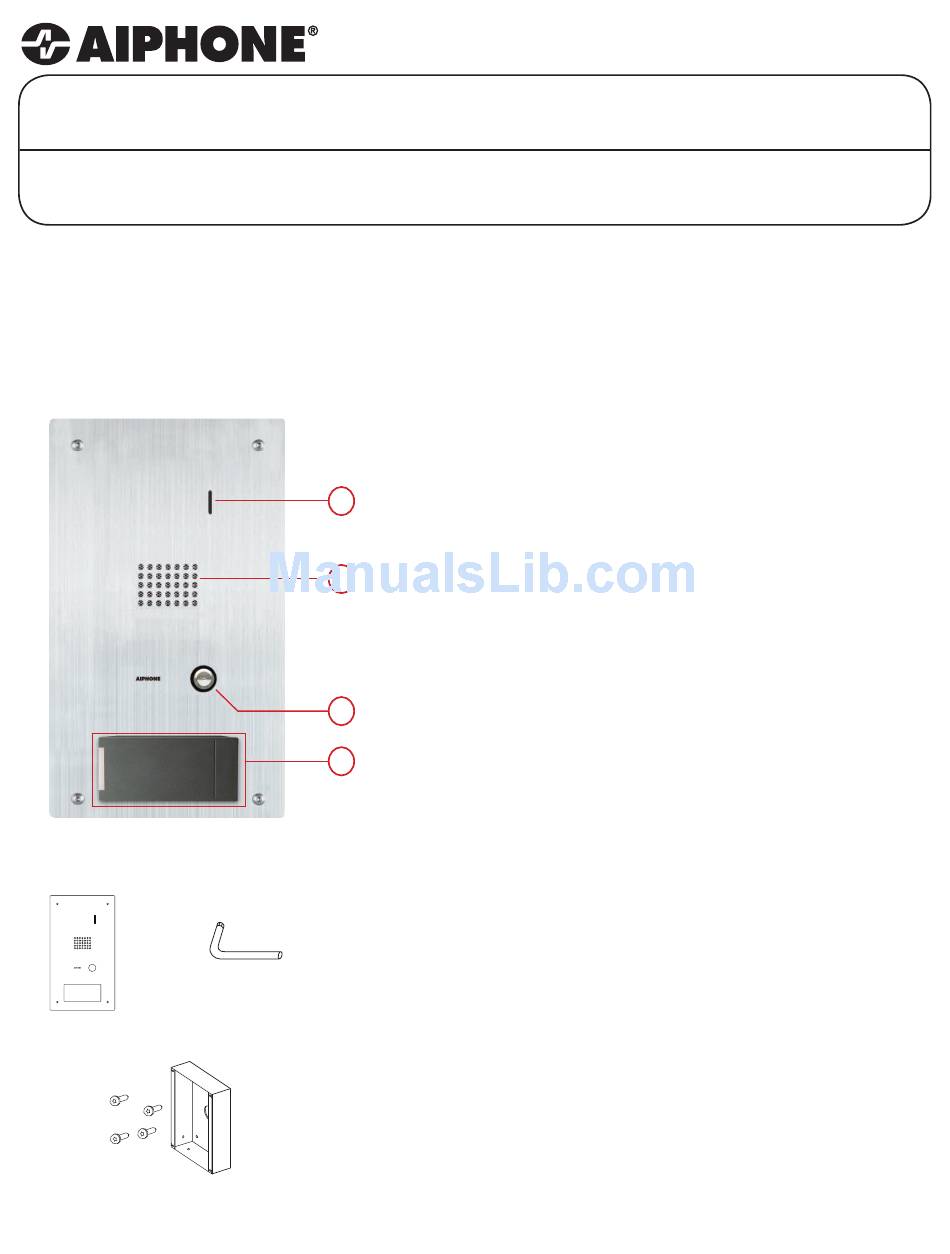

NAMES & FUNCTIONS:
1. Microphone
2. Speaker
3. Call button
4. iCLASS Reader

FEATURES:

• All-in-one solution: Communication product &
• If a card is missing or malfunctioning,
audio communication can provide user
verification
• Standard Wiegand output to access panel
• Convenience of installing combined components

INSTALLATION:

• For flush mounting, cut a hole in the wall and use the
supplied back box.
Box dimensions are: 11-3/4" H x 5-13/16" W x 1-3/4" D
• For surface mounting, use the SBX-ISDVFP surface
mount box.
This box can mount to a standard 1 gang box or to
any flat surface.
Pg. 1
