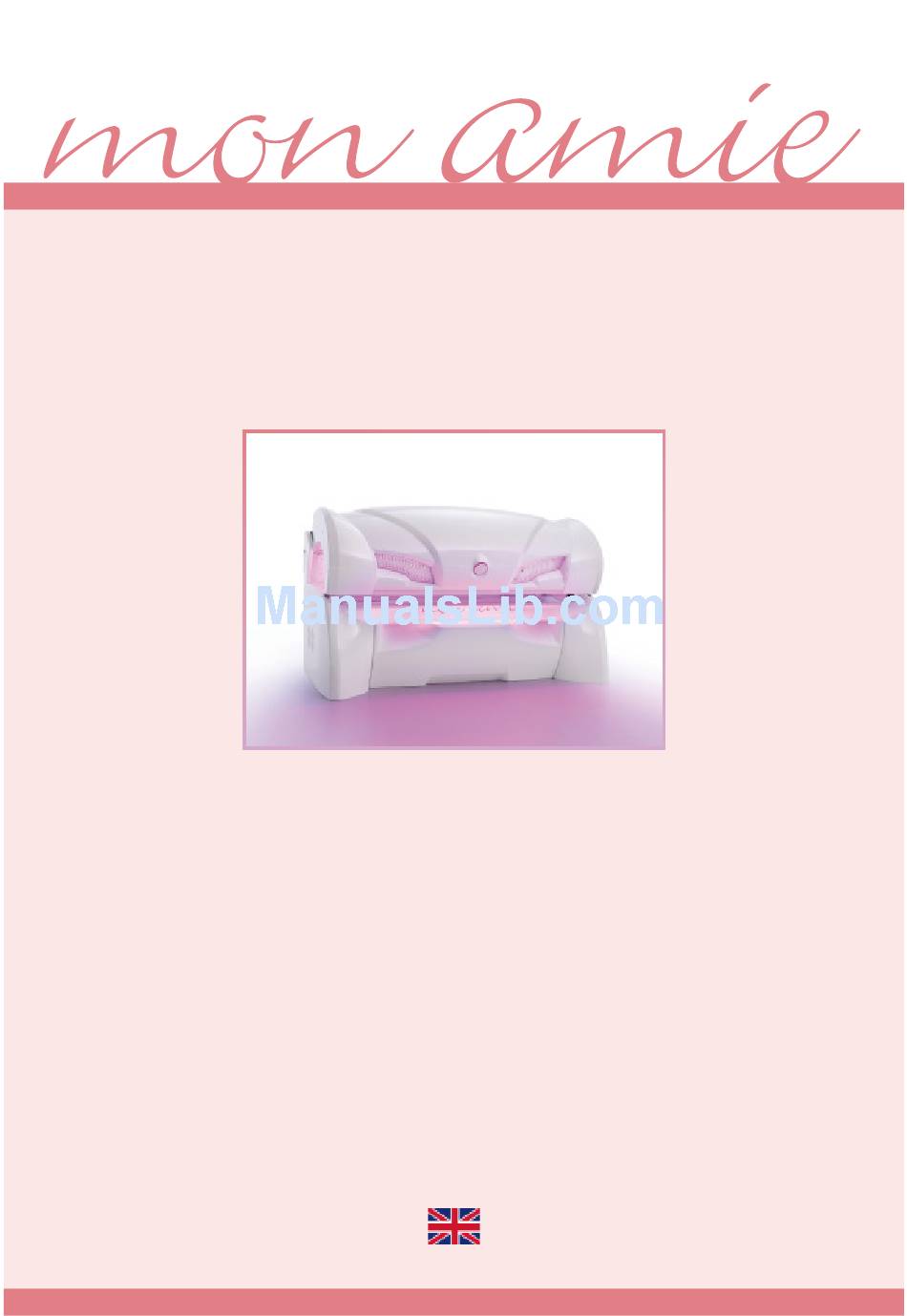

- Page 1 Operating Instructions...
- Page 2 This documentation only covers products manufactured by KBL AG. It must not be duplicated, photocopied, translated or stored without prior specifi c permission by KBL AG. Duplication on electronic media or in machine- readable form, either in whole or in part, is also prohibited.
-
Page 3: Table Of Contents
Setting the timer function of the deco lighting ..25 Resetting the operating hours of the tubes ... 26 O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 4: General Information
Overturning load! Danger of being crushed by heavy parts of the equipment. • Wear safety shoes. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 5: Safety Notes
Persons with naturally red skin colour. • Persons, who do not tan at all or cannot tan wi- thout getting sunburn. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 6: General Safety Advice
Absolutely observe the maintenance frequencies indicated in the maintenance plan. Tanning times Adhering to tanning times and schedules is essential. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 7: Description Of The Unit
C o l l a g e n O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 8: Standards
Canopy pane Base section ④ Bed pane Air supply connector in the canopy ③ Side pane O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 9: Connections
(audio frequency suppressors) installed. Figure: audio switch circuit board Figure: mains connection O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 10: Operation Using Different Audio Sources
100 V audio system is connected. The connection must be carried out by trained ser- vice staff. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 11: Connecting The External Timer
For further information, please refer to the chapters “Connections” and “Operation in service mode”. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 12: Start-Up
O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 13: Collagen-Tanning Instructions
O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 14: Collagen-Tanning Times
This information is only in effect for devices that are maintained according to the intervals listed in the maintenance chapter (cleaning and replacing tubes). O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 15: Collagen-Tanning Mode
• For this, always follow the instructions in the maintenance portion! O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 16: Display In Collagen Tanning Mode
START button if the available session time has not elapsed yet. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 17: Functions
The end of the tanning session is announced acou- stically and the customer is bid farewell. Tubes and fan are progressively switched off. O p e r a t i n g I n s t r u c t i o n s | mon amie... - Page 18 0,5 seconds. The body fan can be swit- below the “P”. Please refer to the service menu I for O p e r a t i n g I n s t r u c t i o n s | mon amie...
- Page 19 If desired, the cus- tomer can deactivate megaVoice during the tanning. O p e r a t i n g I n s t r u c t i o n s | mon amie...
-
Page 20: Standby/Service Mode
If there is an error message pending, eliminate the fault fi rst and then reset the message by pressing the “Stop” button. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 21: Overview Kbl4 Service Menu
= W+P activated. Activated features displayed under AUDIO/PRESEL. Push to save. PIN I (entering PIN II) O p e r a t i n g I n s t r u c t i o n s | mon amie... - Page 22 These settings must only be START TIME made by trained service STOP personnel. – PIN I (Operation Info) O p e r a t i n g I n s t r u c t i o n s | mon amie...
- Page 23 00053h T.Co selected value. PIN II (C'M'A‘) O p e r a t i n g I n s t r u c t i o n s | mon amie...
-
Page 24: Information About Operation
(plus button) or 0 (minus button) to select or 9 (minus button). 3. Preselect the desired source by pressing 4 (plus O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 25: Entering Pin Ii
5 (plus button) or 0 (minus button) to set the 2. Use START to invoke the submenu and 5 (plus desired day. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 26: Resetting The Operating Hours Of The Tubes
STOP button. Time These settings must only be made by trained service personnel! O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 27: Functions C'm'a
5. Use the START button to save the settings and press STOP to exit the menu. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 28: Mon Amie Skin Sensor (Terminal)
2. Select pressing 5 (plus button) or 0 (minus button). 3. Press START button display corresponding information. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 29: Maintenance And Cleaning
To preserve the tanning power, we recommend cleaning the tubes with warm water and a chamois after approx. 200 hours of operation. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 30: Maintenance Intervals
If not, carefully push the nozzles concerned in their correct positions. Unblock the canopy. O p e r a t i n g I n s t r u c t i o n s | mon amie... - Page 31 Lock the canopy in place. Undo the two screws on the right-hand 31.3 and left-hand side of the bed pane. O p e r a t i n g I n s t r u c t i o n s | mon amie...
-
Page 32: Tubes
Service organisation in this case. The front canopy fl uorescent tubes ③ are changed just like the other canopy tubes. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 33: Filter Pads
Figure 33.4: Filter pad in the base section Procedure Fig. The tube is located on the rear wall and is 33.2 easily accessible. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 34: Canopy Drive
Figure 34.1: Tensioning spring on the left-hand side Figure 34.2: Tensioning spring on the right-hand side O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 35: Air-Conditioning Unit
The unit must remain connected to the power supply after the tanning O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 36: Audio System With Mp3 Sound Box
O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 37: Recording To An Sd Card
• The cleaning solution must never get into the housing. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 38: Error Messages
START. If the fault persists, contact your Customer mon amie Terminal amie terminal has been interrupted. Service. O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 39: Technical Data
9x MS Collagen plus 1.8 (1858 R) 3230074783 Nominal With air-conditioning: 8260W - without air-conditioning: 7000W power O p e r a t i n g I n s t r u c t i o n s | mon amie... -
Page 40: Views
R - For lamps with usual refl ector angles of ≥200 ∧ ≤230 Indication of Watts (electrical power) O p e r a t i n g I n s t r u c t i o n s | mon amie... - Page 41 Remarks O p e r a t i n g I n s t r u c t i o n s | mon amie...
- Page 42 Remarks O p e r a t i n g I n s t r u c t i o n s | mon amie...
- Page 43 Remarks O p e r a t i n g I n s t r u c t i o n s | mon amie...
- Page 44 KBL AG Ringstraße 24-26 · 56307 Dernbach · Germany fon +49 (0) 26 89.94 26-0 · fax +49 (0) 26 89.94 26-66 E-Mail mon-amie@kbl.de www.mon-ami.de...
