Movie Vision MV1025 Owner's Manual

Mobile dvd/cd player with 10.2" tft monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

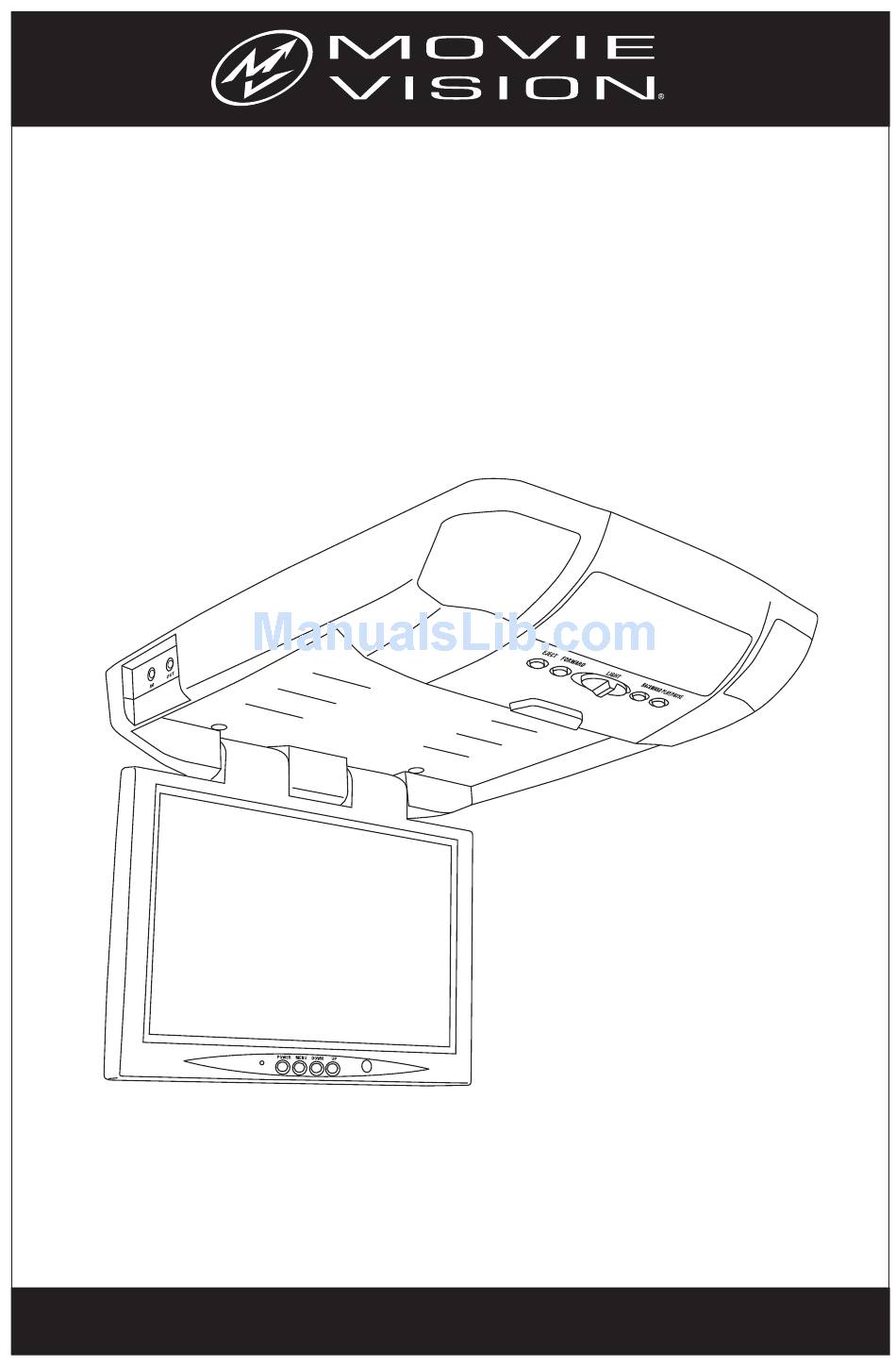

Owner's Manual
Mobile DVD/CD Player
with 10.2" TFT Monitor
10
Model: MV1025
For operational or technical assistance, after reading this manual,
please call us toll free at (800) 638-3600 or visit www.magnadyne.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV1025 and is the answer not in the manual?

Questions and answers

Related Manuals for Movie Vision MV1025

Summary of Contents for Movie Vision MV1025

  • Page 1 Owner's Manual Mobile DVD/CD Player with 10.2" TFT Monitor Model: MV1025 For operational or technical assistance, after reading this manual, please call us toll free at (800) 638-3600 or visit www.magnadyne.com...

  • Page 2: Use This Product Safely

    • This unit can play compatible discs recorded in either PAL or NTSC format. • CD, DVD, CD-R, CD-RW, MP3, JPEG photo compatible. Driving Be aware of road and traffic conditions. Keep the vol- ume at a low level. Moisture Do not expose the product to water or excessive mois- ture.

  • Page 3: Table Of Contents

    This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Magnadyne Corporation and other rights owners. Use of this copyright protection technology must be authorized by Magnadyne...

  • Page 4: Disc Notes

    Disc Formats Supported by this Player: DVD-R/DVD-RAM Discs which cannot be played with this player: • DVD-ROM • CDV • CD-G Disc Handling • Dirt, dust, scratches and warped disc will cause non operation. • Do not place stickers on disc or scratch disc. •...

  • Page 5: Screen And Dvd/Cd Functions

    1. Monitor Stand-By Indicator LED: LED indicates the monitor is off. To turn the monitor on, press the Power button on the monitor or the remote. 2. POWER Button Press this button to turn the monitor On/Off. MENU Button: Activates the monitor adjustment menu. 4.

  • Page 6: Turning The Unit On

    Turning the Unit On Press the POWER on either the remote or the screen housing. Adjusting the Monitor 1. Press the MENU button on either the remote or the screen housing to activate the monitor adjustment menu. The following will be displayed on the screen: 2.

  • Page 7: Screen's Wireless Transmitter Module

    Screen’s Wireless Transmitter Module Optional IR Headphone Model: HP-400 The audio signal is transmitted via infrared light to the optional headphones. Screen’s Dome Light Dome Lights Dome Light’s 3-Position Switch Dome Lights Dome Lights Screen and DVD/CD Functions Changing to an Auxiliary Input Source Connect the A/V cable provided to the auxiliary A/V Screen’s Wireless device (connection may require a male-to-male RCA...

  • Page 8: Remote Control

    1. POWER: Turns the monitor On/Off. 2. MENU: Display DVD’s menu screen. 3. DISPLAY: Displays disc information. 4. ENTER: Enter settings. Use CURSOR buttons when select- ing setting items or to move cursor up, down, left or right. 6. MENU: Enters DVD playback main screen menu.

  • Page 9: Basic Operation And Special Functions

    BASIC OPERATION Turn the Unit On 1. Turn the car ignition on to the accessory position. 2. Press the POWER button. Loading a Disc 1.Insert the disc with label side facing up into the disc slot. The player will automatically play the disc. Ejecting a Disc Press the EJECT button to eject the disc.

  • Page 10: Setup Menu

    SETUP MENU 1. Press the SETUP button on the remote control, and the setup menu will be displayed. Pressing SETUP during disc play will pause play. Play will resume when the setup screen is cancelled. 2. Use the CURSOR buttons desired SETUP MENU.

  • Page 11: Installation

    (not supplied) with the “This Side Mounts Against Roof/Ceiling” label against ceiling support beam(s). Warning: Take extra care to not penetrate the roof of your car. Attach the screen housing to the metal support bracket using the machine screws supplied. MV1025 Bracket...

  • Page 12: Wiring Diagram

    Audio/Video Input Jack Note: The screen image will change to the new A/V device automatically. Removing the A/V plug will switch the screen back to the DVD player. Optional FM Transmitter (Model: MV-TX2) Transmitter Device Wiring Diagram Audio/Video Output Jack or other Audio/Video Input Jack (Female RCA) For use with video games, camcorders...

  • Page 13: Wiring Instructions

    Dimensions (mm): Wiring Instructions Audio/Video Input Jack: You may connect video games, camcorders and other portable video equipment to the MV1025. Connect the optional device by using the color-coded external auxiliary harness. Yellow RCA Connector: Video input. Red RCA Connector: Audio input right.

  • Page 14: Troubleshooting

    Only qualified service personnel can remove the cover or service this player. Otherwise the warranty will become invalid. No Power: • Check to see if the player is “On”. • Check to see that the power plug of the main unit is properly connected.

  • Page 15: Replacement Parts

    9 a.m. and 5 p.m. weekdays. If UPS is unable to deliver, your order will be returned and additional shipping charges will be required. Replacement Parts Order Form We Accept Checks, Money Orders, Visa and Master Card Make Checks Payable to: Magnadyne Corporation FIRST NAME STATE MASTER CARD EXP.

  • Page 16: Warranty

    Magnadyne Corporation or its authorized agents will within 1 year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly con- nected and operating on the correct power requirements designated for the specific product.
