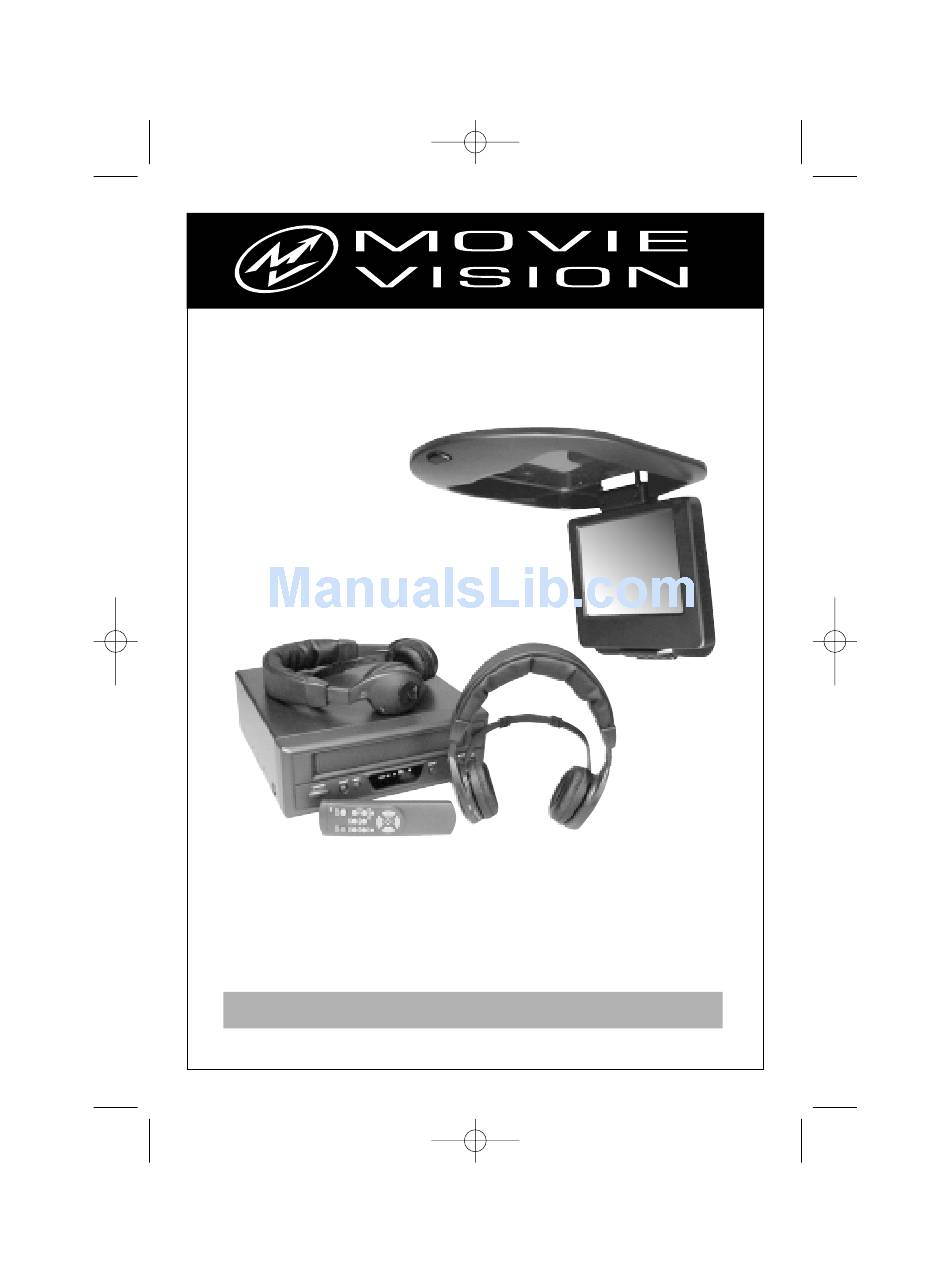

Owner's Manual

In Vehicle Entertainment System with Drop Down 6.4" TV Screen, Remote Control,

Hi-Fi VCR and Wireless Headphones

MV-1002

Patent Pending

For Operation Assistance or Technical Assistance after Reading the

Troubleshooting Guide in this Manual, Please Call Toll Free (800) 638-3600

Table of Contents

Need help?

Do you have a question about the MV-1002 and is the answer not in the manual?

Questions and answers

Summary of Contents for Movie Vision MV-1002

Page 1 Owner’s Manual In Vehicle Entertainment System with Drop Down 6.4” TV Screen, Remote Control, Hi-Fi VCR and Wireless Headphones MV-1002 Patent Pending For Operation Assistance or Technical Assistance after Reading the Troubleshooting Guide in this Manual, Please Call Toll Free (800) 638-3600...
Page 2: Important Safety Instructions
MV-VCR102UM 1/17/02 10:01 AM Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SER- VICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. CAUTION FCC REGULATIONS STATE THAT ANY UNAUTHORIZED CHANGES OR MODIFICATIONS TO THIS EQUIPMENT MAY...
Page 3: Table Of Contents
MV-VCR102UM 1/17/02 10:01 AM Important Safety Instructions... 2 Important Safeguards... 2 Damage Requiring Service ... 2 Video Cassette Tape Information... 3 Remote Control Battery Install / Replace... 4 VCR Controls... 4 Remote Control ... 4 Programming and Setup ... 5 VCR Tape Playback...
Page 4: Remote Control Battery Install / Replace
MV-VCR102UM 1/17/02 10:01 AM Remote Control Battery Install / Replace 1. Slide battery compartment cover out from back of remote control. Cassette Compartment Hi-Fi H E A D POWER Turns VCR POWER EJECT on and off EJECT Ejects Starts cassette recording POWER Turns VCR on and off...
Page 5: Programming And Setup
MV-VCR102UM 1/17/02 10:01 AM Programming and Setup To prevent excessive drain on your vehicles battery, the Movievision system will shut down 20 minutes after you turn the ignition key to the “OFF” position. 1. Turn “ON” the ignition switch and power will be applied to the Movievision system.
Page 6: Recording
MV-VCR102UM 1/17/02 10:01 AM Using VCR Special Features Audio Output The Audio Output function allows you to select four different types of audio output. Press the “MENU” button on the remote control to access the “on screen menu.” Use the “SHIFT”...
Page 7: Viewing Screen Controls And Functions
MV-VCR102UM 1/17/02 10:01 AM Viewing Screen Controls and Functions 1. Infrared Eye Point the remote control in the direction of the Infrared Eye when accessing the functions provided by the remote control. 2. Viewing Screen Release To release the screen, push inward on the Movievision logo and pull downward.
Page 8: Viewing Screen Controls And Functions
MV-VCR102UM 1/17/02 10:01 AM Viewing Screen Controls and Functions 7. Transmitter Frequency Selection: The Movievision viewing screen transmits a signal that is received by the Movievision headphones and can also be received by the vehicle’s car radio. There are 3 fre- quencies available for use but only one can be used at a time.
Page 9: Headphone Operation
MV-VCR102UM 1/17/02 10:01 AM Domelight Operation (Continued) Replacing Domelight Bulbs: To replace a domelight bulb, repeat the following procedure. Warning! in some cases, the domelight maybe hot, proceed with caution. 1. Use your fingernail to pull the lever at the end of the domelight lens forward and downward this will release the lens to expose the bulb.
Page 10: Standard Headphone Operation
MV-VCR102UM 1/17/02 10:01 AM Headphone Operation (Continued) Standard Headphone Operation 1. Headphone Radio Operation Your Movievision headphones can be used as an FM radio receiver. Repeat the following procedures to listen to FM radio broadcasts. A. Move the Power/Selector switch (1) from the OFF posi- tion to the RAD (Radio) position.
Page 11: Digital Headphone Operation
MV-VCR102UM 1/17/02 10:01 AM Digital Headphone Operation 1. Turn On the Headphones: To turn on the headphones, press the ”PWR” button on the right side ear pad. The digital display will show radio station digits when the headphone is on. 2.
Page 12: Cleaning And Maintenance
MV-VCR102UM 1/17/02 10:01 AM Cleaning and Maintenance Servicing: Should your Movievision VCR become inoperative, do not try to correct the problem by yourself. There are no user serviceable parts inside. Remove the unit from the vehicle and take it to an authorized Movievision service facility.
Page 13: Trouble Shooting
MV-VCR102UM 1/17/02 10:01 AM Problem: No power Solution: • Make sure the ignition switch is in the on position. • Check the power connection. • Check the remote for good batteries. Problem: Videocassette cannot be inserted Solution: • Press “EJECT” to see if a cassette is already in the VCR.
Page 14: Warranty
Magnadyne Corporation or its authorized agents will within 1 year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when prop- erly connected and operating on the correct power requirements designated for the specific product.
Page 15: Replacement Parts Order Form
9 A.M. and 5 P.M. weekdays. If UPS is unable to deliver, your order will be returned and additional shipping charges will be required. Page 15 We Accept Checks, Money Orders, Visa and Master Card Make Checks Payable to: Magnadyne Corporation FIRST NAME INITIAL STATE...
