Summary of Contents for Movie Vision MV850

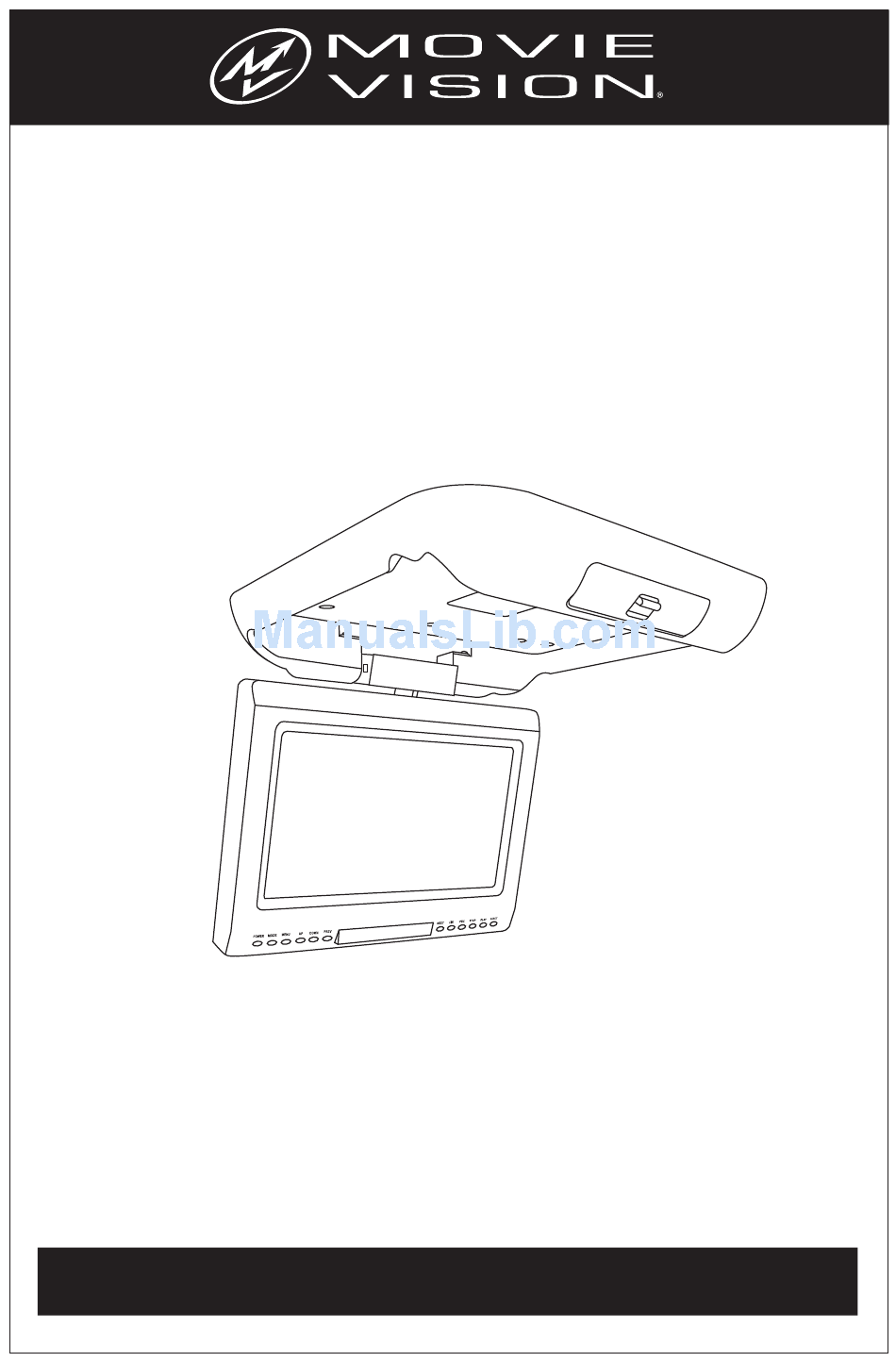

- Page 1 Owner's Manual Mobile DVD/CD Player with 8.5" TFT Monitor Model: MV850 For operational or technical assistance, after reading this manual, please call us toll free at (800) 638-3600 or visit www.magnadyne.com...
-
Page 2: Use This Product Safely
• This unit can play compatible discs recorded in either PAL or NTSC format. • CD, DVD, CD-R, CD-RW, MP3 Compatible. • Full-function remote control. Driving Be aware of road and traffic conditions. Keep the vol- ume at a low level. Moisture Do not expose the product to water or excessive mois- ture. -
Page 3: Table Of Contents
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Magnadyne Corporation and other rights owners. Use of this copyright protection technology must be authorized by Magnadyne... -
Page 4: Disc Notes
Disc Formats Supported by this Player: DVD-R/DVD-RAM Discs which cannot be played with this player: • DVD-ROM • CDV • CD-G Disc Handling • Dirt, dust, scratches and warping disc will cause non operation. • Do not place stickers on disc or scratch disc. •... -
Page 5: Screen And Dvd/Cd Functions
1. POWER Button: Press this button to turn the unit On/Off. 2. MODE Button: Press this button to change the play source between DVD/CD player and an auxiliary input source. 3. MENU Button: Activates the monitor adjustment menu. 4. UP Button: Adjusts the monitor’s level in menu mode. 5. -
Page 6: Adjusting The Monitor
Turning the Unit On: Press the POWER on either the remote or the screen housing. Adjusting the Monitor: 1. Press the MENU button to activate the monitor adjustment menu. The following will be displayed on the screen: 2. Use the UP and DOWN buttons on the screen housing to adjust the screen color. -
Page 7: Screen And Dvd/Cd Functions
Screen’s Remote Control Sensor: Screen’s remote control sensor receives the remote’s infrared control signals. Screen’s Wireless Transmitter Module: Screen’s Wireless Transmitter Module Optional IR Headphone Model: HP-400 The audio signal is transmitted via infrared light to the headphones. Screen and DVD/CD Functions Screen’s Dome Light: Screen’s Remote Control Sensor... -
Page 8: Remote Control
POWER TITLE MODE AUDIO ANGLE SUBTITLE DISPLAY SETUP PLAY/PAUSE ENTER PROG CLEAR PREV NEXT VOL– ZOOM SLOW STEP REPEAT MUTE 1. POWER: Turns the unit On/Off. 2. AUDIO: Press the button to change audio languages. 3. ANGLE: Press the button to change DVD’s picture angle. -
Page 9: Basic Operation And Special Functions
POWER TITLE MODE AUDIO ANGLE SUBTITLE DISPLAY SETUP PLAY/PAUSE ENTER PROG CLEAR PREV NEXT VOL– ZOOM SLOW STEP REPEAT MUTE Use CURSOR buttons when selecting setting items or to move cursor up, down, left or right. 27. STEP: For DVD frame-by-frame play. 28. -
Page 10: Dvd Special Functions
PLAY FUNCTION (Continued) Advance to Next Chapter or Track Press the NEXT button during playback and the play advances to the beginning of the next chapter or track. Removing Disc Press the STOP button, then press the EJECT button to eject the disc. Searching for a Specific Chapter or Track 1. -
Page 11: Dvd Special Functions
DVD SPECIAL FUNCTIONS Multi-Subtitle Language Function Press the SUBTITLE button during playback. Each time the button is pressed the subtitle language on the screen changes. Multi-Audio Language Function Press the AUDIO button during playback. Each time the button is pressed the audio soundtrack language on the screen changes. -
Page 12: Disc Settings
DISC SETTINGS Use the CURSOR buttons setting selections. Press the ENTER button to confirm the setting. Audio Setting Use this screen to setup the audio language on multi- language discs. Subtitle Language Setting Use this screen to setup the subtitle language on multi-subtitle language discs. -
Page 13: Display Settings
VIDEO SETTINGS Use the CURSOR buttons VIDEO setting selections. Press the ENTER button to confirm the setting. TV Aspect Setting Use this screen to setup the desired TV Aspect Ratio. Still Mode Setting Use this screen to setup the mode to display still pic- tures. - Page 14 OTHER FUNCTION SETTINGS Use the CURSOR buttons OTHERS setting selections. Press the ENTER button to confirm the setting. JPEG Time Setting Use this screen to setup the JPEG image display time from 1 to 180 seconds. Default Settings Use this screen to reset all menus to the factory default setting Setup Menu to make...
-
Page 15: Installation
Movievision Bracket (not supplied) MV850 Bracket Optional: Some vehicles may require an optional custom MovieVision bracket. The long slots in the MV850 mounting bracket match up to the screw holes on the MovieVision bracket. Installation Ceiling Support Beams Mount support bracket using screws (not supplied) with the “This Side Mounts... -
Page 16: Wiring Diagram
Wiring Diagram Mini DIN Connector Red Wire - Ignition Black Wire - Ground Yellow Wire - Battery Audio Video Input (Female RCA) Yellow (Video In) Red (L-Audio In) Red (R-Audio In) Audio Video Output (Female RCA) Yellow (Video Out) White (L-Audio Out) White (R-Audio Out) 3 AMP 3 AMP... -
Page 17: Wiring Instructions
Power Harness Wiring: The 3 wire harness provides battery and ignition 12 volts as well as a chassis ground. Route the power harness to the point in the vehicle that you will make the connections. Red Wire: The red wire in the harness should be con- nected to a +12 volt power wire that is turned on and of by the position of the ignition key. -
Page 18: Troubleshooting
Only qualified service personnel can remove the cover or service this player. Otherwise the warranty will become invalid. No Power: • Check to see if the player is set to “On”. • Check to see that the power plug of the main unit is properly connected. -
Page 19: Replacement Parts
9 a.m. and 5 p.m. weekdays. If UPS is unable to deliver, your order will be returned and additional shipping charges will be required. Replacement Parts Order Form We Accept Checks, Money Orders, Visa and Master Card Make Checks Payable to: Magnadyne Corporation FIRST NAME STATE MASTER CARD EXP. -
Page 20: Warranty
Magnadyne Corporation or its authorized agents will within 1 year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
