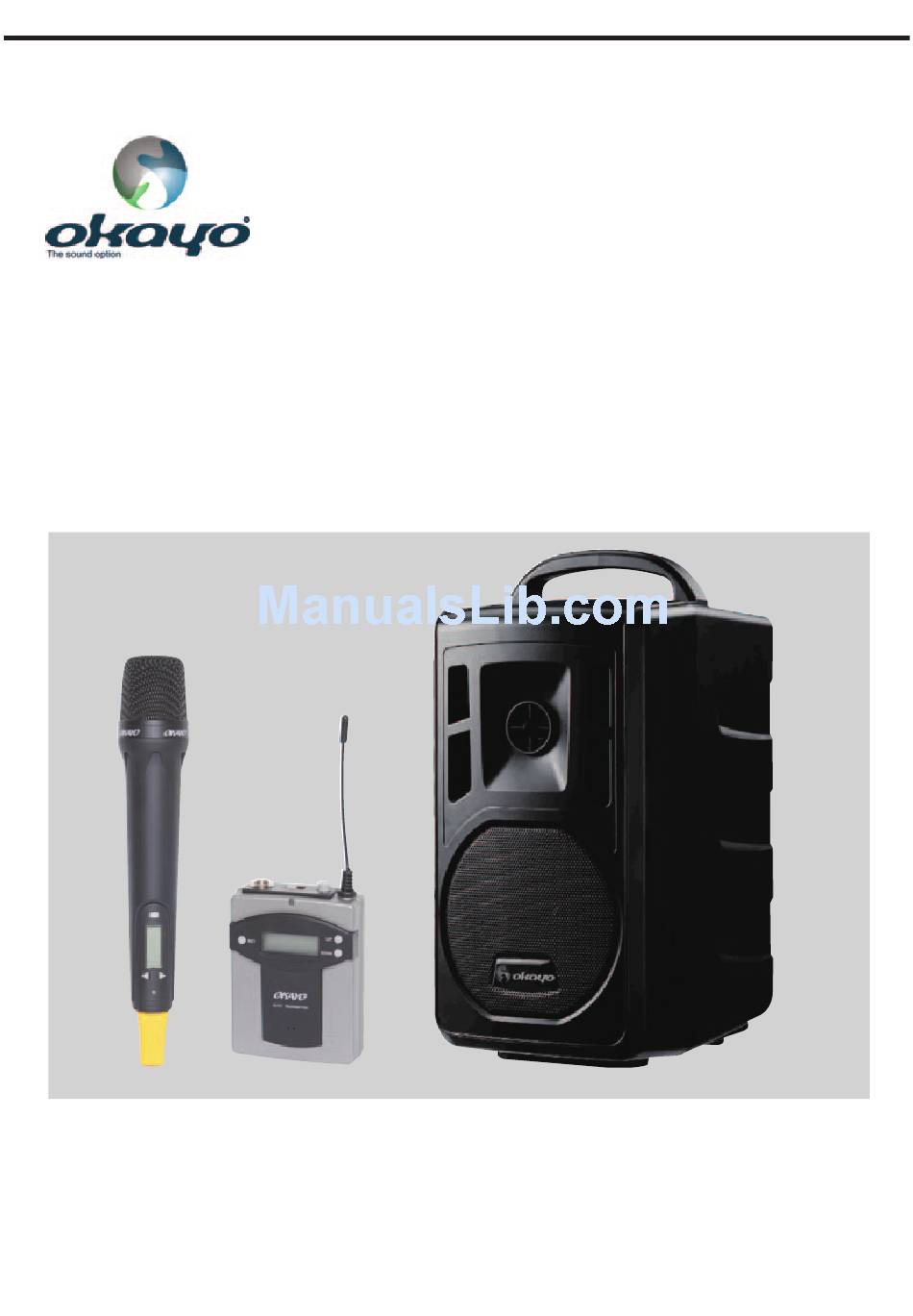

Okayo Portable PA System
Operating Instructions
C 7340
Basic PA
C 7342
PA with UHF Wireless Mic Receiver
C 7344
PA with UHF Wireless Mic Receiver &
MP3 Player
C 7192B
Wireless Handheld Mic
C 7193B
Wireless Handheld Condenser Mic
C 7195B
Beltpack Transmitter
C 7317
UHF Wireless Receiver Module
C 7318
Digital Audio Player Module
C 7319
Bluetooth® Audio Player Module
Manufactured for Altronic Distributors Pty Ltd.
Advertisement
Table of Contents
Related Manuals for Okayo C 7340
Summary of Contents for Okayo C 7340
-
Page 1: Operating Instructions
Okayo Portable PA System Operating Instructions C 7340 Basic PA C 7342 PA with UHF Wireless Mic Receiver C 7344 PA with UHF Wireless Mic Receiver & MP3 Player C 7192B Wireless Handheld Mic C 7193B Wireless Handheld Condenser Mic... - Page 2 Okayo Portable PA System Thank you for purchasing this Wireless Portable Sound System. This manual contains comprehensive instructions on it’s operation. Please read it carefully before use and this unit will perform well. *All peripherals and accessories that are not included in the package are available separately.
-
Page 3: Battery Replacement
Okayo Portable PA System Okayo Portable PA System Features 1. Tweeter (1”) 5. Control panel, battery meter, mic in 2. Neodymium driver (5”) 6. Power switch 3. UHF Receiver C 7317 7. DC input 4. Digital audio player C 7318 8. -
Page 4: Controls And Operation
Okayo Portable PA System Okayo Portable PA System Controls and Operation 1. MASTER volume control 2. TREBLE tone control 3. Bass tone control 4. Battery meter 5. VOICE PRIORITY button When activated LED (6) will illuminate 6. VOICE PRIORITY indicator 7. - Page 5 Okayo Portable PA System Okayo Portable PA System Digital Audio Player C 7318 Features 1. LCD window 7. USB port 2. Previous track/volume down 8. Repeat/folder select 9. Power (Works during playback) 3. Next track/volume up 10. Volume down (MUTE when set to minimum level) (Works during playback) 11.
- Page 6 Okayo Portable PA System Okayo Portable PA System Bluetooth® receiver module C 7319 1. Power indicator 2. Bluetooth connectivity indicator 3. Audio frequency indicator 4. ON/OFF Volume switch Operation of C 7319 Bluetooth Receiver 1. Turn the knob clockwise to switch on the Bluetooth module. Set a mid-range volume level to begin.
-
Page 7: Transmitter Operation
Okayo Portable PA System Okayo Portable PA System Transmitter Operation All portable PA’s equipped with a UHF wireless microphone module are compatable with the C 7192B handheld and C 7195B beltpack transmitters. All transmitters are sold separately. C 7192B Handheld Microphone Transmitter. -
Page 8: Maintenance
Okayo Portable PA System Okayo Portable PA System Maintenance Avoid heat, humidity DO NOT place the unit in direct sunlight or on a hot surface for extended periods. Store the unit at room temperature. Keep the unit well ventilated and away from flames or other heat sources. - Page 9 Okayo Portable PA System Okayo Portable PA System Handheld UHF Wireless Microphone (C 7192B) 1. Protective screen head 5. Up/down frequency adjustment buttons 2. Rubberised body 6. LED power indicator 3. Frequency set button 7. Power switch 4. LCD screen 8.
-
Page 10: Specifications
Okayo Portable PA System Okayo Portable PA System Specifications Overall Carrier frequency: ................................640 - 664MHz Channels:.................................96 (frequency dependant) LCD window: ................................Channel, Frequency Channel adjustment: ........................Select using UP and DOWN buttons Frequency modulation:.................................24MHz max. Ambient temperature:................................-10ºC ~ +50ºC Dynamic range:....................................100dB Total harmonic distortion (T.H.D.):..............................<0.5% Pre-emphasis:....................................50μS... - Page 11 Okayo Portable PA System Okayo Portable PA System...
- Page 12 Altronic Distributors warrants this product for one year from date of purchase from Altronics or its resellers to the consumer. If this item is part of an installation or another product, please contact the installer or supplier for your warranty. During the warranty period, we undertake to repair or replace your product at no charge if found to be defective due to a manufacturing fault.
