Okayo Portable PA System
Operating Instructions
C 7310
Basic PA
C 7312
PA with UHF Wireless Mic Receiver
C 7314
PA with UHF Wireless Mic Receiver &
MP3 Player
C 7315
Wireless Handheld Mic
C 7316
Beltpack Transmitter
C 7317
UHF Wireless Receiver Module
C 7318
Digital Audio Player Module
C 7319
Bluetooth® Module
Manufactured for Altronic Distributors Pty Ltd.
Advertisement
Table of Contents
Related Manuals for Okayo C 7319
Summary of Contents for Okayo C 7319
-
Page 1: Operating Instructions

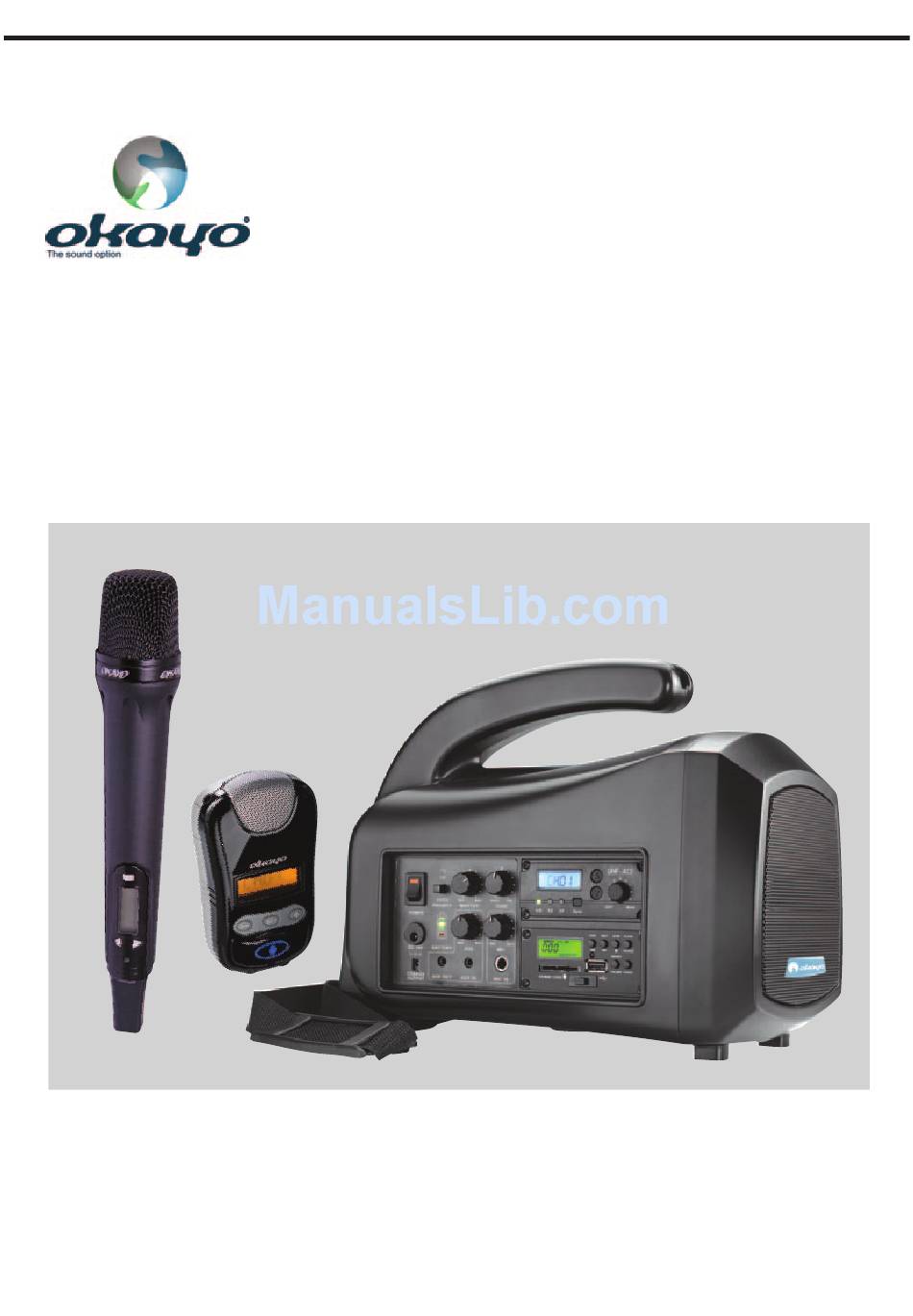

Okayo Portable PA System Operating Instructions C 7310 Basic PA C 7312 PA with UHF Wireless Mic Receiver C 7314 PA with UHF Wireless Mic Receiver & MP3 Player C 7315 Wireless Handheld Mic C 7316 Beltpack Transmitter C 7317... - Page 2 Okayo Portable PA System Thank you for purchasing this Wireless Portable Sound System. This manual contains comprehensive instructions on it’s operation. Please read it carefully before use and this unit will perform well. *All peripherals and accessories that are not included in the package are available separately.
-
Page 3: Battery Replacement
Okayo Portable PA System Okayo Portable PA System Features 1. Controls, battery meter, mic in 5. LED indicator C 7315 2. Digital audio player C 7318 6. Drop in handheld transmitter charger C 7315 3. UHF Receiver C 7317 7. Strap buckle 4. -
Page 4: Controls And Operation
Okayo Portable PA System Okayo Portable PA System Controls and Operation 1. Power switch 2. VOICE PRIORITY indicator LED 3. VOICE PRIORITY button When activated LED (2) will illuminate 4. MASTER volume knob 5. TONE control knob 6. Battery meter 7. - Page 5 Okayo Portable PA System Okayo Portable PA System Change channel manually Press and hold the UP or DOWN buttons (6) until the channel number is blinking. Select the desired channel using the UP or DOWN buttons. A selected channel number will be confirmed in 1 second if no more adjustments are made to it.
- Page 6 Okayo Portable PA System Okayo Portable PA System Handheld UHF Wireless Microphone C 7315 1. Mesh head 7. Talk/Mute button 2. Handheld tube 8. Power Hi/Low switch 3. Power indicator 9. Battery compartment 4. Power ON/OFF button 10. Battery compartment cover 5.
- Page 7 Okayo Portable PA System Okayo Portable PA System Pendant Beltpack UHF Wireless Transmitter C 7316 1. POWER/MUTE switch (MUTE indicator) 8. Neck strap hole 2. Channel/Volume switch 9. DC charging input 3. LCD screen 10. Strap hole 4. Mesh head (hidden microphone) 11.
-
Page 8: Troubleshooting
Okayo Portable PA System Okayo Portable PA System Volume switch The LCD will display the current volume level when you press + or – (VOL. 1~3). Frequency synchronization 1. When the power is on, press "Sync" button. The device finds a clear channel and waits for synchronization. -
Page 9: Maintenance
Okayo Portable PA System Okayo Portable PA System Maintenance Avoid heat, humidity DO NOT place the unit in direct sunlight or on a hot surface for extended periods. Store the unit at room temperature. Keep the unit well ventilated and away from flames or other heat sources. - Page 10 Okayo Portable PA System Okayo Portable PA System Figure 11: Bluetooth® receiver module C 7319 1. Power indicator 2. Bluetooth connectivity indicator 3. Audio frequency indicator 4. ON/OFF Volume switch Operation of C 7319 Bluetooth Receiver 1. Turn the knob clockwise to switch on the Bluetooth module. Set a mid-range volume level to begin.
-
Page 11: Specifications
