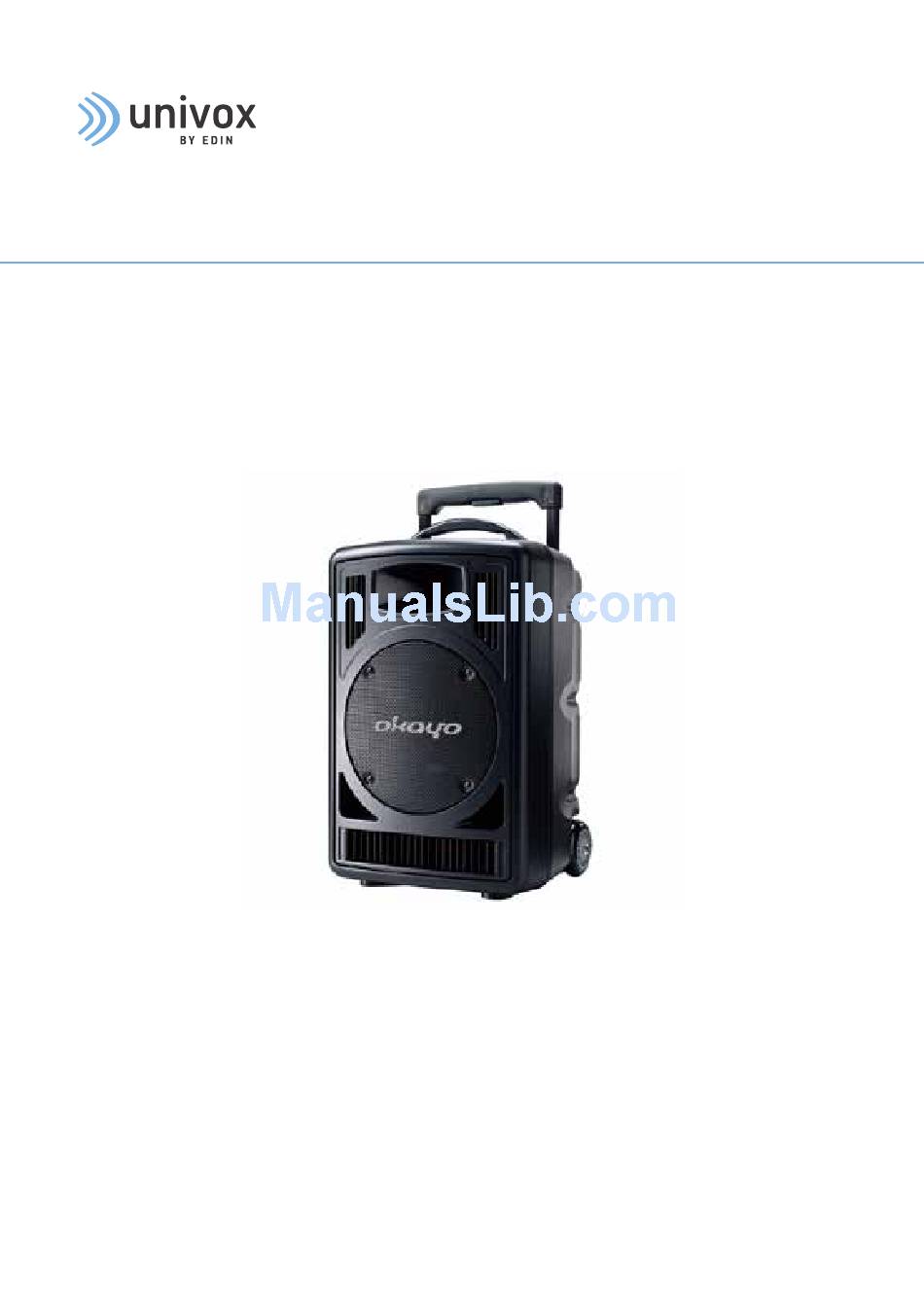

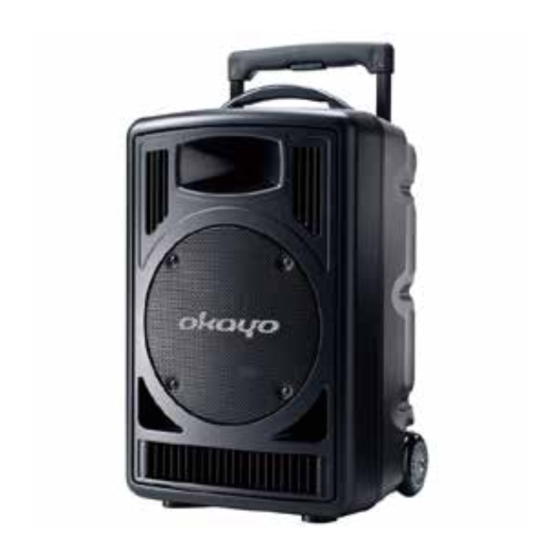

- Page 1 GPA-820 D1 Wireless active speaker with Duo Receiver User Guide Part no 504820...
-
Page 3: Table Of Contents
Contents Features Product mix & Illustrations Controls and Operations UHF Duo Receiver Module DR-500 UHF Audiolink Transmitter TX-701-820 Troubleshooting Important Maintenance Guideline Specifications Environment Important notes Features 120W power output (max). Two-way speaker – 8” woofer and 1” tweeter – deliver great sound projection. Supports max two UHF ACS receiver modules (DR-501A) or UHF Duo receiver modules (DR-500) allows 4 wireless microphones to operate concurrently. -
Page 4: Product Mix & Illustrations
Product Mix GPA-820/828 series Model UHF Audiolink CD Player Transmitter Module CD-800S+ TX-701-820 GPA-820 GPA-820W1 GPA-820WT1 GPA-820D1 GPA-820DU1 GPA-828 GPA-828W1 GPA-828WT1 GPA-828D1 GPA-828DU1 Illustration LINE 10. UHF Audiolink Transmitter Module 1. Horn Tweeter 7. Wireless UHF Receiver Module DR-501A TX-701-820 2. -
Page 5: Controls And Operations
Connecting and searching Bluetooth device on your tablet device when under pairing mode. When it searched and completed, select a device named “OKAYO GPA” from pairing list and connected. It will have a tone sound when paired and steady light indicated on Bluetooth button. You can now streaming audio via Bluetooth. -
Page 6: Uhf Duo Receiver Module Dr-500
1. LCD Window (Display Channel Number / Reception Strength) 2. Channel A Power Switch and Volume Control 3. Up / Down Frequency Selector 4. Frequency Set Key 5. Channel B Power Switch and Volume Control Operation and Setting Switch on/Switch off 1. - Page 7 4. UsingtwoDR-500wirelessreceivermodulessimultaneously: Press “Up” and “Down” Frequency Selector keys (3) simultaneously on DR-500 module 1 for more than 1 second, you could find two available channels. Switch on two Transmitters used for Wireless Receiver Module 1 and adjust the channel number accordingly.
-
Page 8: Uhf Audiolink Transmitter Tx-701-820
1. LCD Window 2. TX Indicator 3. AF indicator 4. Frequency SET 5. UP / DOWN 6. Power/ Volume Knob Operation ON / OFF Channel Selection Press Frequency SET button enter into the selection mode, LCD Window will blink and shows channel , press UP / DOWN button into desired channel or quit without setting in 10 seconds. -
Page 9: Troubleshooting
Troubleshooting Failed to Power On Be sure batteries are allocated and put in correct direction. Be sure power adapter is plugged well. No Sound Output Be sure transmitter and receiver stay at same channel. Be sure volume control on transmitter and receiver are turned properly. Be sure Master is turned properly. -
Page 10: Specifications
Specifications Output power 80W (RMS) / 120W (MAX) Speaker 8" woofer and 1" tweeter Audio inputs Combo/6.3Φ-Mic in, 3.5Φ-Aux in, RCA-Line in, MIC/LINE Switch Audio outputs 3.5Φ-Aux OUT, RCA-Line out DR-501A or DR-500, up to 2 Receiver modules CD-800S+ CD Player Bluetooth Receiver Built-in ECHO / DELAY (GPA-828 only) -
