This operating guide also includes instructions for the following portable PA accessories:
C 7187B: Additional UHF wireless microphone receiver module
C 7189B: Wireless link transmitter module
C 7196A: Beltpack charging pod
C 7197A: Lapel microphone to suit beltpack transmitter
C 7198A: Headset microphone to suit beltpack transmitter
C 7188: Bluetooth module
S 5078: Replacement battery 2.9Ah.
Manufactured for Altronic Distributors Pty Ltd.

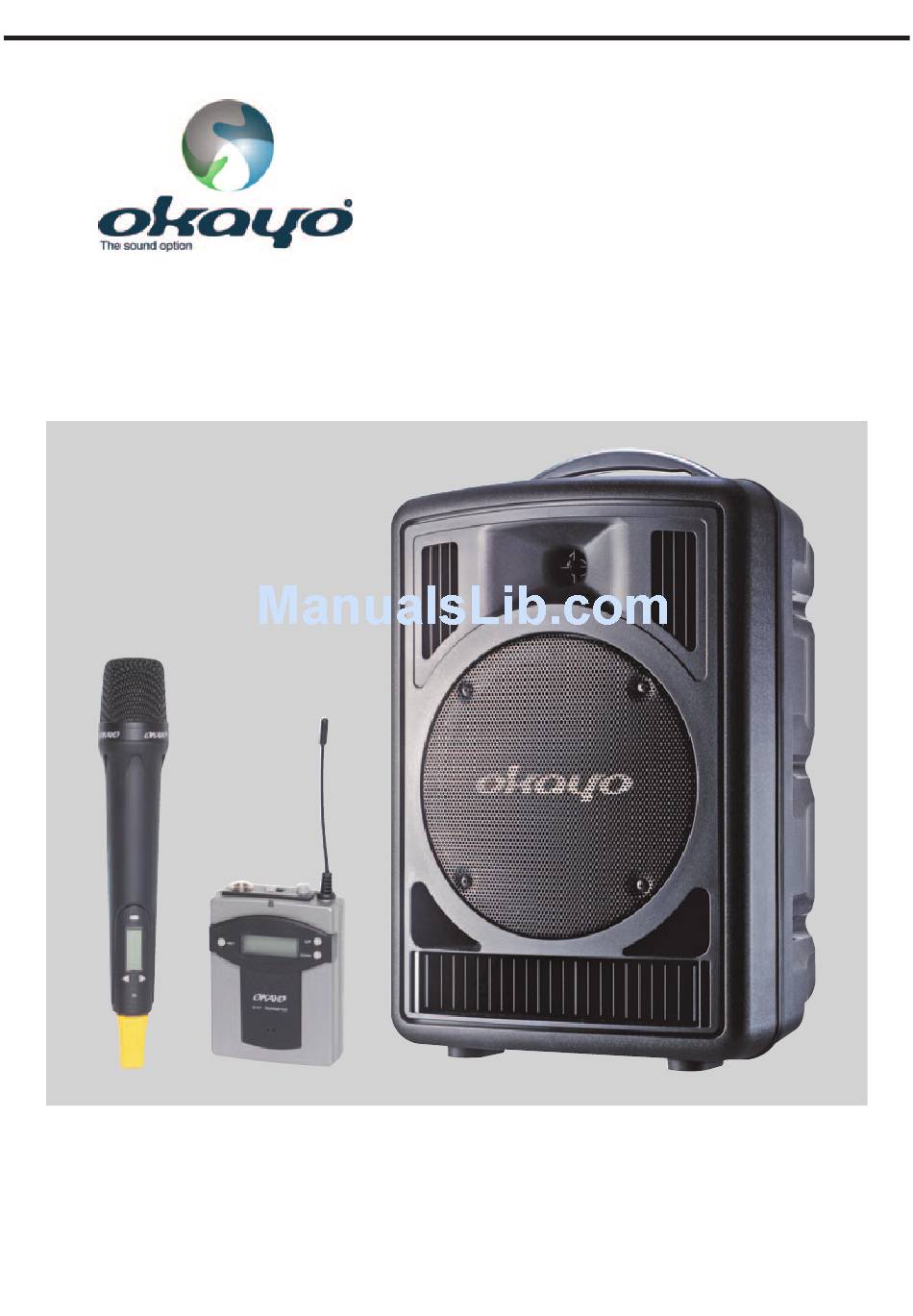

Operating Instructions
C 7180
C 7182B
C 7184B
PA with UHF Wireless Mic Receiver &
C 7185B
PA with UHF Wireless Mic Receiver,
C 7192B
C 7193B
C 7195B

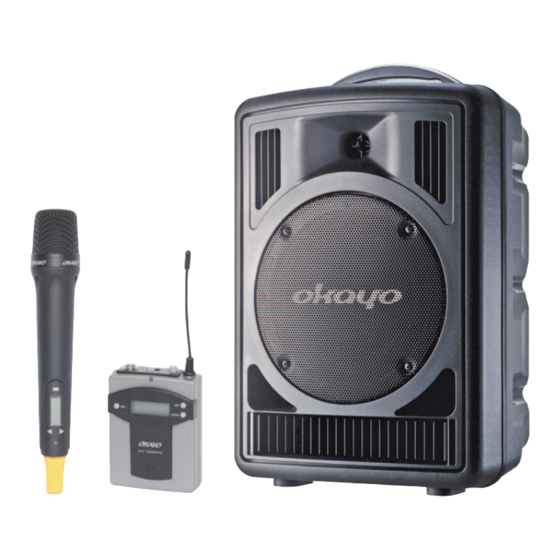

Okayo Portable PA System
PA with UHF Wireless Mic Receiver
CD Player & VOX Muting
Wireless Handheld Mic
Wireless Handheld Condenser Mic
Beltpack Transmitter
Basic PA
CD Player
Advertisement
Table of Contents
Related Manuals for Okayo Portable PA System
Summary of Contents for Okayo Portable PA System
-
Page 1: Operating Instructions
Okayo Portable PA System Operating Instructions C 7180 Basic PA C 7182B PA with UHF Wireless Mic Receiver C 7184B PA with UHF Wireless Mic Receiver & CD Player C 7185B PA with UHF Wireless Mic Receiver, CD Player & VOX Muting... - Page 2 Power & Charging Functions The portable PA system is powered by 240V AC mains via IEC socket (see figure 2 for location) or via the internal bat- tery pack. When operating for the first time the internal battery will require charging for up to 8 hours. Charging will occur whenever the unit is plugged into the 240VAC mains supply.
- Page 3 Okayo Portable PA System Okayo Portable PA System Figure 1: Front 1. Handle 2. Horn Tweeter 3. Woofer 4. Speaker Grill 5. Port 6. Heatsink Figure 2: Rear (shown configured with 2 x UHF wireless microphones & CD player) 1. UHF receiver modules (blanking panels fitted in base models) 2.
- Page 4 (ie: UHF, CD/MP3 player, RCA stereo input and wired microphones). If an external speaker is required, it can be connected to the portable PA system via 6.35mm jack (Figure 3 only). Note: this feature is designed for 8 ohm minimum impedance speakers. Overall amplifier output will be split between both speakers when in use.
- Page 5 Okayo Portable PA System Okayo Portable PA System Figure 5: UHF Wireless Mic Module (C 7187B) 1. LCD screen 2. A/B diversity indicator 3. RX audio indicator 4. AF audio level indicator 5. Frequency set button 6. Up/down frequency adjustment buttons 7.
- Page 6 Okayo Portable PA System Wireless Microphone Module - Figure 5. The portable PA system can be equipped with one or two UHF microphone modules. Each module features 96 selectable channels for interference free operation with multiple microphones or PA systems.
- Page 7 Okayo Portable PA System Okayo Portable PA System CD Playback: • Insert a disc into the slot with the data side facing down, and playback starts automatically. Track number and playing time will be displayed on display panel. • When inserting a disk into the CD player or taking a disc out, it is necessary to let the CD player insert the disk and return automatically.
- Page 8 Okayo Portable PA System Okayo Portable PA System Remote Functions (C 7184B Model Only) - Figure 8: RANDOM (RAN): A random selection is played from available tracks. Press RAN and LCD will show SHUFFLE. Press 9 : to select next or previous random track.
- Page 9 Okayo Portable PA System Okayo Portable PA System SHUFFLE: Selects tracks randomly. PROGRAM: Will play programmed tracks. MEMORY: Will play tracks stored in memory. A-B: Repeat playing between A and B. In MP3 mode the display will appear with the folder number.
- Page 10 Okayo Portable PA System Okayo Portable PA System Transmitter Operation All portable PA’s equipped with a UHF wireless microphone module are compatable with the C 7192B handheld and C 7195B beltpack transmitters. All transmitters are sold separately. C 7192B Handheld Microphone Transmitter - Figure 9.
- Page 11 Okayo Portable PA System Okayo Portable PA System Figure 9: Handheld UHF Wireless Microphone (C 7192B) 1. Protective screen head 5. Up/down frequency adjustment buttons 2. Rubberised body 6. LED power indicator 3. Frequency set button 7. Power switch 4. LCD screen 8.
- Page 12 Okayo Portable PA System Okayo Portable PA System Specfications Portable PA Amplifier Audio Link Transmitter Module (C 7189B) Sensitivity ............95dB 1W @ 1m RF Output ................10mW Maximum SPL ..............112dB Spurious Emission ............<250mW Frequency Response ..........20Hz to 20kHz Antenna ................Internal Output Power ..............50W RMS Dimensions ............88 x 64 x 24mm...
- Page 13 Okayo Portable PA System Table 1: UHF Wireless Channel Guide 640-664MHz Frequency 640.1 640.9 640.4 641.1 640.6 641.4 641.6 642.4 641.9 642.6 642.1 642.9 643.1 643.8 643.3 643.5 644.3 644.5 645.3 644.8 645.5 645.8 646.1 646.9 646.4 647.1 646.6 647.4 647.6...
- Page 14 Okayo Portable PA System Figure 11: Bluetooth® receiver module C 7188 1. Power indicator 2. Bluetooth connectivity indicator 3. Audio frequency indicator 4. ON/OFF Volume switch Operation of C 7188 Bluetooth Receiver 1. Turn the knob clockwise to switch on the Bluetooth module. Set a mid-range volume level to begin.
