Asante FriendlyNet FS4004DS User Manual

Asant technologies inc user's manual fast ethernet switch fs4004ds, fs4008ds
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FriendlyNet
Fast Ethernet Switch
FS4004DS/FS4008DS
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FriendlyNet FS4004DS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asante FriendlyNet FS4004DS

Summary of Contents for Asante FriendlyNet FS4004DS

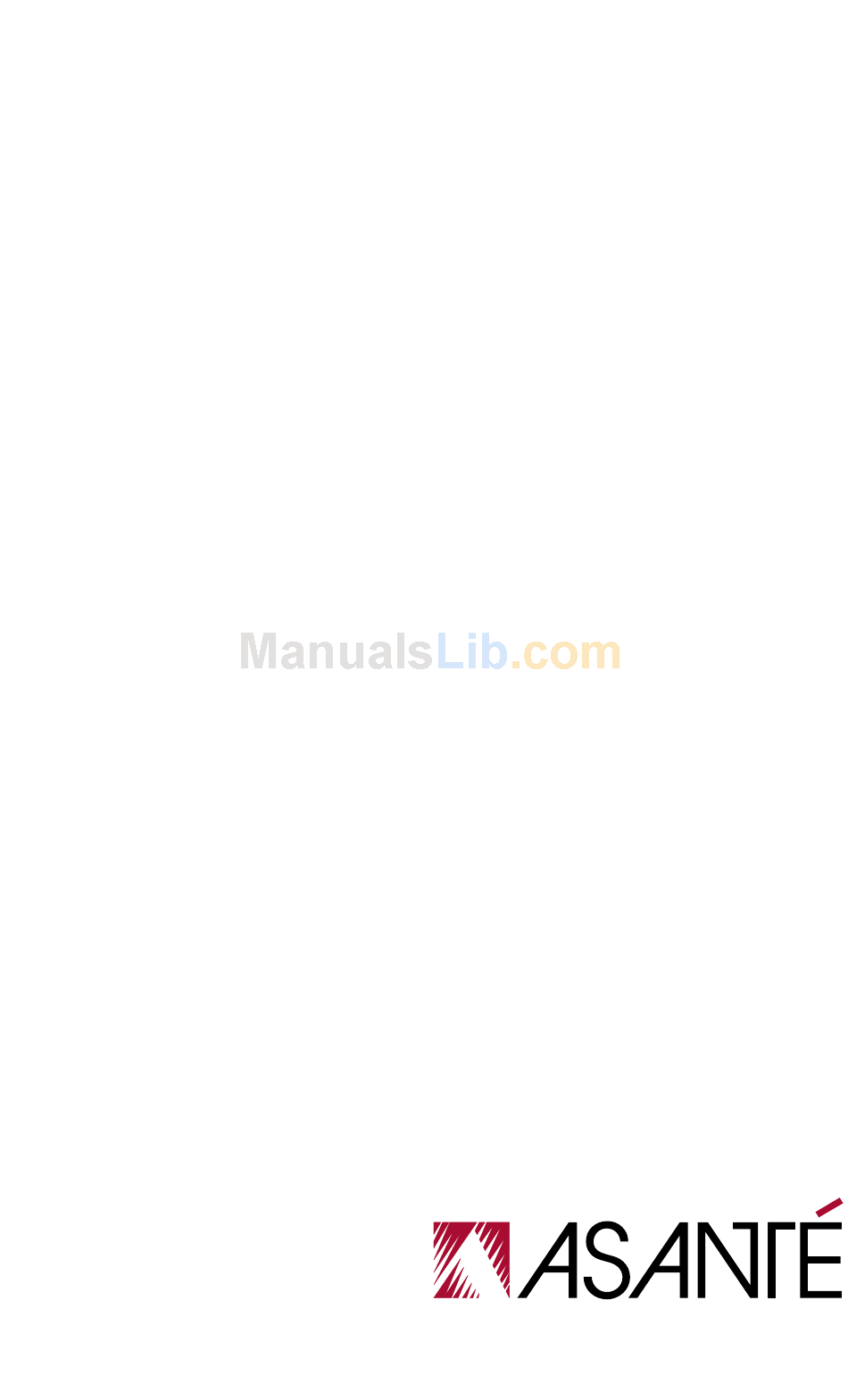

  • Page 1 FriendlyNet Fast Ethernet Switch FS4004DS/FS4008DS User’s Manual...
  • Page 3 FriendlyNet Fast Ethernet Switch FS4004DS/FS4008DS User’s Manual Asanté Technologies, Inc. 821 Fox Lane San Jose, CA 95131 1.800.662.9686 www.asante.com September 1997 Part Number: 06-00384-00 Rev. A...

  • Page 4: Limitation Of Liability

    Copyright Notice Copyright 1997 by Asanté Technologies, Inc. All rights reserved. No part of this manual, or any associated artwork, software, product design or design concept, may be copied, reproduced or stored, in whole or in part, in any form or by any means mechanical, electronic, optical, photocopying, recording or otherwise, including translation to another language or format, without the express written consent of Asanté...

  • Page 5: Table Of Contents

    FS4004DS.........2-2...
  • Page 6 FS4004DS ........

  • Page 7: About This Manual

    This manual discusses two models of the FriendlyNet Fast Ethernet Switch: FS4004DS — four-port 10/100Mps Fast Ethernet Switch FS4008DS — eight-port 10/100Mps Fast Ethernet Switch These models are similar in every respect except for the number of ports. Therefore, unless otherwise noted, all information provided in this manual is applicable to both.

  • Page 8: Document Conventions

    Asanté Technical Support. Document Conventions This manual uses the terms “Switch” (first letter upper case) to refer to the FriendlyNet FS4004DS or FS4008DS 10/100Mbps Fast Ethernet Switch, and “switch” (first letter lower case) to refer to all other Ether- net switches.

  • Page 9: Introduction

    This chapter introduces the FriendlyNet Fast Ethernet Switch. It also provides an overview of Fast Ethernet and switching technology. FriendlyNet Fast Ethernet Switch Thank you for purchasing the Asanté FriendlyNet FS4004DS or the FriendlyNet FS4008DS 10/100Mbps Fast Ethernet Switch. The FS4004DS and FS4008DS are unmanaged 10/100 Fast Ethernet switches designed to address increasing network bandwidth needs and accommodate future network expansion.

  • Page 10: Features

    Introduction Features The FriendlyNet FS4004DS and the FS4008DS have the following fea- tures: Compact size — designed for small to large workgroups in space-limited areas; installs on desktop, mounts on wall, or installs in a standard equipment rack (depends on model)

  • Page 11: Performance Features

    Performance Features The FriendlyNet FS4004DS and the FS4008DS have the following per- formance features: Store-and-forward switching scheme ensures data integ- rity N-Way auto-negotiation on all ports automatically senses port speed (10/100 Mbps) and duplex mode (full duplex or half duplex)

  • Page 12: Switching Technology

    Introduction Switching Technology An Ethernet switch is a device that can direct network traffic among several Ethernet and Fast Ethernet networks. A switch increases network capacity and decreases network loading by making it possible for a LAN to be divided into different segments. Switch acts as a bridge between network segments A switch acts as a high-speed selective bridge between individual seg- ments.

  • Page 13: Installation

    Cabling and voltage requirements Mounting configurations Connecting network devices Powering on the Switch Package Contents The FriendlyNet FS4004DS and the FS4008DS are shipped with the following items: (1) FriendlyNet 4-port FS4004DS or 8-port FS4008DS Fast Ethernet Switch (1) AC power cord...

  • Page 14: Components

    This section describes the front- and back-panel layouts of the FS4004DS and FS4008DS. FS4004DS The front panel of the FS4004DS consists of four 10/100 Mbps ports, one Uplink port, and LED indicators. See Figure 2-1. Figure 2-1 FriendlyNet FS4004DS front panel The back panel of the FS4004DS consists of an AC power connector.

  • Page 15: Fs4008Ds

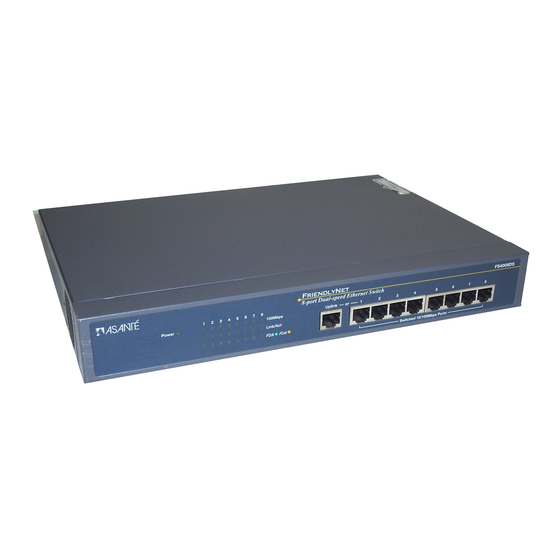

    FS4008DS The front panel of the FS4008DS consists of eight 10/100 Mbps ports, one Uplink port, and LED indicators. See Figure 2-3. Power Figure 2-3 FriendlyNet FS4008DS front panel The back panel of the FS4008DS consists of a power switch, an AC power connector, and a system fan.

  • Page 16: Cabling And Voltage Requirements

    Installation Cabling and Voltage Requirements This section describes the cabling and voltage requirements of the Switch. Cabling Requirements 100Base-TX requires data-grade (Category 5) UTP (unshielded twisted- pair) cable. Important! Some installations have Category 5 cabling but do not have wall outlets and/or wiring closet punch-down blocks that meet Category 5 require- ments.

  • Page 17: Mounting Configurations

    Mounting Configurations This section describes how to mount the Switch on a desktop or a wall. It also explains how to install the Switch in an equipment rack. Desktop Mounting To mount the Switch on a desktop or shelf: Attach the four rubber feet (supplied) to the bot- tom of each corner on the Switch.

  • Page 18: Wall Mounting The Fs4004Ds

    The FS4004DS comes with a wall-mount kit. Important! The FS4008DS cannot be mounted on a wall. To mount the FS4004DS on a wall, consider the following when select- ing a site for the FS4004DS: Select a site that is free of obstructions from other...

  • Page 19: Rack Mounting The Fs4008Ds

    Rack Mounting the FS4008DS The FS4008DS comes with a rack-mounting kit. Important! The FS4004DS cannot be installed in an equipment rack. The FS4008DS can be mounted in a standard 19-inch equipment rack. This rack can be placed in a wiring closet with other equipment.

  • Page 20: Connecting Network Devices

    Use a two-pair Category 5 UTP straight-through cable with RJ-45 connectors. Connect the PC to any of the Switch’s ports (1 -4 for the FS4004DS or 1 - 8 for the FS4008DS). See Figure 2-8. Power Figure 2-8 Connecting a PC to the Switch...

  • Page 21: Connecting A Hub To The Switch

    Use a two-pair Category 5 UTP straight-through cable with RJ-45 connectors. Connect the hub’s uplink port to any of the Switch’s ports (1 – 4 for the FS4004DS or 1 – 8 for the FS4008DS). See Figure 2-9. FS4008DS Power...

  • Page 22: Connecting A Hub Without An Uplink Port To The Switch

    Connect the Switch’s uplink port to any port on the hub. Using Cross-over Cable Connect any of the Switch’s ports (1 – 4 for the FS4004DS or 1 – 8 for the FS4008DS) to any port on the hub. Page 2-10 FriendlyNet...

  • Page 23: Device

    Connecting the Switch to Another Switch or Network Device The Switch can be connected to another switch or to other network devices (such as a router, bridge, etc.) via a two-pair Category 5 UTP straight-through or cross-over cable. See Figure 2-11. Switch A Power straight-through cable...

  • Page 24: Powering On The Switch

    Installation Powering on the Switch This section describes how to power on the FS4004DS and the FS4008DS Fast Ethernet Switch. FS4004DS The FS4004DS’s may be turned on with or without LAN segment cables connected. To power on the FS4004DS: Connect one end of the power cord (supplied) into the AC power connector on the FS4004DS’...

  • Page 25: Led Indicators

    This chapter explains how to interpret the front-panel LED indicators on the FriendlyNet Fast Ethernet Switch. The indicators are discussed in the following sections. LED indicators on the Switch LED indicators for power connections LED indicators for port connections LED indicators for Switch connections LED Indicators on the Switch The LED indicators on the Switch are used to facilitate monitoring and troubleshooting.

  • Page 26: Led Indicators For Power Connections

    LED Indicators The front-panel LEDs for the FS4004DS and the FS4008DS are shown in Figure 3-1 and Figure 3-2, respectively. Figure 3-1 FS4004DS LEDs Figure 3-2 FS4008DS LEDs LED Indicators for Power Connections After the Switch is turned on, the LED indicators should respond as follows: All LED indicators blink momentarily.

  • Page 27: Led Indicators For Port Connections

    LED Indicators for Port Connections Link/Activity LED The green Link/Activity LED indicates if there is a device detected on the other end of the port and if there is traffic on the port. Table 3-1 describes the possible status indications of the Link/Activity LEDs.

  • Page 28: Fdx/Col Led

    LED Indicators FDX/Col LED The FDX/Col (full duplex/collision) LED indicates when a port is in full duplex (FDX) mode, or when two or more stations on the specific net- work segment attempt to transmit packets simultaneously, causing a packet collision. Note: This LED can display both green and yellow colors (see Table 3-1).

  • Page 29: Led Indicators For Switch Connections

    LED Indicators for Switch Connections PC to Switch Connection The LED indicators for PC connection are dependent on the PC’s LAN card capabilities. Table 3-2 describes the possible status indications of the PC to Switch connections: Table 3-2 PC to Switch Connection LED Status Switch to Hub Connection Table 3-3 describes the possible status indications of the Switch to Hub connection:...

  • Page 30: Switch To Switch Or Other Network Devices Connection

    LED Indicators Switch to Switch or other Network Devices Connection Table 3-4 describes the possible status indications of the Switch to switch or other network devices connection. Table 3-4 Switch to Switch Connection LED Status Cable Types Straight Cable Crossover Cable Page 3-6 100Mbps Link/Act...

  • Page 31: Troubleshooting

    Table A-1 describes how to troubleshoot problems with your network and/or the Switch by monitoring the Switch’s LEDs. Problem Power LED is off Collision LED is blinking constantly Troubleshooting Table A-1 Troubleshooting Action Make sure the power adapter is connected to the power outlet and is properly inserted into the power connector on the switch.
  • Page 32 Troubleshooting Problem Link LED is off Slow performance Page A-2 Action Make sure the switch is powered on. Make sure the device on the other end is pow- ered on. Make sure the proper cabling is used between the device and the Switch (refer to the cable guidelines specified in Chapter 2).

  • Page 33: Specifications

    10Mbps (half duplex): 100Mbps (half duplex) 20Mbps (full duplex): 200Mbps (full duplex) Star 10Base-T: 2-pair UTP Category 5 (100m maxi- mum) 100Base-TX: 2-pair UTP Category 5 (100m maxi- mum) FS4004DS: 4 x 10/100 Mbps ports FS4008DS: 8 x 10/100 Mbps ports Page B-1...
  • Page 34 32 – 122 F (0 - 50 C) -22 – 140 F (-30 – 60 C) 5% to 95% non-condensing FS4004DS: 232 x 142 x 43 mm (1U) FS4008DS: 324 x 231 x 43 mm (1U) FS4004DS: 1.2Kg FS4008DS: 2.5Kg...
  • Page 35 FS4004DS and FS4008DS Specifications Performance Transmission Method RAM Buffer Filtering Address Table Packet Filtering/ Forwarding Rate Performance Specifications Store-and-forward FS4004DS: 4MB per device FS4008DS: 8MB per device 8K entries per device 148,800 pps per port (for 100 Mbps) Page B-3...

  • Page 37: Contacting Technical Support

    Contacting Technical Support To contact Asanté Technical Support: Telephone Fax-Back Internet Mail World Wide Web Site Bulletin Board Service (BBS) ARA BBS (guest log-in) AppleLink Mail/BBS FTP Archive Technical Support Hours 6:00 a.m. to 5:00 p.m. Pacific Standard Time USA, Monday - Friday. Technical Support (800) 622-7464 (408) 432-6018...
  • Page 39 FDX/collision LED features filtering forwarding rate, data FriendlyNet switch. See FS4004DS or front panel LEDs, overview FS4004DS FS4008DS features of overview switch. See FS4008DS or FS4004DS performance address table...
  • Page 40 FS4008DS (continued) mounting options overview performance features power, connecting specifications full duplex troubleshooting help. See technical support or troubleshooting connecting to switch to switch, LED humidity IEEE 802.3 installation cabling requirements devices, connecting hub to switch PC to switch switch to switch network devices, connecting package contents 2-12...
  • Page 41 LED vs. bridge See also FS4008DS or FS4004DS switching overview scheme technology, overview system fan table filtering address MAC address entry technical specifications...
  • Page 44 ASANTÉ TECHNOLOGIES, INC., 821 FOX LANE, SAN JOSE, CA 95131 PHONE: 408.435.8388, 800.662.9686 • FAX: 408.432.7511 • e-mail address: sales@asante.com • World Wide Web site: http://www.asante.com ©1997 Asanté Technologies Inc., Asanté is a trademark of Asanté Technologies, Inc. All brand names and products are trademarks or registered trademarks of their respective holders. September 1997 Part Number 06-00384-00 Rev.
