Magnadyne Keypad Keyless Entry System MKE-300A User Manual

User's Manual

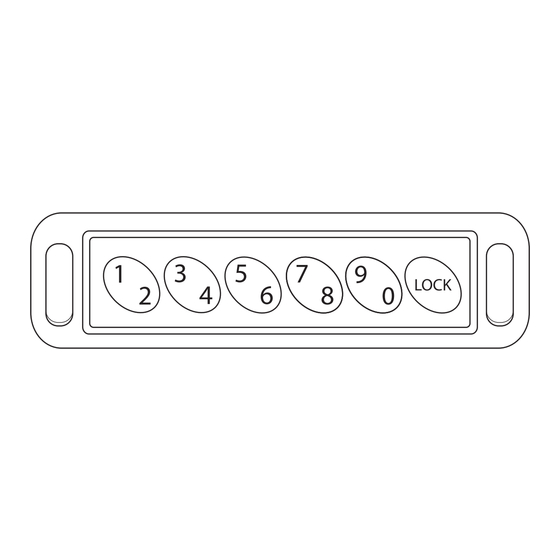

Keypad Keyless
Entry System
Models:
MKE-300A / MKE-400A
For Technical Assistance call (800) 638-3600 or visit www.magnadyne.com
Transmitters
Turns On / Off Porch Light
(Can be Programmed to
Unlock Cargo Doors)
Locks All Doors Unlocks Entry
(Including Cargo) Doors
Unlocks Cargo Doors
(Can be Programmed to
Turn On / Off Porch Light)
Housing
Program
Button

Programming

A. 3-Button Transmitter Programming

Note: This mode will only retain the last 4 remote
transmitters programmed. If the transmitter memory
is exceeded, the security system will start deleting
transmitters from memory in chronological order.
1. Turn the ignition switch to the "ON" position.
2. Within 15 seconds, push the Program Button
(located on back of the housing) 3 times. The
onboard LED will be flashing and the beeper will
emit a long chirp to indicate the system is in
Transmitter Programming mode.
3. Press and hold any button on the transmitter
until the onboard LED turns on for 2 seconds and
the beeper responds with a confirming chirp, indi-
cating the signal has been stored into memory.
4. If you have additional transmitters (up to 4)
that need to be programmed, repeat step 3 for
each transmitter.
Exit: Turn the ignition switch to the "OFF" position, or
leave it for 15 seconds. The onboard LED turns off
and the beeper will emit 3 long chirps to confirm exit.
Press Simultaneously to
Turn On / Off Porch Light
Locks All Doors
(Including Cargo)
Locks All
Cargo Doors
LED
Antenna

B. 4-Button Transmitter Programming

Note: This mode will only retain the last 4 remote
transmitters programmed. If the transmitter memory
is exceeded, the security system will start deleting
transmitters from memory in chronological order.
1. Turn the ignition switch to the "ON" position
within 15 seconds.
2. Push the Program Button (located on back of
the housing) 5 times. The onboard LED will be
flashing and the beeper will emit a long chirp to
indicate the system is
Programming mode.
3. Press and hold any button on the transmitter
until the onboard LED turns on for 2 seconds and
the beeper responds with a confirming chirp, indi-
cating the signal has been stored into memory.
4. If you have additional transmitters (up to 4)
that need to be programmed, repeat step 3 for
each transmitter.
Exit: Turn the ignition switch to the "OFF" posi-
tion, or leave it for 15 seconds. The onboard LED
turns off and the beeper will emit 3 long chirps to
confirm exit.
Unlocks Entry
Doors
Unlocks All
Cargo Doors
in Transmitter
