Magnadyne Keypad Keyless Entry System MKE-100 User Manual

User's Manual

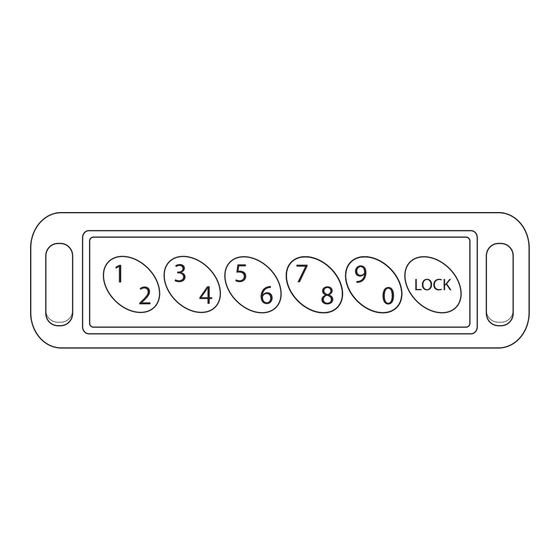

Keypad Keyless
Entry System
Models:
MKE-100 / MKE-300 / MKE-400
For Technical Assistance call (800) 638-3600 or visit www.magnadyne.com
Transmitters
Locks All Doors Unlocks Entry
(Including Cargo) Doors
Turns On / Off
Porch Light
Programming
A. 3-Button Transmitter Programming
(Does not apply to MKE-100)
Note: This mode will only retain the last 4 remote
transmitters programmed. If the transmitter mem-
ory is exceeded, the security system will start
deleting transmitters from memory in chronologi-
cal order.
1. Turn the ignition switch to the "ON" position
within 15 seconds.
2. Push the Program switch 3 times, the
onboard LED will be flashing and the beeper will
emit a long chirp to indicate the system is in
Transmitter Programming mode.
3. Press and hold any button on the transmitter
until the onboard LED turns on for 2 seconds
and the beeper responds with a confirming
chirp, indicating the signal has been stored into
memory.
4. If you have additional transmitters (up to 4)
that need to be programmed, repeat step 3 for
each transmitter.
Exit: Turn the ignition switch to the "OFF" posi-
tion, or leave it for 15 seconds. The onboard
LED turns off and the beeper will emit 3 long
chirps to confirm exit.
B. 4-Button Transmitter Programming
(Does not apply to MKE-100)
Note: This mode will only retain the last 4 remote
transmitters programmed. If the transmitter mem-
ory is exceeded, the security system will start
deleting transmitters from memory in chronologi-
cal order.
Press Simultaneously to
Turn On / Off Porch Light
Locks All Doors Unlocks Entry
(Including Cargo) Doors
Locks All Unlocks All
Cargo Doors Cargo Doors
1. Turn the ignition switch to the "ON" position
within 15 seconds.
2. Push the Program switch 5 times, the
onboard LED will be flashing and the beeper will
emit a long chirp to indicate the system is in
Transmitter Programming mode.
D. Programming the User Code
(The default user code is "54321" )
Note: This mode will only retain the last 4 "user
codes" programmed. If the user code memory is
exceeded, the security system will start deleting
user codes from memory in chronological order.
1. Enter the program code "12345" on the key-
pad. The beeper will emit a long chirp to confirm
the correct code was entered.
2. Enter a new 4 to 6 digit user code on the key-
pad. Do not use "1234".
3. Finish by pressing the "LOCK" key on the key-
pad. 1 long beep with 2 short beeps will confirm
the new user code has been stored into memory.
4. If you have additional user codes (up to 4)
that need to be programmed, repeat steps 2-3
for each new user code.
Exit: Press and hold the "LOCK" key for 1 sec-
ond or if 15 seconds of inactivity occurs during
the above steps, the unit will revert back to the
last successfully stored code. 3 longs beeps
confirm exit.
