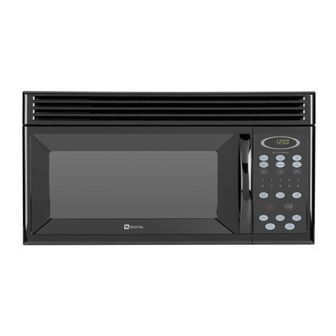

Electric microwave over the range
Hide thumbs Also See for MMV1153AAW:

Advertisement

Over The Range
Over The Range
Installation Instructions
Electric Microwave
Keep instructions for future reference.
Be sure manual stays with microwave.
Contents
For Installation
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . .
. . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . .
. . . . .
Part No. 8101P632-60
3828W5U0337
(08-02-01)
2
6
. .
8
9
11
13
15
17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMV1153AAW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Maytag MMV1153AAW

  • Page 1: Table Of Contents

    Over The Range Over The Range Installation Instructions Contents Important Safety Information ....Parts, Tools, Materials ..... STEP 1: Prepare The Electrical Connection STEP 2: Prepare The Venting System .
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY A. DO NOT attempt to operate this oven with the C. DO NOT operate oven if it is damaged. It is particularly important that oven door close door open since open-door operation can result properly and that there is no damage to the: in harmful exposure to microwave energy.
  • Page 3: Save These Instructions

    IMPORTANT SAFETY INFORMATION Recognize this symbol as a SAFETY message WARNING When using electrical equipment, basic safety precautions should be followed to reduce the risk of burns, electrical shock, fire, or injury to persons. 1. READ all instructions before using equipment. Contact nearest authorized service facility for examination, repair, or adjustment.
  • Page 4: Grounding Instructions

    IMPORTANT SAFETY INFORMATION FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT ( U.S.A. ONLY) This equipment generates and uses ISM frequency Reorient the receiving antenna of the radio or energy and if not installed and used properly, that is in television. strict accordance with the manufacturer’s instructions, Relocate the Microwave Oven with respect to the may cause interference to radio and television...
  • Page 5 IMPORTANT SAFETY INFORMATION WARNING To avoid risk of peej8o1m (peej8o1m (peej1.01 0 0 1.0001 115.9077 669.6001 ]/Vertical false >> BDC /Pgf 6uT)Tj (pee72gf BMC...
  • Page 6: Parts, Tools, Materials

    Parts, Tools, Materials The following parts are supplied with the oven: NOTE: Depending on your ventilation requirements, you may not use all of these parts. Backdraft damper / duct connector One power cord clamp and (for roof-venting or wall-venting installation) One dark-colored mounting screw Not Actual Size (2 pieces must be assembled as shown) (to hold the power cord)
  • Page 7 Parts, Tools, Materials You will need the following tools and materials for the installation: Carton or other heavy material for covering the counter top. Clear Tape Stud Finder or Thin Nail (for taping the templates to the wall) Keyhole Saw (for the power cord hole) Saber Saw (for cutting vent holes for roof or wall vending)
  • Page 8: Step 1: Prepare The Electrical Connection

    STEP 1: Prepare The Electrical Connections W A R N I N G AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED! 1. Locate the grounded electric outlet for this oven in the Upper cabinet above the oven, as shown in Figure 4. Cabinet NOTE: The outlet should be on a circuit dedicated to the microwave oven (120V, 60 Hz., AC only) with a 15 or 20A...
  • Page 9: Step 2: Prepare The Venting System

    STEP 2: Prepare The Venting System NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings and length are shown in Figure 9, page 10. W A R N I N G - F I R E H A Z A R D THIS OVEN MUST BE PROPERLY VENTED! You may vent your oven in one of three ways.
  • Page 10 STEP 2: Prepare The Venting System Standard Fittings NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3” extension duct installed between the damper assembly and the adapter to prevent the exhaust damper’s sticking. Duct Length The total length of the duct system, including straight duct, elbows, transitions, and wall or roof caps must not exceed the equivalent of 140 feet.
  • Page 11: Step 3: Prepare The Venting Blower

    STEP 3: Prepare The Venting Blower To avoid risk of property damage, unplug the microwave oven or disconnect power at source by removing fuse or throwing circuit breaker. To avoid risk of personal injury, wear protective gloves when handling mounting plate. Before You Start 1.
  • Page 12 STEP 3: Prepare The Venting Blower 4. Reassemble the blower wire. See Figure 14. 5. Rotate the unit so that the exhaust ports face the rear of the cabinet. See Figure 15. When you insert blower unit, blower wire must be like figure 15. 6.
  • Page 13: Step 4: Prepare The Wall & Upper Cabinet

    STEP 4: Prepare The Wall & Upper Cabinet W A R N I N G To avoid personal injury or property damage, do not attempt to install this microwave oven if you cannot find a wall stud. Measure And Track/Tape Up The Templates 1.
  • Page 14 STEP 4: Prepare The Wall & Upper Cabinet W A R N I N G To avoid risk of personal injury, electrical shock or death: S S S S Note where electrical outlets and electrical wires are before you drill into the wall. S S S S Locate and disconnect power to any electrical circuits that could be affected by installing this oven.
  • Page 15: Step 5: Install The Mounting Plate

    STEP 5: Install The Mounting Plate The Oven Must Be Connected To At Least One Wall Stud. 1. Draw a vertical line on the wall at the center of the 30 wide space. Use the mounting plate as the template for the rear wall.
  • Page 16 STEP 5: Install The Mounting Plate For Wall-Vented • Make the box cutout for the rear wall duct. 1 piece mounting plate: ing a pencil, put dots through slots F and G, and through holes H and I. Remove the mounting plate and draw lines extending through the points.
  • Page 17: Step 6: Attach The Oven To The Wall

    STEP 6: Attach The Oven To The Wall W A R N I N G To avoid risk of personal injury or property damage, you will need two people to install this microwave oven. 1. Carefully lift microwave oven and hang it on support tabs (See Figure 26 at the bottom of the mounting plate.) Reaching power cord through upper cabinet, thread power supply cord through the...
  • Page 18 STEP 6: Attach The Oven To The Wall 5. Roof venting installation: Install ductwork through the vent opening in the upper cabinet. Complete the venting system through the roof according to the method needed. See Figure 33. See PREPARE THE VENTING SYSTEM, STEP 2. Use caulking gun to seal the exterior roof opening around the exhaust cap.
  • Page 19 E2004 Maytag Appliance Sales Co. Part No. 8101P632-60 A-08-02 Printed in China 03-04 3828W5U0337 (08-02-01)
