The QLogic iSR6200 is an Intelligent Storage Router that provides servers with iSCSI connectivity to SAN-attached Fibre
Channel based disk or tape storage.

Suggested Configurations

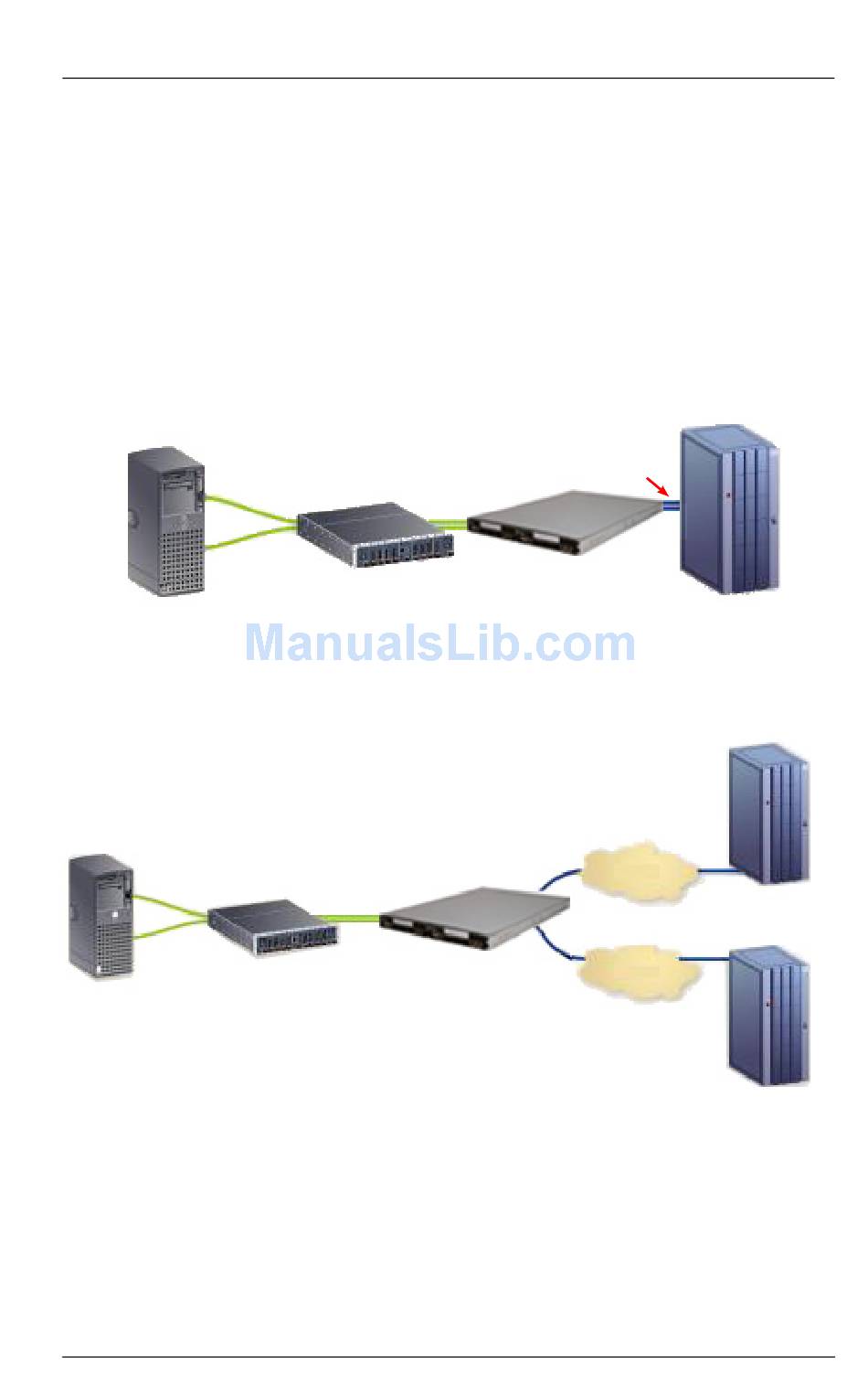

Figure 1 shows the iSR6200 connecting iSCSI servers to a direct-attached storage array.
Server
Figure 2 shows the iSR6200 connecting iSCSI servers to a SAN-attached array.
iSCSI
iSCSI
Initiator
Server
Quick Start Guide
iSCSI
iSCSI
Initiator
IP Switched
Network
Figure 1. iSR6200 in Direct Attach Configuration
iSCSI
IP Switched
Network
Figure 2. iSR6200 in SAN-Attach Configuration
iSCSI
iSR6200
Fibre
Channel
Fibre
iSR6200
Channel
Fibre
Channel
RAID-Based Fibre
Channel Storage System
Fibre Channel
SAN
RAID-Based
Fibre Channel
Storage Systems
Fibre Channel
SAN
