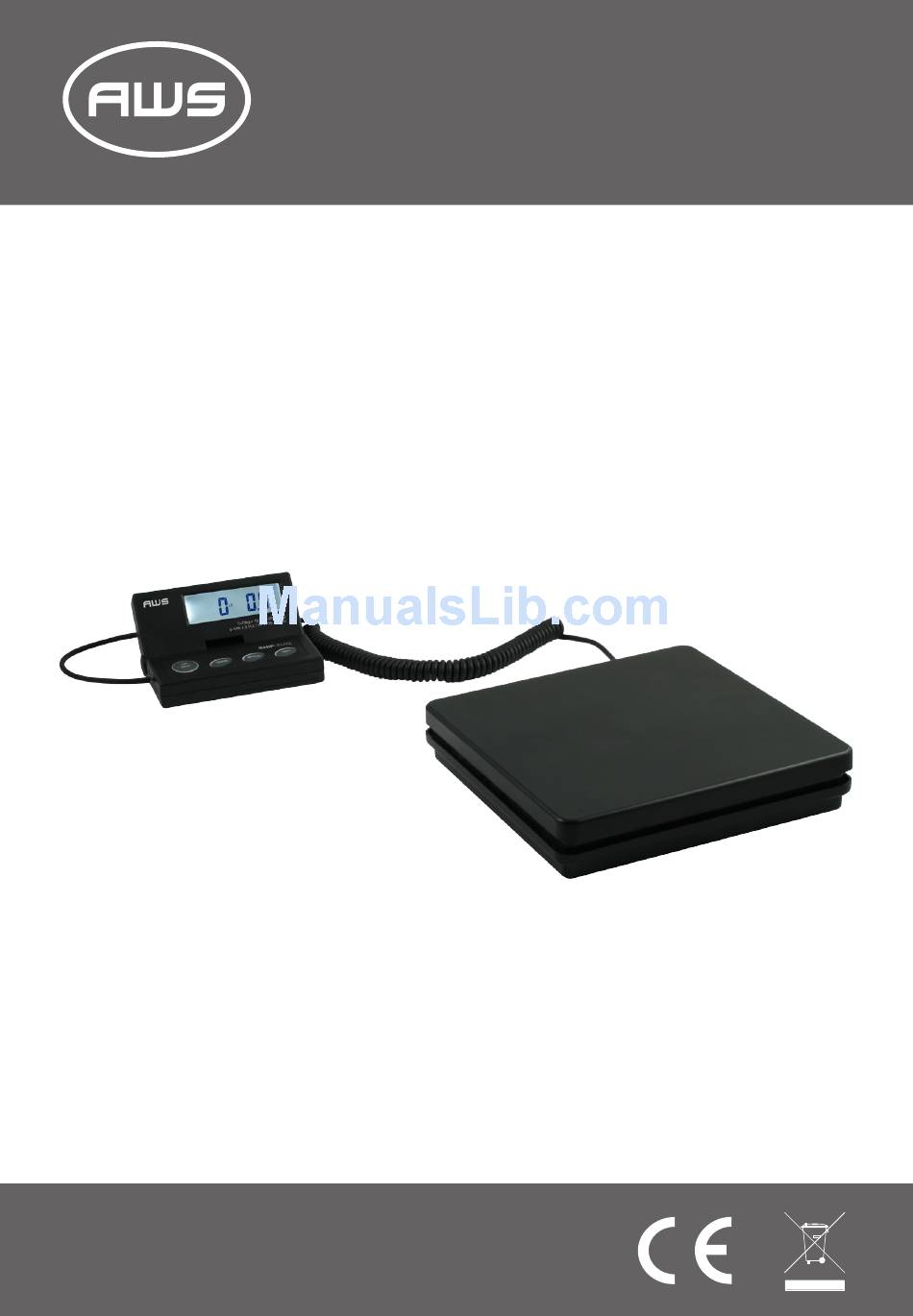

- Page 1 American Weigh Scales SHIP-ELITE User Manual SE-50 (0-20kg x 1g /20-50kg x 2g ) (0-110lb x 0.1oz) Copyright © 2011 American Weigh Scales, Inc. All rights reserved. Rev. 1.1...
- Page 2 SHIP-ELITE Thank you for purchasing the American Weigh SHIP-ELITE digital shipping scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: •...
- Page 3 II. Indicator Setup 1. Remove the parts from the box. 2. Connect one end of the included cable to the side of the scale platform and the other end to the indicator (display). AC-Adapter Indicator Bottom of Indicator (to wall outlet) Optional Battery Installation Base...
- Page 4 SHIP-ELITE 2. If you are replacing the batteries, make sure the positive and negative contacts are properly aligned. V. Operation 1. Place the scale platform on a flat, level surface and press the ON/OFF key to turn the scale on. 2. Once the start-up process completes and the scale goes to zero you are ready to weigh.
- Page 5 Model Acceptable Calibration Recommended Tolerance (±) Weight Accuracy Class SE-50 20kg OIML M2 X. Adjustment Do not proceed without a 20kg calibration weight 1. Press and hold the MODE key until the display shows “CAL”. 2. Press the MODE key again. The display will flash “CAL” followed by the calibration weight value (see chart).
- Page 6 2. O-LD - Maximum capacity exceeded. Remove the extra weight to avoid damaging the load cell. 3. L - Batteries are low. Replace the batteries. SHIP-ELITE (SE-50) Max. Capacity 0-20kg / 0-44lb 20-50kg / 44-110lb Readability 1g / 0.1oz...
