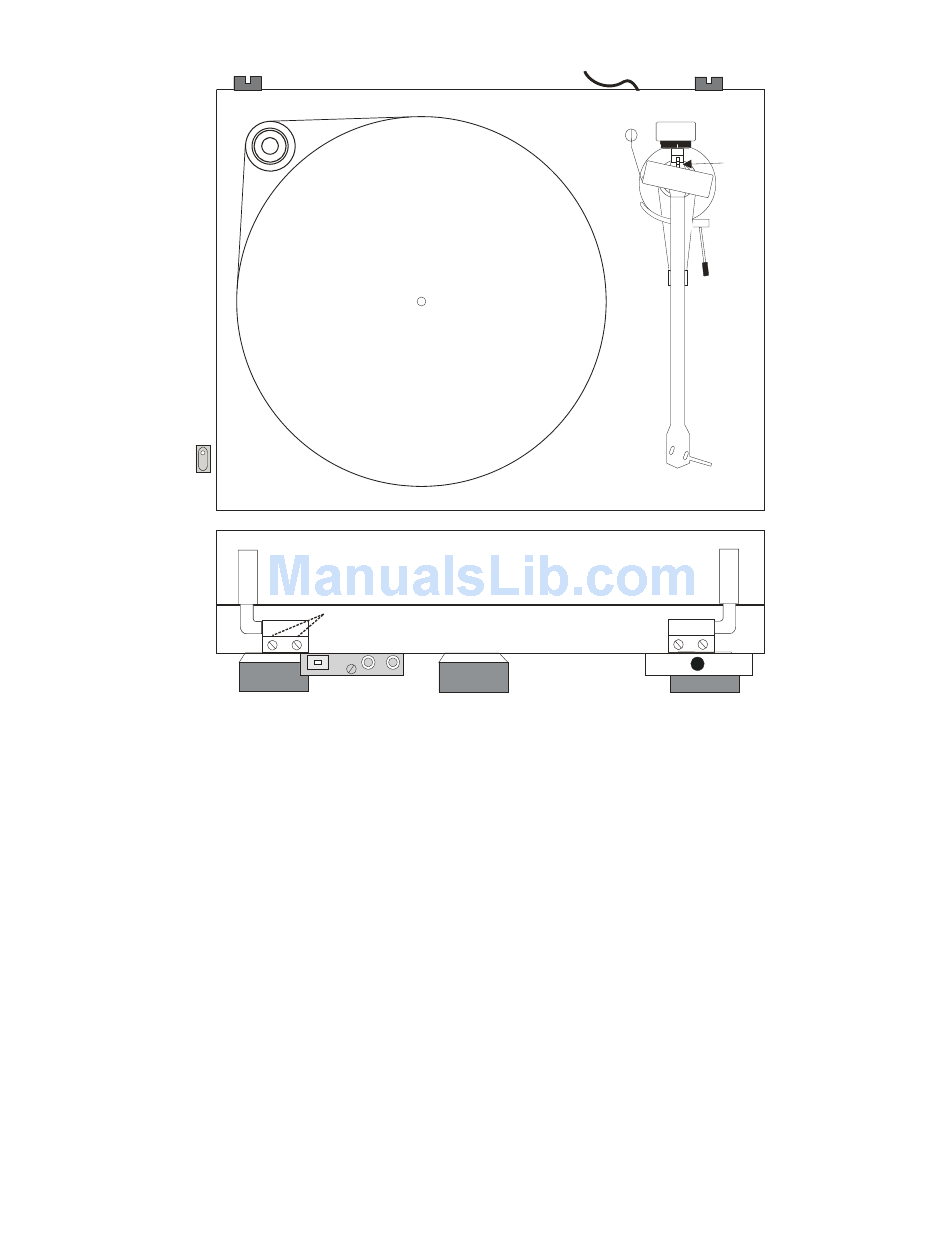

Controls, features and connections

1 Power switch
2/22 Stepped drive pulley and drive belt *
3 Platter with felt mat *
4/44 Tonearm counterweight * and counterweight support rod
5 Tonearm lift lever
6/66 Tonearm rest and removable transport locks
7/77 Tonearm tube with tonearm bearing housing and red coloured transport lock
8 Anti-skating stub with anti-skating weight adjustment scale
9 Anti-skating weight support hoop
10 Anti-skating weight with wire *
11 Headshell with finger lift and fitted Ortofon OM 5E cartridge
12 Phono output sockets, earth connection and USB-out
13 Power supply socket
14 Hinge with hinge fasteners
Signal output and USB-cable
Power supply (not shown) *
Stylus pressure gauge - white plastic instrument with mN scale (not shown) *
Two hexagonal keys (not shown) *
