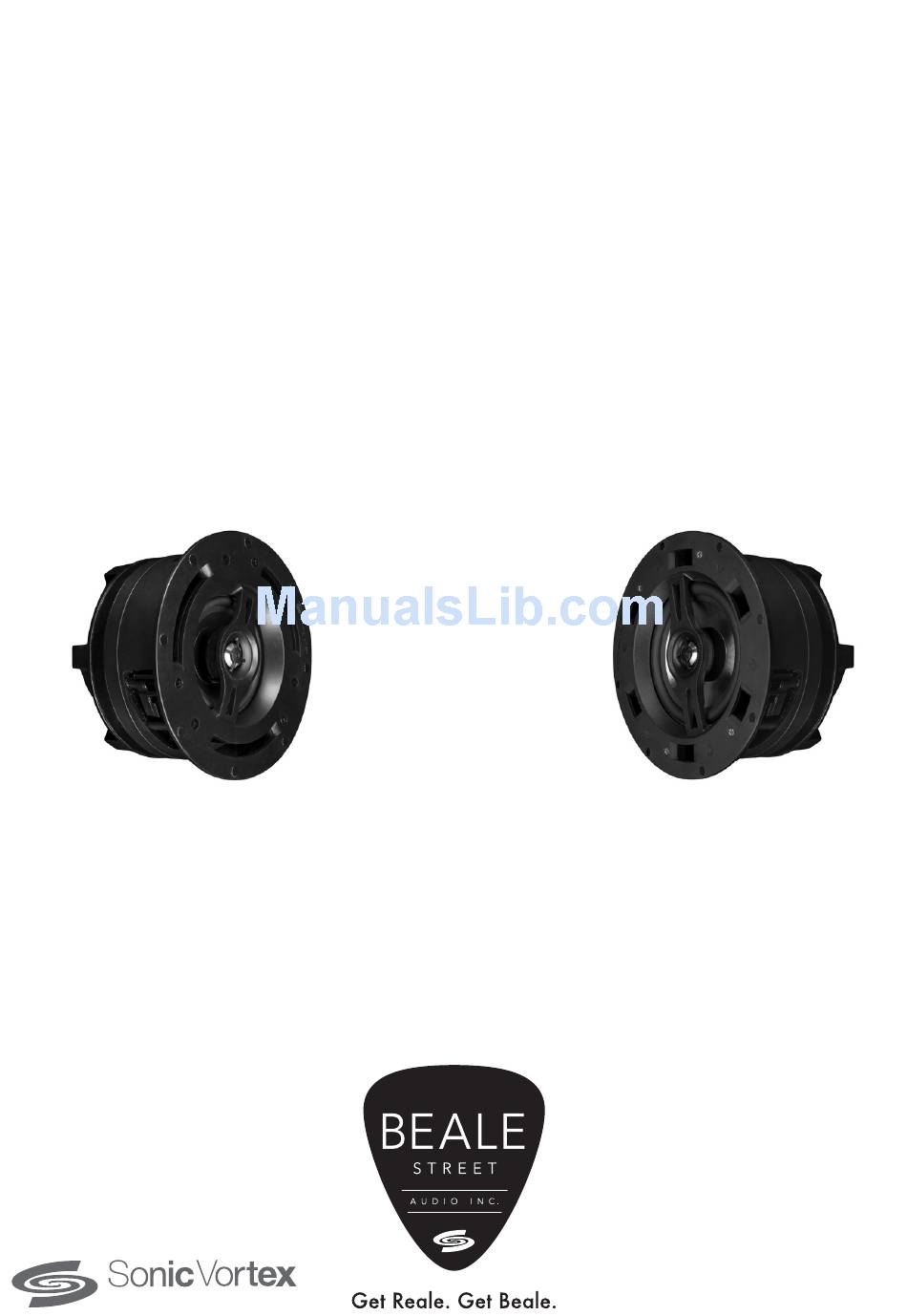

Page 1: Installation Guide
Beale Street Audio ICW4-MB, ICW6-MB Shallow Depth In Wall/In Ceiling Speakers Installation Guide POWERED BY: T E C H N O L O G Y... - Page 2 Introduction Congratulations and thank you for purchasing Beale Street Audio In Ceiling speakers and subwoofers with Sonic Vortex®. Our patented Sonic Vortex Technology is based on Ported Transmission Line design and incorporates a compact, integrated enclosure. Most In Ceiling speakers do not utilize a back box, even fewer have an enclosure, and only a Sonic Vortex speaker has an Integrated Transmission Line Ported Enclosure.
-
Page 3: Speaker Placement
Speaker Placement Even though the Beale Street Audio BXCW401 and BXCW651 have a shallow depth of less than 4” (101.6mm) when installing in wall/in ceiling speakers, (or in wall/in ceiling anything for that matter) it is always a good idea to find out what is in the wall/ceiling before cutting holes. Be aware of the location of plumbing, electrical and structural elements that may affect speaker placement. - Page 4 400’ (122m) 14AWG NEW CONSTRUCTION Beale Street Audio speaker installation can be simplified by using a Beale Street Audio new construction EZBracket, (sold separately; visit www.getbeale.com for additional information). This is installed prior to drywall installation and allows for precise speaker placement and simplifies the final installation of the speaker.
- Page 5 Installation • Once you have determined your locations, use a pencil to mark the hole to cut out for the speaker using the supplied template. Don’t forget to allow for the size of the speaker bezel if you are installing the speaker near a sidewall or other item that could become an obstacle.
- Page 6 Installation 16AWG (min) 16AWG (min) Stranded Speaker Wire Stranded Speaker Wire + to + + to + - to - - to - L+ R- R+ Amplifier Speaker Terminal Round Grille • With the ‘dogs’ flush to the side of the speaker, insert the speaker into the ceiling and tighten each of the four screws for the speakers’...
- Page 7 Installation Square Grille • With the ‘dogs’ flush to the side of the speaker, insert the speaker into the square bezel as shown. 1. Slide the Speaker into the Square Bezel 2. Assembled Speaker and Square Bezel 3. Slide the Speaker/Square Bezel into the 4.
- Page 8 Installation • With the speaker/bezel assembly installed in the wall, using a level, square the bezel to the wall and then turn the ‘dog screws’ to secure the speaker and bezel to the drywall. Turn screws to extend dogs to lock speaker and bezel to drywall Turn screws to extend dogs to lock speaker and bezel...
-
Page 9: Speaker Troubleshooting
Troubleshooting Beale Street Audio speakers are designed to function trouble-free. Most problems that occur are due to simple issues. If you have trouble, please check the list of simple fixes below. SPEAKER TROUBLESHOOTING PROBLEM SOLUTION NO SOUND Verify that there is audio from the source selected. -
Page 10: Specifications
Specifications 4” IN WALL/IN CEILING ICW4-MB 4” In Wall / In Ceiling 2-way • Shallow Depth – Under 4 Inches • 4” Injected Polypropylene Woofer • 3/4” Aluminum Dome Tweeter • Butyl Rubber Surround • Pivoting Tweeter • Sonic Vortex Ported Transmission Line Enclosure •... - Page 11 Notes...
-
Page 12: Limited Warranty
Certified Beale Street Audio/Beale Street Audio Dealer. Proof of purchase may be required. Note: It is the policy of Beale Street Audio/Beale Street Audio to continuously incorporate improvements into our products. All specifications, warranty terms, and prices are subject to change without notice.
