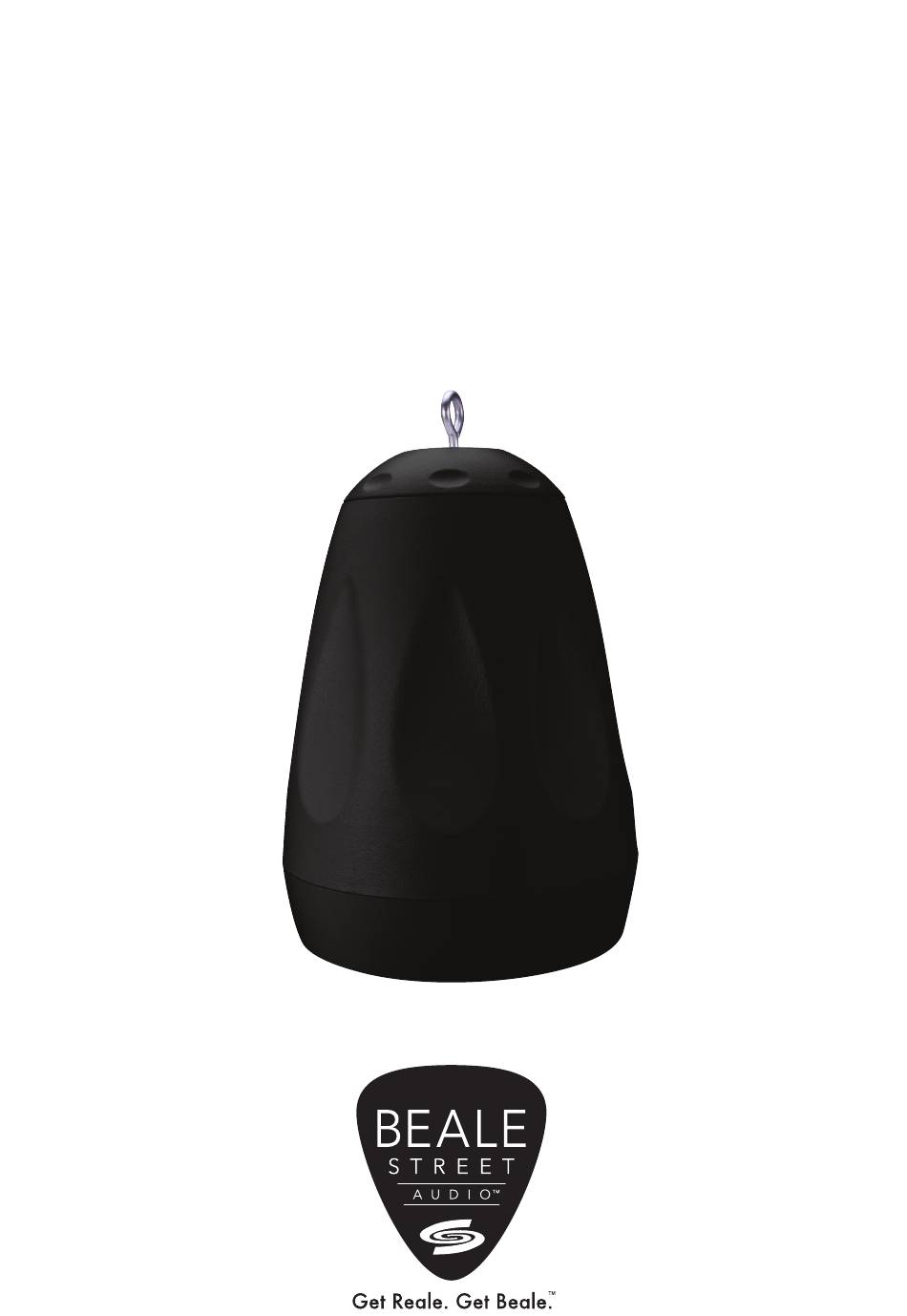

- Page 1 Beale Street Audio WP6V-BSC 70 Volt/8 Ohm Pendant Speaker Installation Guide...
-
Page 2: Speaker Wire
Introduction Congratulations and thank you for purchasing Beale Basics Series speakers from Beale Street Audio! Beale Basics On-Wall/Pendant speaker installs with ease using the provided pendant or wall mount hardware. Please follow the instructions in this manual to assure proper installation and to achieve the full performance and satisfaction you would expect from Beale Street Audio. -
Page 3: What's Inside
Features 6.5” On-Wall/Pendant Speaker WP6V-BSC • Woofer: 6.5” Polypropylene • Tweeter: 1” Silk Dome • RMS Power: 40W • Nominal Impedance: 8Ω • Sensitivity: 85db • Transformer: 8 Ohm, 5W, 10W, 20W, 40W • Frequency Response(±3dB): 100Hz-20kHz • Indoor/Outdoor Rating: IP66 •... -
Page 4: Installation
Installation Choose a location for each speaker that can support the weight of the speaker. 1. At each speaker location, route the speaker cable hanging from the ceiling through the top cover and dress the cables to the wire rope. Using the provided back cover, slide the speaker cables through the hole in the back cover 2. - Page 5 HANGING NOTE: Make sure the speaker is properly secured to the building’s structure. Please use the proper screws, bolts, or anchors as failure to do so may cause the speaker to become unsecured and cause potential damages and injuries. WALL MOUNT NOTE: When mounting the speaker to the wall or ceiling, make sure the proper screws and/ or bolts are used.
- Page 6 70/100V Configuration The total number of speakers multiplied by the tap value cannot exceed the output power (in watts) of the 70V/100V amplifier. The example above shows 5 total speakers. Using the 10W taps, you will need an amplifier with at least 50W (5 speakers x 10W tap). A good rule of thumb is to select an amplifier with 20% greater power;...
-
